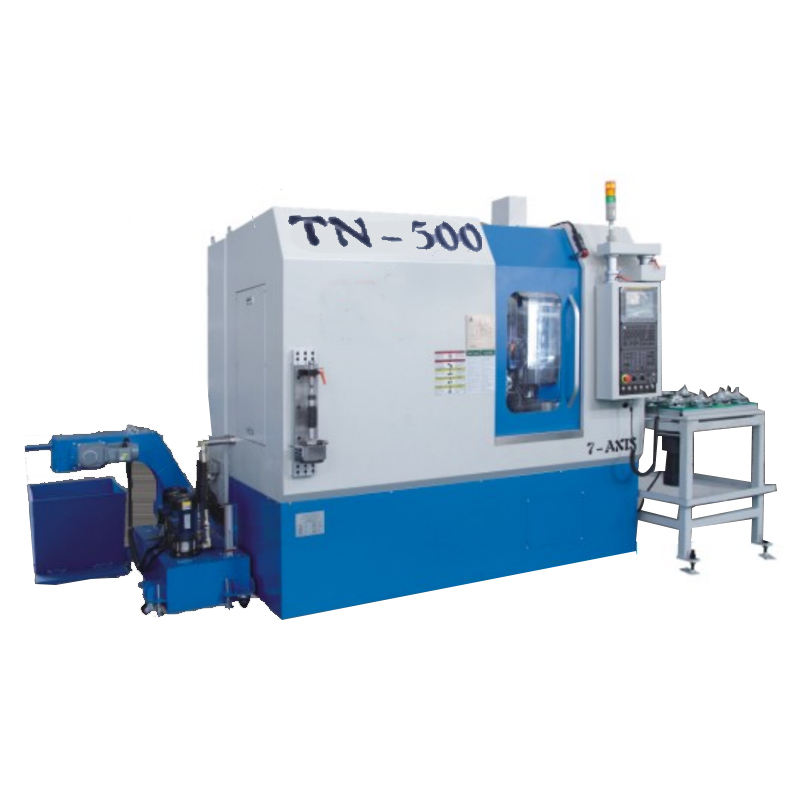

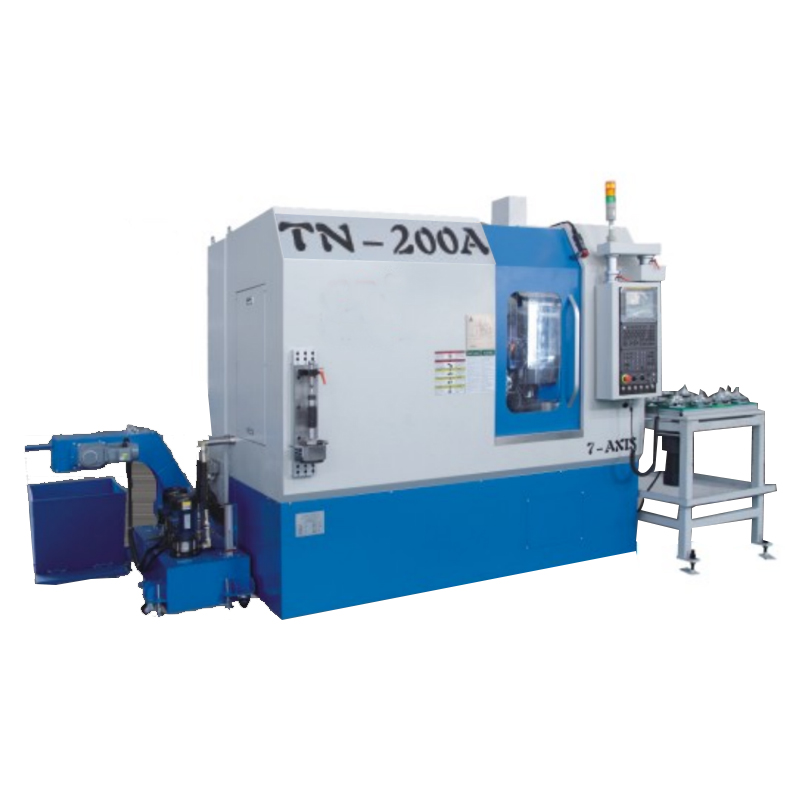

Workpiece | TN-200 | TN-350 | TN-500 | |||||||||
Max. workpiece (OD.x Mod.) | Φ200mm xM6 | Φ350mmxM8*4 | Φ500mmxM14 | |||||||||
Max.helix angel | ±45° | ±45° | ±35°/-45° | |||||||||
Table diameter | Φ200mm | Φ260/Φ300mm*5 | Φ450mm | |||||||||
Hob | ||||||||||||
Taper of spindle nose | BT#40 | BT#40 | BT#50 | |||||||||
Max.Hob Size (OD.X L) | Φ150mmx220mm | Φ150mmx220mm | Φ200mmx240mm | |||||||||
Max. hob shift travel | 180mm | 180mm | 240mm | |||||||||
Motion parameters | ||||||||||||
Hob spindle ( B axis) | Max.1000rpm | S1=358Nm S3=95.5Nm | Max.1000rpm | S1=35.8Nm S3-95.5Nm | Max.500rpm | S1=52.5Nm S3=118Nm | ||||||
Table rotation ( C axis ) | Max200rpm/300rpm6 | Direct drive 900Nm/1000Nm6 | Max.200rpm/300rpm | Direct drive 900Nm/1000Nm6 | Max.100rpm | Direct drive 2000Nm | ||||||
Radial Feed ( Xaxis ) | Max.12000mm/min | 250mm(35-285mm) | Max.12000mm/min | 250mm(35-285mm) | Max.5000mm/min | 310mm(90-400mm) | ||||||
Tangential Feed ( Y axis ) | Max2500mm/min | 180mm(0-180mm) | Max.2500mm/min | 180mm(0-180mm) | Max.1500mm/min | 240mm(0-240mm) | ||||||
Axial Feed(Zaxis) | Max.10000mm/min | 240mm(150-390mm) | Max10000mm/min | 250mm(150-400mm) | Max.3800mm/min | 365mm(400-765mm) | ||||||
Helix angel ( A axis ) | Max.720deg/min | ±45° | Max.720deg/min | ±45° | Max.200deg/min | +35°/-45 | ||||||
Hyd. tailstock ( U axis) | Max.6000mm/min | 300mm(340-640mm) | Max.6000mm/min | 350mm(340-690mm) | Max.5000mm/min | 380mm(250-630mm) | ||||||
Machine specifications | ||||||||||||
Main Power | 35KVA | 35KVA | 40KVA | |||||||||
Control system | FANUC Oi-MF PIus | FANUC Oi-MF PIus | FANUC Oi-MF PIus | |||||||||
(L x W x H) Floor space | 3950x3450x2750mm(including peripheral layout) | 3950x3450x2750mm(including peripheral layout) | 4500x3700x3050mm(including peripheral layout) | |||||||||
Weight ( Approx.) | 9.5ton | 10.0ton | 14.0ton | |||||||||
