Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control

Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop ControlProducts DescriptionSP1840 Double Column Machining CenterThe SP1840 Double Column Machining Center offers several advantages and finds wide application in various industries. Here are its k......

Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control

Products Description
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control

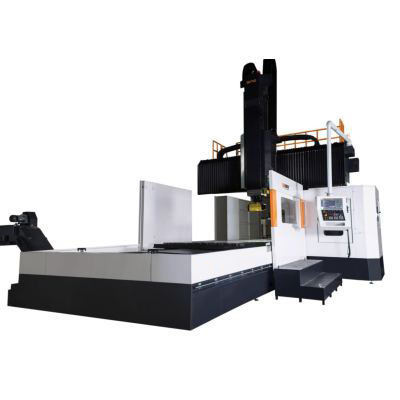

SP1840 Double Column Machining Center
The SP1840 Double Column Machining Center offers several advantages and finds wide application in various industries. Here are its key advantages and applications: 1. High Precision Machining: The SP1840 is renowned for its exceptional precision and accuracy in machining operations. It is well-suited for industries that require tight tolerances and precise positioning, such as aerospace, automotive, and medical manufacturing. 2. Large Workpiece Machining: With its spacious working area, the SP1840 can accommodate large workpieces. It is ideal for industries that deal with oversized components, such as heavy machinery, construction equipment, and wind energy applications. 3. Heavy-Duty Machining: The robust double column structure of the SP1840 provides stability and rigidity during heavy-duty machining tasks. It can handle tough materials like steel, stainless steel, and titanium, making it well-suited for industries such as energy, oil and gas, and heavy equipment manufacturing. 4. Multi-Axis Machining: The SP1840 supports multi-axis machining, including 3-axis, 4-axis, and 5-axis operations. This versatility allows for complex machining tasks, such as simultaneous milling, drilling, and contouring, making it suitable for industries that require intricate part geometries. 5. High-Speed Machining: Equipped with a high-speed spindle and advanced control systems, the SP1840 enables high-speed machining operations. It is beneficial for industries that demand efficient material removal rates and reduced cycle times, such as automotive, aerospace, and electronics manufacturing. 6. Efficient Tool Changing: The SP1840 features an automatic tool changer, allowing for quick and seamless tool changes. This feature enhances productivity by minimizing downtime and enabling continuous machining operations. 7. Versatile Applications: The SP1840 finds applications in various industries including aerospace, automotive, energy, mold and die, and general machining. It can handle a wide range of materials, from metals to composites, catering to diverse manufacturing needs. 8. Reliability and Durability: Built with high-quality components and a robust construction, the SP1840 offers reliable performance and long-term durability. It is designed to withstand demanding production environments, ensuring consistent results and minimizing maintenance requirements.
Model
SP1530
SP1540
SP1820
SP1830
SP1840
Travel and processing range
X-axis travel
mm
3100
4100
2050
3200
4200
Y-axis travel
mm
1650
1650
1850
1850
1850
Z-axis travel
mm
800
800
1000
1000
1000
Distance from spindle nose to worktable
mm
160-960
160-960
250-1250
250-1250
250-1250
Distance from ground to workbench surface
mm
775
775
795
795
795
Distance between two columns
mm
1650
1650
2000
2000
2000
Staging
Workbench area (X-axis direction)
mm
3000
4000
2000
3000
4000
Workbench area (Y-axis direction)
mm
1500
1500
1800
1800
1800
Maximum load of workbench
kg
5000
6000
6000
10000
12000
Size and number of T-shaped grooves on the surface of the workbench (width * number of slots * spacing)
mm
22*9*160
22*9*160
22*11*160
22*11*160
22*11*160
Feed System
Rapid displacement (X-axis)
mm/min
10000
10000
10000
10000
10000
Rapid displacement (Y-axis)
mm/min
10000
10000
10000
10000
10000
Rapid displacement (Z-axis)
mm/min
10000
10000
10000
10000
10000
Main spindle
Main spindle power (continuous/30 minutes)
kw
15/18.5
15/18.5
15/18.5
15/18.5
15/18.5
Maximum speed (vertical shaft)
rpm
6000
6000
6000
6000
6000
Spindle hole thrust
Nm
143
143
143
143
143
Spindle taper hole
#
50
50
50
50
50
Spindle cutting force
kgf
1800±10%
1800±10%
1800±10%
1800±10%
1800±10%
Main spindle bearing size
mm
7018
7018
7018
7018
7018
Direct drive spindle, C.T.S, Gear box,Increase column height, Upgrade tool magazine to 30T,40T,60T.
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Equipped with oil chiller,cycle cooling
source for spindle unit and motor cabinet.
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Hydraulic station,power source for balancing cylinder and spindle tool clamping and unclamping.
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Lubrication station is controlled by
CNC system which can test and alarm
automatically.
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Level test of cool liquid
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Tool magazine has adjusting device
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Spindle unit(Hydraulic tool clamping and unclamping)
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
Application
Heavy Cutting SP1840 Double Column Machining Center CNC Lathe Cnc Control Machine With Semi-closed Loop Control
