Product Description

High Precision Large Double Helical Gear Herringbone Gear Cylindrical Gears

Products Description

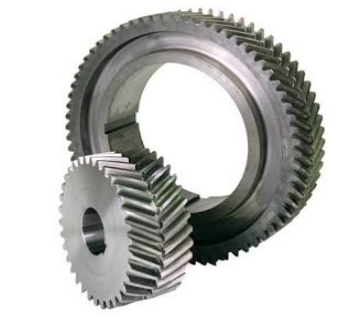

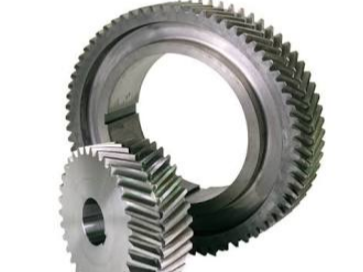

High Quality Herringbone Gear

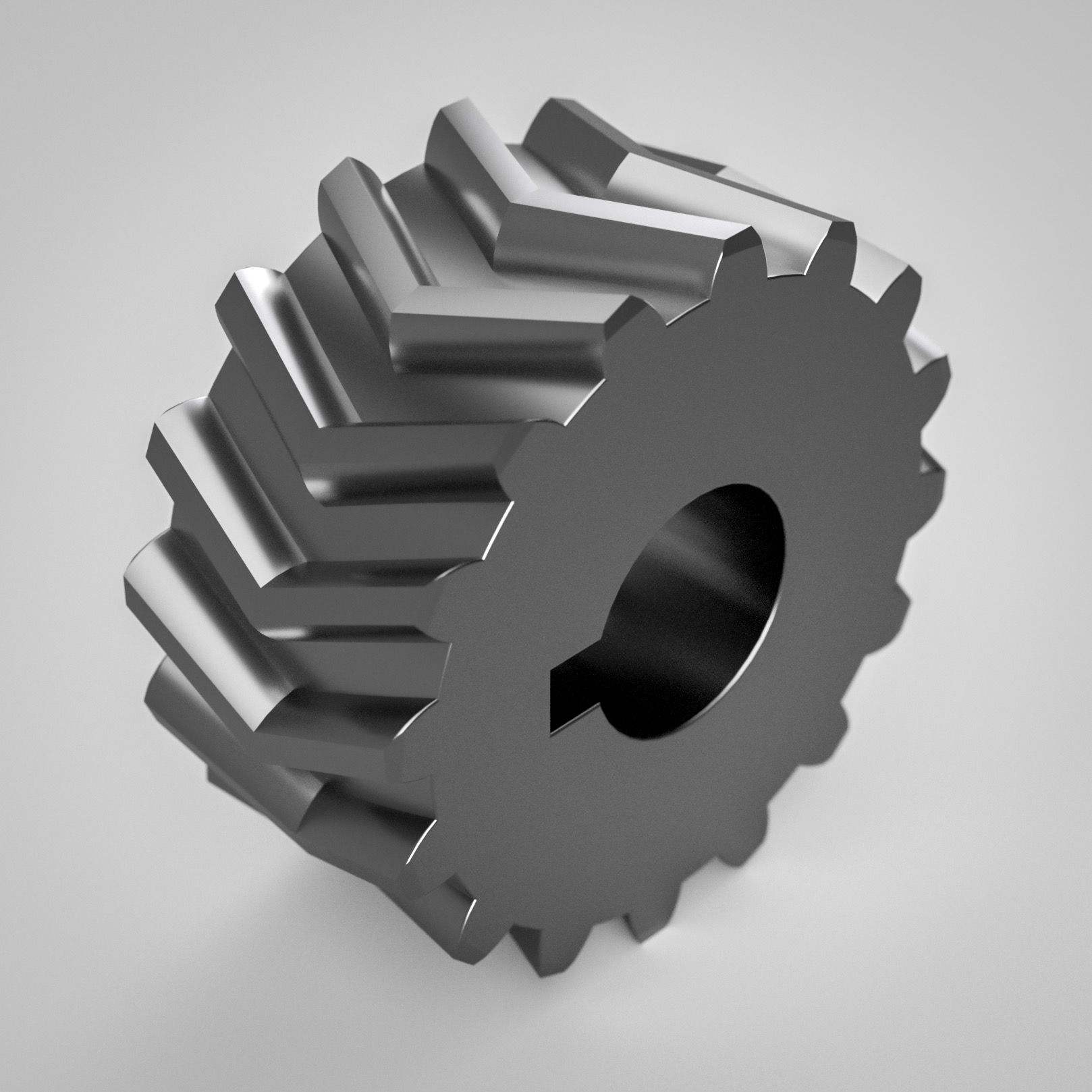

A herringbone gear is a specific type of double helical gear. This specialist type of gear has a side to side (not face to face)
combination of two helical gears of opposite hands.

A combination of left-handed and right-handed helical gears with the same twist angle is called a double helical gear. Double helical gears transmit rotational motion between two parallel shafts.
Double helical gears and herringbone gears are the same type of gear, but those with a groove in the center are called double helical gears, while those without a groove where the left and right teeth meet in the center, are called herringbone gears.

Advantages:

Herringbone gears have a high degree of overlap, with at least 2 teeth meshing at any given moment. The meshing process between herringbone cylindrical gear teeth is an excessive process. and the force on the gear teeth is graduallyfrom small to large, and then from large to small. herringbone gears have high load-bearing capacity and work smoothly. Herringbone gear theory has no or very small axial force . due to the opposite direction of tooth helix angle in the symmetry direction.

For more details, please click here to contact us！

Classiffy	Spur Gear, Helical Gear , Herringbone Gear, Spiral Bevel Gear ,Bevel gear
Material	Medium Carbon Steel: 35#, 45# Carburizing Steel:20CrMnTi, 20CrMnMo Alloy Steel:40Cr, 35CrMo, 42CrMo, 40CrNiMo Cast Iron:HT250,QT400
Standard	DIN GB ISO JIS BA ANSI
Module	Hobbing up to 40 Gear Milling up to 50
Heat Treatment	Hardening&Tempering,Surface Quenching, Integral Quenching,Carburizing Quenching ,Tempering , Normalizing,Nitriding
Application	Be widely used in all kinds of transmission, speed changing, rotation and other civilian or equipment.
