Product Description

HL420 Vertical Machine Automatic Packing Machine for Biscuits Stir Fried Dried Fruits Sugar Material with Measuring Cup Metering

Products Description

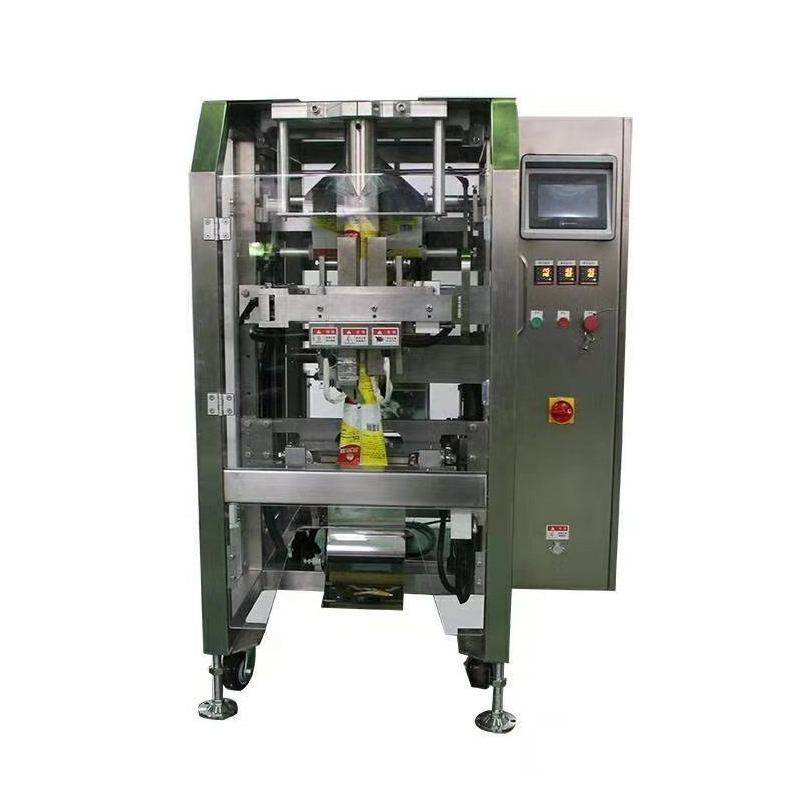

HL420 Vertical Automatic Packaging Machine

Application Suitable for measuring and packaging irregular block and granular materials, such as candy, puffed food, biscuits, roasted nuts, sugar, frozen food, milk powder, milk tea, starch, seasoning, etc.

Model	HL420
Bag Size	L 80-300mm W 80-200mm
Packaging size	L 1320 × W 1050 × H 1750mm
Maximum packaging speed	25-75 packs/min
Power Supply and Power	AC220V, 50-60Hz, 3.0KW
Compressed air consumption	6-8kg/m2, 0.15m3/min
Whole machine weight	500kg

optional devices

1. Continuous or multiple packages with short package cutting function

2. Hook hole function (can be used to drill round holes and various irregular holes)

3. Supporting discharge conveyor

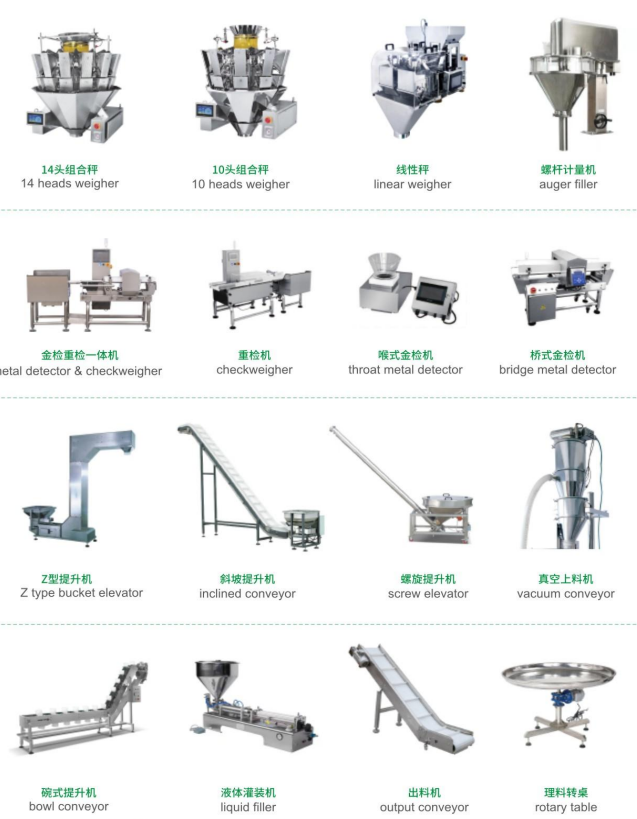

4. Various automatic or semi-automatic measuring and conveying mechanisms

5. Inflation or exhaust function 6. Compressed air system and nitrogen generator

Functional Features

1. Equipped with safety protection that meets the requirements of enterprise safety management 2. Adopting intelligent temperature controller for accurate temperature control; The packaging seal is aesthetically pleasing and smooth 3. Adopting PLC servo system, pneumatic control system, and ultra large display touch screen to form the driving control core; Maximized the control accuracy, reliability, and intelligence of the entire machine 4. This machine and measuring configuration can automatically complete the entire packaging process of measuring, feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, and automatically complete counting 5. The touch screen can store various packaging process parameters for different products, and can be used at any time without resetting when changing products 6. Equipped with a fault display system to assist in troubleshooting in a timely manner 7. Pillow shaped bags and hanging hole bags can be made according to customer needs 8. There are options for both full stainless steel models and carbon steel spray coating models
