Product Description

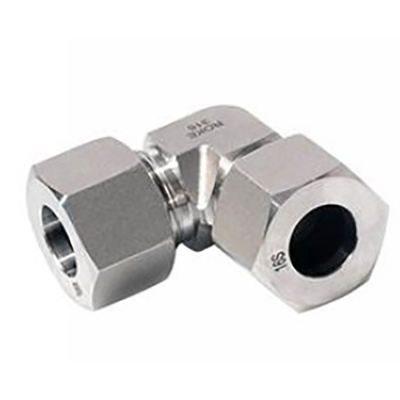

Hydraulic Cylinder Parts Quick Connect Parker Weld Elbow-WAS Hydraulic Fitting For Tractor Supply

Product Description

Hydraulic fittings are components used to connect, terminate, or adapt hydraulic hoses, tubes, and other hydraulic components in a hydraulic system. They ensure a secure and leak-free connection, allowing for the proper transmission of hydraulic fluid and pressure.

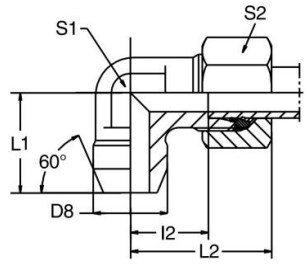

WAS Part No.	Series Working Pressure (bar/psi)	Tube O.D.	L1	L2	l2	S1	S2	D
-WAS06L	L light 315 bar 4560 psi	6	19	27	12	14	12	10
-WAS08L		8	23	29	14	17	12	12
-WAS10L		10	24	30	15	19	14	14
-WAS12L		12	25	32	17	22	17	16
-WAS15L		15	30	36	21	27	19	19
-WAS18L		18	33	40	23.5	32	24	22
-WAS22L	160 bar 2320 psi	22	37	44	27.5	36	27	27
-WAS28L		28	42	47	30.5	41	36	32
-WAS35L		35	49	56	34.5	50	41	40
-WAS42L		42	57	63	40	60	50	46
-WAS06S	S heavy 630 Bar 9130 psi	6	23	31	16	17	12	11
-WAS08S		8	24	32	17	19	14	13
-WAS10S		10	25	34	17.5	22	17	15
-WAS12S		12	29	38	21.5	24	17	17
-WAS14S		14	30	40	22	27	19	19
-WAS16S	400 bar 5800 psi	16	33	43	24.5	30	24	21
-WAS20S		20	37	48	26.5	36	27	26
-WAS25S		25	42	54	30	46	36	31
-WAS30S		30	49	62	35.5	50	41	36
-WAS38S	315bar 4560psi	38	57	72	41	60	50	44

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube： 1/2˚ angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45˚ is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

There are various types of hydraulic fittings available, including: 1.Straight fittings: These fittings have a straight design and are used to connect two hoses or tubes in a straight line. 2.Elbow fittings: Elbow fittings have a 90-degree or 45-degree bend and are used to change the direction of a hydraulic line. 3.Tee fittings: Tee fittings have a T-shaped design and allow for the connection of three hydraulic lines at a single point. 4.Cross fittings: Cross fittings have a plus-shaped design and enable the connection of four hydraulic lines at a single point. 5.Adapter fittings: Adapter fittings are used to connect different types of hydraulic components or thread sizes together. 6.Coupling fittings: Coupling fittings are designed for quick and easy connection and disconnection of hydraulic lines. 7.Flange fittings: Flange fittings involve the use of flanges to join hydraulic components, such as hoses or tubes, to valves, cylinders, or other equipment. These are just a few examples of the most common hydraulic fittings. It's important to choose fittings that match the specific requirements of your hydraulic system, including pressure rating, thread size, and material compatibility. When selecting hydraulic fittings, it's recommended to consult with hydraulic system manufacturers, suppliers, or hydraulic experts who can provide guidance on the appropriate fittings for your application.
