Product Description

Integral S60 Series SCU Hydraulic Steering Control Unit

Product Description

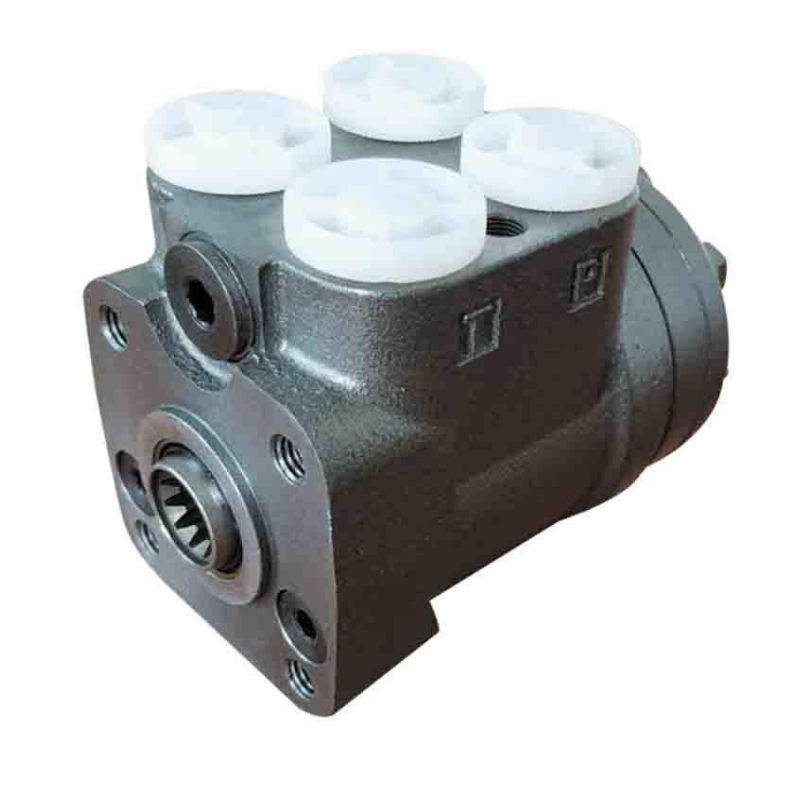

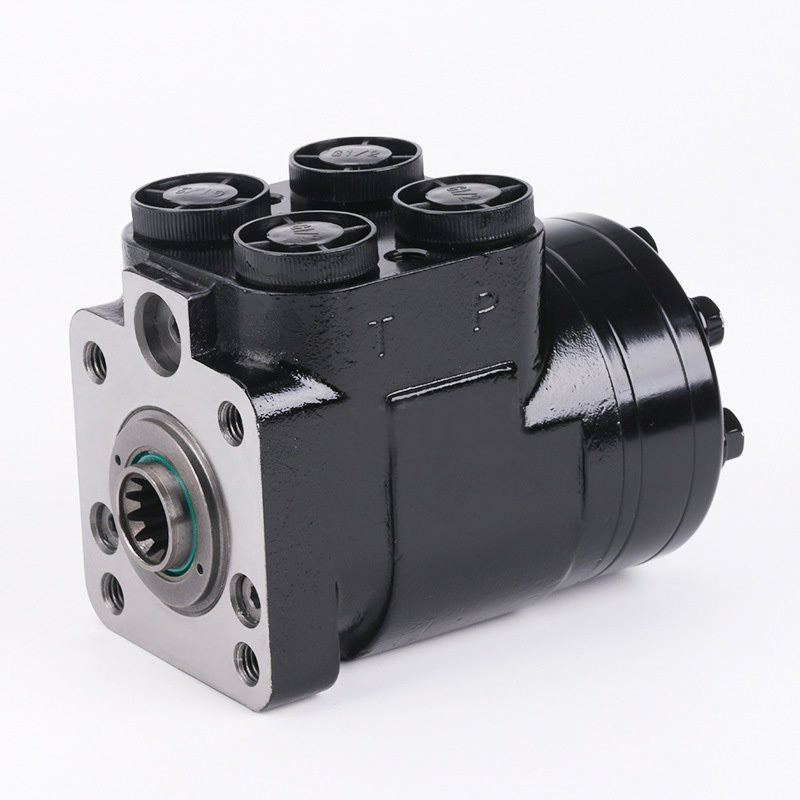

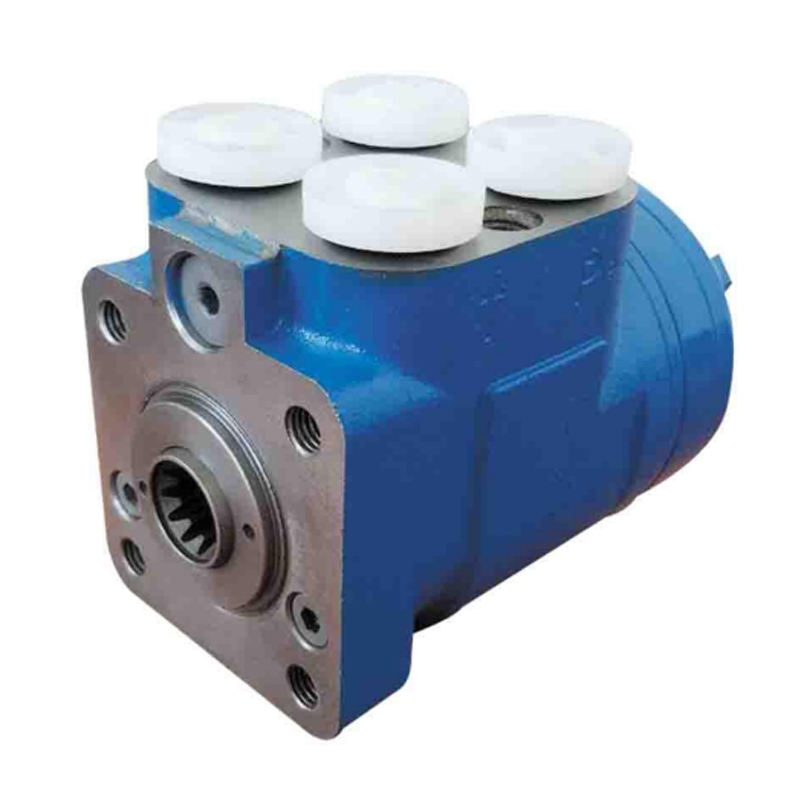

S60 Series Hydraulic Steering Control Unit

S60 series hydraulic steering control unit is an integral hydraulic steering control unit with all combined valve functions, including inlet check valve, inlet safety valve, human steering check valve, buffer valve and oil supplement valve. Therefore, the structure is compact and the installation is convenient.

• Combination valve design integrated into the hydraulic steering control unit, compact structure and easy installation.
• Low hydraulic noise
• Casting inner channel design, small pressure loss
• Selectable open core, closed core, load sensing circuit
• Displacement range: 50~500ml/r

Main performance parameters

Maximum inlet pressure……………17.5MPa
Maximum continuous back pressure………………2.1MPa
Steering torque
Standard moment………………………1.8 ~ 3.0Nm
Low torque………………………………1.4 ~ 1.8Nm
Ultra-low torque……………………………1.1 ~ 1.4Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

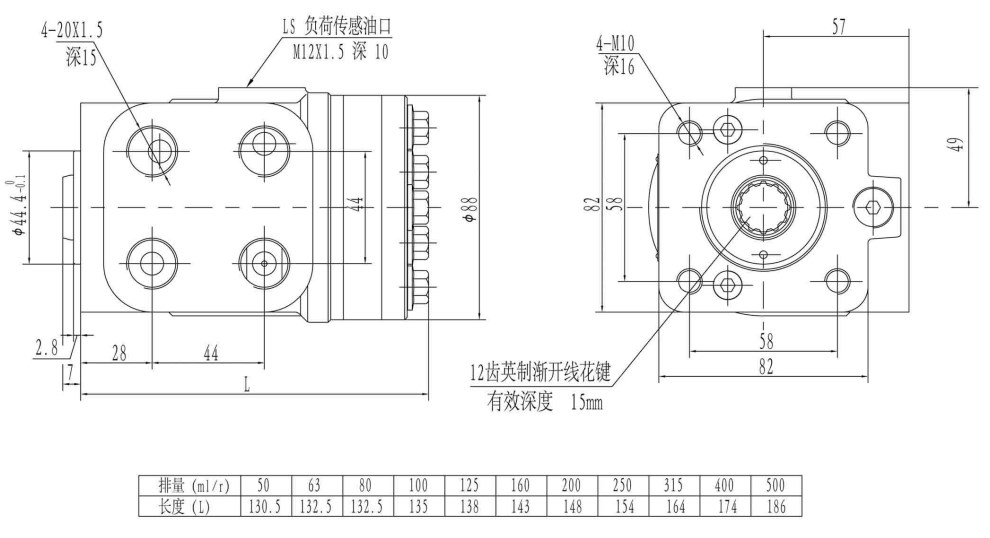

Specification

Oil ports and connecting threads	System type	Displacement/No.
				80	100	125	160	200	250	280	315
4-M20X1.5	No reaction when opening the core	S60-1301	-1302	-1303	-1304	-1305	-1306	-1300	-1307
4-M10	Closed core no response	S60-3301	-3302	-3303	-3304	-3305	-3306	-3300	-3307
2-M12	Static signal	S60-5301	-5302	-5303	-5304	-5305	-5306	-5300	-5307
Ls：M12X1.5	Load sensing
	Dynamic signal	S60-7301	-7302	-7303	-7304	-7305	-7306	-7300	-7307
	Load sensing
4-G1/2	No reaction when opening the core	S60-1311	-1312	-1313	-1314	-1315	-1316	-1310	-1317
4-M10	Closed core no response	S60-3311	-3312	-3313	-3314	-3315	-3316	-3310	-3317
2-M12	Static signal	S60-5311	-5312	-5313	-5314	-5315	-5316	-5310	-5317
Ls：M12X1.5	Load sensing
	Dynamic signal	S60-7311	-7312	-7313	-7314	-7315	-7316	-7310	-7317
	Load sensing
4-M20X1.5 'O'-ring(Φ21.8)	No reaction when opening the core	S60-1321	-1322	-1323	-1324	-1325	-1326	-1320	-1327
4-M10
2-M12	Closed core no response	S60-3321	-3322	-3323	-3324	-3325	-3326	-3320	-3327
Ls：	Static signal	S60-5321	-5322	-5323	-5324	-5325	-5326	-5320	-5327
M12X1.5 ‘O’-ring	Load sensing
	Dynamic signal	S60-7321	-7322	-7323	-7324	-7325	-7326	-7320	-7327
	Load sensing
4-3/4-16 UNF ‘O’-ring	No reaction when opening the core	S60-1331	-1332	-1333	-1334	-1335	-1336	-1330	-1337
4-3/8-16UNC
2-3/8-24UNF	Closed core no response	S60-3331	-3332	-3333	-3334	-3335	-3336	-3330	-3337
Ls：	Static signal	S60-5331	-5332	-5333	-5334	-5335	-5336	-5330	-5337
7/16-20UNF‘O’-ring	Load sensing
	Dynamic signal	S60-7331	-7332	-7333	-7334	-7335	-7336	-7330	-7337
	Load sensing
4-G1/2	No reaction when opening the core	S60-1411	-1412	-1413	-1414	-1415	-1416	-1410	-1417
4-M10X1.5
2-M10x1	Closed core no response	S60-3411	-3412	-3413	-3414	-3415	-3416	-3410	-3417
Ls：	Static signal	S60-5411	-5412	-5413	-5414	-5415	-5416	-5410	-5417
M12X1.5	Load sensing
	Dynamic signal	S60-7411	-7412	-7413	-7414	-7415	-7416	-7410	-7417
	Load sensing

Applications

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
