Irregular Sachet Granule Back Seal Packing Machine for Various Types of Particles

Irregular Sachet Granule Back Seal Packing Machine for Various Types of Particles

Irregular Sachet Granule Back Seal Packing Machine for Various Types of ParticlesProducts DescriptionIrregular sachet granule back seal packing machineThis machine is suitable for products in medicine, food, health care and special industries, such as food additives.desiccants.white sugar.instant co......

Send Inquiry

Product Description

Irregular Sachet Granule Back Seal Packing Machine for Various Types of Particles

Products Description

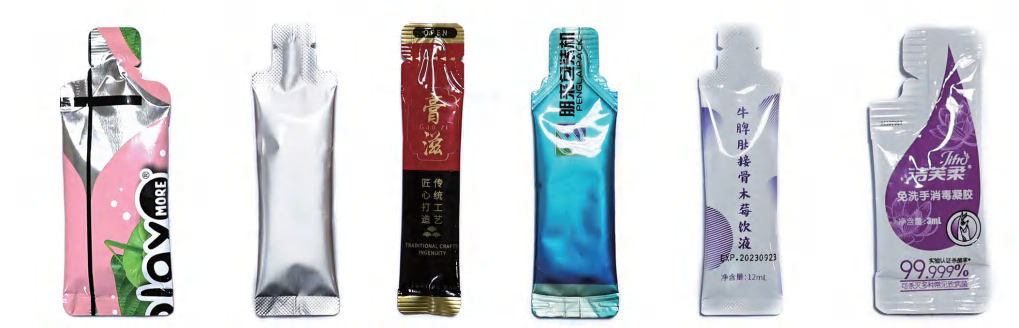

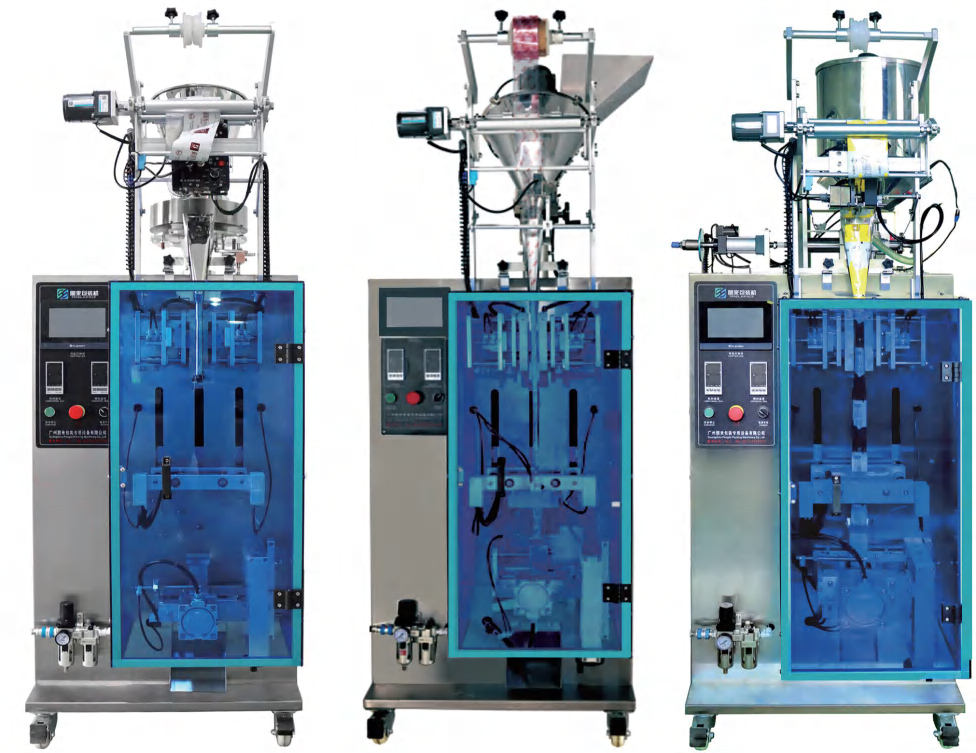

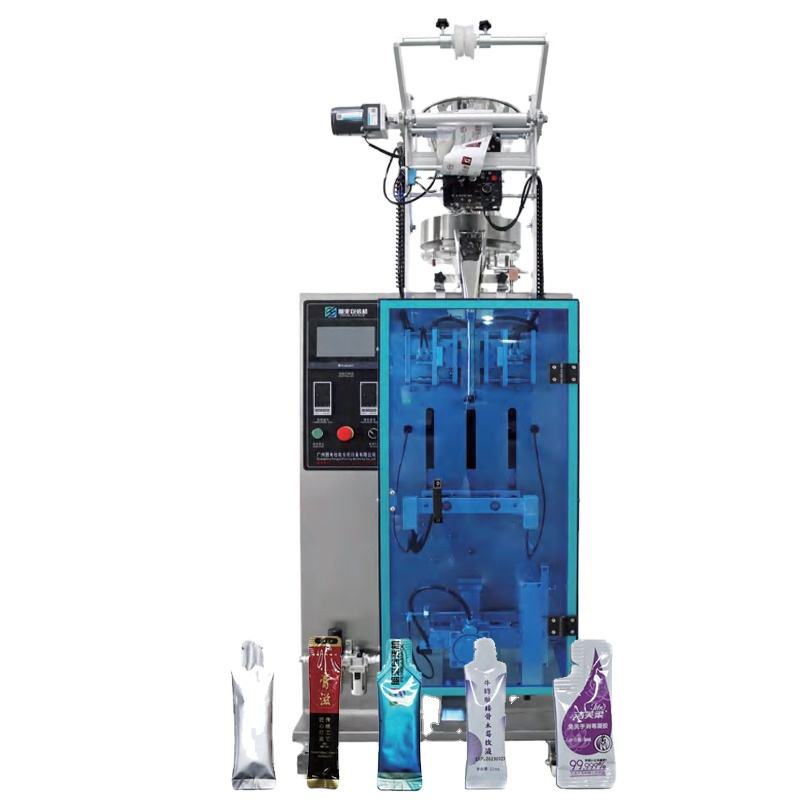

Irregular sachet granule back seal packing machine

This machine is suitable for products in medicine, food, health care and special industries, such as food additives.desiccants.white sugar.instant coffee.traditional Chinese medicineranules and varlous aranules.

Irregular sachet powder back seal packing machine

This machine is suitable for powder products with ,poor fuidity in the food, daily chemical, pesticide and pharmaceutical
industries, such as: freeze-dned powder.protein powder.gastrodia elata powder.kudzu root powder.dendrobium
powder.panaxonotoginseng powder.whole grains powder.substitute Meal powder.milk shake powder.Ganoderma lucidum
powder.bearbilepowder.milk powder.coffee powder.rice powder.soybean milk powder.food additives.solid beverage powder and other powders.

Irregular sachet liquid back seal packing machine

This machine is suitable for liquid, paste and paste materials in medicine, food and daily chemical industries. Such as shampoo.shower gel.face cream.fruit juice.am.seasoning sauce.enzyme drink.enzyme jelly.loquat extract.whole grain health cream and varous liquids.

Equipment performance

1. It can automatically complete all tasks such as filling, measuring, bag making, sealing, cutting, hot pressing, batch number, etc. during the packaging process, and the photoelectric marking positioning does not need to be adjusted 2. Intelligent control system, Chinese and English LED display screen. Just set the parameters to precisely control the operation of the system 3. The heat sealer evenly heats and controls the edges of the bag, and the upper and lower sides can be individually adjusted for temperature. 4. Replacing the cutting tool can achieve straight and patterned cutting, rounded corner punching, and even cutting in a straight shape. The knife bag is stable and reliable without getting stuck, and the operation is simple. It can be equipped with a wheel coding machine , arrange batch numbers, shelf life, etc

Features

1. Adopting a back seal/edge seal rounded corner form for packaging, the servo motor and servo driver clamp pull, making the machine pull the film more accurately and faster. The clamping pull makes the back seal edge more closely attached to the horizontal seal, making the bag more beautiful 2. The shape of the bag can be customized according to the transverse sealing mold of the punching knife for different sample bags 3. Designed with rounded corners and long strips, the loading capacity can be large or small. By setting the bag length value, different weights can be achieved to reduce mold replacement 4. The chassis is customized with 304 stainless steel, not wrapped with stainless steel plates 5. The device has high compatibility, and different specifications can be achieved by replacing the mold

Basic Parameters

Model	PL-240YJK	PL-240YJF	PL-240YJY
Measuring range	1-50g	1-50g	1-50g
Bag size	back center seal :L40-160mm;:W20-100mm side seal:L40-160mm;:W20-100mm
Dose range	rotary measuring cups	screw feeder	pump/rotor pump/piston pump
Voltage	220V50-60HZ/2KW	220V50-60HZ/2KW	220V50-60HZ/2KW
Controlsystem	PLC controlling system
Speed	25-60bag/min
Bagtype	Bag center seal/ side seal
Dimension	L800W960H1900 mm	L800W960H2050 mm	L900W700H1850 mm
Weigh	300KG	300KG	250KG
Material	BOPP/PE/PET any heat sealing laminated film
