Product Description

JE12 Ratio 79:1 Slewing Drive Gearbox Worm Gear Reducer Slew Drive

Products Description

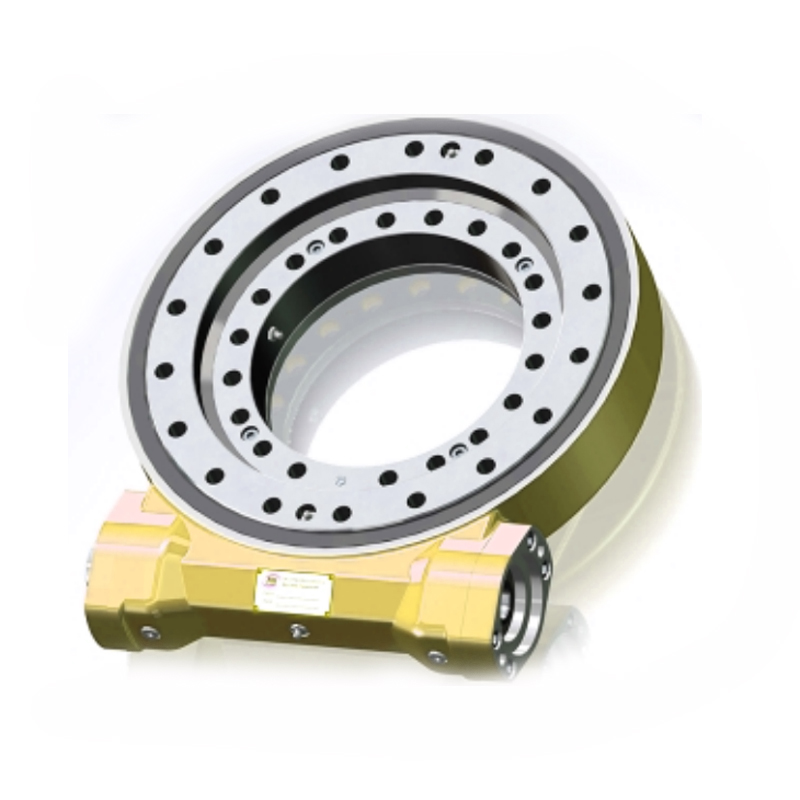

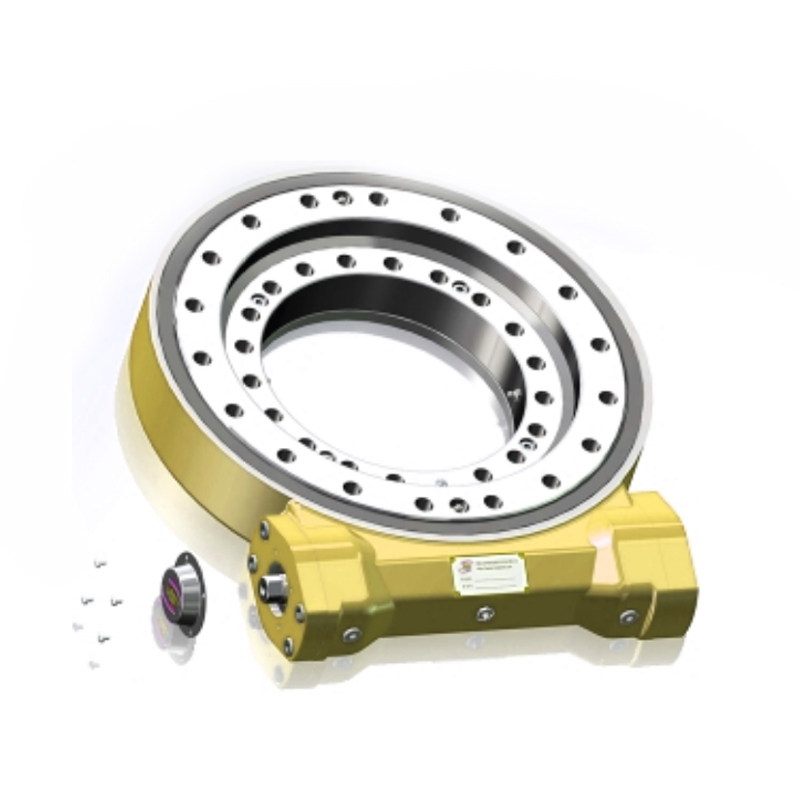

JE12 Worm Gear Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.

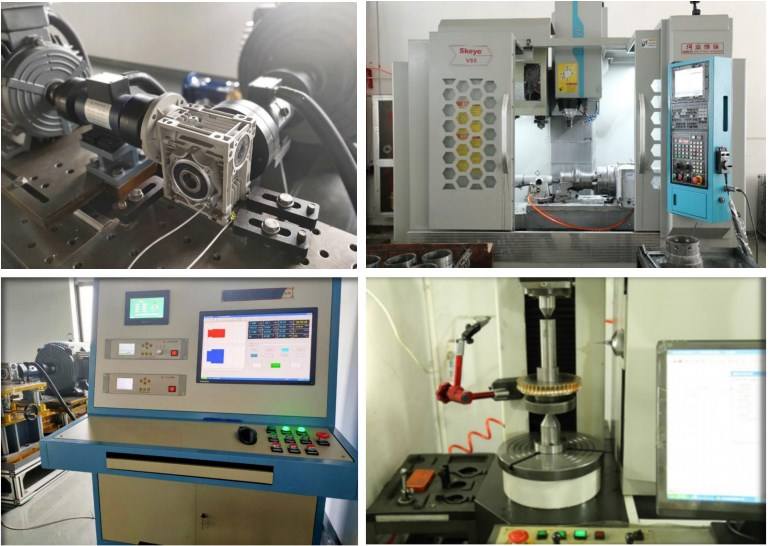

3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.

For more details, please click here to contact us！

Basic Parameters

Norminal Torque	7.8KN.m（SF=1 at n=1 rpm）
Maxmium Torque	11.8KN.m
Ratio of Worm Gear	79:1
Backlash	0.15°
Efficiency	about 40%
Temperature	-30--+80℃
Holding Torque	43KN.m
Axial Static Load Coa	760KN
Radial Static Load Cor	280KN
Axial Dynamic Load Ca	190KN
Radial Dynamic Load Cr	148KN

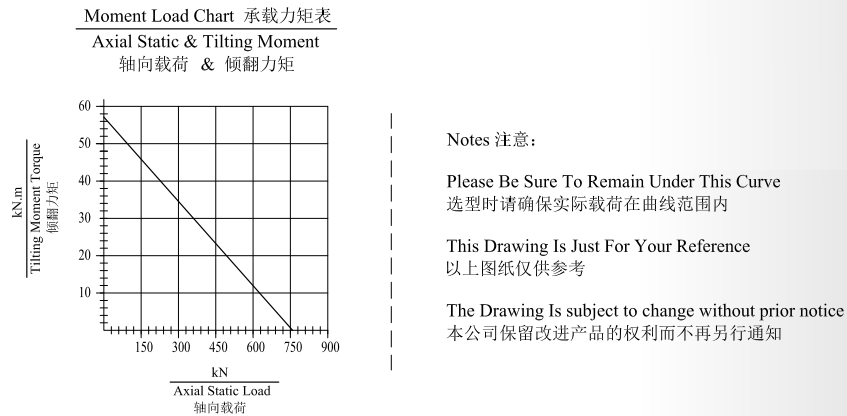

Tilting Moment Torque Com	57KN.m
