JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew DriveProducts DescriptionJE14 Worm Gear Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse installation. Com......
Send Inquiry
Product Description

JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

Products Description

JE14 Worm Gear Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
8.6KN.m（SF=1 at n=1 rpm）
Maxmium Torque
12.9KN.m
Ratio of Worm Gear
86:1
Backlash
0.13°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
48KN.m
Axial Static Load    Coa
960KN
Radial Static Load    Cor
360KN
Axial Dynamic Load     Ca
230KN
Radial Dynamic Load   Cr
220KN

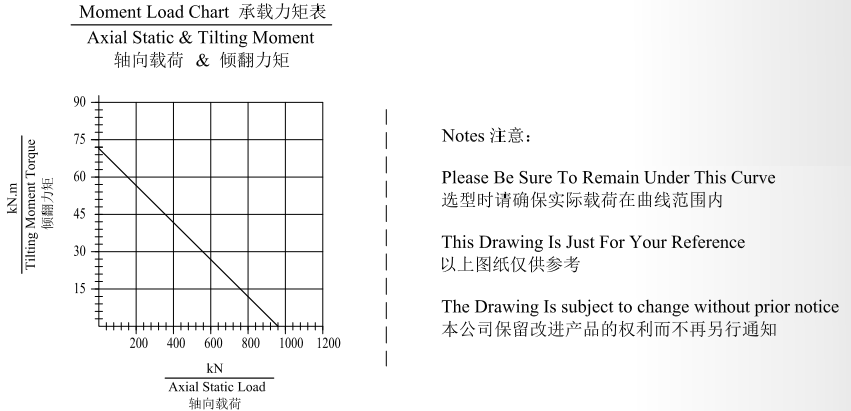

Tilting Moment Torque    Com
71.2KN.m

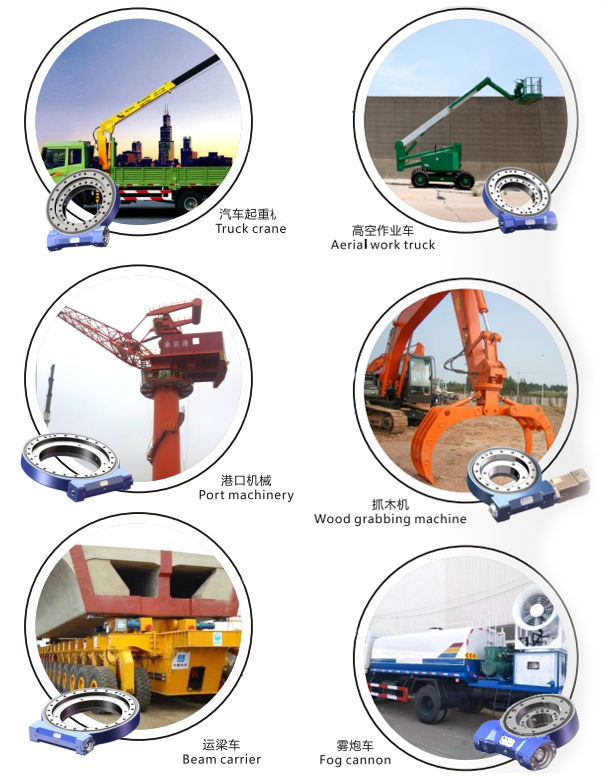

Application
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE14 Ratio 86:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
