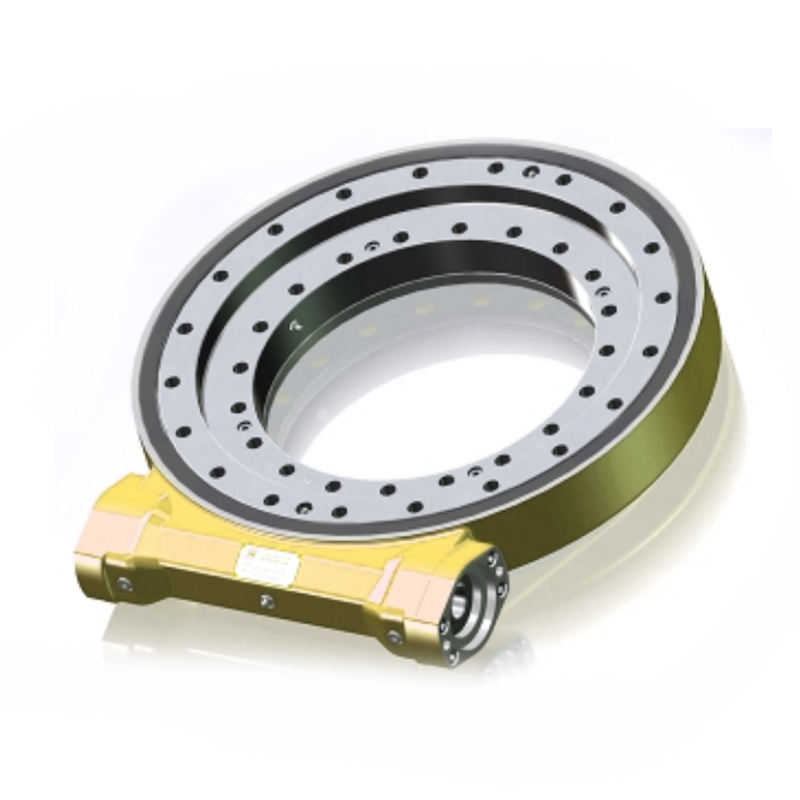

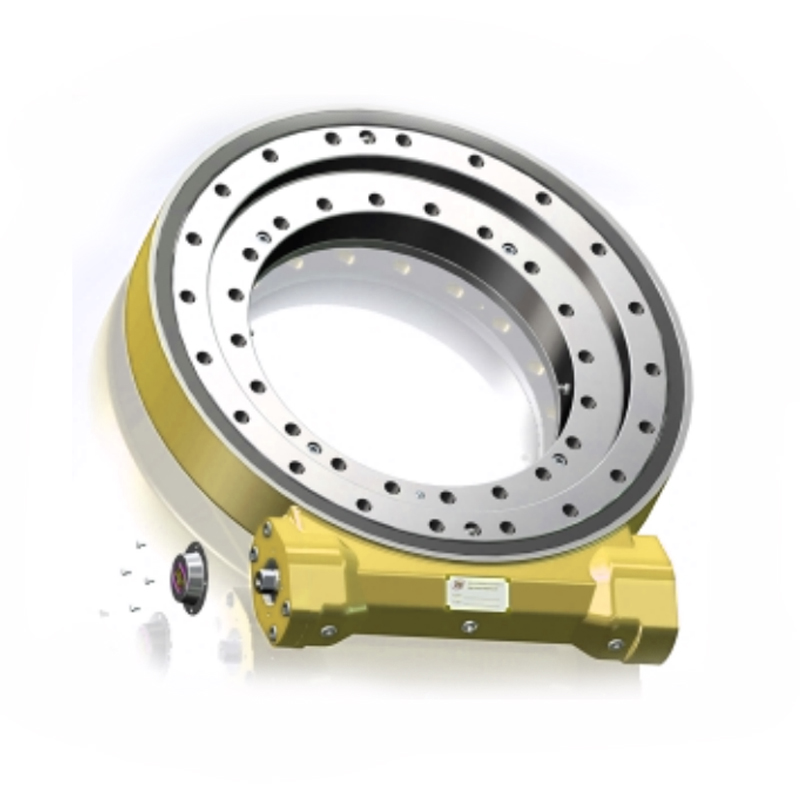

JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew DriveProducts DescriptionJE17 Worm Gear Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse installation. Co......
Send Inquiry
Product Description

JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

Products Description

JE17 Worm Gear Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
10.5KN.m（SF=1 at n=1 rpm）
Maxmium Torque
15.6KN.m
Ratio of Worm Gear
104:1
Backlash
0.1°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
72.3KN.m
Axial Static Load    Coa
1166KN
Radial Static Load    Cor
435KN
Axial Dynamic Load     Ca
280KN
Radial Dynamic Load   Cr
231KN

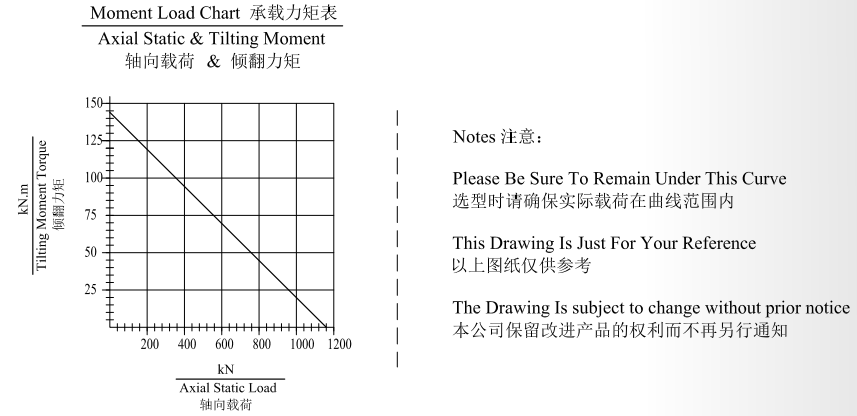

Tilting Moment Torque    Com
143KN.m

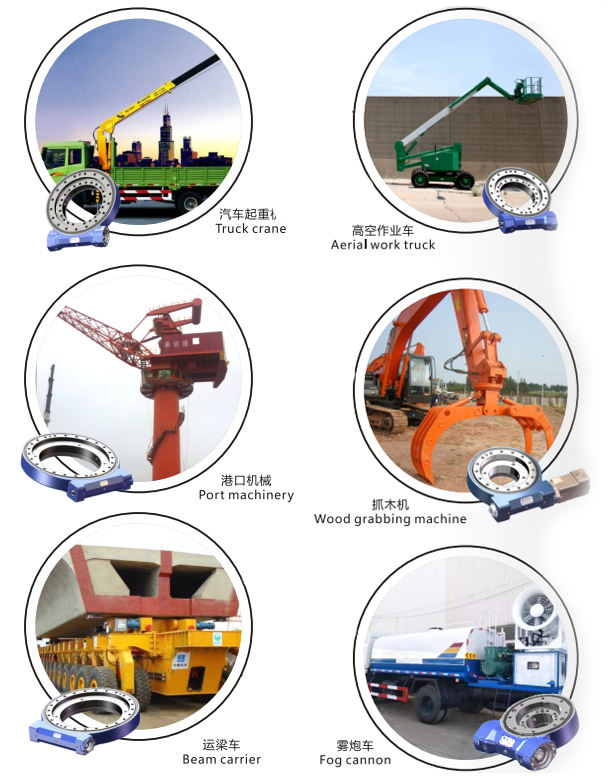

Application
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE17 Ratio 104:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
Related Products
Hot Tags: Raydafon Transmission, Raydafon, Raydafon Power, JE17 Slewing Drive, 104:1 Ratio Gearbox, Worm Gear Slew Drive, China Manufacturer, Factory Supplier
Related Category
Send Inquiry
Contact Info
Related Products

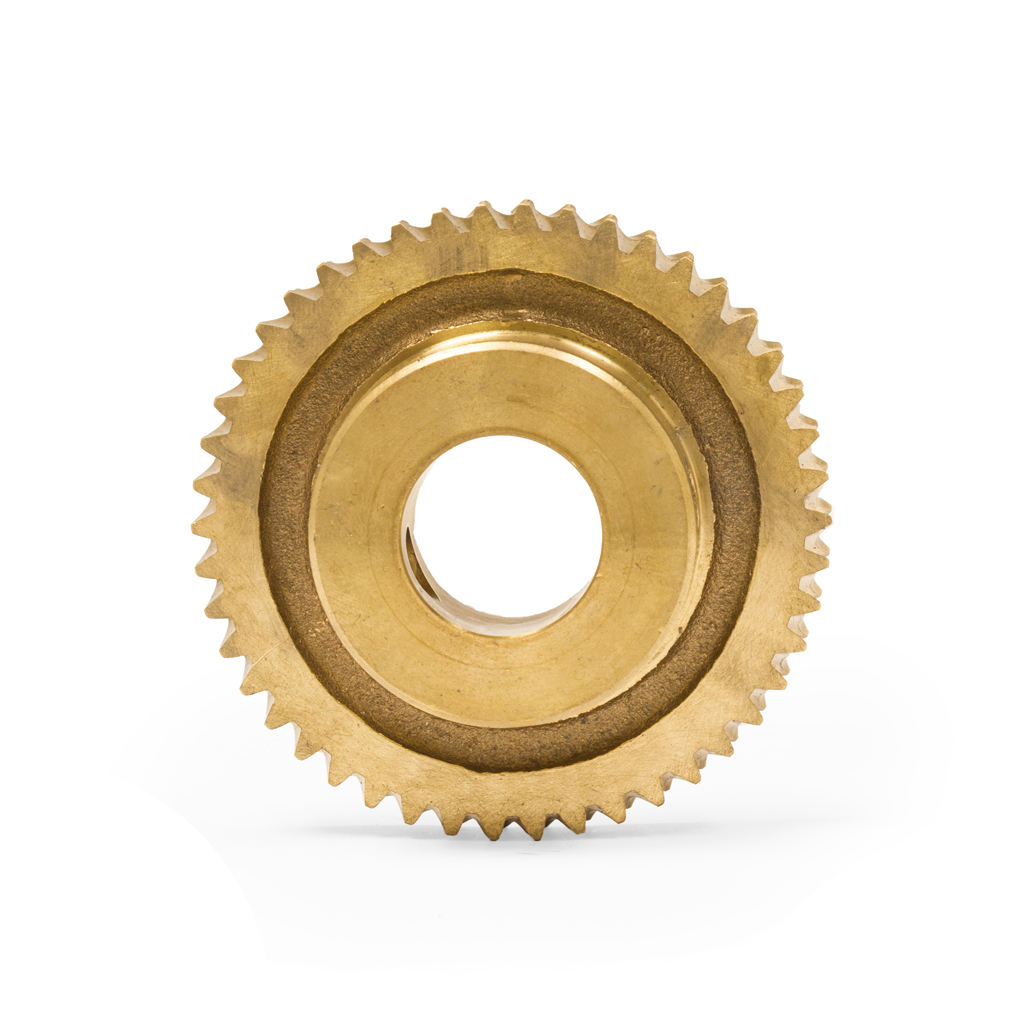

High Quality CNC Milling Miniature Micro Mini Bronze Worm Wheel Gear Aluminium Bronze Worm Gear
High Quality CNC Milling Miniature Micro Mini Bronze Worm Wheel Gear Aluminium Bronze Worm Gear View More >>

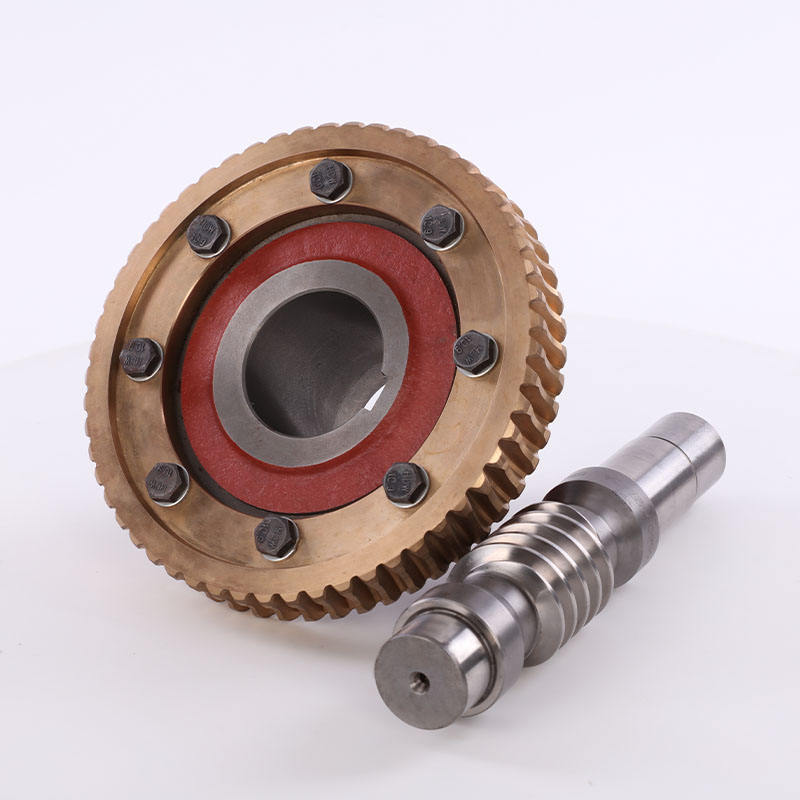

Customized Worm Gear Accessories Secondary Enveloping Arc Tooth Involute brass Other Gear Worm Gears
Customized Worm Gear Accessories Secondary Enveloping Arc Tooth Involute brass Other Gear Worm Gears View More >>

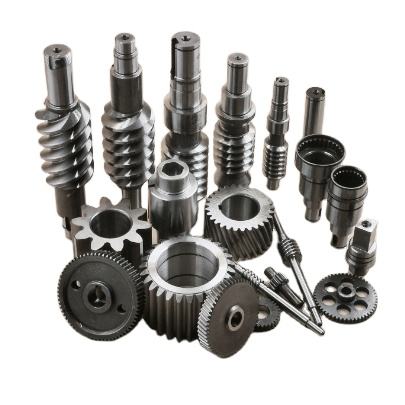

China Supplier Hardware mechanical parts processing precision gear customized worm gear
China Supplier Hardware mechanical parts processing precision gear customized worm gear View More >>

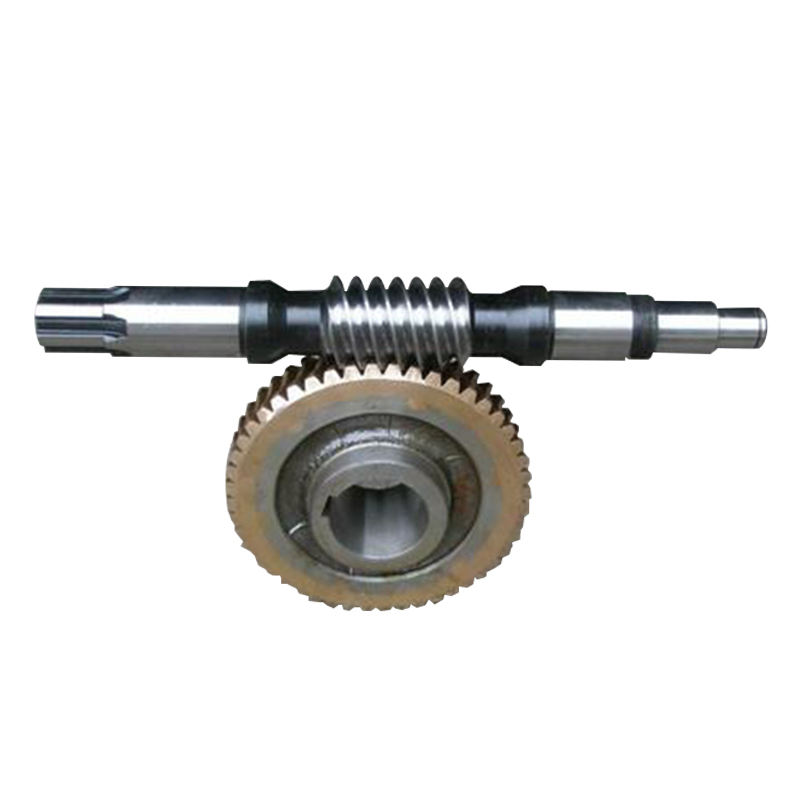

Non Standard Customization Worm gears shaft worm wheel for farm machinery Rotary Tiller
Non Standard Customization Worm gears shaft worm wheel for farm machinery Rotary Tiller View More >>
Copper CNC lathe processing CNC various worm gear rod processing high precision brass worm gears
Copper CNC lathe processing CNC various worm gear rod processing high precision brass worm gears View More >>

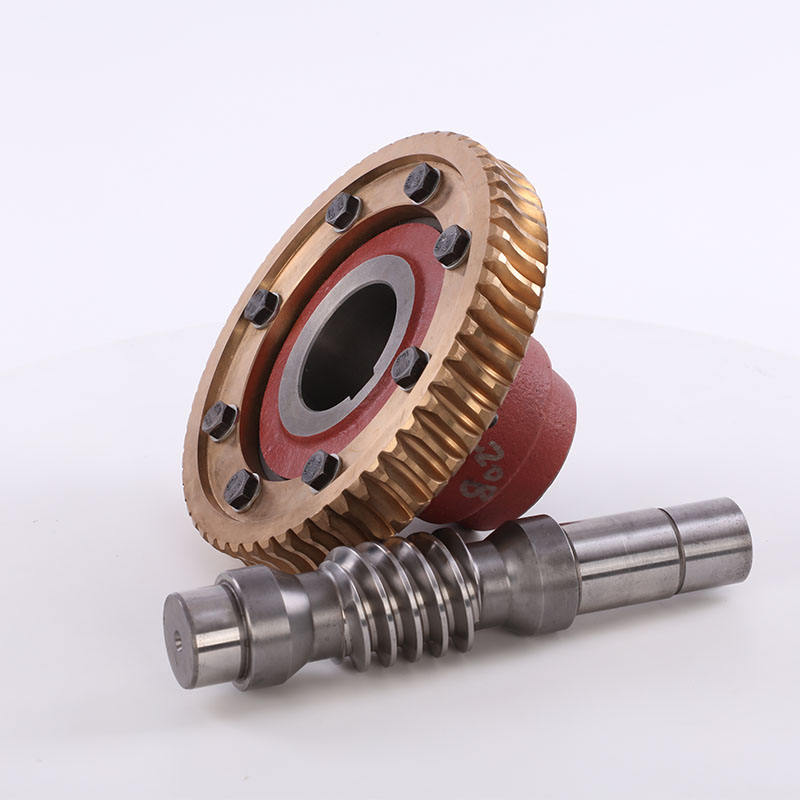

Metric Self Locking Globoid Steel Brass Pinion Slew Drive Wheel Steering Set Elevator Hobbing Machine CNC Screw Shaft Worm Gear
