Product Description

JE7 Ratio 45:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

Products Description

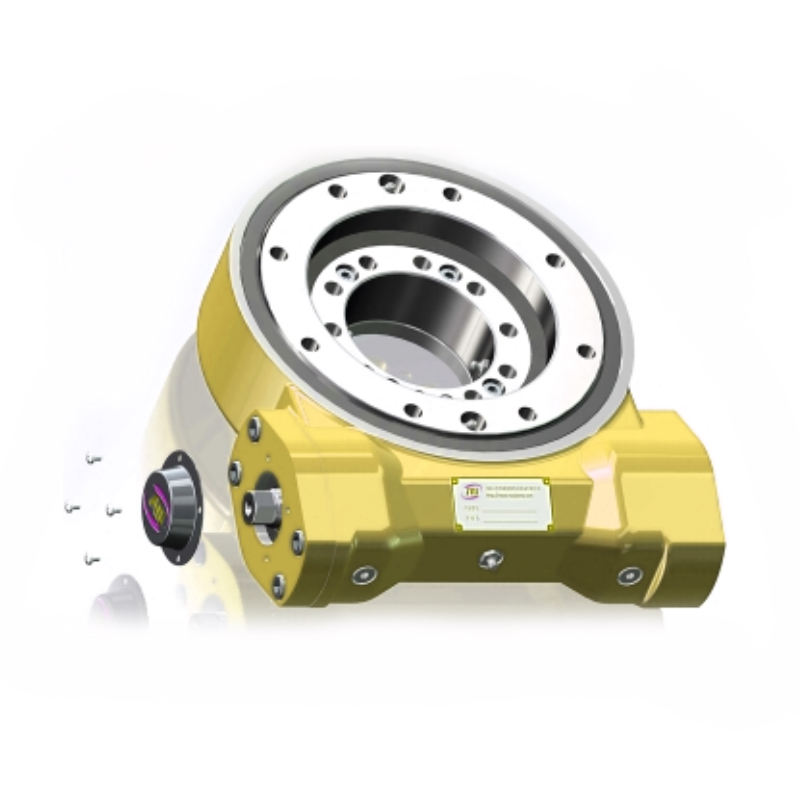

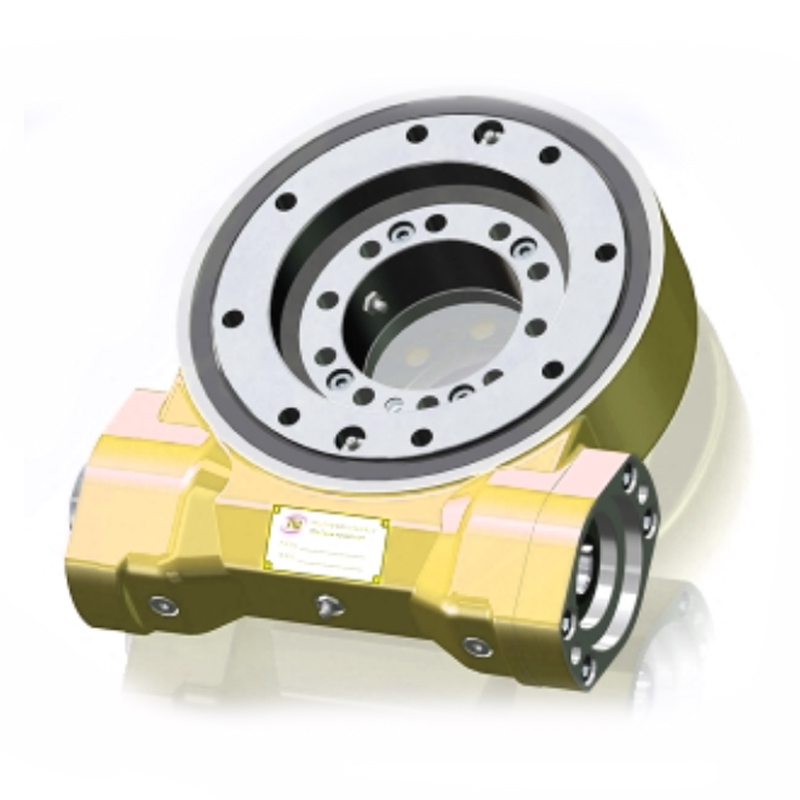

JE7 Worm Gear Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.

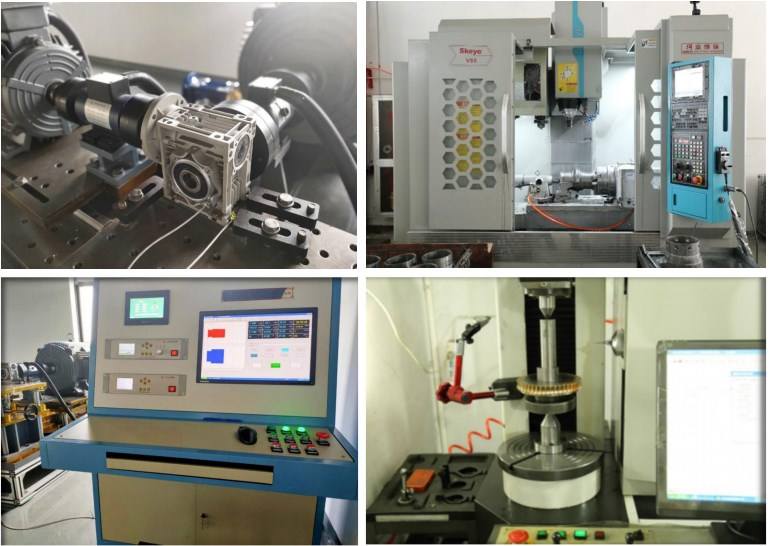

3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.

For more details, please click here to contact us！

Basic Parameters

Norminal Torque	3.4KN.m（SF=1 at n=1 rpm）
Maxmium Torque	6.5KN.m
Ratio of Worm Gear	45:1
Backlash	0.17°
Efficiency	about 40%
Temperature	-30--+80℃
Holding Torque	20KN.m
Axial Static Load Coa	220KN
Radial Static Load Cor	90KN
Axial Dynamic Load Ca	63KN
Radial Dynamic Load Cr	48KN

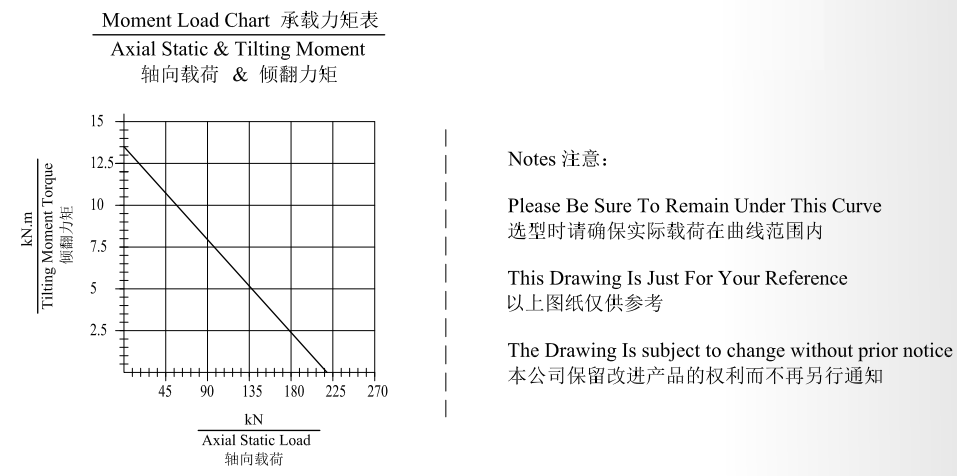

Tilting Moment Torque Com	13.5KN.m
