JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew DriveProducts DescriptionJE9 Worm Gear Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse installation. Compa......
Send Inquiry
Product Description

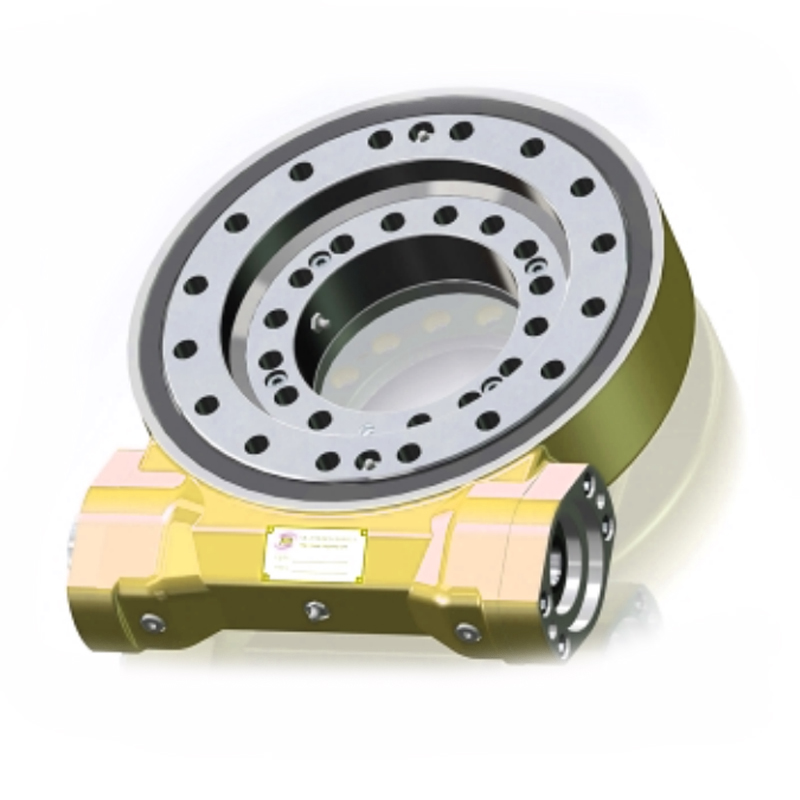

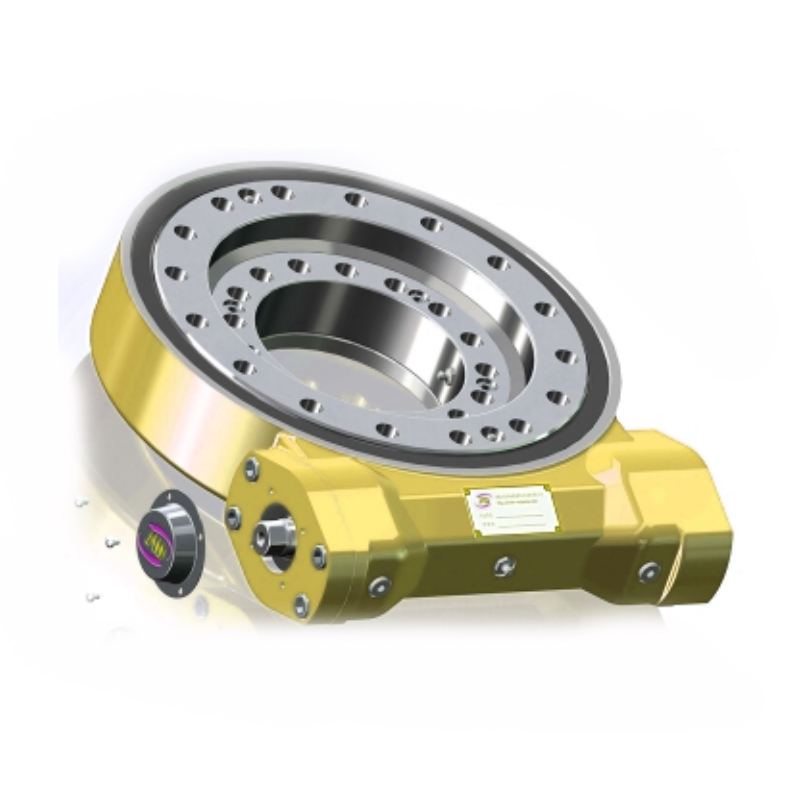

JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive

Products Description

JE9 Worm Gear Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
6.3KN.m（SF=1 at n=1 rpm）
Maxmium Torque
9.5KN.m
Ratio of Worm Gear
62:1
Backlash
0.15°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
38.7KN.m
Axial Static Load    Coa
578KN
Radial Static Load    Cor
215KN
Axial Dynamic Load     Ca
136KN
Radial Dynamic Load   Cr
115KN

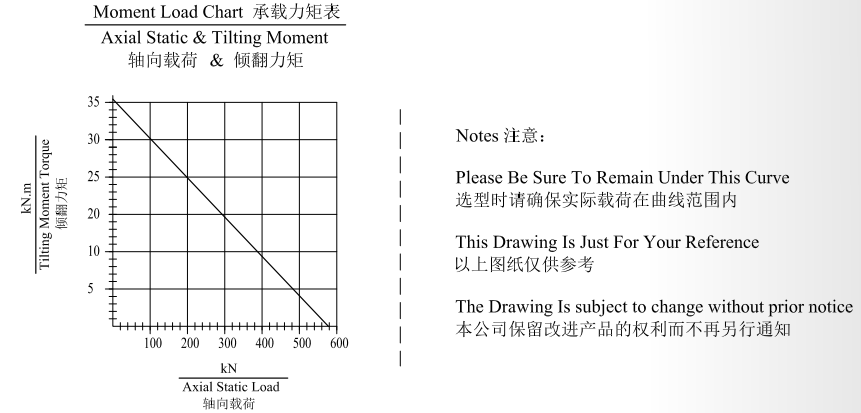

Tilting Moment Torque    Com
35.6KN.m
Application
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
JE9 Ratio 62:1 Slewing Drive Gearbox Reducer Worm Gear Slew Drive
