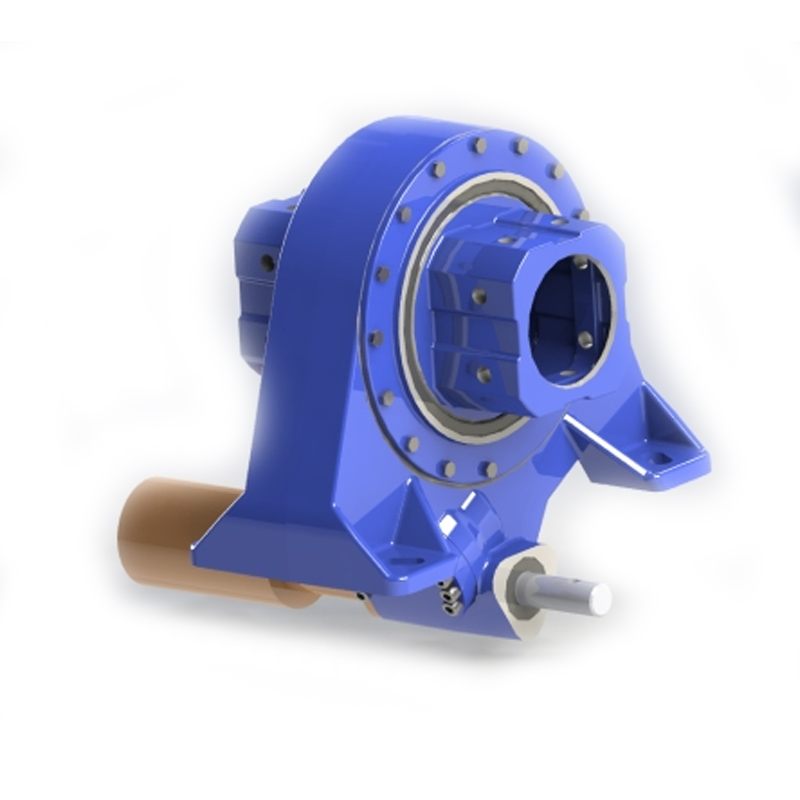

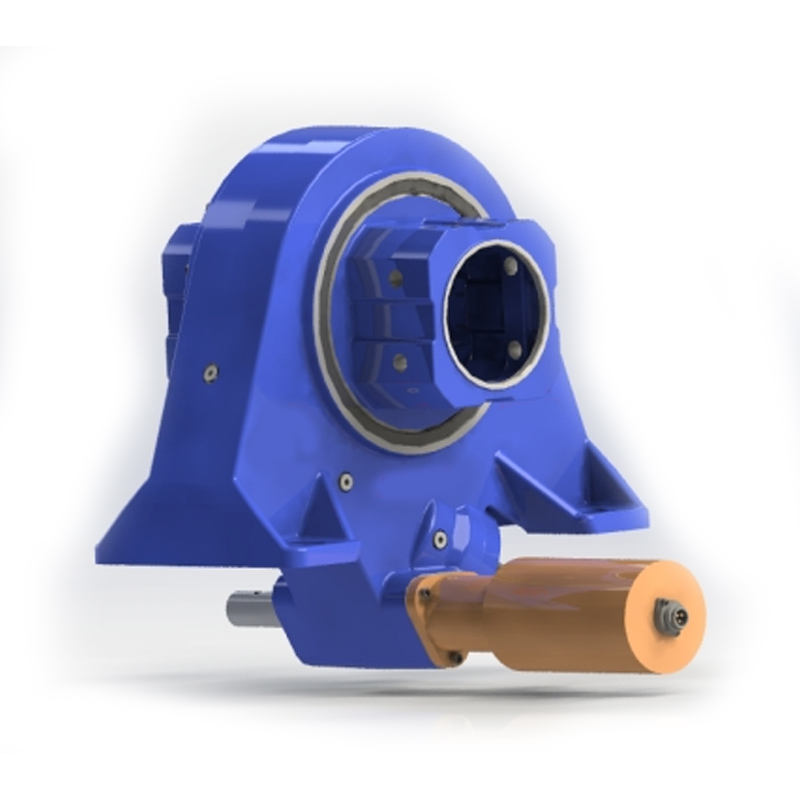

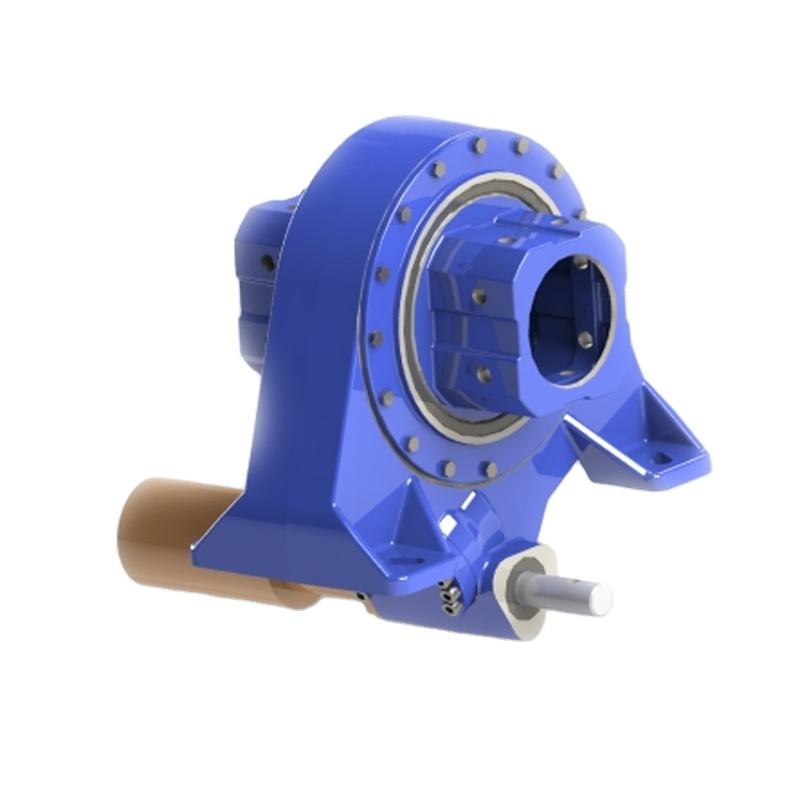

JL9 Series Ratio 780:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer

Products Description

JL9 Slewing Drive

Product features:
1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sunlight, effectively prevent dust and water and the protection level can reach IP65. It is suitable for outdoor use and can output with single or double flanges.
2. Using specialized machine tools and equipment to produce torus worm gears with multiple teeth in contact, transmitting greater torque and able to withstand greater axial, radial and overturning forces.
3. The product design adopts universal dimensions both domestically and internationally making it convenient for later
replacement.
Application scope:
--Mainly used for the rotation of the pitch direction in solar tracking systems, it can also be applied to the rotation of certain special engineering machinery and industrial equipment.
--The rotation of the pitch position of solar power generation systems such as flat single axis, inclined single axis, slot type
power generation and concentrated solar power generation.
--Industrial equipment such as automatic feeding machines.

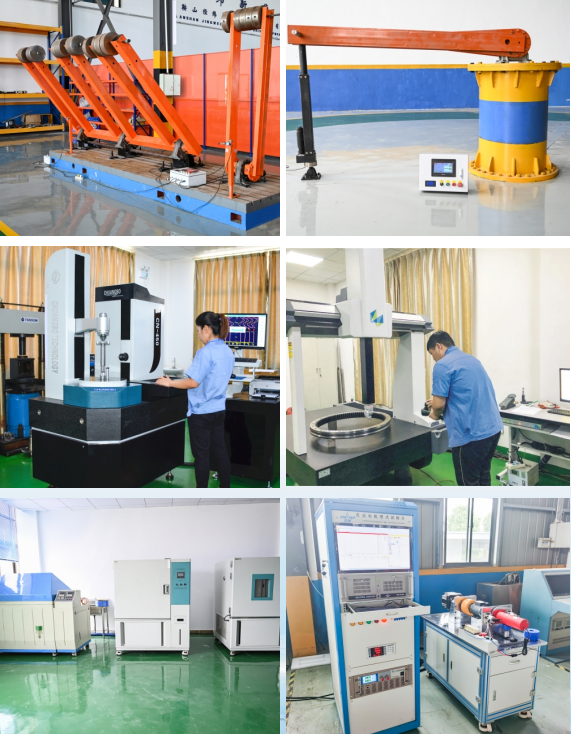

--First class german team --Customizing and individual --Top manufacture machine and test equipments --All products and parts are traceable andcomplete testing reports can be provided by JW --JL9 Series Products have been using in manyprojects for years ,great response received

For more details, please click here to contact us！

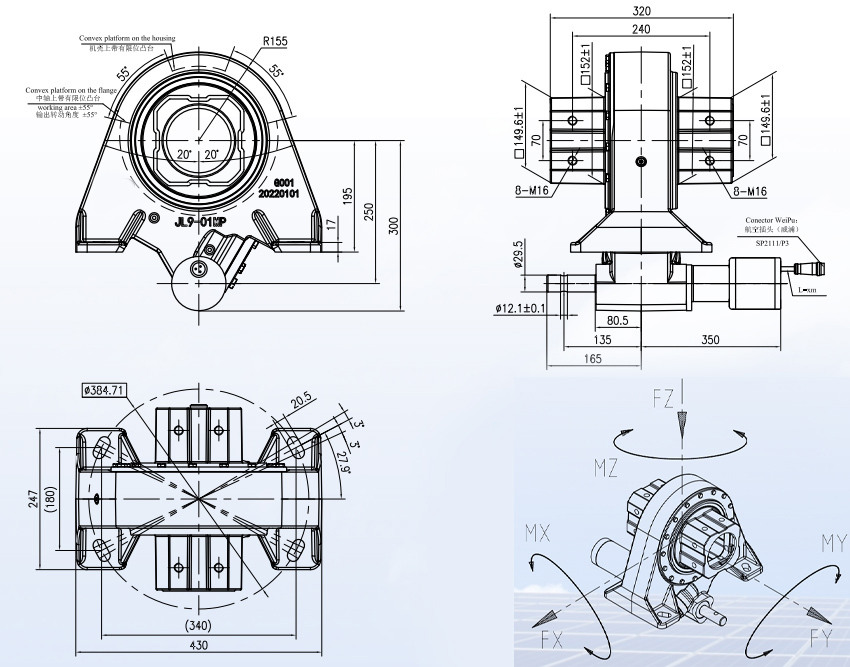

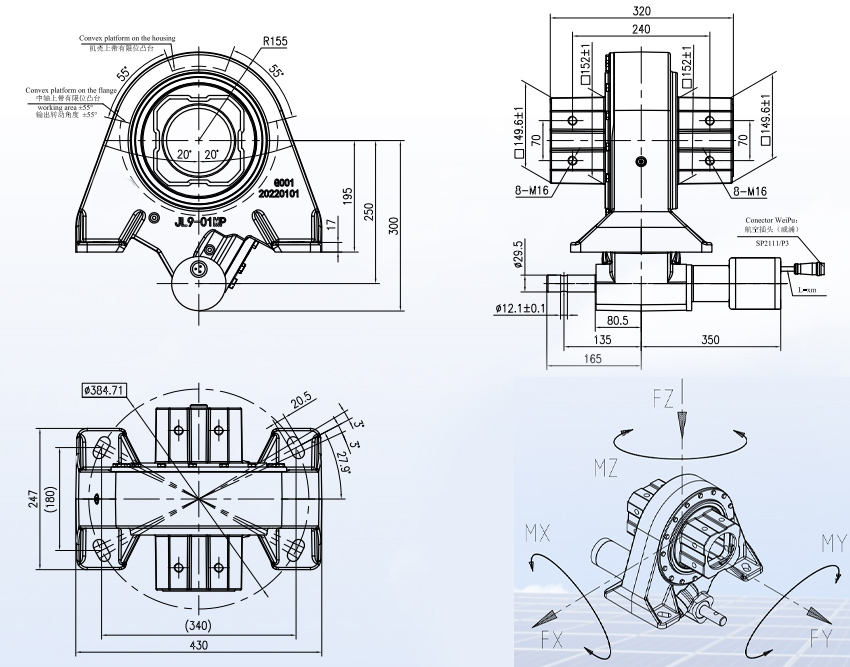

Basic Parameters

Slewing Drive Caplility
5Ratio of worm gear	780:1
Tracking precision	≤0.25°
IP class	IP66
Temperature	-40-+80℃
Holding torque MY	55000N.m
Axial Static Load FY	Coa 68KN
Axial Dynamic Load FY	Ca 35KN
Radial Static Load FX FZ	Cor 135KN
Radial Dynamic Load FX FZ	Cr 71KN
Tilting Moment Torque MX MZ	Com 33.9KN.m
Planetary Reducer Motor Performance Date
Rated Voltage	24VDC
Rated Current	≤7.8A
Gear Ratio	300:1
IP Class	IP66
Temperature	-40-+80℃

Slewing Drive Performance Data
Total output torque of slewing drive（After 3 or 4 sets are connected）
Nominal Output Speed	0.01rpm
Nominal Output Torque	18KN.m
Output torque	Output speed	efficiency	Motor Current
Nominal torque:10KN.m Continuous operation Most operating conditions	0.012rpm	about 40%	about 4A
Large torque:18KN.m Continuous operation for 10 minute It should not exceed 5% of the total	0.011rpm	about 41%	about 6A
Large torque：45KN.m Warning: There is no safety factor
