JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon

JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog CannonProducts DescriptionJS7 Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse instal......
Send Inquiry
Product Description

JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon

Products Description

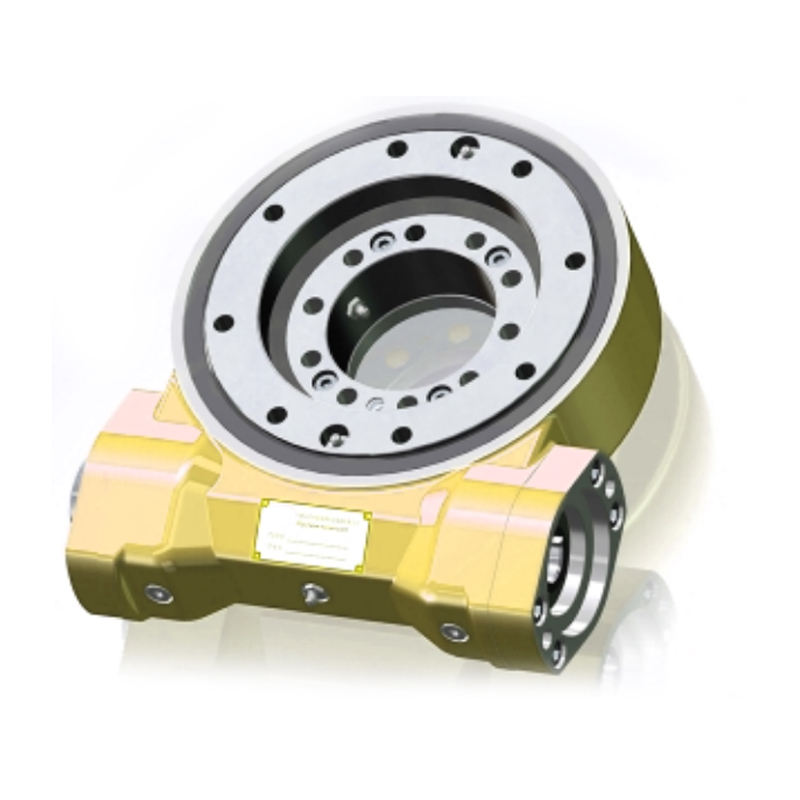

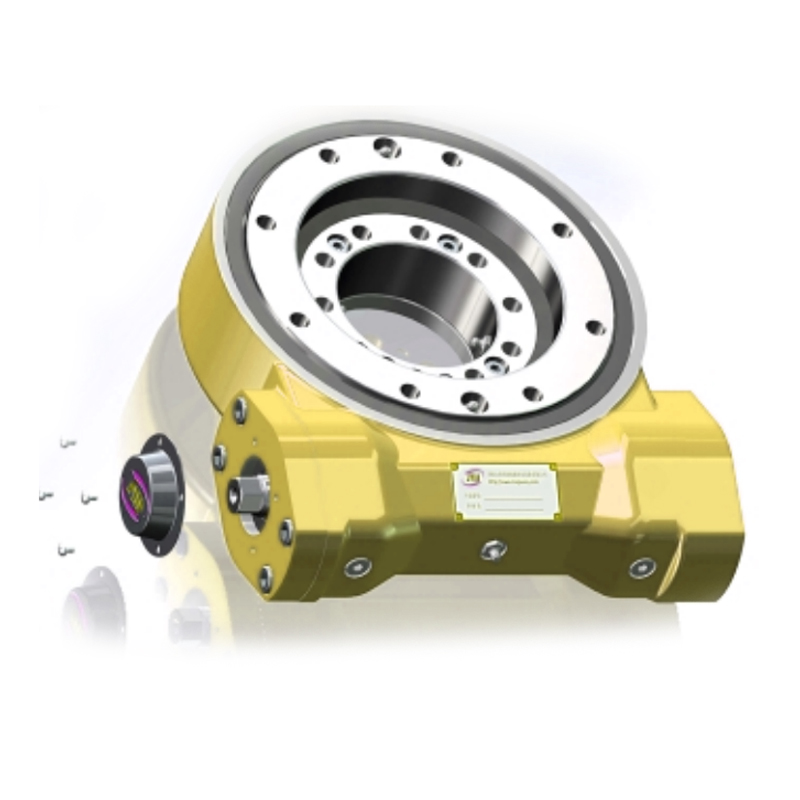

JS7 Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
For more details, please click here to contact us！

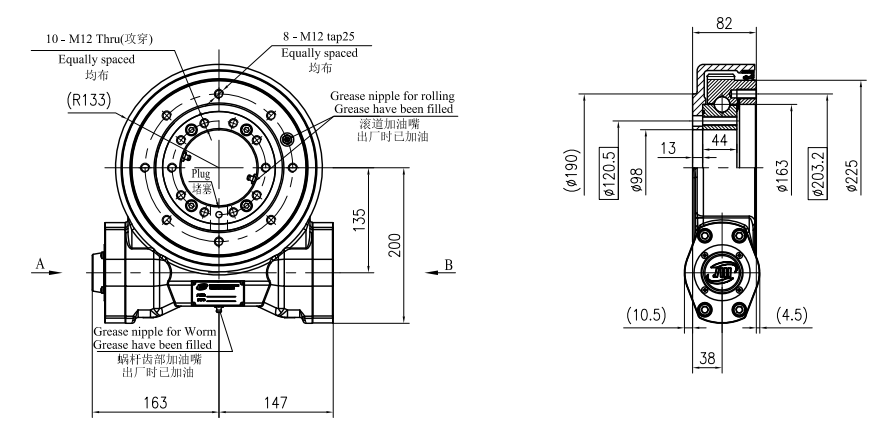

Basic Parameters
Norminal Torque
1.5KN.m（SF=1 at n=1 rpm）
Maxmium Torque
2.3KN.m
Ratio of Worm Gear
71:1
Backlash
0.15°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
20KN.m
Axial Static Load    Coa
220KN
Radial Static Load    Cor
90KN
Axial Dynamic Load     Ca
63KN
Radial Dynamic Load   Cr
48KN

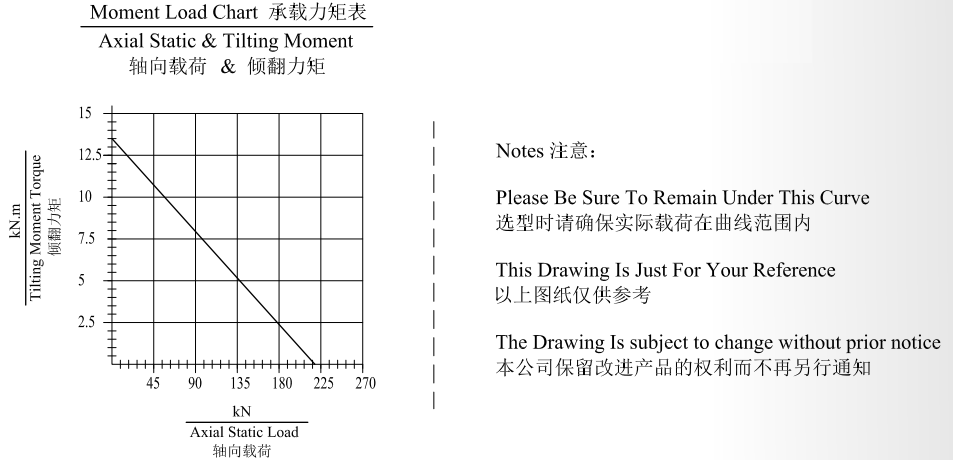

Tilting Moment Torque    Com
13.5KN.m
Application
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
JS7 Ratio 71:1 Slewing Drive Gearbox Gear Reducer Slew Drive for Beam Carrier Fog Cannon
