JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer

JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox ReducerProducts DescriptionJV8 Slewing DriveProduct features:1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sun......
Send Inquiry
Product Description

JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer

JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer
Products Description

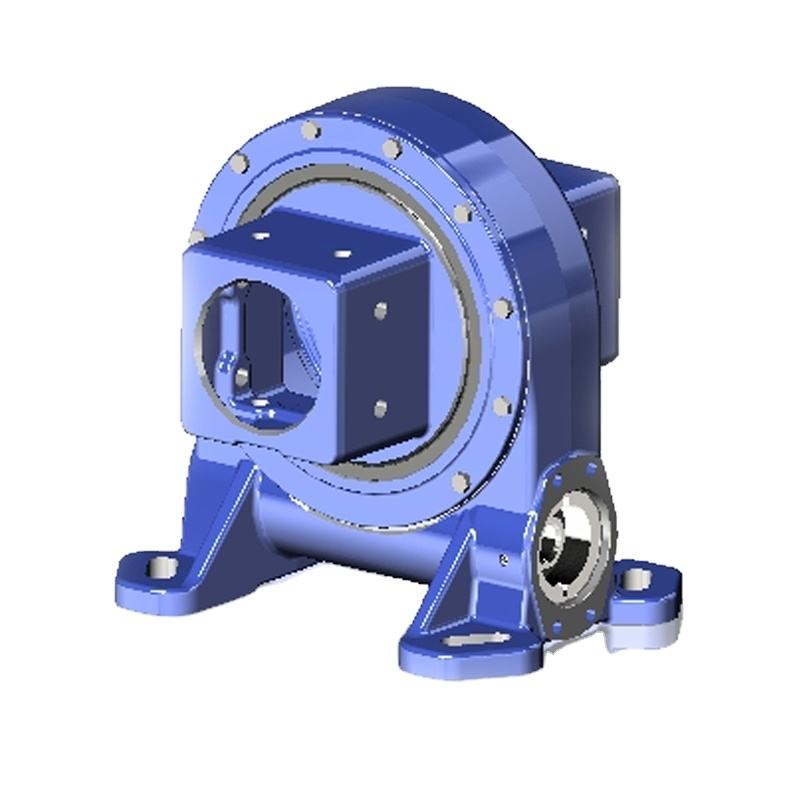

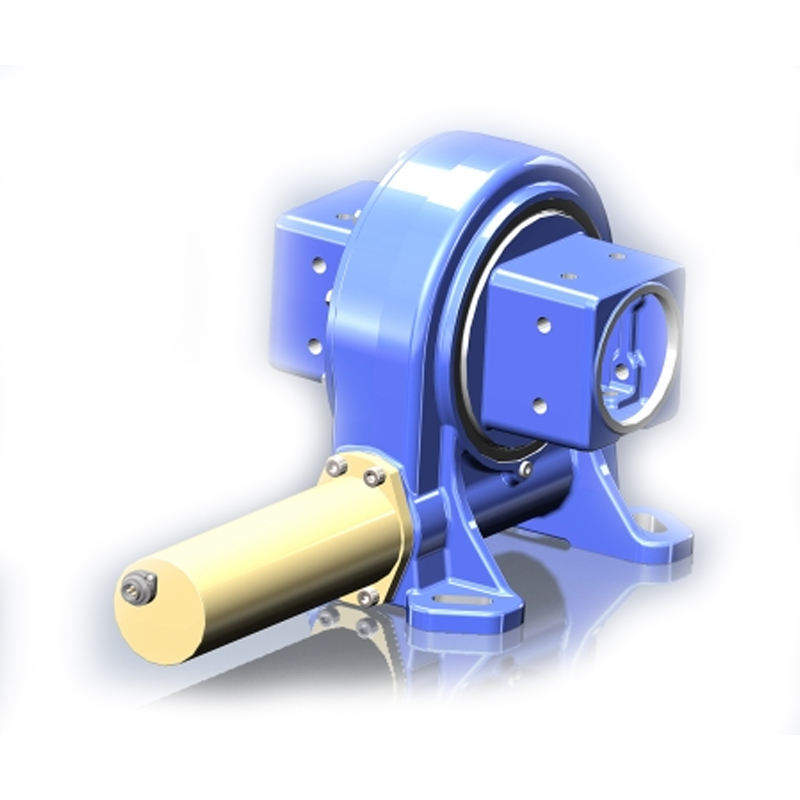

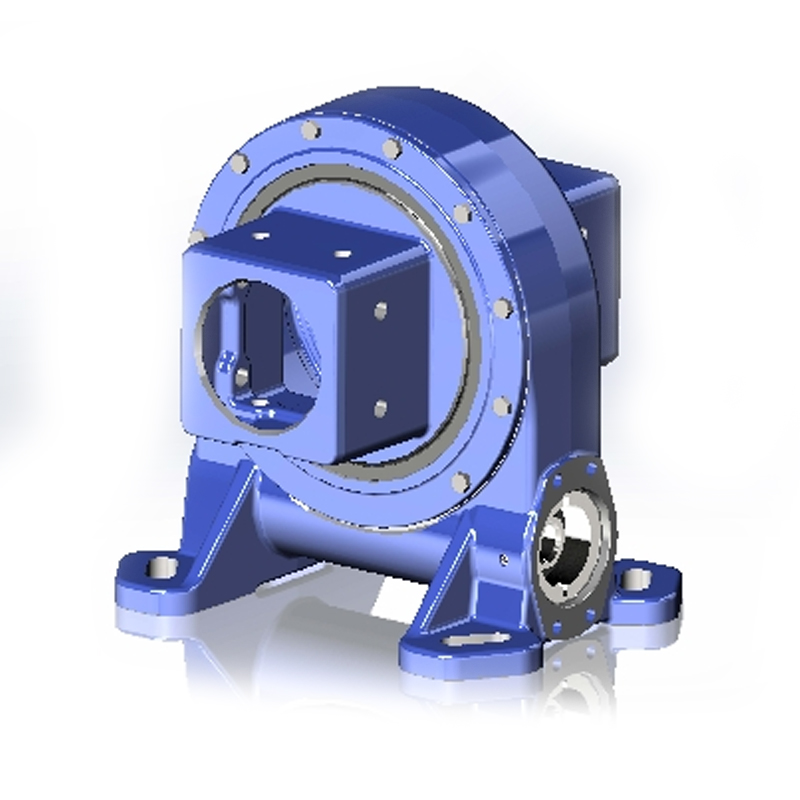

JV8 Slewing Drive

Product features:
1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sunlight, effectively prevent dust and water and the protection level can reach IP65. It is suitable for outdoor use and can output with single or double flanges.
2. Using specialized machine tools and equipment to produce torus worm gears with multiple teeth in contact, transmitting greater torque and able to withstand greater axial, radial and overturning forces.
3. The product design adopts universal dimensions both domestically and internationally making it convenient for later
replacement.
Application scope:
--Mainly used for the rotation of the pitch direction in solar tracking systems, it can also be applied to the rotation of certain special engineering machinery and industrial equipment.
--The rotation of the pitch position of solar power generation systems such as flat single axis, inclined single axis, slot type
power generation and concentrated solar power generation.
--Industrial equipment such as automatic feeding machines.
JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer
JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer
--First class german team --Customizing and individual --Top manufacture machine and test equipments --All products and parts are traceable andcomplete testing reports can be provided by JW --JV8 Series Products have been using in manyprojects for years ,great response received
JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer
For more details, please click here to contact us！

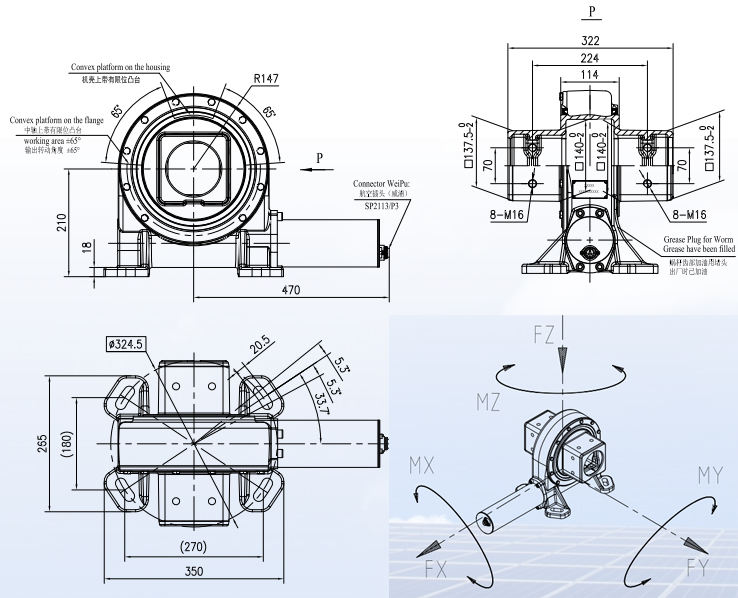

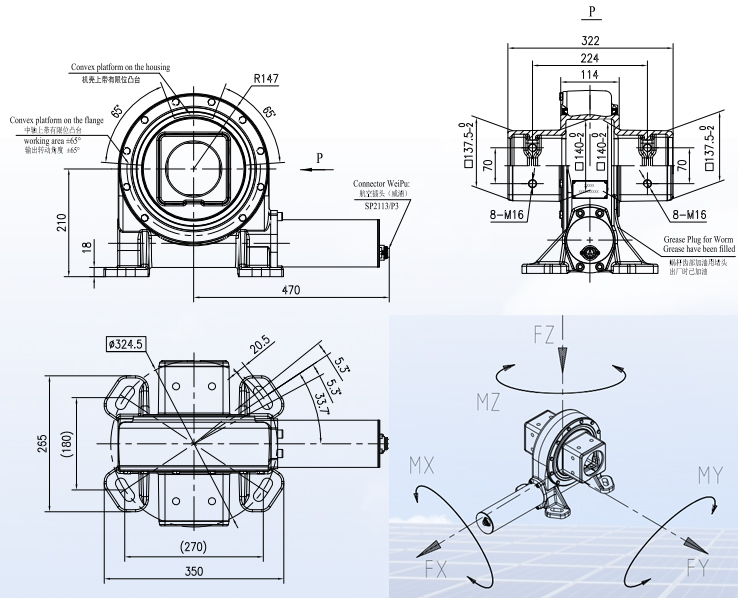

Basic Parameters
Slewing Drive Caplility
5Ratio of worm gear
62:1
Tracking precision
≤0.2°
IP class
IP65
Temperature
-30-+70℃
Holding torque   MY
45000N.m
Axial Static Load    FY
Coa  68KN
Axial Dynamic Load   FY
Ca   35KN
Radial Static Load    FX  FZ
Cor   135KN
Radial Dynamic Load     FX FZ
Cr   71KN
Tilting Moment Torque    MX MZ
Com   28KN.m
Planetary Reducer Motor Performance Date
Rated Voltage
24VDC
Rated Current
≤4.9A
Gear Ratio
661.22:1
IP Class
IP65
Temperature
-30-+70℃
Slewing Drive Performance Data
Nominal Output Speed
0.029rpm
Nominal Output Torque
6KN.m
Output torque
Output speed
efficiency
Motor Current
Nominal torque:6KKN.m
Continuous operation
Most operating conditions
0.029rpm
about 39%
about  4.9A
Large torque:8.5KN.m
Continuous operation for 2 minute
It should not exceed 7% of the total
0.027rpm
about 40%
about 6.4A
Limit torque: 11KN.m
Continuous operation for 2 minute
Should be rare
0.025rpm
about 41%
about 7.2A
Large torque：13KN.m
Warning: There is no safety factor

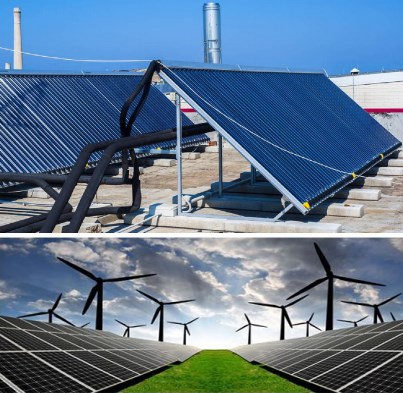

Application
JV8 Series Ratio 62:1 Worm Gear Planetary Motor Solar Panel Tracking Slewing Drive Gearbox Reducer
