Product Description

Linear Guideway VMC1690L Cutting Metal Working Machines CNC Lathe Vertical Machining Center

Products Description

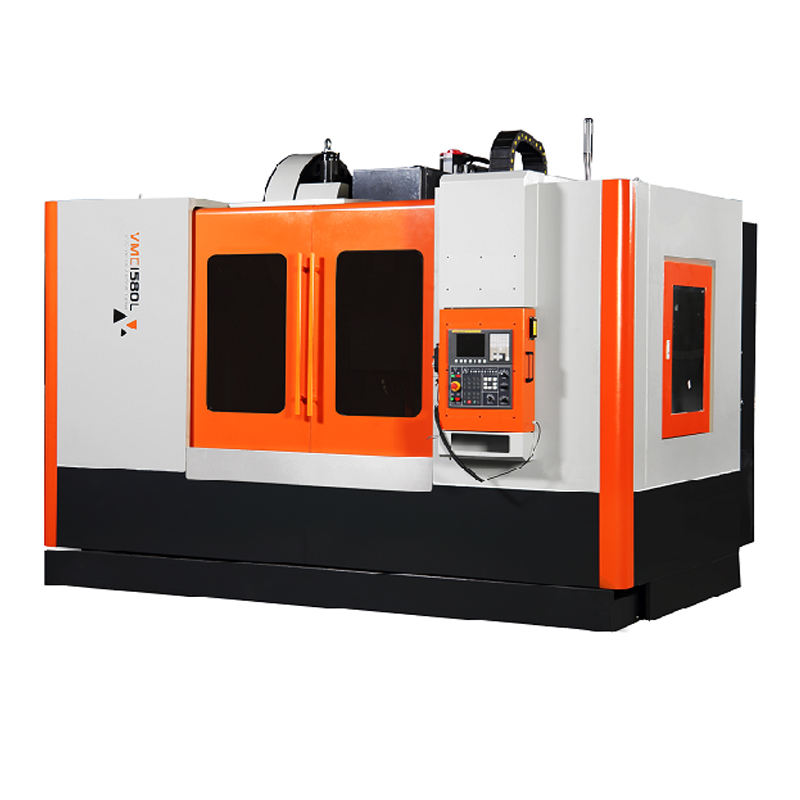

VMC1690L large heavy duty machining center

This series heavy duty machining center adopts the moving structure of cross sliding table and sliding guide,which is mainly applied in processing of middle and small scale complicated parts.Apply the computeraided engineering(CAE)system to finish the optimized structure design and enhance the reliability of machine tool,and the finite element method(FEM)to take the scientific analysis and optimization of design structure, which can guarantee the rigidity and stability of the whole machine structure.

Item	Unit	VMC1300L	VMC1580L	VMC1690L	VMC1890L
Worktable
Worktable size	mm	700*1400	850*1700	850*1700	900*2000
T-slot （N×W×D）	mm	518115	518125	518125	718125
Travel
Axis travel （X/Y/Z)	mm	1300/700/700	1550/850/850	1650/850/850	1850/880/900
Machining range
Distance from spindle center to column front	mm	775	935	935	935
Distance from spindle end to work table	mm	103-803	120-970	120-970	95-995
Machine dimension
L×W×H	mm	4830x2880x3250	5600x3250x3500	5900x3250x3500	6100x3250x3500
Machine weight
Max. load bearing of worktable	kg	1300	1500	1600	1800
Machine weight	kg	11000	15800	16000	17000
Spindle
Spindle hole taper		BT50	BT50	BT50	BT50
Spindle power	Kw	11/15	15/18.5	15/18.5	15/18.5
Max. spindle speed	rpm	6000	6000	6000	6000
Feed（direct drive）
Max. feed speed	mm/min	8000	8000	8000	8000
Rapid feed speed (X/Y/Z)	m/min	24/24/15	24/24/15	24/24/12	24/24/12
Ball screw (diameter + lead)
Axis ball screw （X/Y/Z)	mm	4012/4012/4012	5012/5012/5012	5012/5012/5012	5012/5012/5012
Tool Magazine
Tool magazine capacity	T	24	24	24	24
Tool change time（T-T）	s	3	3	3	3
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.010	0.010	0.012	0.012
Re-positioning accuracy(X/Y/Z)	mm	0.005	0.005	0.008	0.008

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

Application

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
