Product Description

Low Price Adjustable Lock Nut Elbow-WEE-R Hydraulic Fitting For Hydraulic Cylinder Parts

Product Description

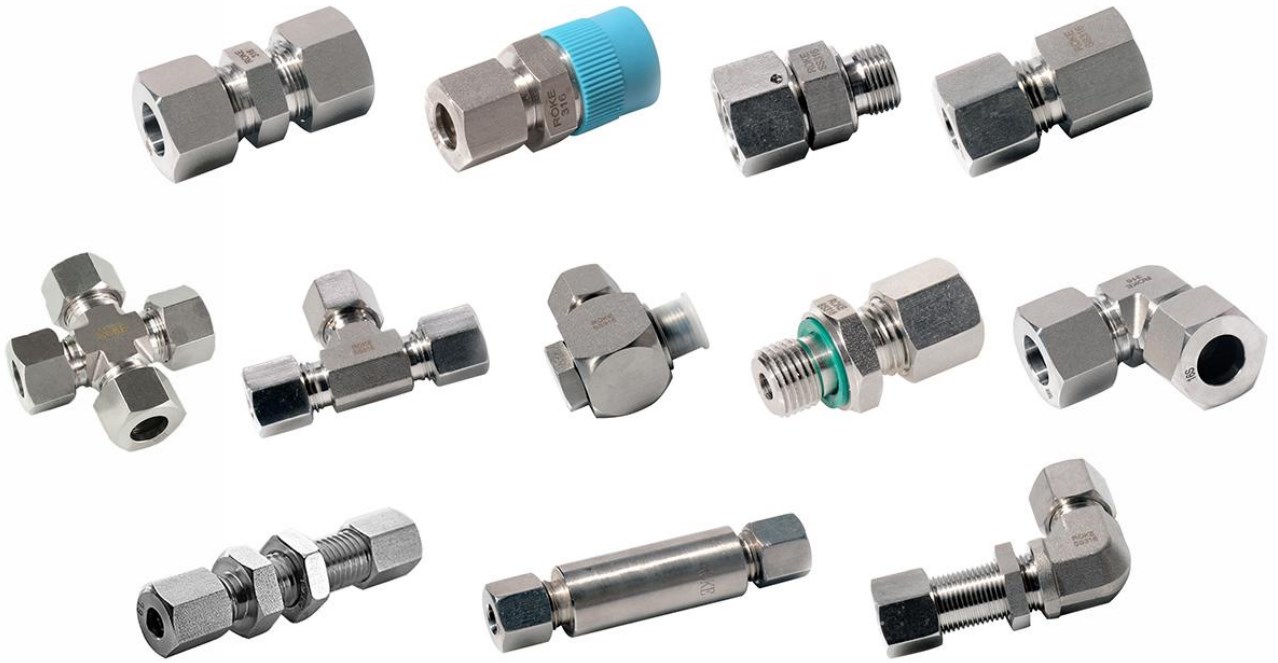

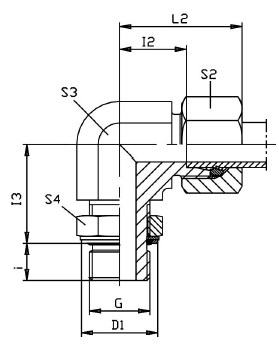

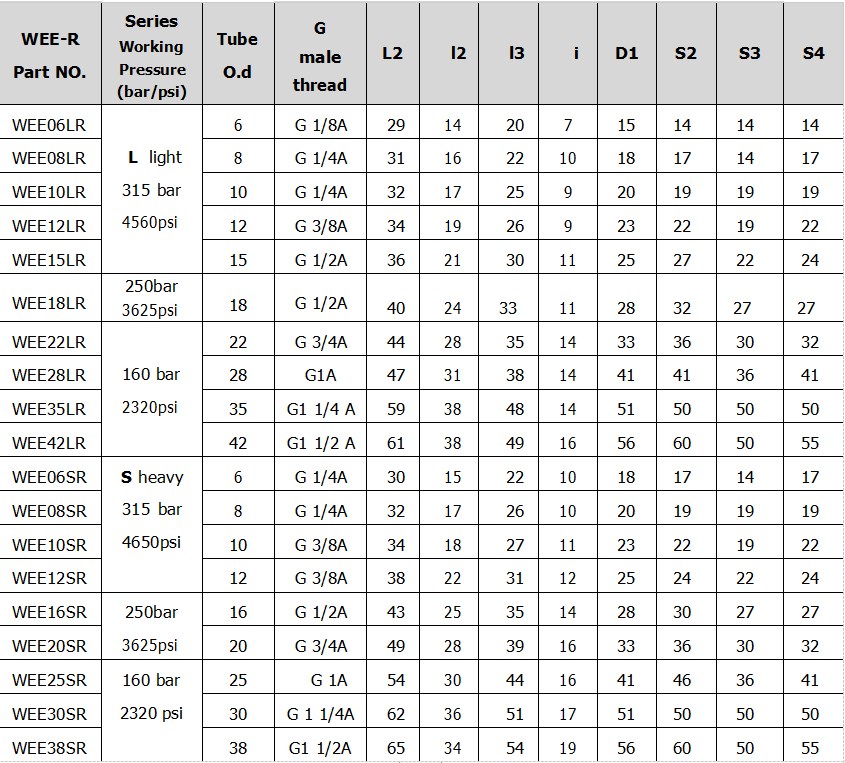

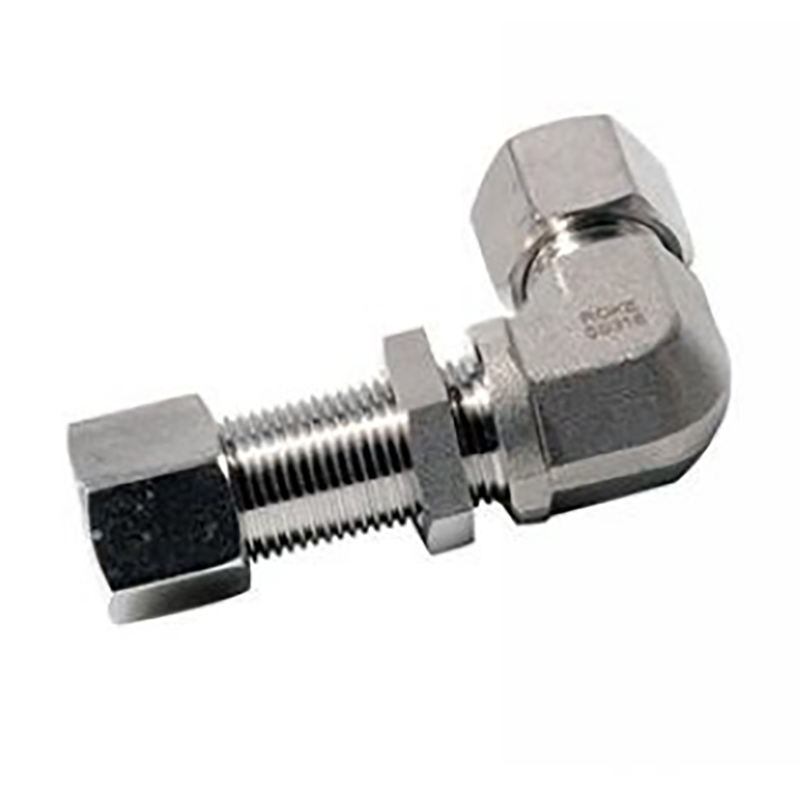

Adjustable lock nut elbows, also known as WEE-R hydraulic fittings, are a type of fitting used to connect hydraulic hoses and tubes.

Here are some key things to know about them: 1.Design: They feature a threaded male pipe end attached to an angled outlet. A lock nut is threaded onto the outer portion to seal and secure hose attachments. 2.Adjustability: The outlet can be rotated 360 degrees, allowing flexible positioning of connected hoses. The angle is locked in place by tightening the outer nut. 3.Compatibility: They are compatible with standard hydraulic hoses and tubes with appropriate inside diameters and thread specifications. 4.Applications: Commonly used in hydraulic systems where flexible angled connections are needed, like on heavy construction/industrial equipment and machinery. 5.Benefits: Allow efficient routing of hydraulic lines in tight spaces. The rotating fitting minimizes twists/kinks in hoses. Locking nut provides secure, leak-proof sealing. 6.Maintenance: Proper tightening of nut is important. May need occasional re-tightening if leakage occurs over time due to vibration. So in summary, adjustable lock nut hydraulic elbows provide durable, flexible angled connections for hydraulic circuits wherever a rotating fitting solution is required.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

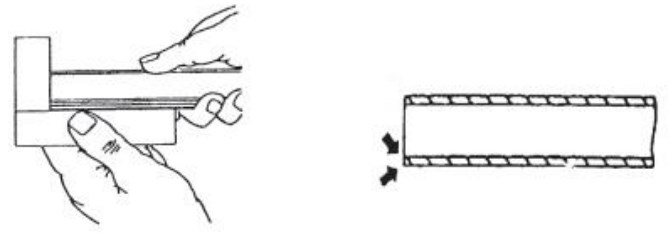

1. Cut the tube： 1/2˚ angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45˚ is permissible.

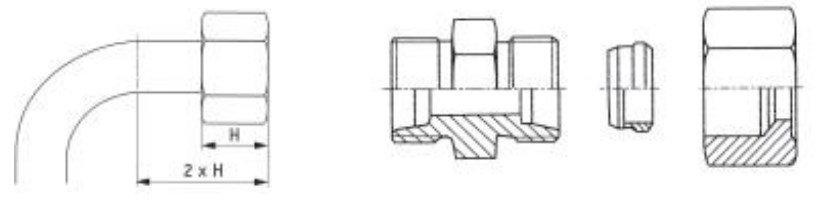

3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly

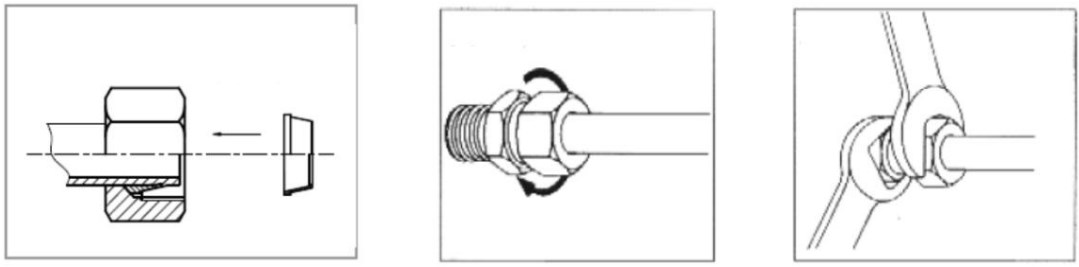

5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.

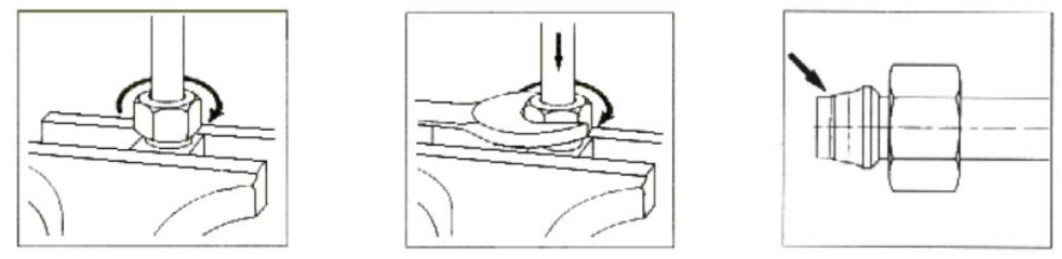

6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.
