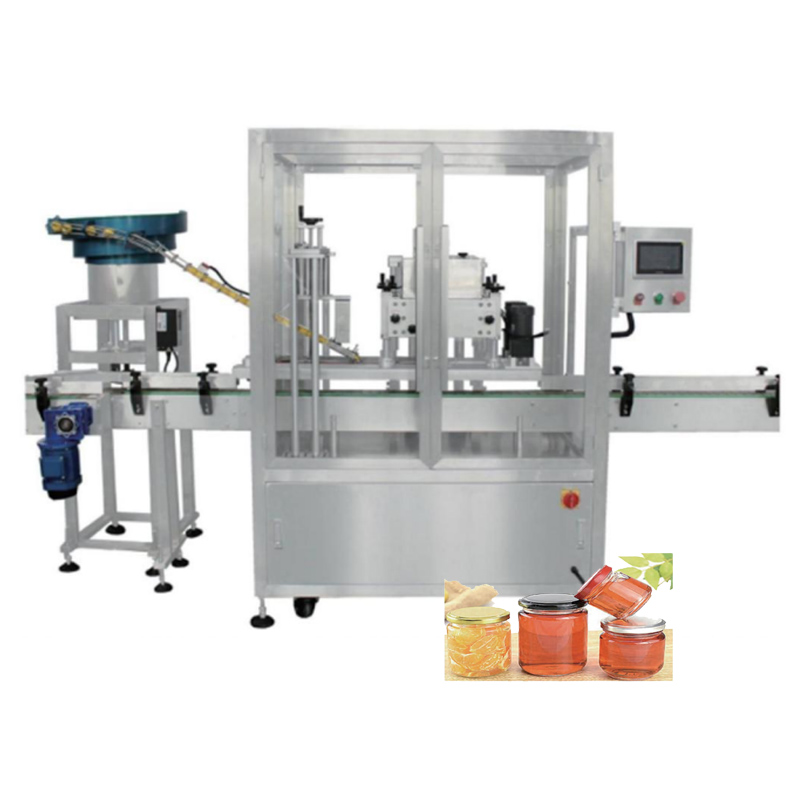

Multi-Head Following Capping Machine Vibrating Disc Capping Machine

Products Description

Multi-Head Following Capping Machine Vibrating Disc Capping Machine

The fiuly automatic in-ine capping machine is designed with reference to the advanced interational models, with fast capping
speed, highpass rate and easy operation it is suitable for screw caps of different botle shapes in food, pharaceuical, daly
chemical, pesicide, cosmeticsand other industnes. The machine has a high degree of automation, good stabiity, and convenient
adjustment (fitis equipped with a capping machine, it can perform automatic loading cap and can be selected according to actual
needs

Equipment performance

1.Main performance and features:Ihe interal production structure of the equipment is equipped with a safety shield or transparent glass (to facitate observation of the internal state)

2.This machine adopts mechanical and electrical integration control, which is controlled by the motionsystem and the touch screen. The sensor senses the bottle, and the bottle is capped, and the bottle is not capped. Once the bottle type is changed, the height, speed, and torque of the cap can be adjustedand saved. When used next
time, it can be called directly to automatically generate the stored height,speed, torque, etc. of the capping head, which is
automated. High degree, simple operation and convenient maintenance.

3.This machine adopts fullservo control,incuding the height lting ofthe capping head and the translational speed of the capping claws.

4.Cap torque controlMultiple sets of parameters can be stored and called directly, which is convenient and guick, and improves production effciency.

5.The main pneumatic components and cylinders are all made by Taiwan AlRTAC Company, and the main electical components are from france and otherfamous brand products at home and abroad, with stable and reliable performance.

Basic Parameters

Model	20T
Covering method	Vibration disc cover
Suitable bottle size	Samples provided by customers
Lower cover form	Automatic cover removal
screw cap form	Double head servo revolve cap
mobile location	Servo Motor Control
speed	about 2500-3000 bottle/hour
Material	Rack made of stainless steel
Program controller	German brand Siemens
Modular circuit board	Implemented intelligent multiple sampling stable mode
The conveyor belt adopts 114mm wide POM chain pieces	The height of the conveyor belt surface above the ground is 800 ± 25mm
The conveying motor adopts a variable frequency drive motor	Speed 0-10 meters per minute
Whole machine power	About 3KW
pressure	0.6-0.8MPa

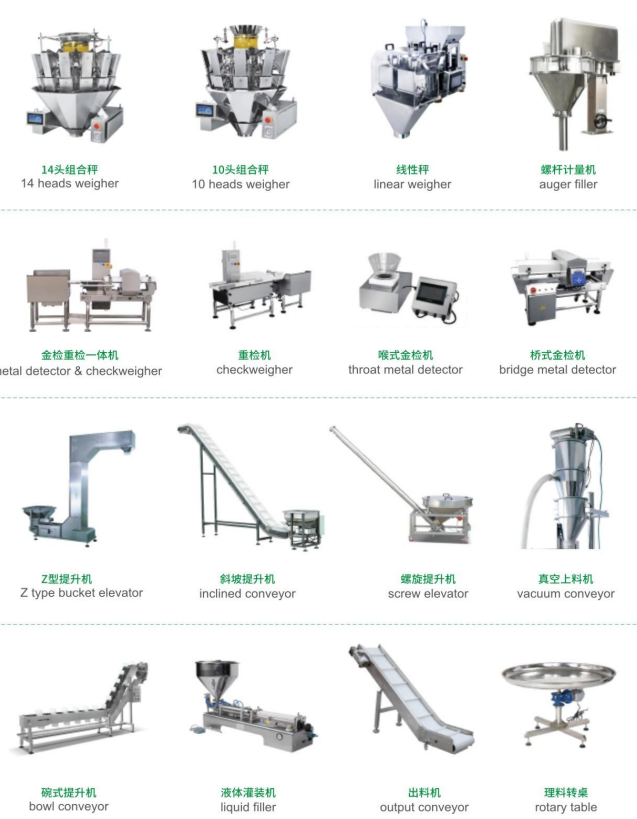

Products List
