Product Description

Multi-Lanes Granule Packing Machine for Seasoning Sugar Instant Coffee Solid Brewed Beverages

Products Description

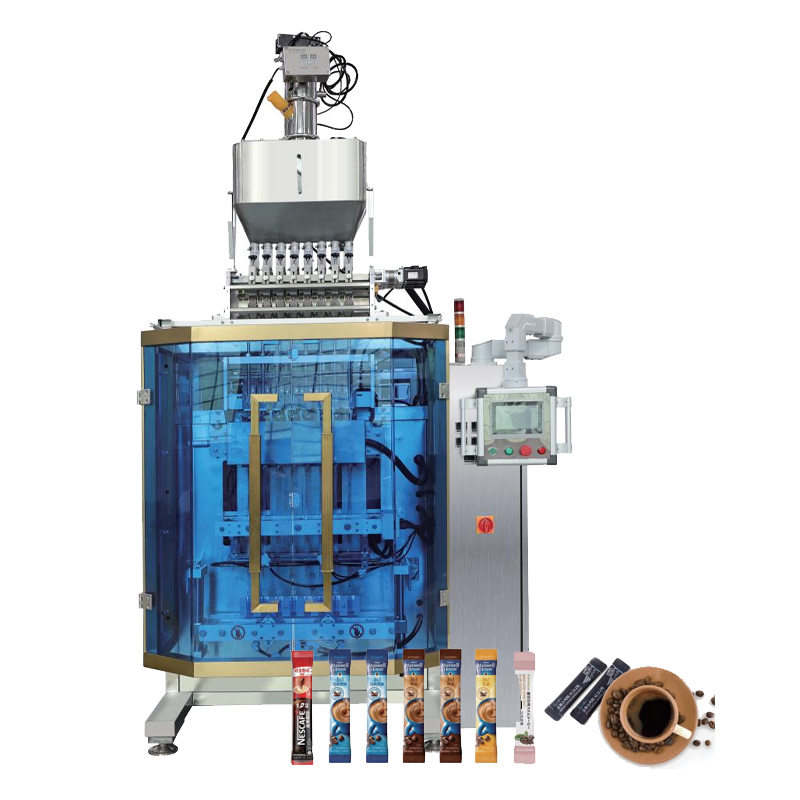

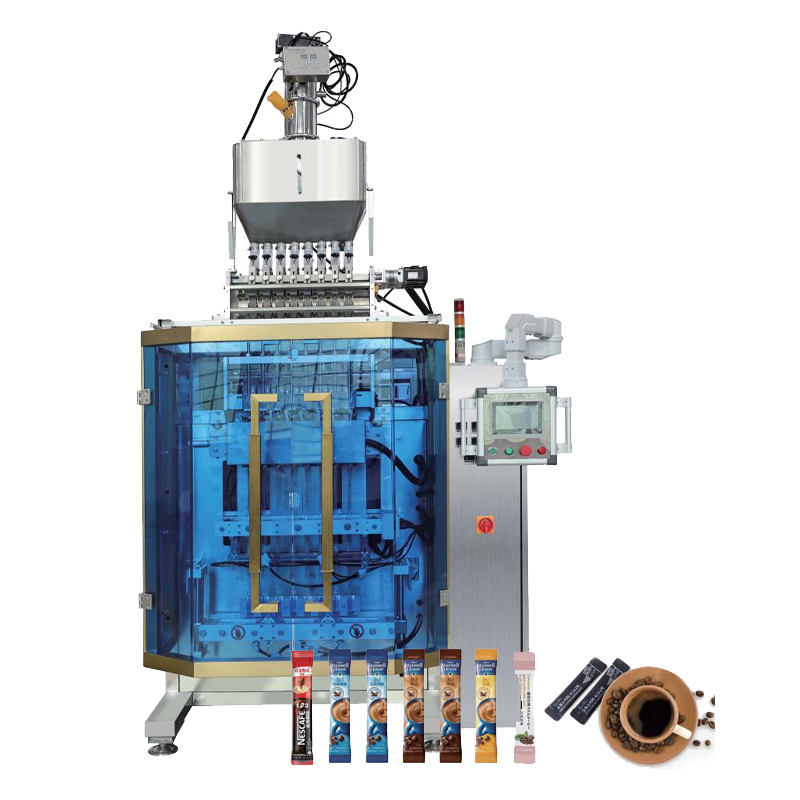

Multi-Lanes Granule Packing Machine

This machine is suitable for industries such aschemical.daily chemical.food.medicine and health products，such as traditional
Chinese medicine.formula granules.seasonings.granulated sugar.instant coffee.solid mixeddrinks and preservative pills .

Features

1. Adopting INOVANCE brand PLC system with error prompts, formula storage, and self diagnostic functions 2. Advanced design achieves high precision, high speed, and high efficiency 3. Adopting a 10 inch INOVANCE brand touch screen form, a convenient and easy-to-use operating system for the entire machine 4. CNC integrated bag making machine 5. PID temperature independent control system 6. AirTAC pneumatic components from Taiwan 7. Horizontal sealing independent SMC pneumatic system, adjustable horizontal sealing response time and pressure, further improving product sealing performance 8. Standard safety door switch 9. The part in contact with the material is made of 304/316SUS stainless steel material 10. The heat sealed servo motor (INOVANCE brand) bag pulling system, combined with the photoelectric (Panasonic brand) system, tracks the color code to ensure fast and smooth bag pulling, consistent bag length, and consistent pattern 11. The whole machine adopts high-quality and durable parts, and the surface of the parts is treated with technology, which once again enhances the durability and stability of the machine 12. The overall operating capacity of the machine can reach 30-50 cuts per minute 13. Highly integrated with PengLaiPack peripheral products, it can be combined into a fully automated production line in the future 14. Adopting flexible module design, it can be customized according to customer needs

Basic Parameters

Product name	PL(main machine film roll 350/550/850)
Filling volume range	(depending on bag size and specific gravlty of packaging materials)
Packing lanes	4 6 8 10 12
Bag width	16-84mm 16-54mm 16-40mm 16-32mm 16-26mm
Bag length	MAX:170mm(the excesed bag length,non-standard customization is possible)
Bag style	Side seal/back center seal\side seal with irregular shape/back center seal wth irregular shape
Dosing method	Servo rotate measuring cups filer
Packing speed	30-50 cuts/min 0-50 cuts/min
Roll ID	76mm/Standard roll lD76mm
Control system	PLC Control system+color touch screen
Voltage	380V/50HZ,3phase
Air consumpticn	7L/Min
Weight	≈1500kg
Dimension	Non-standard customization
Packing material	1 layer：PET/PE,PET/CPP,OPP/CPP,OPP/PE;NY/CPP,NY/PE,PET/VMCPP,OPPVMCPP; 3 layer： PET/NY/PE,PET/NY/CPP,PET/AL/PE,PET/AL/CPP,OPP/AL/PE,PET/VMCPP/PE,OPP/VMPET/PE 4 layer：PET/AL/NY/PE,NY/AL/NY/PE
Roll OD	max 350mm
