New Arrival Latest Design FGE Series FGE21 Slewing Drive Reducer for Truck Mixer

New Arrival Latest Design FGE Series FGE21 Slewing Drive Reducer for Truck MixerVideo Description[CODE_4]: DEMUXER_ERROR_NO_SUPPORTED_STREAMS: FFmpegDemuxer: no supported streamsProducts DescriptionNew Arrival Latest Design FGE Series FGE21 Slewing Drive Reducer For Truck MixerSlewing Drive Reducer ......

Send Inquiry

Product Description

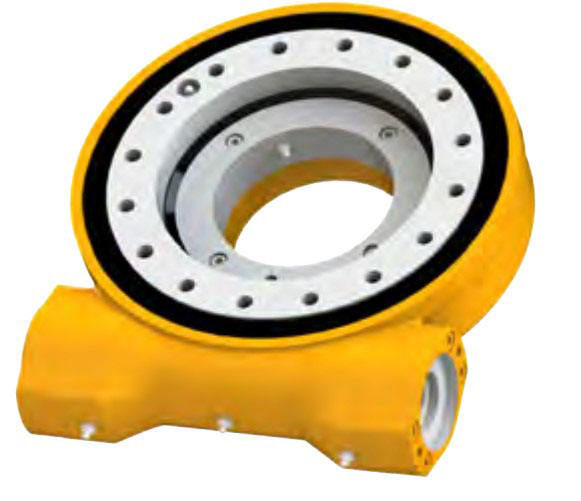

New Arrival Latest Design FGE Series FGE21 Slewing Drive Reducer for Truck Mixer

Products Description

New Arrival Latest Design FGE Series FGE21 Slewing Drive Reducer For Truck Mixer

Slewing Drive Reducer For Truck Mixers Slewing drives are an excellent solution for a variety of applications. They can safely handle axial and radial loads. Typically, they're made from gearing, bearings, seals, housing and other auxiliary components. To learn more about slewing drives, read on. Slewing drives are a versatile solution for many applications Slewing drives are an efficient and reliable solution for a variety of applications. The slewing motion can be single or dual-axis and they offer precision positioning and rotational accuracy. This type of drive requires minimal backlash and is ideal for high torque applications. Slewing drives are used in a variety of industries, including mining, construction, and metalworking. They are a great solution for high-load capacities and precise positioning. They also provide the benefit of being flexible and versatile. Some models have both hydraulic and pneumatic motors. Slewing drives are available in many sizes and types. Choose a slew drive based on its capacity and required torque. Most slew drives are able to handle 12 kN-m load holding torque and up to 14,000 N-m output torque. They can also handle high overturning moment loads. You can also select a slew drive with a custom input that meets your specifications. Slewing drives offer many advantages, including flexibility. They can be powered by one drive motor or by two to double the torque capacity. The driving motors can be hydraulic or electric and can include servo motors for fine input. These versatile solutions are also customizable, so you can easily adapt them to your application environment. Slewing drives are a highly effective solution for a variety of applications. They can handle axial, radial, and combined loads. And their efficiency is further enhanced by their aluminum/bronze worm wheel, which reduces friction and increases stability. Furthermore, their high numeric gear ratio allows them to accommodate a smaller electric or hydraulic motor, reducing power consumption. They can safely hold radial or axial loads The FGE Series slewing drive is suitable for applications where radial and axial loads can be safely held. The drive is capable of controlling up to 0.05 deg., which is sufficient for many types of applications. This device is also applicable in thickening systems used in wastewater sludge treatment. The slewing drive is a gearbox with high load capacity and high rotational torque. The slewing ring bearing at the center of the drive can safely hold radial or axial loads. Its construction includes a large number of gear teeth to ensure increased strength, efficiency, and durability. They are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components The Slewing Drive Reducer for Truck Mixers is made of various components that are required for its operation. The main components of a Slewing Drive Reducer for Truck Mixes are gearing, bearings, and seals. The motor and the housing are also important components for the reducer.

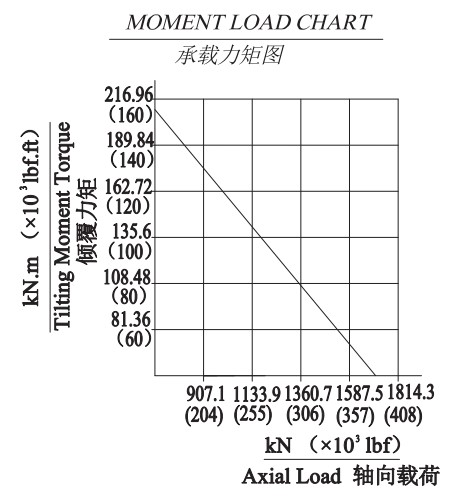

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
15 KN.M	203 KN.M	106 KN.M	1600KN	650 KN	125:1	≤0.15°	150kg
11000 LBF.FT	150*10³ LBF.FT	78.2*10³ LBF.FT	359.7*10³ LBF	146.1*10³ LBF	125:1	≤0.15°	150kg

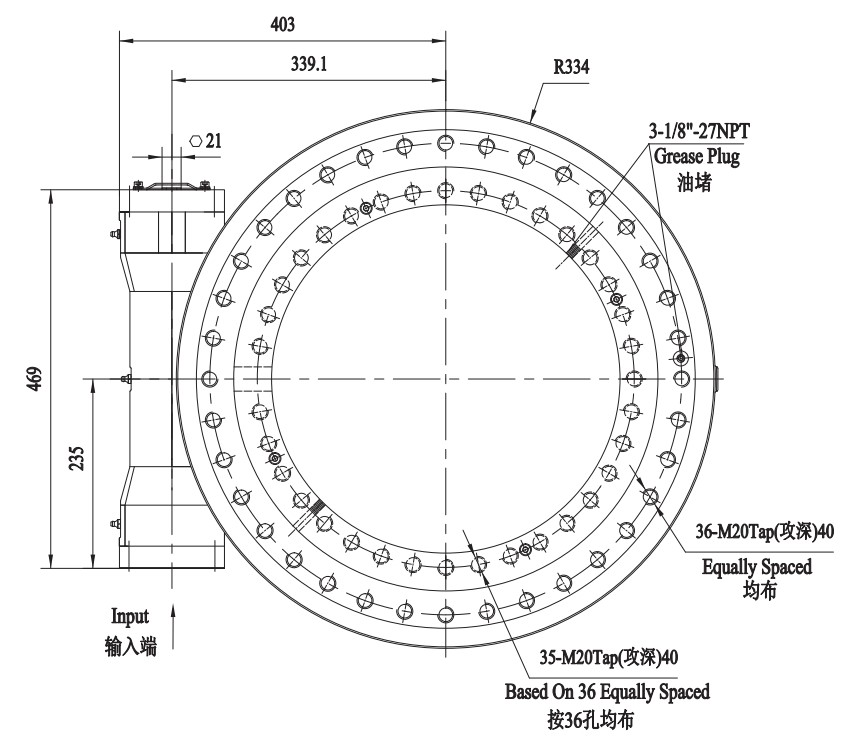

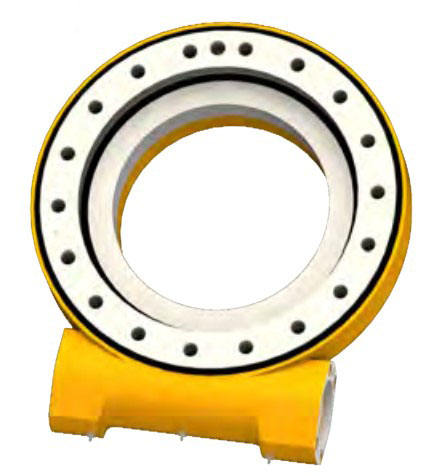

Front View

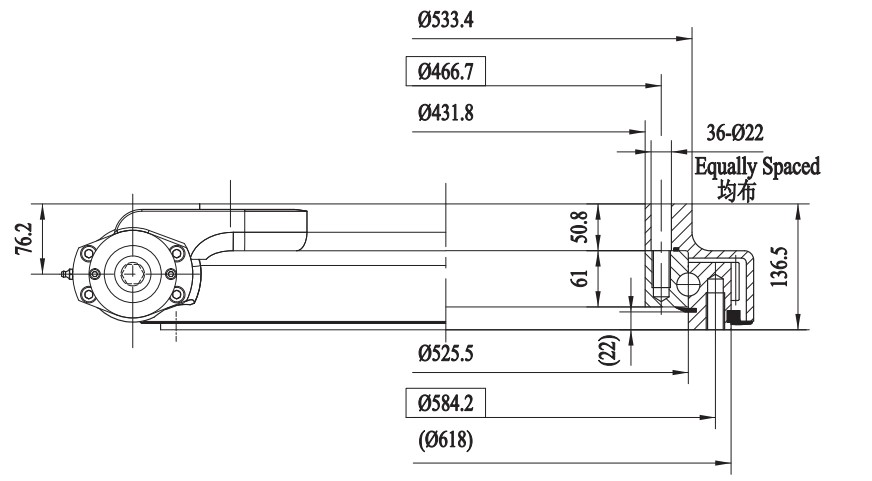

Top View

Note: customized design can be carried out according to customer requirements

Application

RAYDAFON slewing drive is a gearbox designed to handle radial or axial loads using high rotational torque. In addition, the slewing ring bearing, at the heart of the drive, enables it to withstand high overhung or moment loads. A descendant of the “worm” screw, slewing drives are present in construction machinery, manufacturing,and many other applications that require strength and precision.
The physics of the slew drive makes it a versatile solution for many applications. In operation, the slew drive’s axial movement, or motion around its axis, interacts to create radial torque. The action occurs by meshing the grooves of the horizontal screw with the teeth of a perpendicular gear. While turning, the worm gear’s axial movement transfers magnified torque force to the radial gear. The number of threads on the horizontal screw and the number of gears that interact will determine the speed ratio of the setup.
Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.
An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by
contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.
Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device which works smoothly and powerfully with minimal backlash.
Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun’s movements in perfect time to generate maximum energy output.
Any job requiring high load capacity and reliable positioning may require the implementation of slewing drive engineering.
Robust, smooth and consistent, slew drives have a distinct place in manufacturing, construction and many other venues. Based on a centuries-old engineering idea, slew drive-operated equipment can be simple or complex, depending upon the requirements.
Adding hydraulic, pneumatic or electric motors to single, double or hourglass design depends on the application. Other features such as brakes or self-locking features and open or closed chassis are among many options.
The list of active applications for slew drives is extensive. Several types of industries require some form of slew drive to make their operations more efficient. Equipment for mining, construction, metalworking and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.
Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery and utility equipment depend on the safety and strength of slew drives.
Precision devices such as military equipment, satellite dishes, solar trackers, printing presses and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.
To judge what kind of slewing drive you need,you have to clear out the configuration of the slew drive and the purpose of the equipment, each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:
Gear ratios
Precision
Weight
Output
Tilting moment
Torque
Dynamic and static axial
Radial dynamic

For more details, please click here to contact us！
