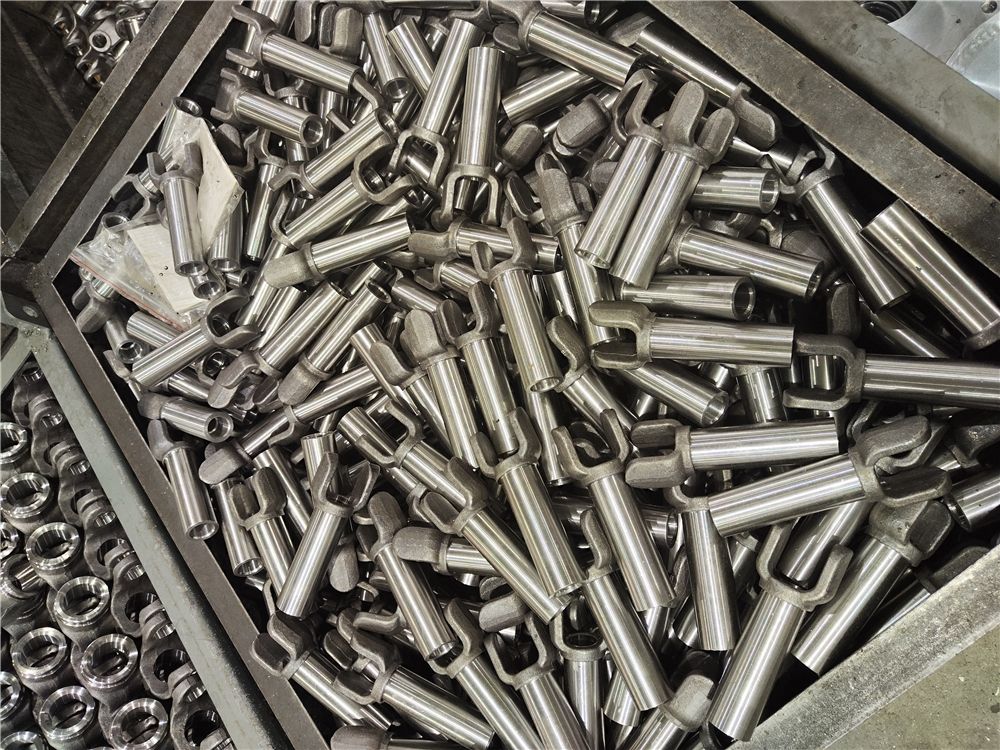

New innovation FULL WERK precision forged spicer driveshaft slip yoke 21 splines for Trucks
Meet TS/ISO16949 quality certification.High intensity and rigidity ,competitive price, excellent performance and long using life.OEM are welcome.Your sample or drawing request are welcome.
| Material: | 1045 steel/C45 or as per customer's requirement |
| Manufacture method: | Forging or casting parts |
| Surface finish: | Heat treatment & rust prevention |
| LOGO on product & package: | Neutral with no LOGO or as per customer's requirement |
| Package: | PVC bag + Plywood box , or as per customer's requirement |
Automotive Drive Shafts Material
1.China :45# steel
2. US:AISI/SAE 1045
3.Germany,France/Italy:C45
Specification
1.Drive Shafts Warranty: 1 year
2.Customizations: Shafts Colors,shafts size,shafts drawings or sample
3.Shafts OEM NO.: all
Advantage
1. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability
2. Advanced equipments, professional &experienced designers
3. Fine quality with competitive price and timely delivery
4. Suit for various kinds of vehicles use
5. Perfect after - sale service system
We have our test center to do 100% before shipping to guarantee quick delivery!
Drawing
| Part Number | Diameter | Splines | (J) Length | (F) Length | Angle | Dust Cap |
| N3-3-1481KX | 16 | 5.813 | 1.156 | 20 | D3G | |
| N3-3-788KX | 1.375 | 16 | 5.250 | 1.156 | 20 | |
| 3-3-6611X | 1.463 | 21/22 | 7.28 | 1.16 | 20 | 212094X |
| 3-3-6341X | 1.463 | 21/22 | 7.310 | 1.1600 | 20 | 212094X |
| 3-3-468KX | 1.500 | 16 | 3.906 | 1.156 | 20 | D3A |
| 3-3-2041KX | 1.500 | 16 | 5.250 | 1.156 | 20 | D3K |
| 3-3-118KX | 1.500 | 16 | 6.50 | 1.156 | 20 | D3A |
| 3-3-5491X | 1.500 | 14/16 | 7.281 | 1.156 | 45 | 211503X |
| 3-3-5411X | 1.500 | 15/16 | 7.281 | 1.1560 | 45 | 211158X |
| 3-3-4871X | 1.500 | 14/16 | 7.281 | 1.156 | 212010X | |
| 3-3-508KX | 1.500 | 16 | 7.812 | 1.344 | 28 | D3A |
| 3-3-768X | 1.500 | 15/16 | 8.562 | 1.3440 | D3F | |
| 3-3-1831KX | 1.500 | 16 | 8.562 | 1.3440 | 30 | D3J |
| 3-3-6641X | 1.5280 | 23 | 6.81 | 1.3120 | ||
| 3-3-1701KX | 1.562 | 16 | 6.812 | 1.312 | 21 | D3H |
| 3-3-6041X | 1.564 | 22/24 | 6.720 | 1.220 | 20 | 212007X |
| 3-3-7001X | 1.587 | 23/24 | 6.720 | 1.220 | 212007X | |
| 3-3-3871KX | 1.605 | 15 | 5.750 | 1.344 | D4G | |
| 3-3-3791X | 1.654 | 20 | 4.812 | 1.312 | ||
| 3-3-1511KX | 1.750 | 16 | 3.250 | 1.1880 | 18 | D4F |
Drawing of slip yoke (Driveshaft)
| ZDC No. | A | B | C | D | Soicer No.: | Similar | U-joint | Vehicle | Series |
| 863-01 | 230 | 98 | Φ38.05 | Φ70 | 03-339XS | LV1343 | 3302 62*38.5 | Mercedes Benz 1113 a 2213 | 1680 |
| 863-02 | 275 | 133 | Φ45.05 | Φ78.5 | 03-423XS | LV1345 | 3309 5-12100X 123.75*45.05 | Mercedes Benz 1519 / 1218 a 2219/ O 326 / O 355 / O 364 | 1680 |
| 863-03 | 165 | 113 | M46×1-6g | 3-3-118KX1 | LV1062 | 3311 5-160X 109.15*30.16 | GM/Ford F1000 Turbo / Bonanza Turbo diesel / D20 Turbo MB L 709,L 710 | 1410 | |
| 863-04 | 147.6 | 113 | Φ30.16 | M43×1-6g | 3-3-1481KX | LV1250 | 1301 5-160X 109.15*30.16 | GM D20 Turbo / D40 / D64 / D74 / D75 | 1410 |
| 863-05 | 133 | 113 | Φ30.16 | M46×1-6g | 3-3-2041KX | LV1947 | 5-160X 109.15*30.16 | VW 7-90S M.B Sprinter | 1410 |
| 863-06 | 173 | 113 | Φ34.91 | M46×1-6g | 3-3-1601KX1 | LV1043 | 5-263X 109.15*34.91 | Ford Cargo 1113,1415, Ford F7000,F14000, VW 7.110,14.140 | 1480 |
| 863-07 | 133.4 | 113 | Φ30.16 | M43×1-6g | 3-3-788KX | LV1042 | 5-160X 109.15*30.16 | Ford F11000 / F350 / F400 / F4000 / F600 | 1410 |
| 863-08 | 152.4 | 98.5 | Φ30.16 | M43×1-6g | 2-3-14501KX | LV1041 | 1311 5-273X 109.15*30.16 | Ford F350 / 400 / 1000 / 2000 / 4000 | 1410 |
| 863-09 | 268 | 172 | Φ48.03 | M76×1-6g | 03-514XL | 5-12062X 164.55*48.03 | Mercedes Benz 1621 / Onibus O370 e O371 | 1740 | |
| 863-10 | 268 | 172 | Φ48 | 03-466X | LV6451 LV1065 | 5-12062X 164.55*48.03 | Scania P40 | ||
| 863-11 | 274.7 | 134.8 | Φ47.65 | M57×1-6g | 5-3-2261KX | LV1060 | 3312 5-438X 134.85*47.65 | Ford Cargo 1419 a 3224 / Ford F14000 e F16000 M.B 1618/VW | 1610 |
| 863-12 | 237 | 159.5 | Φ44.05 | M65×1-6g | 03-334XL2 | LV1450 | 4302 4303 5-12276X 152.45*44.05 | Scania BR111 / BR115 / BR116 / F112 / F113 / K112 / LS110 / S112 | T60 |
| 863-13 | 268 | 176.5 | Φ49.98 | M76×1-6g | 03-541XL | LV1451 | 5-12278x 167.95*49.98 | Scania 112 / 113 / 140 / 142 | T70 |
| 863-14 | 297 | 154.6 | Φ49.2 | M76×1-6g | 6-3-2651KX | LV1064 | 5312 5-515X 154.6*49.2 | Ford Cargo 1521 a 3530, Internacional 4700 / 4900 / 9200 / 9800, Mercedes Benz 1723 / 1723S / L 1623 / LS 1623 / O 400 UPA / OH 1623LG/VW | 1710 |
| 863-15 | 302 | 191.7 | Φ49.2 | M92×1-6g | 6.5-3-1371KX | LV1045 | 5310 5-510X 191.7*49.2 | Scania/Volvo,Ford | 1810 |
| 863-16 | 260.3 | 191.7 | Φ49.2 | M92×1-6g | 6.5-3-1351KX | LV1046 | 5-510X | Mercedes Benz OH1625L | 1810 |
| 863-17 | 175.2 | 133.5 | Φ34.9 | M57×1-6g | 4-3-1241KX | LV1050 | 5-275x 129*34.9 | Ford /Fiat IVECO Eurocargo 120E/15N | 1550 |
| 863-18 | 127.5 | 88.6 | Φ27.00 | Φ40.5 | 2-3-1421KX | LV1044 | 5-153X 0302 84.65*27 | Ford/VW/Willys | 1280 1310 |
| 863-19 | 137.2 | 88.4 | Φ27 | M43×1-6g | 2-3-128KXS | LV1040 | 5-153X 5311 84.65*27 | Ford F-350, Volvo B58/B10M GM | 1310 |
| 863-20 | 256.7 | 137 | Φ30.16 | Φ59 | 90-3-21X | LV1063 | 3317 SPL90-1X 130.65*41.26 | M.Benz 1214L/1215L | 1550 SPL70 |
| 863-21 | 143.1 | 112.5 | Φ30.16 | M46×1-6g | 03-312XS | LV1061 | 7201 5-160X 109.15*30.16 | VW/Fiat | 1410 |
| 863-43 | 6-3-2671KX | 1710 |
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 100pcs.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
