Product Highlights: High-precision CNC machined gear racks | Nylon, stainless steel, or plastic options | Spur and helical tooth profiles | Curved and straight designs | Ideal for sliding gates, automatic windows, and industrial automation | Engineered for smooth, quiet, and reliable linear motion.
Raydafon’s gear rack and pinion systems are the industry’s preferred solution for converting rotary motion into reliable linear movement. Whether you need a nylon gear rack for silent operation, a stainless steel gear rack for harsh environments, or a plastic curved CNC gear rack for specialized applications, Raydafon delivers precision, durability, and cost‑effectiveness.
| Classification Basis | Available Types |
| Tooth Shape | Cylindrical gears, straight teeth, helical teeth |
| Tooth Line Shape | Spur gear, helical gear, herringbone gear |
| Manufacturing Process | Quenching, tempering, grinding, gear milling, gear grinding, blackening |
| Accuracy Grade (DIN) | Grade 6 (precision), Grade 8 (soft gear), Grade 9 (milled gear) |
| Standard Material | C45 carbon steel (also available in nylon, stainless steel, plastics) |
| Typical Modulus | Modular standard racks – custom modules available |
A Raydafon gear rack is a linear actuator that converts the rotary motion of a pinion gear into linear motion along the rack. This mechanism is the most cost‑effective solution for linear movements exceeding 2 meters, offering high rigidity, precise positioning, and long stroke capabilities.
Raydafon’s gear rack and pinion system is engineered to work seamlessly with Raydafon gearboxes, ensuring optimized efficiency, minimal backlash, and extended service life. Whether used in CNC machine tools, gantry machining centers, laser cutters, or sliding gate openers, the Raydafon gear rack delivers consistent performance.
Q1: What materials are available for Raydafon gear racks?

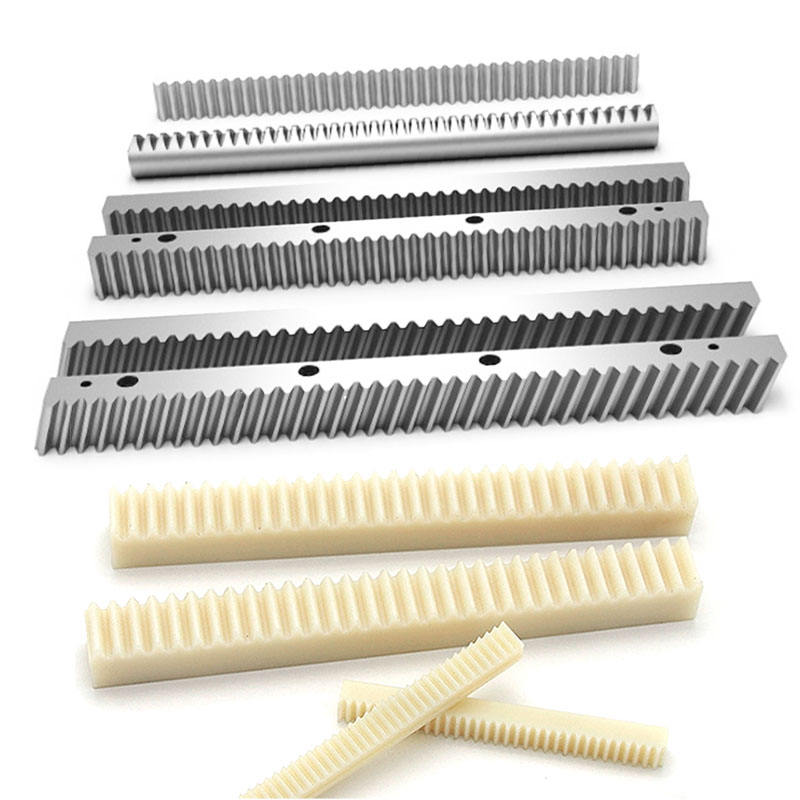

A: Raydafon offers gear racks in nylon, stainless steel, and plastic. Each material is selected based on application requirements – nylon for quiet operation, stainless steel for corrosion resistance, and plastic for lightweight and cost‑effective solutions.
Q2: What is the difference between spur and helical gear racks?
A: Spur gear racks have straight teeth and are simple and cost‑effective. Helical gear racks have angled teeth, which provide smoother and quieter operation with higher load capacity. Raydafon supplies both types.
Q3: How does a rack and pinion system work for sliding gates?
A: The pinion gear rotates and meshes with the linear rack, converting rotary motion into linear motion. This drives the sliding gate or automatic door opener smoothly and precisely.
Q4: Can Raydafon customize gear racks for specific projects?
A: Yes. Raydafon offers custom CNC machining for curved racks, special materials, surface treatments, and precise dimensional requirements. Contact our engineering team with your drawings.
Raydafon Transmission Group is a globally recognized manufacturer and supplier of high‑quality gear racks, pinions, gearboxes, and transmission components. With over 20 years of experience, Raydafon serves OEM markets across Asia Pacific, South America, and Europe, delivering precision‑engineered solutions for industrial automation, agricultural machinery, and access control systems.
All Raydafon gear racks are produced in state‑of‑the‑art CNC machining facilities, adhering to strict quality control protocols and international standards (ISO 9001). Our engineering team provides expert consultation to help you select the optimal gear rack material, tooth profile, and accuracy grade for your specific application.
Choose Raydafon for reliability, innovation, and exceptional after‑sales support – your trusted partner in linear motion technology.
| Lead Time | 5–10 days for standard racks; 15–25 days for custom CNC curved racks |
| Packaging | Individual protective packaging or bulk crates |
| Shipping | Worldwide via sea, air, or express (DHL/FedEx) |
| Warranty | 12‑month warranty against manufacturing defects |
| Customization | Material, curvature, tooth profile, dimensions – contact with drawings |
