SWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack
  • SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw Jack

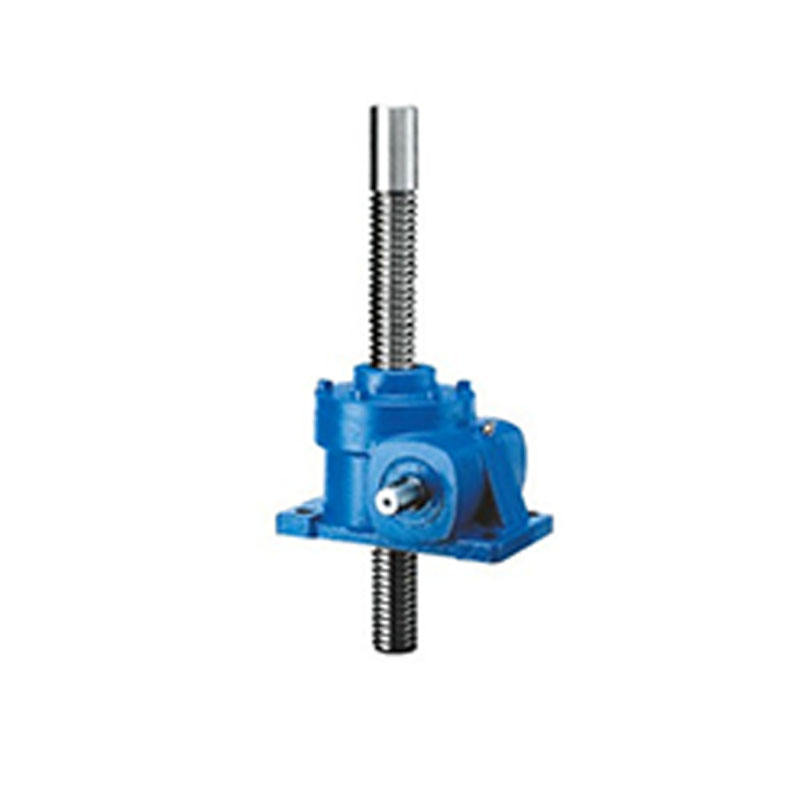

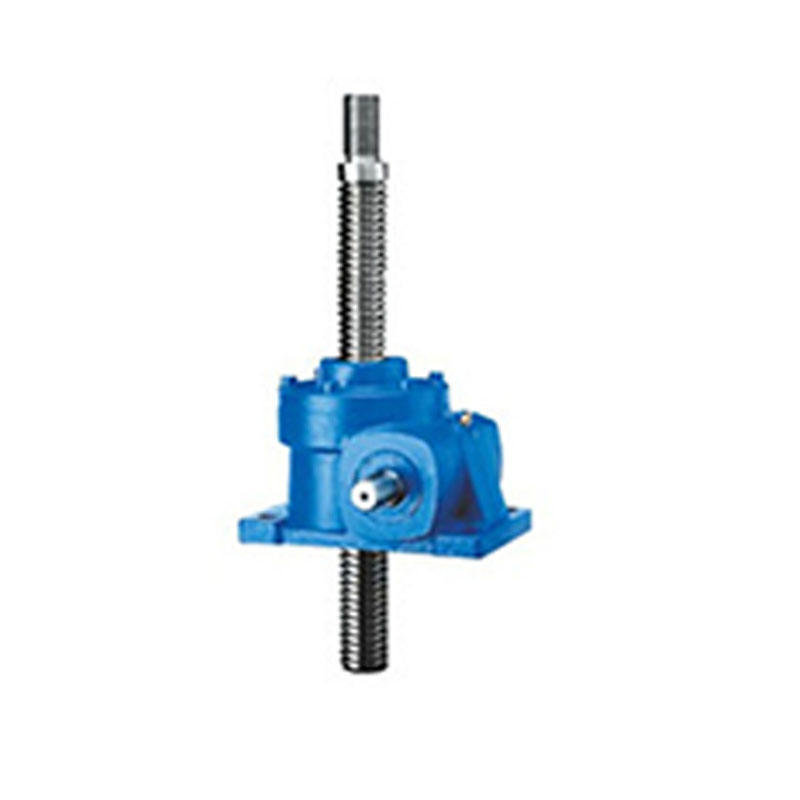

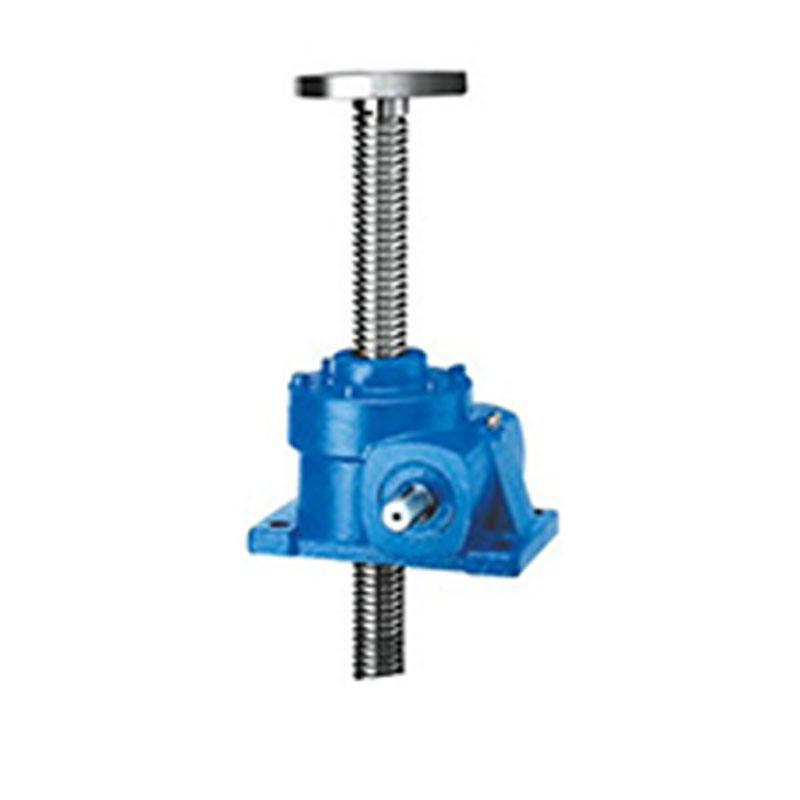

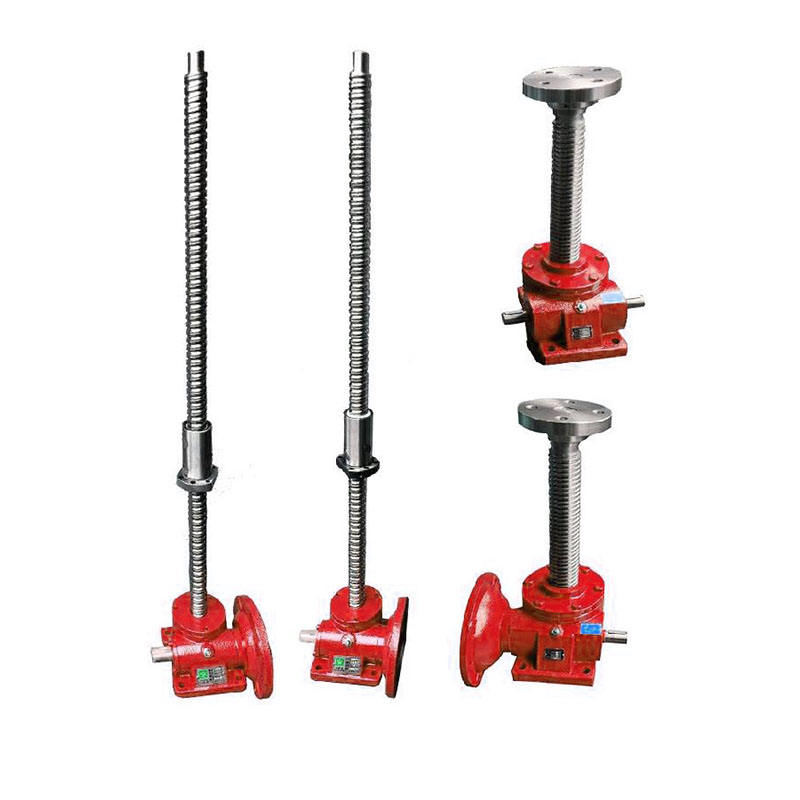

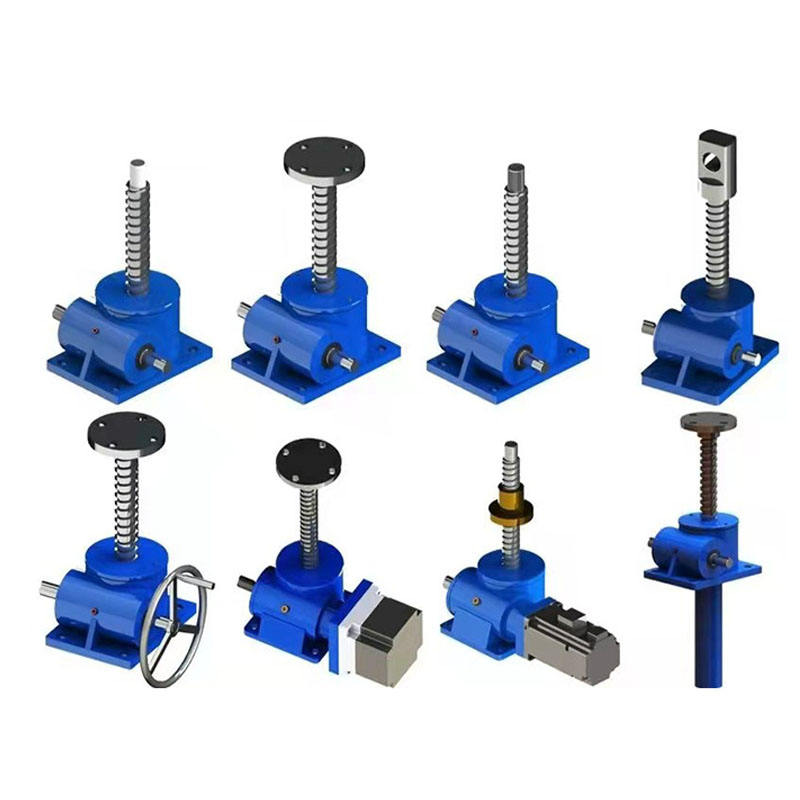

SWL Series Worm Screw Jack Worm Gear Screw Jack

SWL Series Worm Screw Jack Worm Gear Screw JackFeaturesOriginal modular design, biomimetic surface with owned intellectual property right.Adopt German worm hob to process the worm wheel.Low friction, long lifecycle, high efficiency.Diverse drives, motor or other power drive, also can be driven by ha......

SWL Series Worm Screw Jack Worm Gear Screw Jack

SWL Series Worm Screw Jack Worm Gear Screw Jack

Features
Original modular design, biomimetic surface with owned intellectual property right.
Adopt German worm hob to process the worm wheel.
Low friction, long lifecycle, high efficiency.
Diverse drives, motor or other power drive, also can be driven by hand.
Various output type.

Main applied for
Hoist and transport
Building and construction
Forest and paper
Metal processing
Agriculture and food

SWL Series Worm Screw Jack Worm Gear Screw Jack

Housing material
Cast iron/Ductile iron
Housing hardness
HBS190-240
Gear material
20CrMnTi alloy steel
Surface hardness of gears
HRC58°~62 °
Gear core hardness
HRC33~40
Input / Output shaft material
42CrMo alloy steel
Input / Output shaft hardness
HRC25~30
Machining precision of gears
accurate grinding, 6~5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Heat treatment
tempering, cementiting, quenching, etc.
Efficiency
98%
Noise (MAX)
60~68dB
Temp. rise (MAX)
40°C
Temp. rise (Oil)(MAX)
50°C
Vibration
≤20µm
Backlash
≤20Arcmin
Brand of bearings
China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal
NAK --- Taiwan or other brands requested



SWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw JackSWL Series Worm Screw Jack Worm Gear Screw JackQ: Are you trading company or manufacturer ?
A: We Ever-Power Group one of the biggest transmission suppliers in the world are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have other question, freely to contact us,please.
