OEM BP321 CNC OD & ID Machine Tool Lathe Machining Center for Metal Cutter Grinder

Raydafon Group's OEM BP321 CNC OD & ID Machine Tool Lathe Machining Center excels in precision metal cutting and grinding, offering superior accuracy and durability. Ideal for manufacturers and engineers, it enhances productivity and reliability, solving inefficiency with advanced CNC technology. Stand out with its robust build and user-friendly design, ensuring exceptional performance in demanding workshops.

Send Inquiry

Product Description

OEM BP321 CNC OD & ID Machine Tool Lathe Machining Center for Metal Cutter Grinder

Products Description

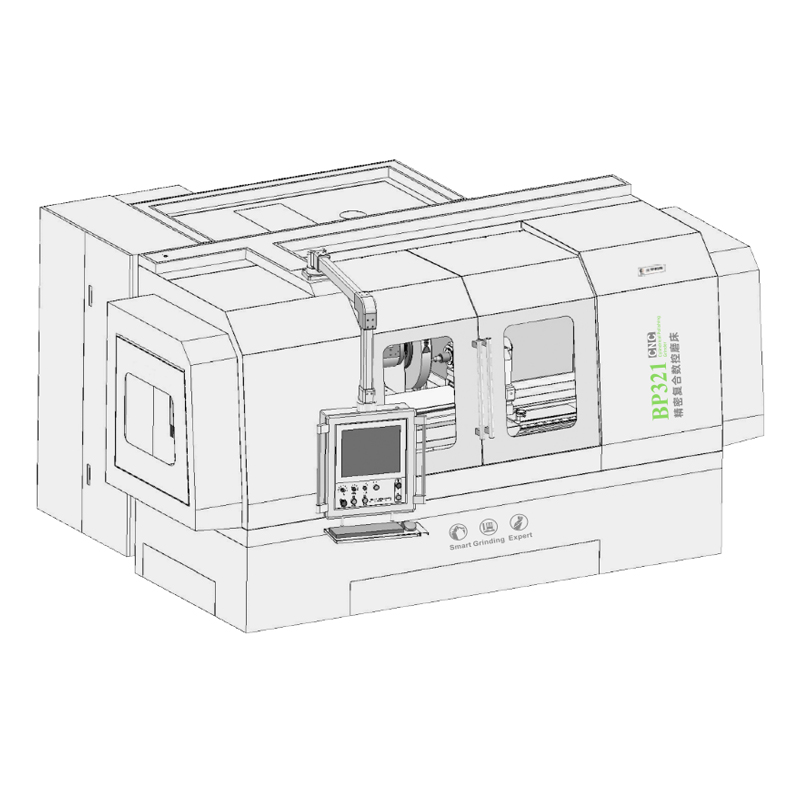

BP321 CNC OD & ID Machine

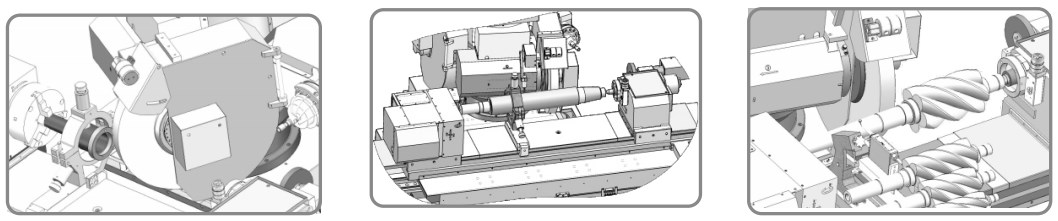

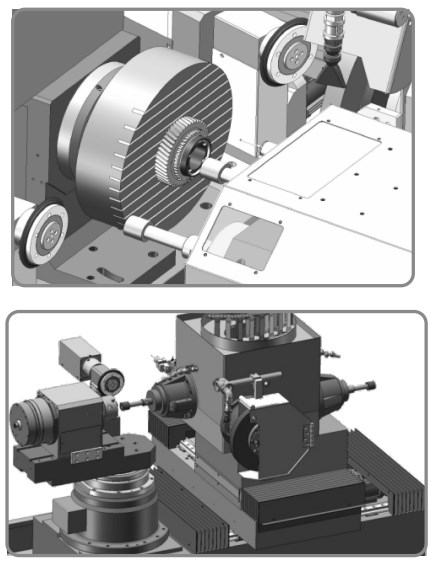

BP321 / BP22 precision CNC grinding machine are suitable for different sizeworkpiece internal diameter , outer diameter , step , taper , inside / outside endface , profiled surface grinding by one-time clamping Automatic loading andunloading system could be equipped to realize intelligent massproduction . The grinding accuracy and efficiency could be improvedsignificantly . Creative rotated turrent type spindle design , max 2 ODspindle , total 4 ID / OD spindle could be equipped , to realize multiple stationcomplex grinding . Select BEIPING patented three points casting / natural stonecomposite machine base , with good vibration absorption and thermaldeformation resistance . Workpiece headstock spindle equipped C axis , couldbe used for non-circle and thread grinding . Select direct drive / linearmotor , with Heidenhain scales , could control products grinding accuracyeffectively Adopted BEIPING MACHINE specific complex grindingsoftware , grinding program could be generated automatically by inputtingseveral parameters , operation is very simple Inteligent production systemintegration , high expanding flexibility , external programming and editing byremote controlling and remote diagnosis are available on the machine . BP321grinder could select serve drive center , to realize multiple special grinding skiby double drives precisely and efficiently . BP22 CNC grinding center workpieceaxis ( B axis ) could select manual and CNC direct drive axis to improve differentgrinding skill accuracy grade BP21 CNC grinding center adopts fixed grindinghead structure , improved the grinding rigidity , save grinding head adjustedtime , it is suitable for huge batch and high precise parts production

Product Specification

Grinding Spindle			System	BP/SYNTEC
Spindle Layout	horizontal	Grinding Scope
Spindle Quantity	3	Suitable size	axial type parts
Travel		workpiece diameter	6-100mm
X Axis	1180mm	workpiece length	20-300mm
Y Axis	380mm	workpiece clamping collet type	3 jaw chunk/specific chuck
Wheel headstock		Linear Axis Controlled Resolution	0.0001mm
Type	universal wheel headstock	Rotary Axis Controlled Resolution	0.0001
Rotation range	-15-225	Connected Loading	20kva
Manual rotation axis	2.5 degree teeth index	Machine Size
Automatic rotation axis	1 degree teeth index	Lengthxwidth	1800*1800
Drive power	11kw	Height	1800
Installation hole diameter	120mm	Machine Weight
Rotation speed	24000-120000rpm	Total Weight ( Depends on the Configuration）	5000kg
Scale(optional)	Heidenhain/Renishaw

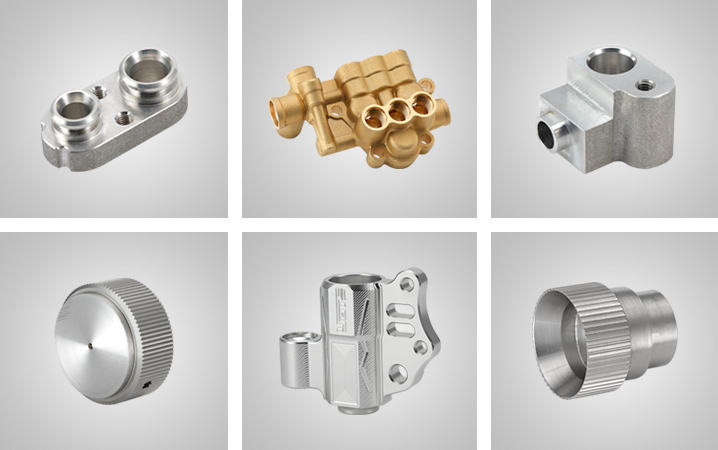

Samples Show

Applications

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
