OEM CNC Lathe VMC1000P Milling Machine Tool Vertical Center with 4-axis coordinate linkage machining

Products Description

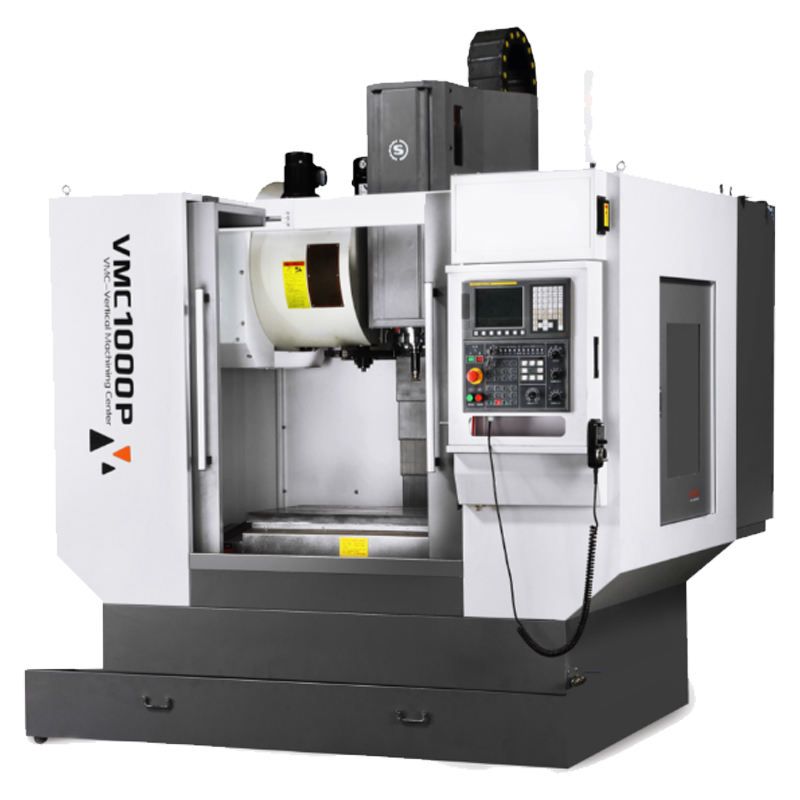

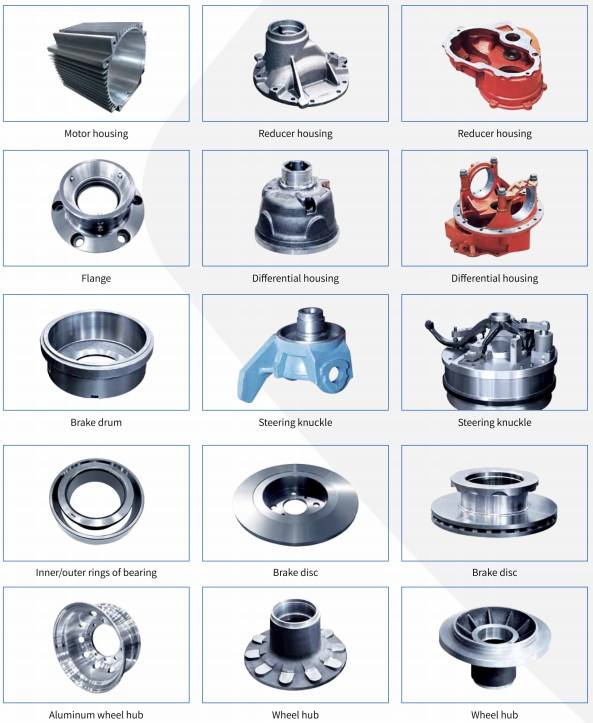

VMC1000P High Rigidity Good Accuracy Vertical Machining Center

The VMC1000P vertical machining center machine tool is equipped with full protection, effectively preventing cutting fluid and chips from splashing everywhere, and has a beautiful and elegant appearance; Optional CNC turntable can form four-axis coordinate linkage machining; Equipped with a well-known professional company in Taiwan to produce a complete set of spindles, it has good performance, strong cutting force, and a long service life; Optional automatic chip removal device, combined with the bed structure to ensure internal cleanliness; Optional spindle oil cooling, etc. The machine tool is designed with an X/Y/Z axis rail structure, and the three direction rail adopts heavy preloading, which combines the characteristics of high speed and precision with the characteristics of heavy cutting, providing excellent rigidity and production efficiency

Item	Unit	VMC850P	*VMC1000P*	VMC1060B	VMC1160B
Worktable
Worktable size	mm	500x1000	*520x1200*	610×1200	610×1300
T-slot （N×W×D）	mm	5x18x100	*5x18x100*	5x18x100	5x18x100
Travel
Axis travel （X/Y/Z)	mm	850/500/550	*1000/520/535*	1000/620/630	1100/610/630
Machining range
Distance from spindle center to column front	mm	582	*582*	667	667
Distance from spindle end to work table	mm	100~650	*80~615*	110~740	110~740
Machine dimension
L×W×H	mm	2460x2355x2860	*2600x2355x2860*	2850x2500x2820	3000x2500x2750
Machine weight
Max. load bearing of worktable	kg	500	*500*	800	1000
Machine weight	kg	5500	*5800*	6800	7000
Spindle
Spindle hole taper		BT40	*BT40*	BT40	BT40
Spindle power	Kw	11/15	*11/15*	11/15	11/15
Max. spindle speed	rpm	8000/10000	*8000/10000*	8000	8000
Feed
Max. feed speed	mm/min	10000	*10000*	10000	10000
Rapid feed speed (X/Y/Z)	m/min	48/48/32	*48/48/32*	36/36/30	36/36/30
Tool Magazine
Tool magazine capacity	T	24	24	24	24
Maximum allowable length of cutter	mm	300	*300*	300	300
Tool change time（T-T）	s	2.5	*2.5*	2.5	2.5
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.008	*0.008*	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.005	*0.005*	0.005	0.005

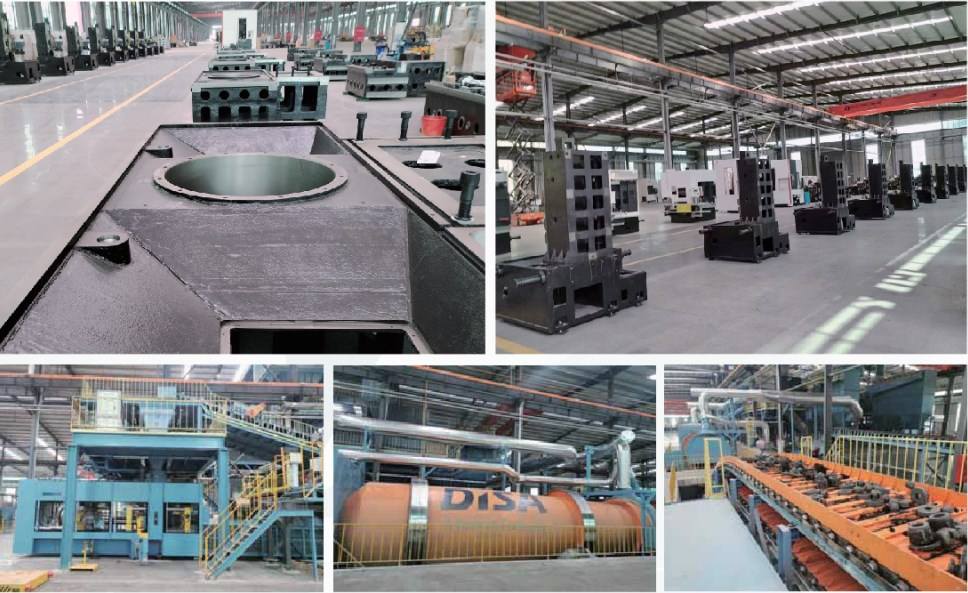

Machine structure :

---The contact ratio between spindle case and column increased to ensure spindle rigidity.
---1100mm wide machine body span and optimum supporting design can meet with fast feed of X and Y axis.
---Big size of “pyramid” column and with closed inner cavity to ensure low center but high rigidity support of Z axis.

Preloaded and double anchored ball screw :

---Servo motor directly coupled ball screw.
---All the ball screws, linear guideway, bearings are well lubricated in time and ration.
---Y/Z axis adopt 45mm linear guideway while X axis adopts 35mm which make the rapid feed speed reach 48/48/32m/min.
---In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews. Also 5 rank high precision angular contacted bearing installed aside the ball screw and make pre-tension.

Shoulder carrying tool magazine :

Shoulder carrying tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum deformation when column loaded with tool magazine weight.

Large flow coolant fluid :

---Labyrinth style cover design to protect machine from scraps and cutting fluid.
----Standard equipped with inner side flushing system to remove scraps efficiently.
