OEM Heavy duty screw spline composite unit for Automated and intelligent production lines

OEM Heavy duty screw spline composite unit for Automated and intelligent production linesWarning/DisclaimerThis product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View moreProducts DescriptionTG50TG60TG80TG100TG120Ball screw diameter mm32405......

Send Inquiry

Product Description

OEM Heavy duty screw spline composite unit for Automated and intelligent production lines

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Products Description

	TG50	TG60	TG80	TG100	TG120
Ball screw diameter mm	32	40	50	75	80
Axial rated dynamic load (kN)	58	80	106	131	208
Axial rated static load (kN)	112	162	255	412	583
Stroke (mm)	≥400

★ High load

★ Low noise

★ High precision

★ Compact structure

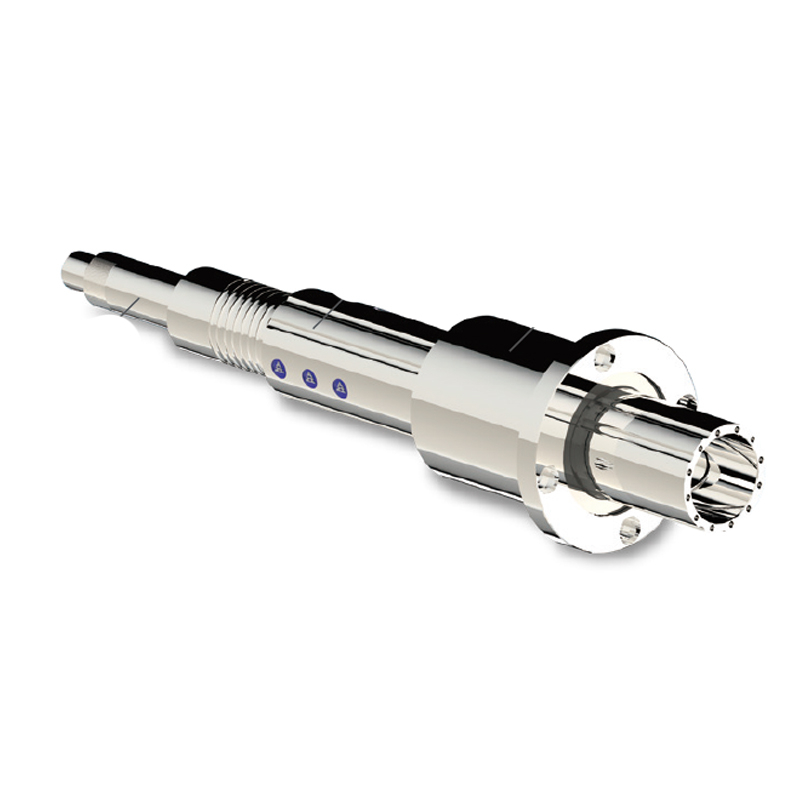

Product Introduction: The ball nut rolling spline composite unit is designed for automated and intelligent production lines The new composite rolling functional components developed in the application field mainly consist of precision ball screws, ball nuts/rolling spline shafts, rolling spline sleeves, etc. This product is mainly used in servo machines. By integrating precision ball screw nuts with ball spline shafts, the structure of the press is simplified and the space of the press cylinder body is saved; The screw and nut structure adopts a high load design to meet the large tonnage requirements of the press; Adopting ball spline pairs for anti rotation, with rolling friction during operation, flexible movement, and low noise; The screw and nut raceways are precision ground and processed, with high feed accuracy
