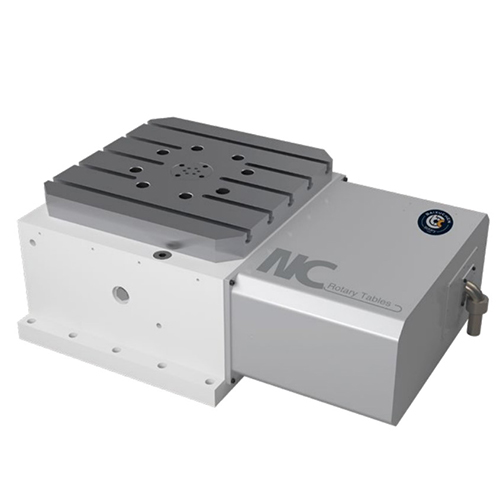

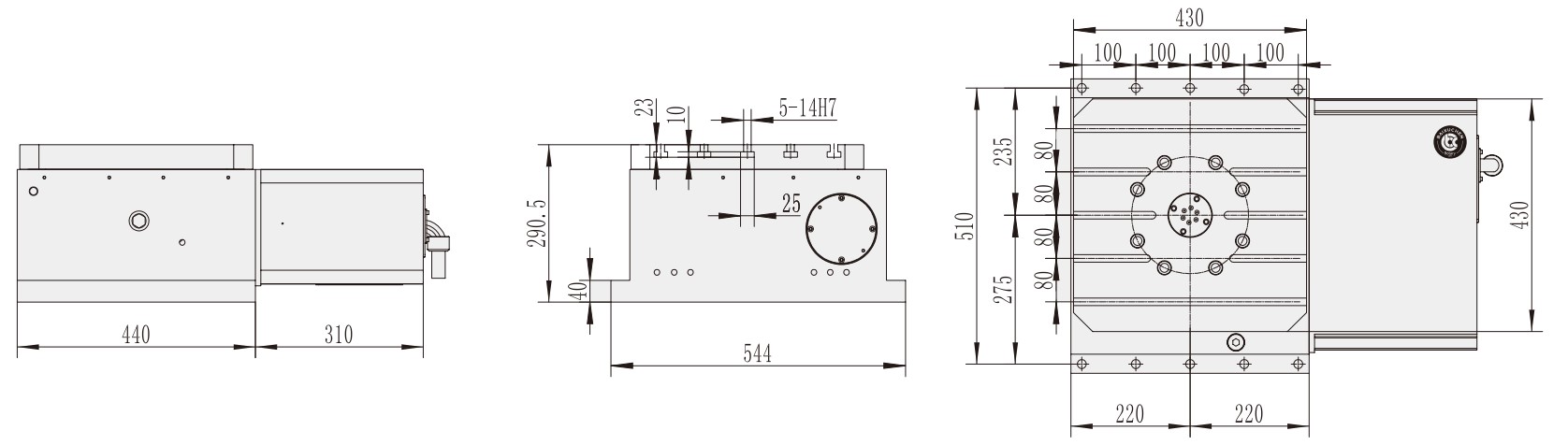

Product Model | WT-H430 | Servo motor | β22i HF-204 |
Panel Size | 430×430 | Total Reduction Ratio | 1:120 |
Disk Aperture | Φ80mm | Maximum Rotation Speed Of Worktable | 33.3 r.p.m |
Flat Overall Height | 290.5mm | Minimum Setting Angle | 0.001°deg |
Disk T-Slot | 12H8mm | Segmentation Accuracy | 20″sec |
Positioning Button | 14H7mm | Repeat Positioning Accuracy | 4''sec |
Center Height | 255mm | Locking Method | oil pressure 35Kg/cm² |
Net Weight (about) | 300Kg | Allowable Cutting Force | 200Kg.m |
Max.load Horizontal | 500KG |
