PHS Series Right Hand Female Thread Joint Rod End Bearing With Zinc Plated

PHS Series Right Hand Female Thread Joint Rod End Bearing With Zinc PlatedProduct DescriptionPHS Rod End Bearing--Rod body with left or right-hand female thread--Outer race lined with bronze liner--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple * Easy to use: eas......

PHS Series Right Hand Female Thread Joint Rod End Bearing With Zinc Plated

Product Description
PHS Series Right Hand Female Thread Joint  Rod End Bearing With Zinc Plated

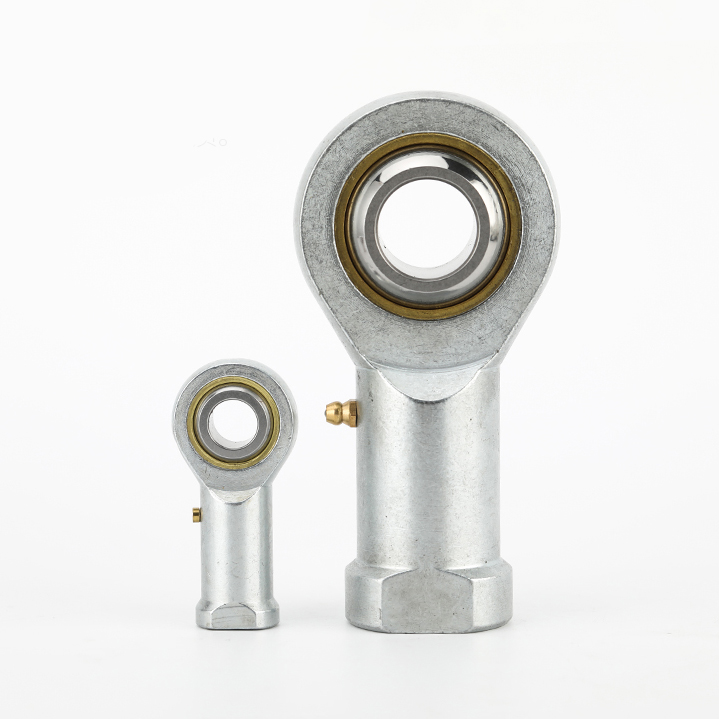

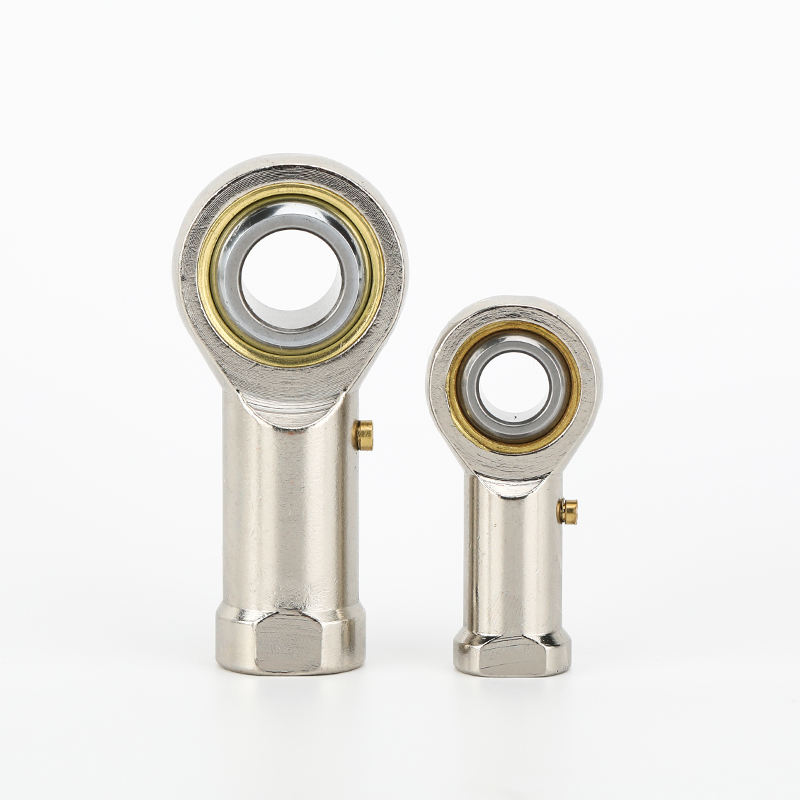

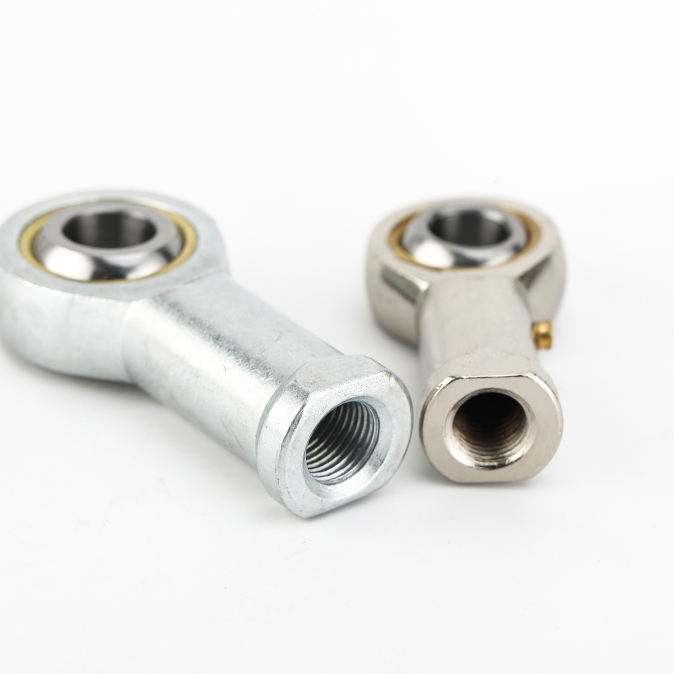

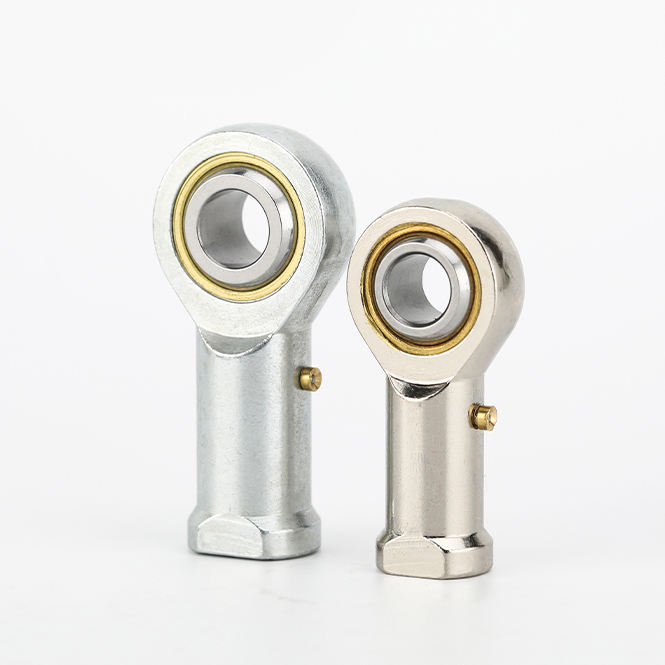

PHS  Rod End Bearing
--Rod body with left or right-hand female thread
--Outer race lined with bronze liner
--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

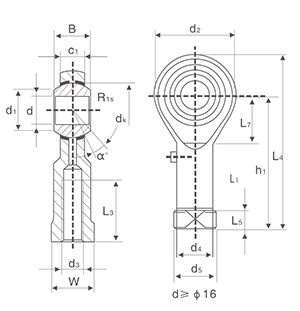

Specification
PHS Series Right Hand Female Thread Joint  Rod End Bearing With Zinc Plated
PHS Series Right Hand Female Thread Joint  Rod End Bearing With Zinc Plated
Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
PHS 5
5
M5*0.8
8
3.25
5.7
15.2
PHS 6
6
M6*1.0
9
4.3
7.2
22.3
PHS 8
8
M8*1.25
12
7.2
11.6
42.2
PHS 10
10
M10*1.5
14
10
14.5
68.6
PHS 10-1
10
M10*1.25
14
10
14.5
68.6
PHS 12
12
M12*1.75
16
13.4
17
104
PHS 12-1
12
M12*1.25
16
13.4
17
104
PHS 14
14
M14*2.0
19
17
24
143.5
PHS 14-1
14
M14*1.5
19
17
24
143.5
PHS 16
16
M16*2.0
21
21.6
28.5
197.5
PHS 16-1
16
M16*1.5
21
21.6
28.5
197.5
PHS 18
18
M18*1.5
23
26
42.5
279
PHS 20
20
M20*1.5
25
31.5
42.5
350
PHS 22
22
M22*1.5
28
38
57
478
PHS 25
25
M24*2.0
31
47.5
68
688
PHS 28
28
M27*2.0
35
58
78.5
929
PHS 30
30
M30*2.0
37
64
88
1076
PHS 30-1
30
M27*2.0
37
64
88
1076
For left-hand thread,please and surffix“L”,e.g. PHSL 8
●If need the stainless steel material please to add “S”in front of the model for example:SPHS 8
