PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad

PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female ThreaadProduct DescriptionPHSB Rod End Bearing * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required * Features: The rod end bearing is a spherical sliding bearing, ......
Send Inquiry
Product Description

PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad

Product Description
PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad
PHSB  Rod End Bearing
* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

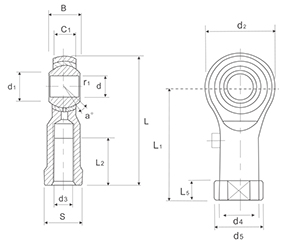

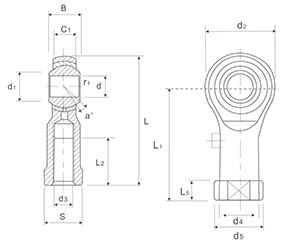

Specification
PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad
PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad
Part Number
Dimensions（mm）
a°≈
Weight（g）
d
d3
B
PHSB 3
0.19
0.625
0.312
13
14
4.826
15.88
7.92
PHSB 4
0.25
0.75
0.375
13
24.5
6.35
19.05
9.53
PHSB 5
0.312
0.875
0.437
13
35
7.9385
22.23
11.1
PHSB 6
0.375
1
0.5
13
59.5
0
25.4
12.7
9.525
PHSB 7
0.437
1.125
0.562
13
77
5
28.58
14.27
11.11
PHSB 8
0.5
1.312
0.625
13
129
0
33.32
15.88
12.7
PHSB 10
0.625
1.5
0.75
13
189
15.88
38.1
19.05
PHSB 12
0.75
1.75
0.875
13
284
19.05
44.46
22.23
PHSB 16
1
2.75
1.375
13
973
25.4
69.85
34.93
●For left-hand thread surffix“L”is added to bearings number and thread signeg POSB6L M3/8*24gL
●The surface of sphrical plain with a bronze line
●To plate zine on the surace of rod body the housing with a lubrication or agrease nipple.
PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad

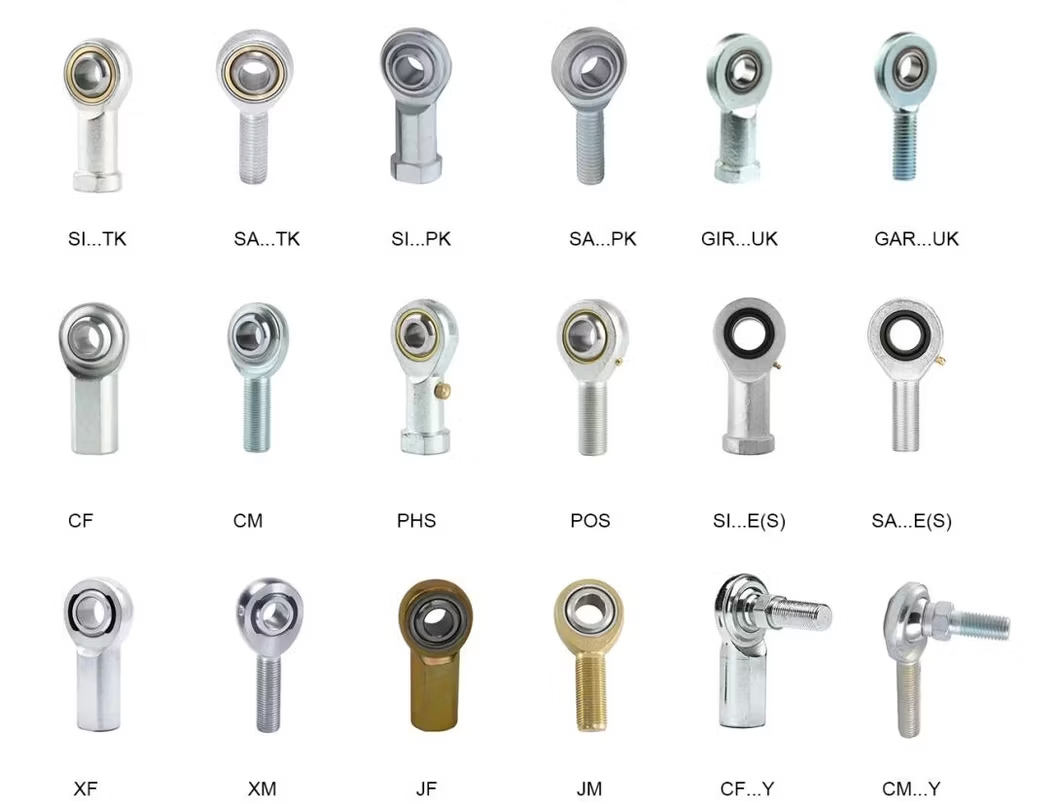

Related Products
PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad
Company Profile
PHSB Series Inch Dimension Inlaid Liner Rod Ends with Female Threaad
Ever-power Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
