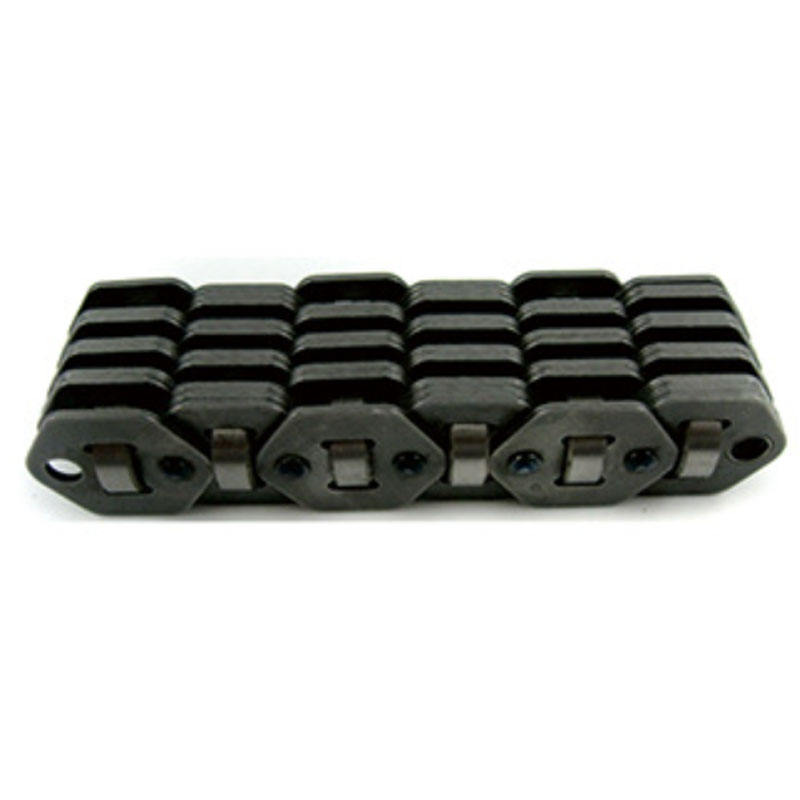

PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6Product DescriptionPIV (Infinitely Variable Transmission) technology is the stepless transmission technology. It uses the transmission belt to match the main and driven wheels with varia......
Send Inquiry
Product Description

PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6
Product Description
PIV (Infinitely Variable Transmission) technology is the stepless transmission technology. It uses the transmission belt to match the main and driven wheels with variable working diameter to transmit power. It can realize the continuous change of transmission ratio, thus obtaining the best match between the transmission system and the engine working conditions

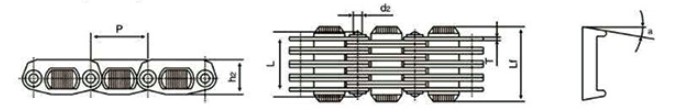

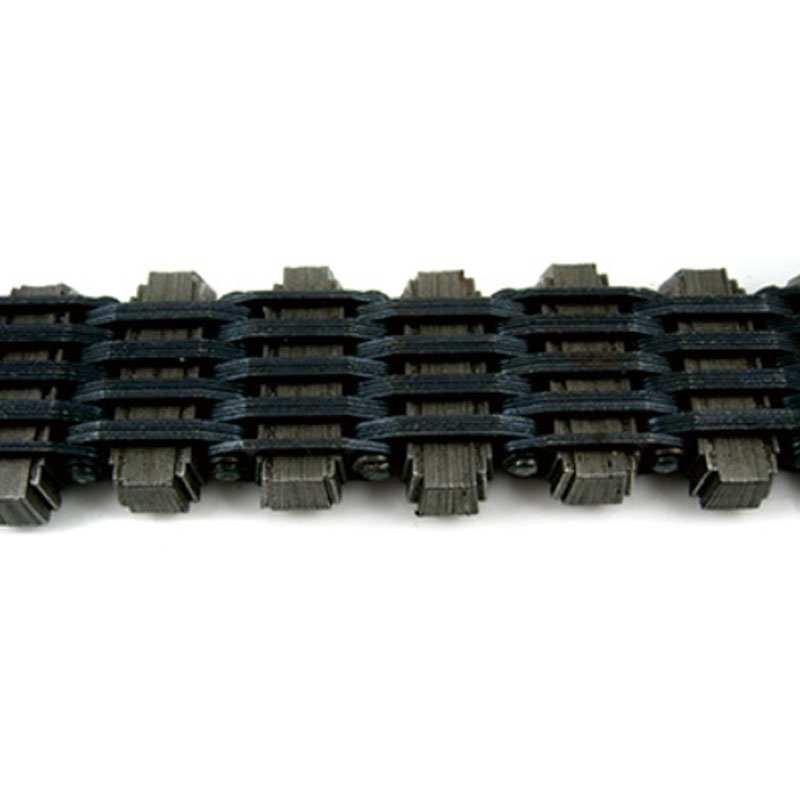

P.I.V infinitely variable speed chain
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6
Chain No.
Pitch
Pin diameter
Pin lenght
Plate depth
Width over friction plate
Angle of friction plate
Ultimate tensile strength
Weight per meter
P
d2
L
h2
Lf
a
Q KN
q Kg/m
A0
18.75
3
19.5
9.5
24
15
9
1
A1
19
3
25.6
10.7
30.5
15
12
1.41
A1-2
25
3
30.1
13.5
37.8
15
21
2.23
A3
28.6
3
35.3
16
44.2
15
38.5
3.04
A4
36
4
48.5
20.5
58.5
5
61.5
5.54
A5
36
4
60.5
20.5
70
15
71
5.54
A6
44
5.4
70
24
77
15
12.5
9
L0
15.2
2.8
25.2
9
30.6
15
10
1.24
L2
20.1
3
28
12.7
37.5
15
21
1.97

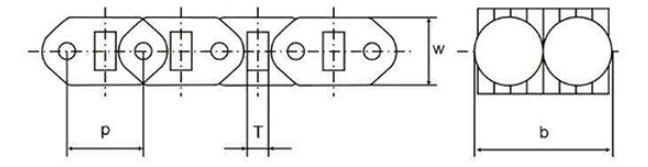

Roller type infinitely variable speed chain
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6
Chain No.
Pitch
Plate depth
Roller width
Roller thickness
P
W
b
T
PSR0
10.1
9.2
12
2.9
PSR1
12
12
16
4
PSR4
13.3
17.7
25
4.9
PSR5
14
20.5
31
5.3
PSR6
16.2
22.5
31
5.3
FEATURES
Stable performance It can transmit motion and power when the center distance between the two axles is far
Environmental advantages It can work under low speed, heavy load, high temperature and heavy dust
Efficiency advantages It has accurate transmission ratio, large transmission power and small force acting on the compression shaft
Installation advantages The manufacturing and installation accuracy of chain drive is relatively low, and the structure is simple and light when it is used for long-distance transmission
For more types，Please click here！
Why Choose Us
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

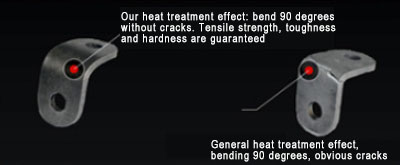

Heat treatment process

Through excellent standard and excellent heat treatment and quenching process, the hardness, strength, toughness, tensile strength and service life of parts can be improved
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

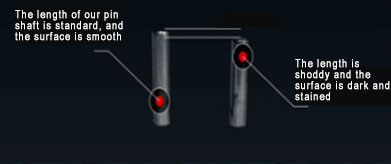

Pin screen

Each pin shaft has been strictly selected manually, without cutting corners
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

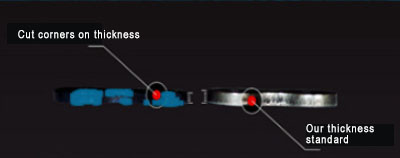

Chip screening

Customize the thickness from the raw material chain plate without cutting corners
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

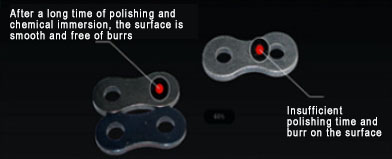

Surface treatment

Add chemical raw materials with a grinder, and the surface shall be smooth and free of burrs after the long sealing room is fully polished
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

Surface electroplating

Each zero cow is fully electrolyzed, the surface thickness is uniform, and the service life is improved
PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain with A0 A1 A3 A4 A5 A6 L0 L2 PSR0 PSR1 PSR4 PSR5 PSR6

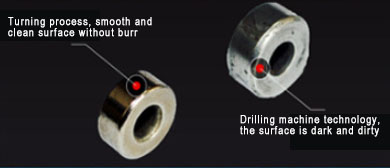

Accessory process

Each roller is made by turning process, and its surface is smooth and free of burrs
