Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20

Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20Portable Electric Hydraulic Hole Puncher MHP-20Product Description1.Portable electric hydraulic puncher is used for punching steel , iron, copper, aluminum, formed steel, U-steel, I-steel and so on.2.Sm......
Send Inquiry
Product Description

Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20

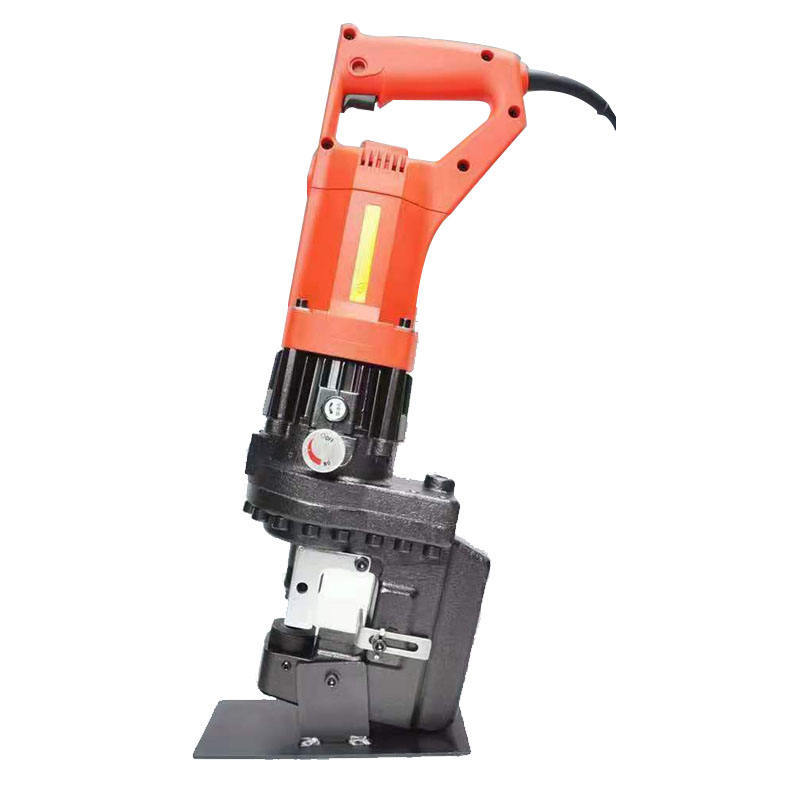

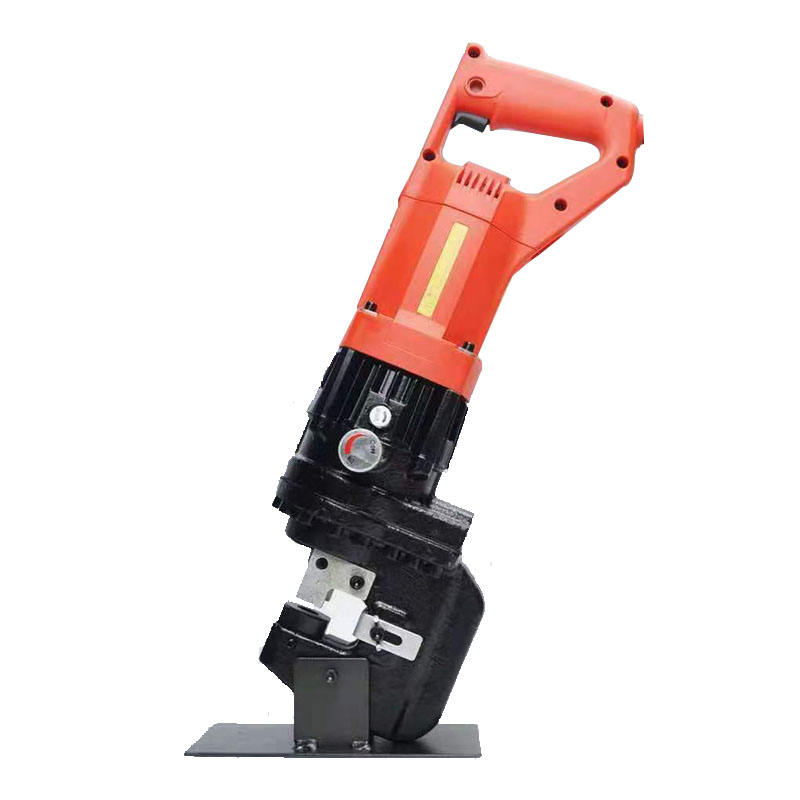

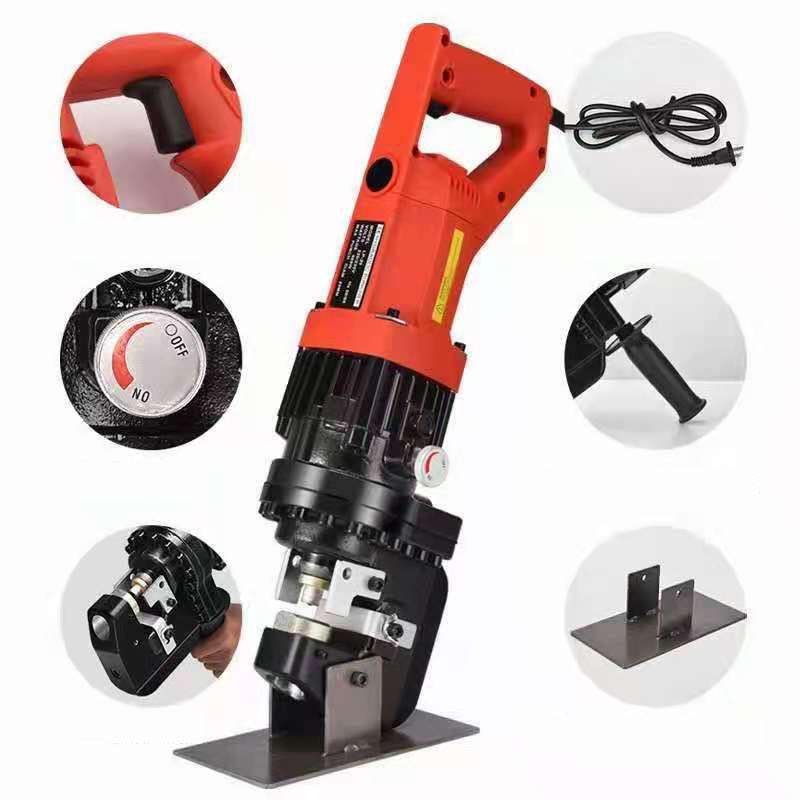

Portable Electric Hydraulic Hole Puncher MHP-20
Product Description

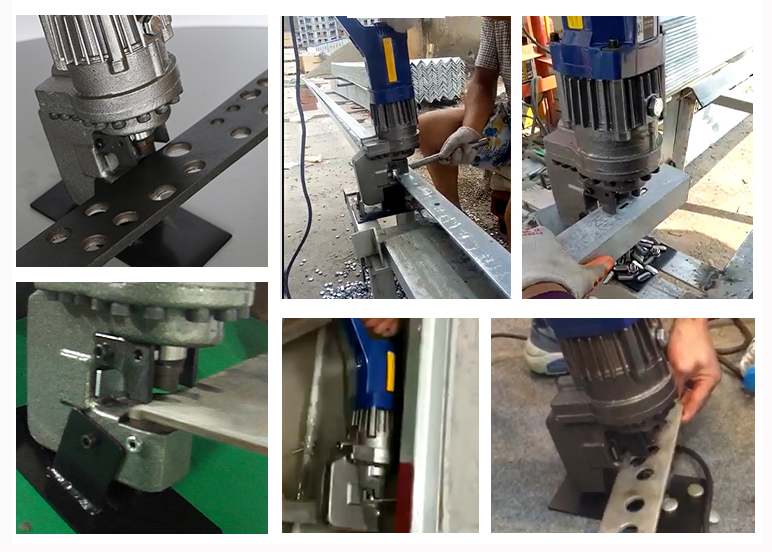

1.Portable electric hydraulic puncher is used for punching steel , iron, copper, aluminum, formed steel, U-steel, I-steel and so on.
2.Small size, light weight, easy to operate, save effort and punch fast .
3. Punching dies are made of high carbon steel.
4. Custom-made size of punching dies is accepted.
Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20
Model
PL-20
PL-20S
Voltage
220V/110V
220V/110V
Wattage
900w
900w
Punch Speed
2-3s
2-3s
Punch diameter
4.2-20.5mm
4.2-20.5mm
Throat Depth
35mm
50mm
Copper /Aluminum plate
≤8mm
≤8mm
Iron /steel plate
≤6mm
≤6mm
Machine Weight
12kg
13kg
Machine Size
470*140*130mm
500*140*130mm
Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20
Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20
Portable Electric Ept Custom Dies Hydraulic Puncher High Effective Puncher Punching Machine Mhp-20
Specification
