POS Series Left or Right Hand Male Thread Joint Rod End Bearing With Zinc Plated

POS Series Left or Right Hand Male Thread Joint Rod End Bearing With Zinc PlatedProduct DescriptionPOS Rod End Bearing--Rod body with left or right-hand male thread--Outer race lined with bronze liner--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple * Easy to use:......

POS Series Left or Right Hand Male Thread Joint Rod End Bearing With Zinc Plated

Product Description
POS Series Left or Right Hand Male Thread Joint  Rod End Bearing With Zinc Plated

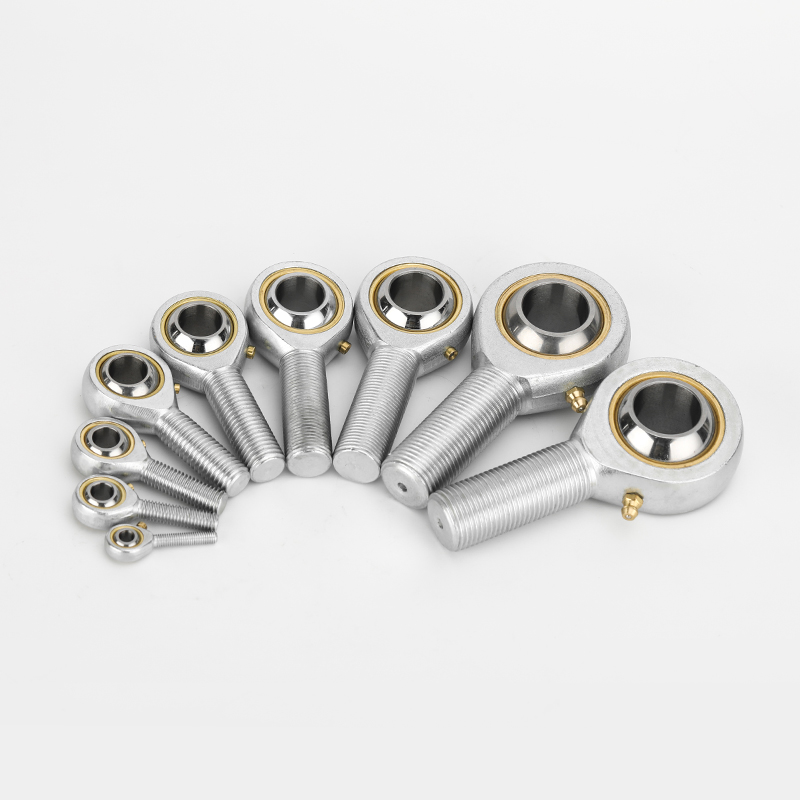

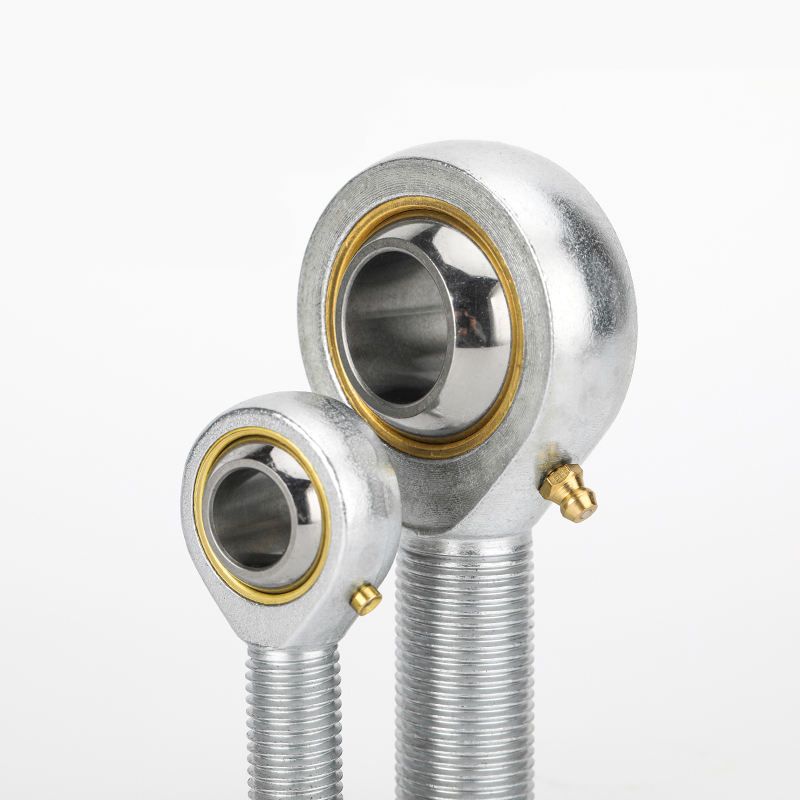

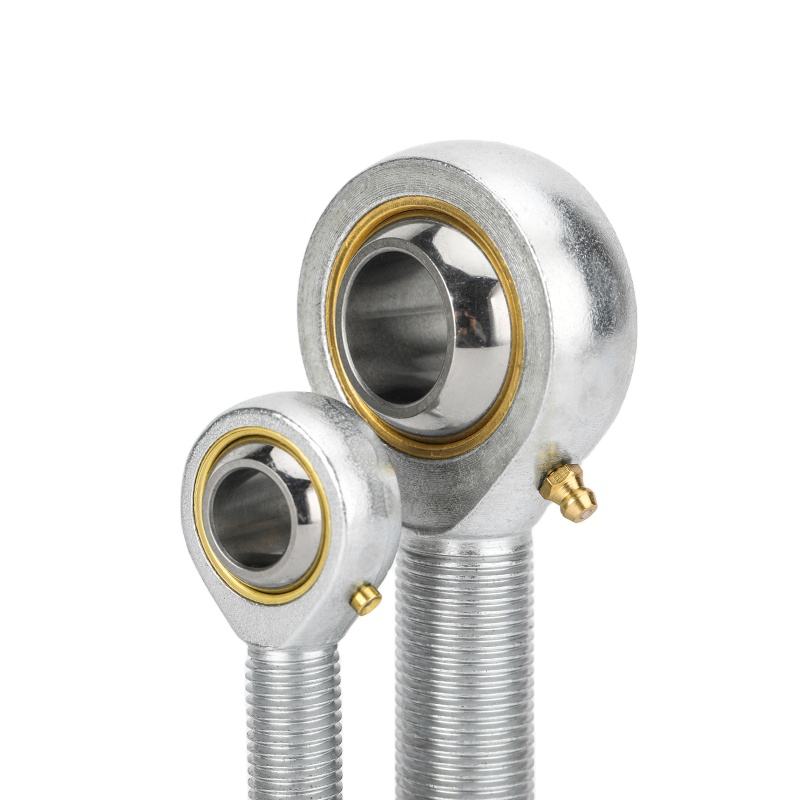

POS  Rod End Bearing
--Rod body with left or right-hand male thread
--Outer race lined with bronze liner
--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Specification
POS Series Left or Right Hand Male Thread Joint  Rod End Bearing With Zinc Plated
POS Series Left or Right Hand Male Thread Joint  Rod End Bearing With Zinc Plated

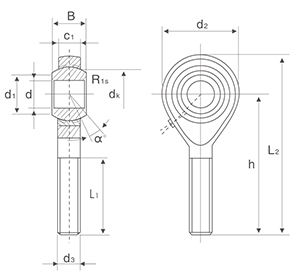

Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
POS 5
5
M5*0.8
8
3.25
5.7
12
POS 6
6
M6*1.0
9
4.3
7.2
16.9
POS 8
8
M8*1.25
12
7.2
11.6
33.4
POS 10
10
M10*1.5
14
10
14.5
54.7
POS 12
12
M12*1.75
16
13.4
17
84.3
POS 14
14
M14*2.0
19
17
24
126.6
POS 16
16
M16*2.0
21
21.6
28.5
175.5
POS 18
18
M18*1.5
23
26
42.5
243
POS 20
20
M20*1.5
25
31.5
52.5
317
POS 22
22
M22*1.5
28
38
57
410
POS 25
25
M24*2.0
31
47.5
68
616.5
POS 28
28
M28*2.0
35
58
75.5
836.5
POS 30
30
M30*2.0
37
64
88
1020
For left-hand thread,please and surffix“L”,e.g. POSL 8
●If need the stainless steel material please to add “S”in front of the model for example:SPOS 8
POS Series Left or Right Hand Male Thread Joint  Rod End Bearing With Zinc Plated

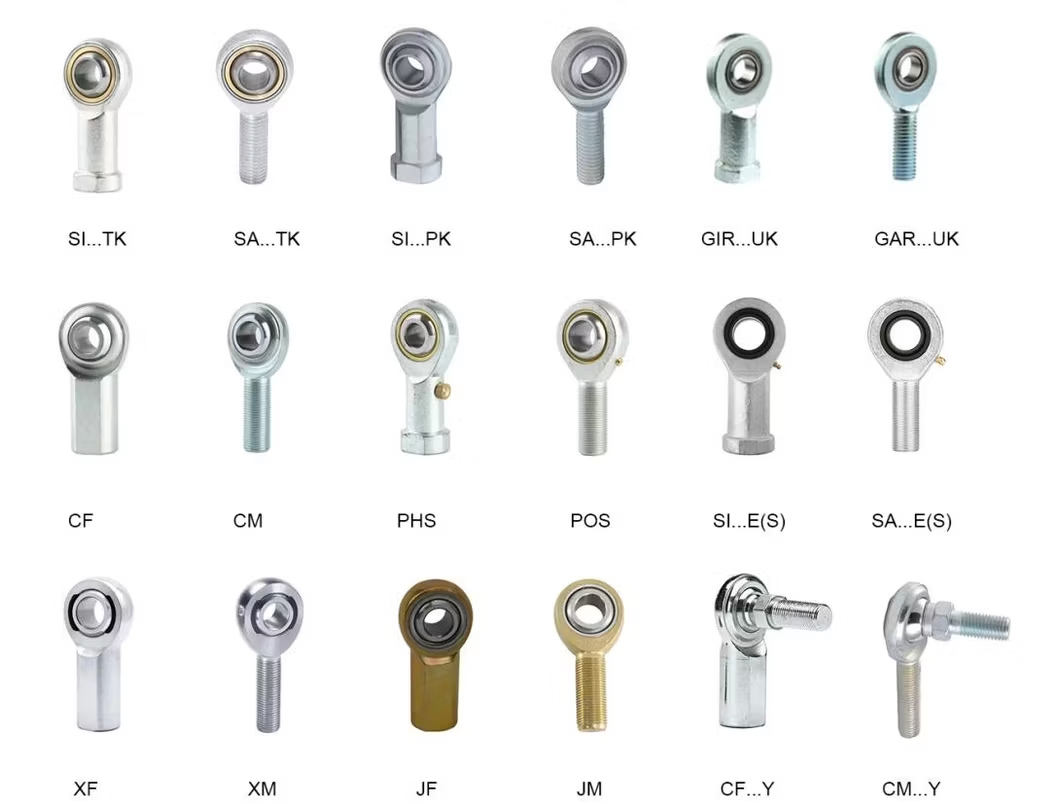

Related Products
POS Series Left or Right Hand Male Thread Joint  Rod End Bearing With Zinc Plated
Company Profile
POS Series Left or Right Hand Male Thread Joint  Rod End Bearing With Zinc Plated

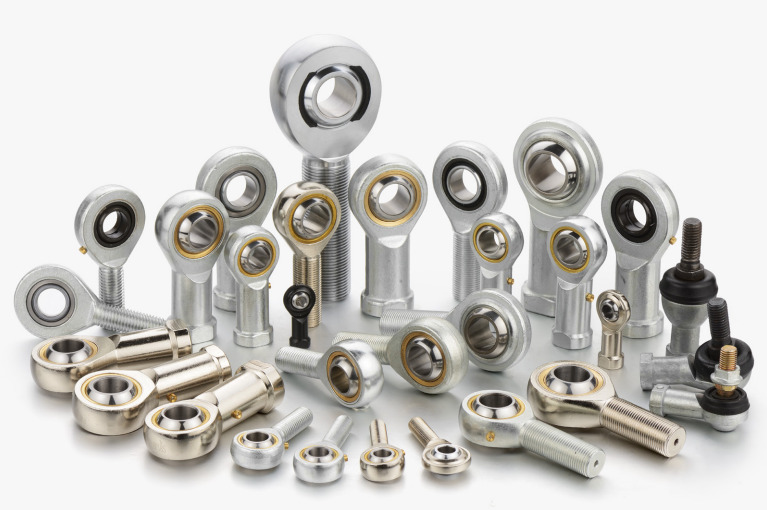

Ever-power Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
Hot Tags: POS Series Rod End Bearing, Left Hand Male Thread Joint, Right Hand Male Thread Joint, Zinc Plated Rod End Bearing, Rod End Bearing Supplier, Rod End Bearing Manufacturer, China Rod End Bearing Factory
