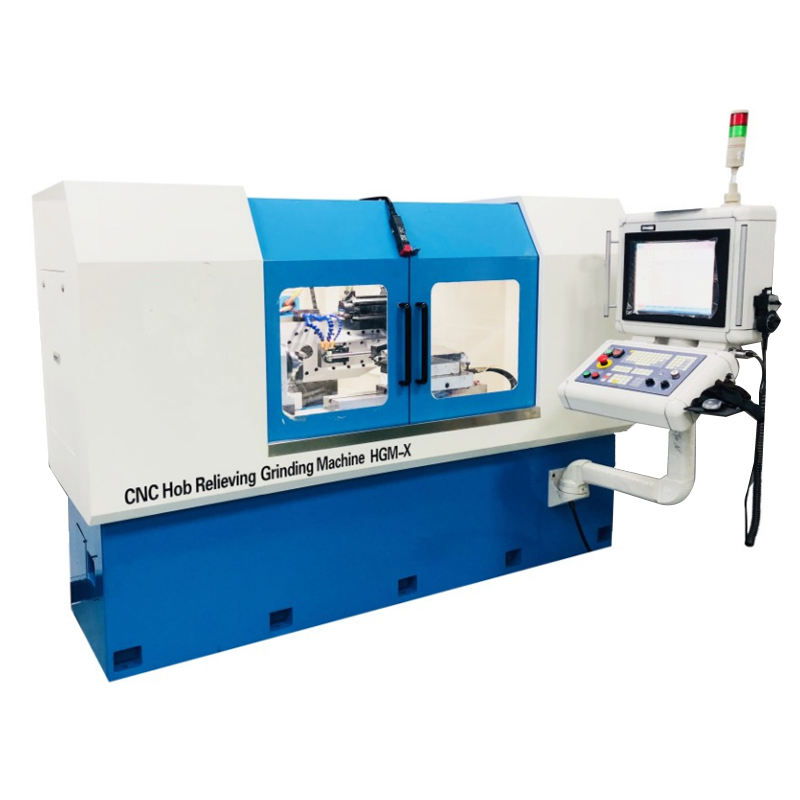

Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob

Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear HobProducts DescriptionThe CNC grinding machine adopts a high-end LYNUC G-Speed U5E system with five/four axis three linkage control; The linear axis adopts a configuration of linear motor and straight grating, and the indexin......

Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob

Products Description
Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob

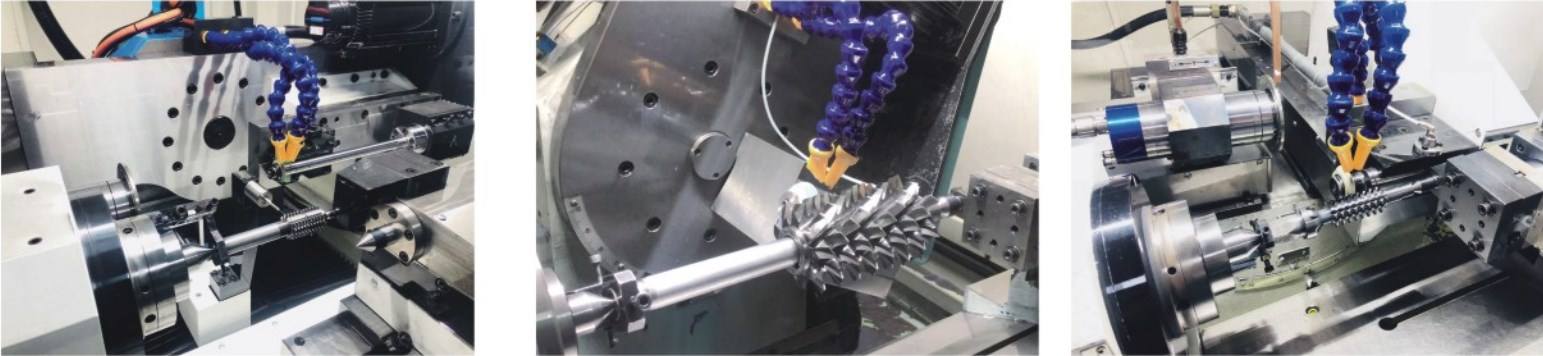

The CNC grinding machine adopts a high-end LYNUC G-Speed U5E system with five/four axis three linkage control; The linear axis adopts a configuration of linear motor and straight grating, and the indexing head adopts an imported high stability direct drive torque motor to form a full closed-loop control. The torque motor and linear motor simplify the transmission system, with electronic cam and electronic gear functions, not only ensuring machining accuracy but also considering grinding speed; The diamond roller can be adjusted online for various tooth shapes of the grinding wheel through dual axis interpolation combined with the self-developed GPM modification software. The X-axis of HGM-L adopts a combination of high-strength and high rigidity screw and grating closed-loop control design.
Applicable scope
Suitable for gear hobs made of high-speed steel/hard alloy materials (precision rolling, pre shaving, pre grinding, pre scraping, scraping), worm gear hobs (including tangential direction), involute/triangular/rectangular spline hobs, sprocket hobs, synchronous pulley/die hobs, insert hobs, annular buckle hobs, multi segment arc gear hobs, formed special hobs and milling cutters.




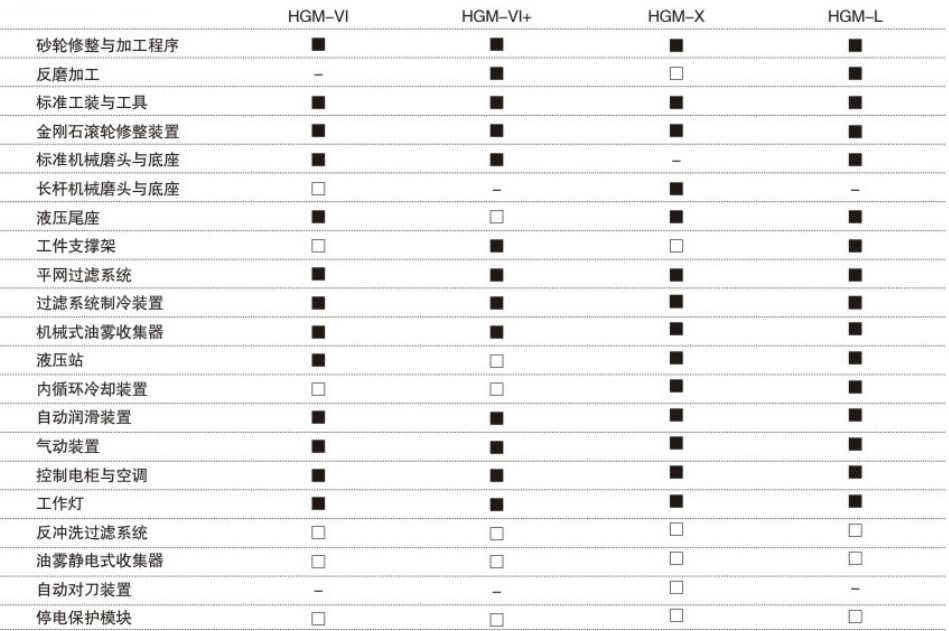

HGM-VI(Five Axis)
HGM-VI+(Four Axis)
HGM-X(Four Axis)
HGM-L(Four axis large specifications)
Center Height
165mm
165mm
162mm
250mm
Center Distance
640mm
640mm
540mm
750mm
Hob Diameter
Φ200mm
Φ200mm
Φ200mm
Φ300mm
Max Effective Length
350mm
350mm
350mm
400mm
Max modulus
M6
M8(Unilateral grinding can reach M12)
M6
M6-M20 (>M10 requires unilateral grinding)
Heads
Any
Any
Any
Any
Lead Angle
±10°
±45°
±20°
±45°
Dressing Stroke
Y=60mm
-
-
-
Accuracy
DIN3968AAA
DIN3968AAA
DIN3968AAA
DIN3968AAA
Table Transverse Strokt
Z=500mm
Z=500mm
Z=630mm
Z=750mm
Wheel Longitudinal Stroke
X = 140mm
X = 260mm
X = 260mm
X = 350mm
Grinding Spindle
5kw, Max.12000rpm
5kw, Max.12000rpm
5kw, Max.12000rpm
4.4kw, Max.9000rpm
Mechanical Spindle
DG32,DG40,DG45
 DG32,DG40,DG45
DG5020,DG6025
DG50,DG60.DG80
CNC System
LYNUC U5E
LYNUC U5E
LYNUC U5E
LYNUC U5E
Power
3AC 380V 25KVA
3AC 380V 25KVA
3AC 380V 25KVA
3AC 380V 30KVA
Main Machine Size
2670×1750×1900mm
2670×1750×1900mm
2670×1750×1900mm
3150×2100×1900mm
Main Machine Weight
5000kg
5000kg
5000kg
7000kg
Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob
Related Products
Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob

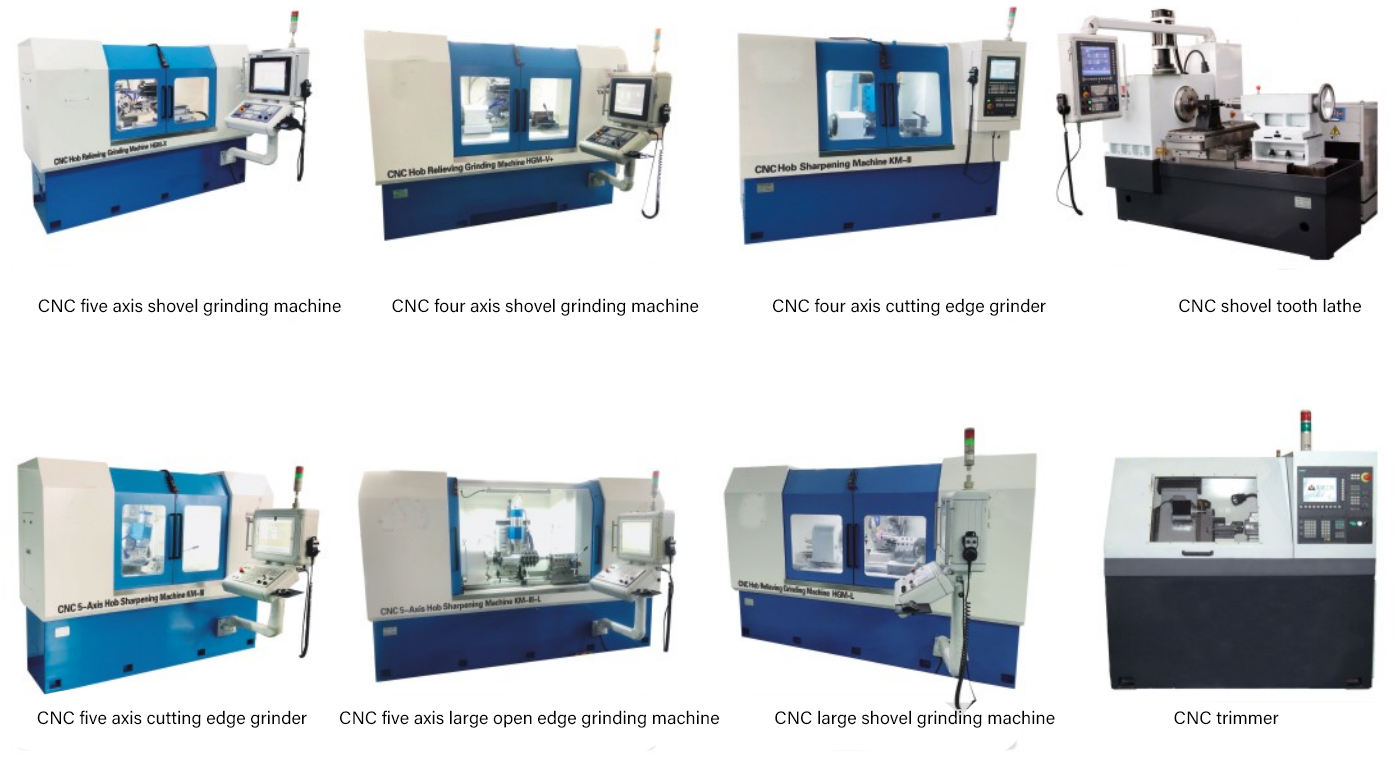

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob
Professional CNC Hob Relieving Grinding Machine for High Speed Steel Gear Hob
Hot Tags: CNC Hob Relieving Grinding Machine, High Speed Steel Gear Hob, Professional Manufacturer, China Factory, Raydafon Power
Send Inquiry
Contact Info
