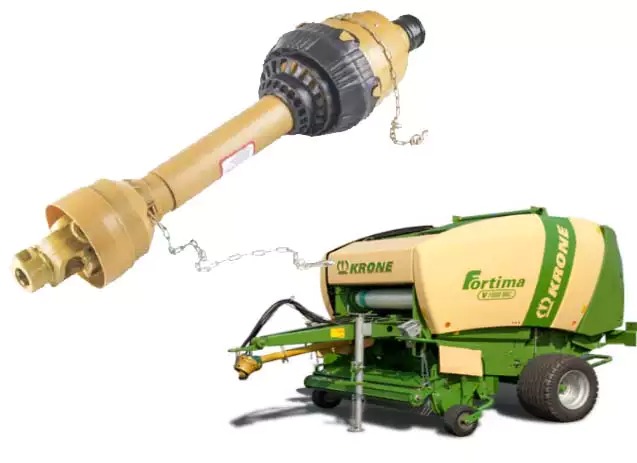

PTO Shaft for Round Balers

Product Description

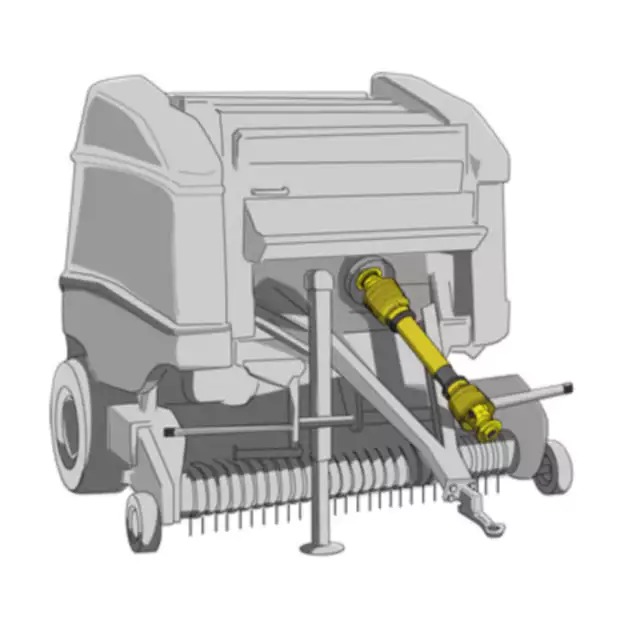

PTO Shaft for CASE IH Round Balers

Applicable PTO shaft models

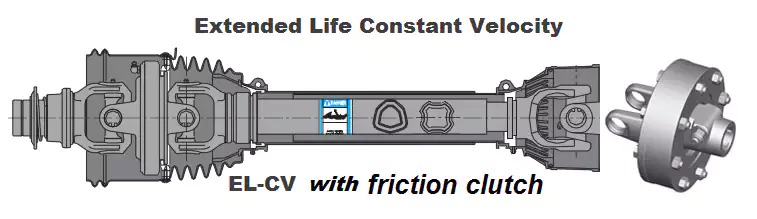

CASE calls for CAT4 and CAT5 constant velocity drivelines depending on the model, with friction clutch.
Input shafts are 1.375-6 or 1.375-21. Please click here with your specifications.

Models: RB444, RB454, RB455A, RB464, RB554, RB564

Available for tractors using 1.375-6, 1.375-21, 1.750-20 spline
Input shaft is usually 1.375-6
Other combinations are available.

Models	PTO Shaft Size	PTO Required, hp (kW)
RB444	CAT4	40 (30)
RB454	CAT4	60 (45)
RB454 Silage	CAT4	65 (48)
RB454 Rotor Cutter	CAT5	100 (75)
RB455A	CAT4	40 (30)
RB464	CAT5	70 (52)
RB554	CAT5	70 (52)
RB564	CAT5	80 (60)

Constant Velocity PTO	Tractor	Base Part Number (add implement device)
CAT3/540	1.375-6	71R4121UCW07000
CAT4/540	1.375-6	71R6121UCW07000
CAT4/1000	1.375-21	71R6121UCW08000
CAT5/540	1.375-6	71R8121UCW07000
CAT5/1000	1.375-21	71R8121UCW08000

Baler Input Requirements
FT Clutches for 1.375-6 spline input

Universal Size	Torque nm	Part Number
CAT3 / S4	1000nm	6QE344901R
CAT3 / S4	1000nm	635E41203R
CAT4 / S6	1800nm	663H53403R
CAT5 / S8	1450nm	6LM453003R

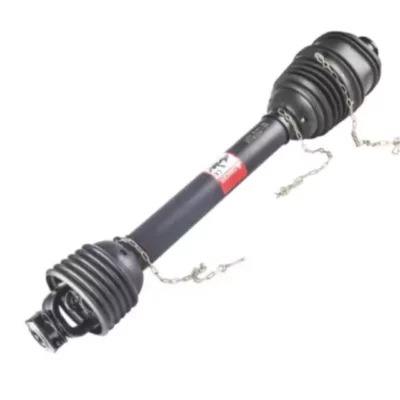

Reasons for choosing our PTO shaft
✔ Rugged and durable: This PTO shaft is a well forged series4 drive shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel pipe inside the shield. PTO shafts are durable and strong when working with a variety of agricultural machinery.
✔ 6 Spline and Rounded Ends: Our brush hog PTO shafts are constructed with 6 splined tractor ends and rounded tool ends and are standard sizes 1-3/8". It can be perfectly matched with the same size and the same model of farm implements and tractors to provide strong power for your machinery. Your machine will behave like never before.
✔ Adjustable Lengths: Compressed Length: 43" / 1100 mm; Extended Overall Length: 61" / 1550 mm. The Tiller PTO shaft is designed with a telescopic steel tube, universal joint, and yoke. It has 35 Hp, 26 kW, and 460 Nm of torque at 540 rpm and 53 Hp, 39 kW,and 360 Nm of torque at 1000 Rpm. It allows the two sides of the PTO drive shaft to rotate at different speeds.
✔ Easy to assemble and safer to use: As an efficient power transmission tool, our PTO extension shafts can be assembled easily and replaced easily and directly. Safety chains and robust guards eliminate potential hazards during transport.
✔ Wide range of applications: The PTO (Power Take-Off) shaft transmits power from the tractor to the PTO power attachment. It is widely used in lawnmowers, fellers, rotary tillers, rotary cutters, brush cutters, hush hugs, tractors, fertilizer spreaders, etc.
Effectively control the speed and power of the machine. Strong torque conversion and reliability make you want to get our PTO sooner

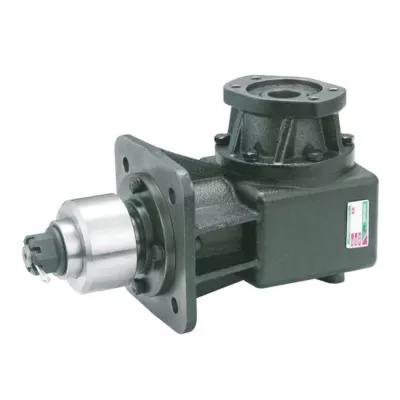

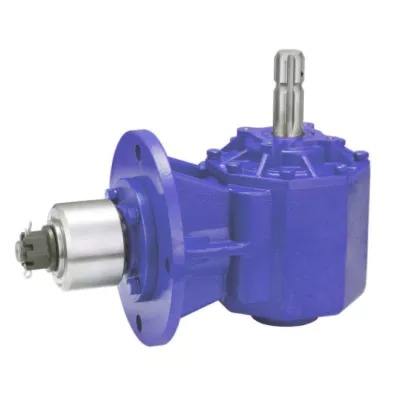

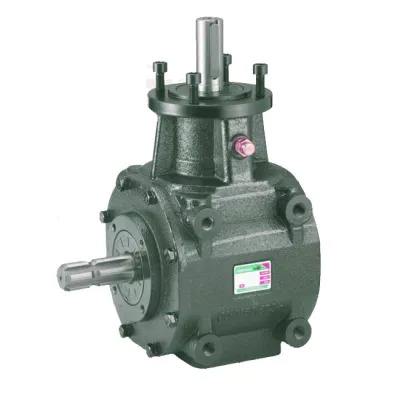

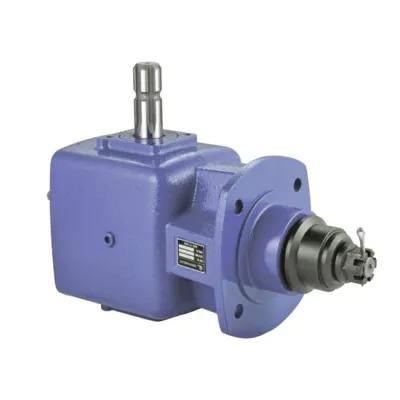

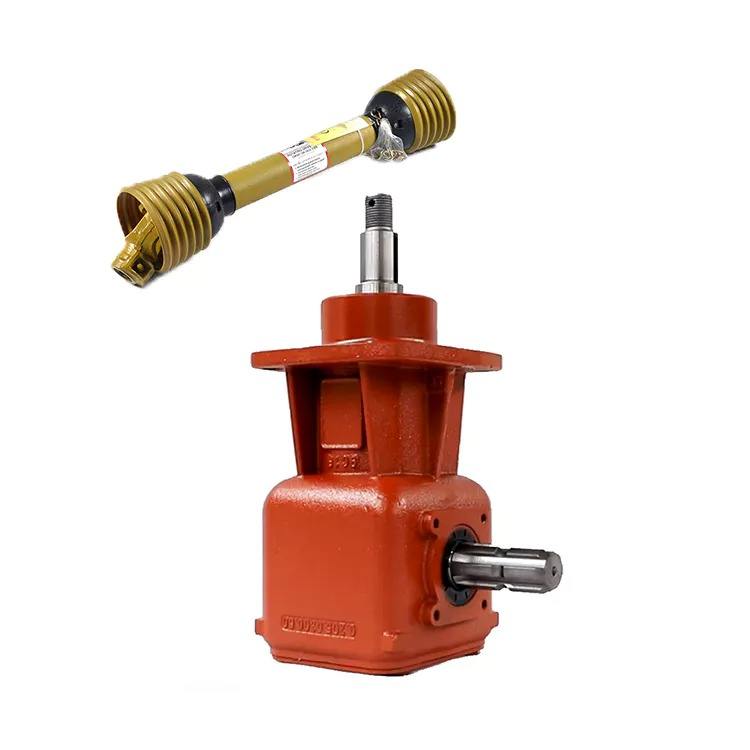

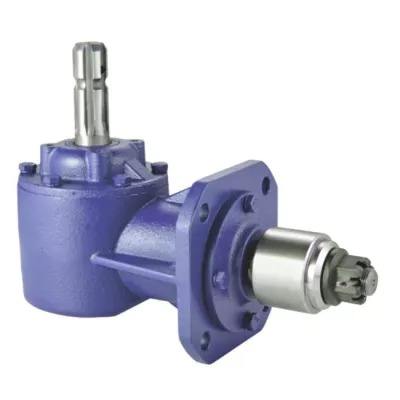

We also supply PTO Shaft & Agricultural gearboxes
If you are interested, you can click here: https://RAYDAFON.com/agricultural-pto-shaft/

Agricultural gearboxes: https://RAYDAFON.com/agricultural-pto-gearbox/

PTO Shaft Manufacture
Ever-power covers an area of more than 12000 square meters and employs more than 100 people. We specialize in developing,manufacturing, and selling PTO shafts, industrial universal shafts, automobile drive shafts, universal joint coupling shafts,universal joints, etc. The annual turnover is 60 million yuan and 9 million US dollars, increasing year by year. Our products enjoy a high reputation among customers in Europe, the United States, Asia, Australia, and North America. We are the top three professional OEM suppliers of many agricultural tool factories in the domestic market. ever-power transmission shaft adheres to our “QDP” principle: quality first, rapid delivery, and competitive price. We have obtained CE, TS / 16949, and ISO9001 certification, and have systematic production equipment and a QC team to ensure our quality and delivery. We warmly welcome friends from all walks of life to visit and establish mutually beneficial long-term cooperative relations.

Click here for more details！
