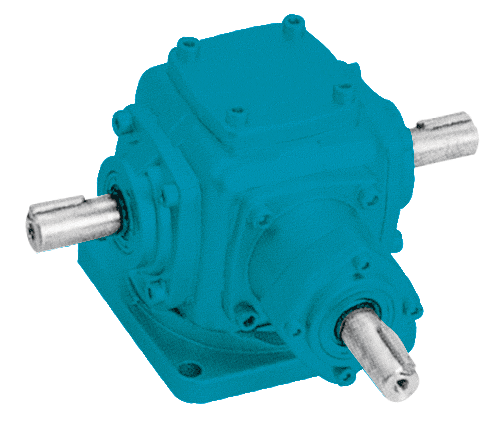

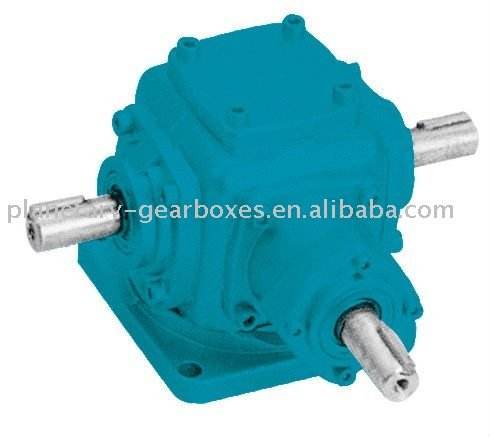

Right angle spiral bevel gearbox

Spiral Bevel Gear reducers

high quality and low price
pls feel free to contact with us if you have any problem

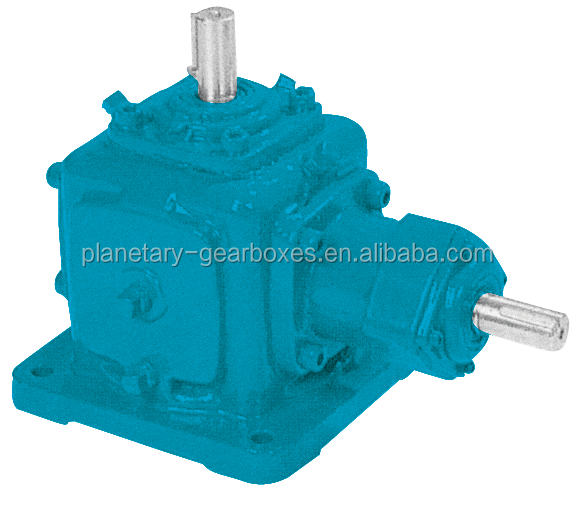

HT  Series  Spiral Bevel Gear Speed Reducer

Product Features:

1. Housing: High rigidity HT250 cast iron

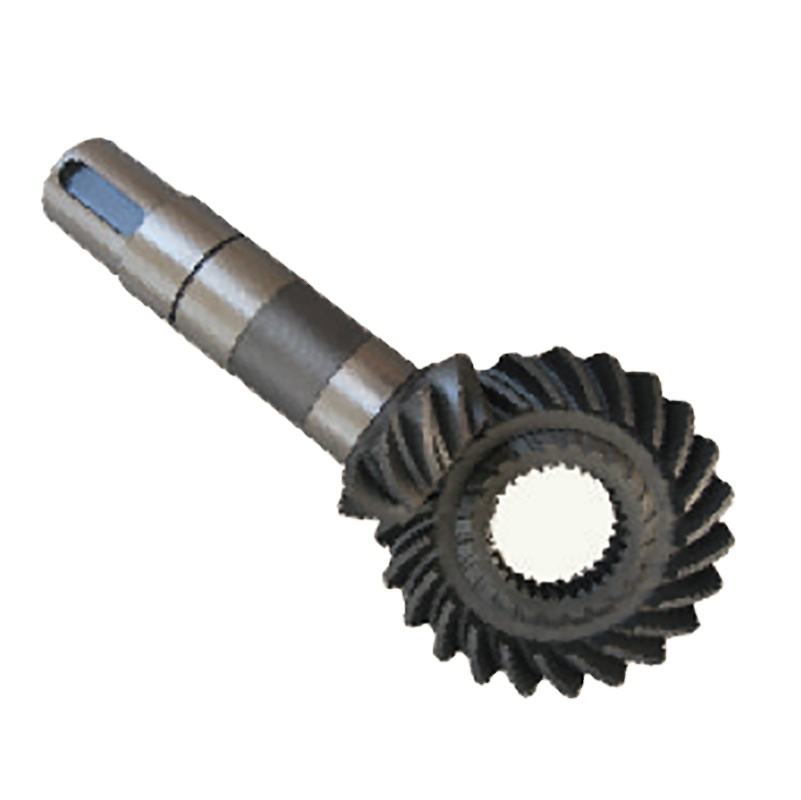

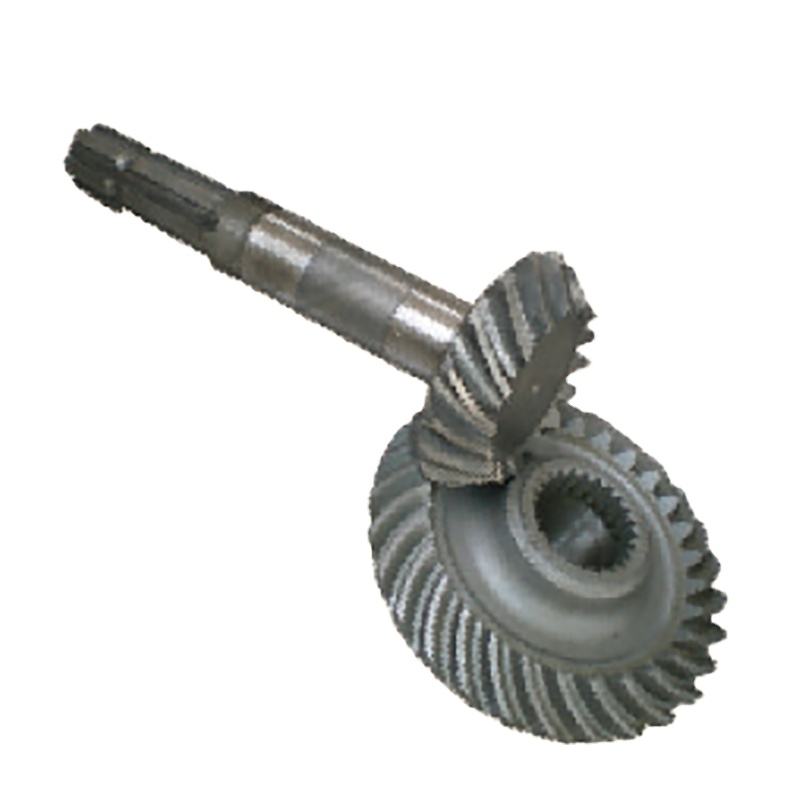

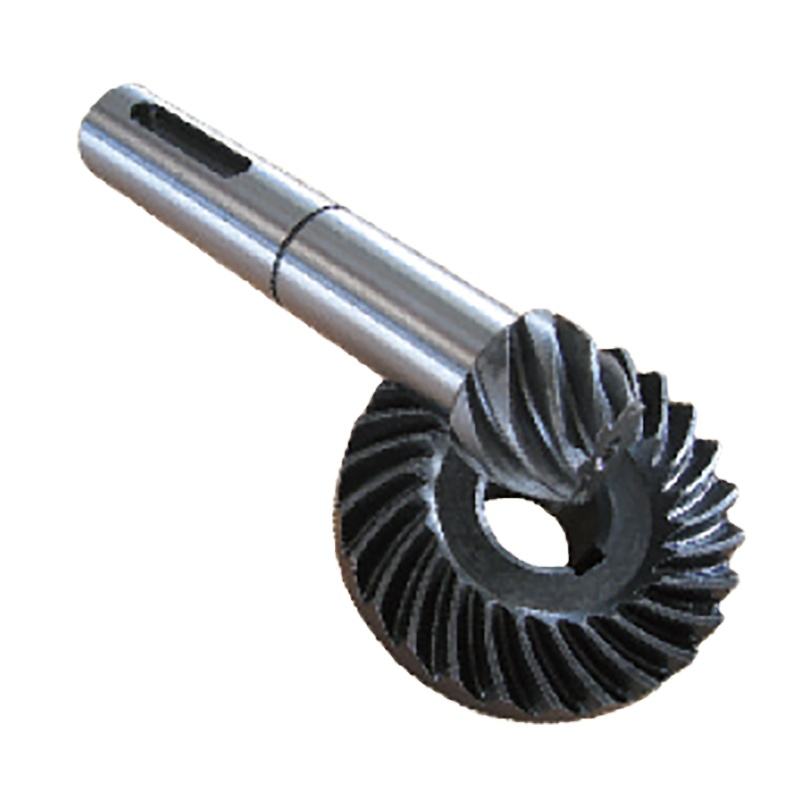

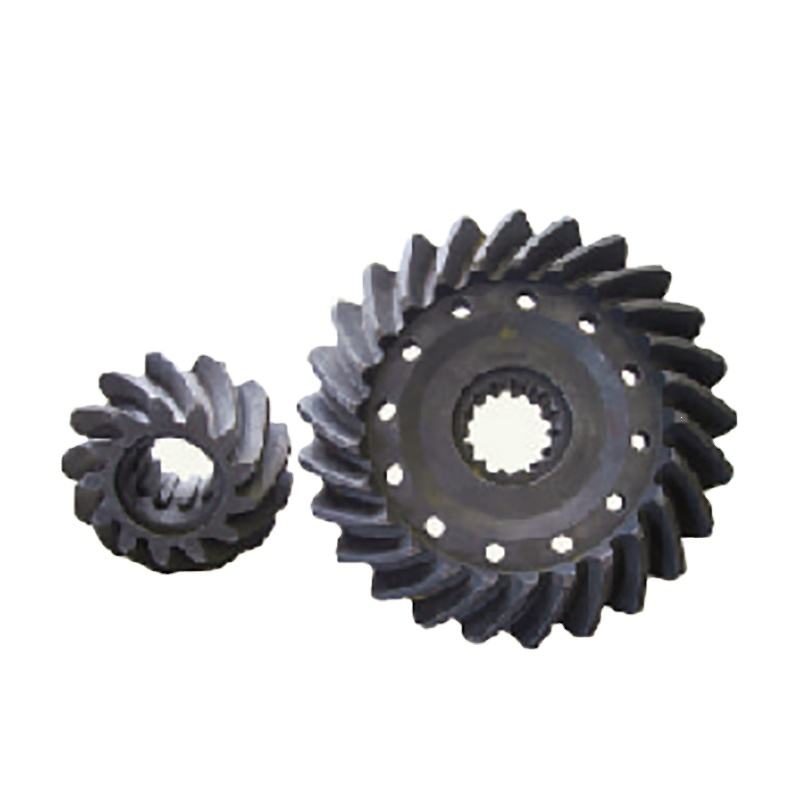

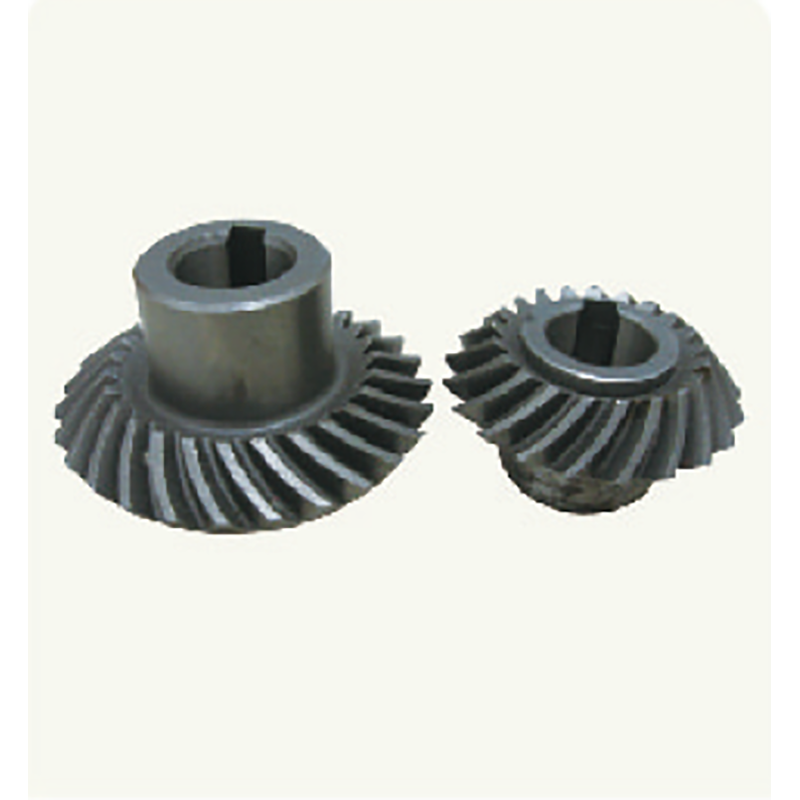

2. Gear: Excellent high-purity alloy steel 20CrMnTi

3. Main Shaft: Quenched and tempered alloy steel with the capacity of bearing heavy load

4. Bearing: Rolling cone bearing with the capacity of bearing heavy load

5. Oil Seal: Double-lip oil seal with the capacity of preventing dust and oil leak.

Technical Parameters:

1.output torque:11.6-5713(N.m)

2.rated power:0.014-5713(kw)

3.input speed: ≤10-1450 (rpm)

4.output speed: ≤10-1450(rpm)

5.transmission: ≥1-5

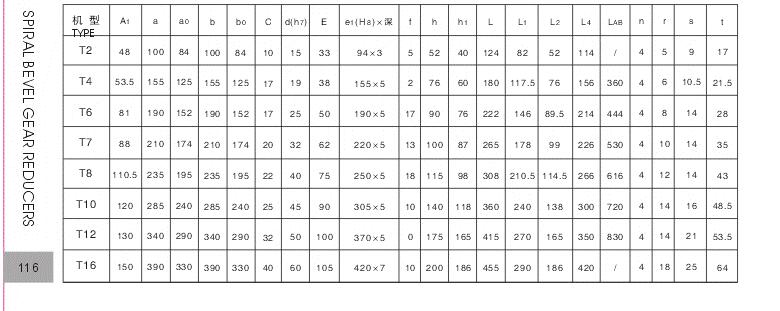

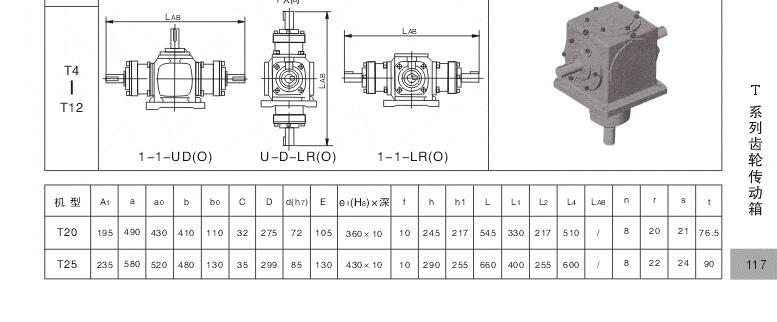

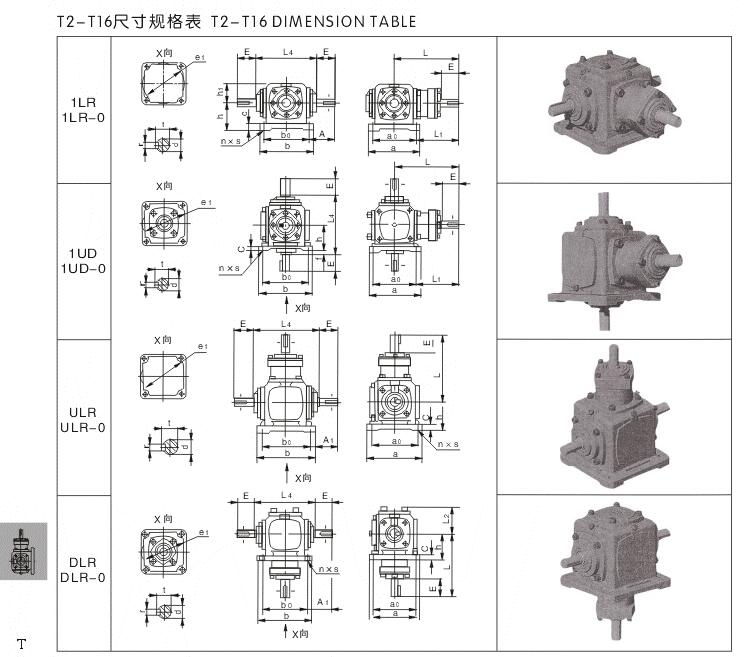

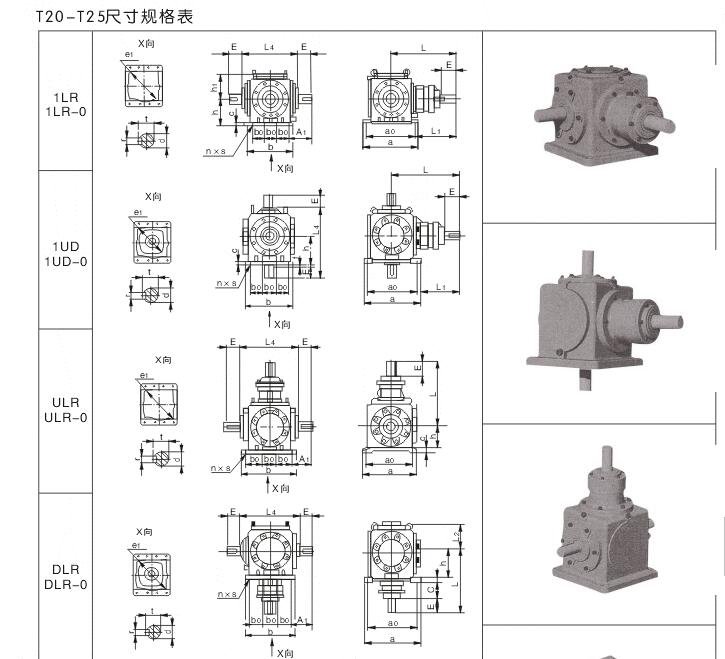

6.Model no. :T2/T4/T6/T7/T8/T10/T12/T16/T20/T25
