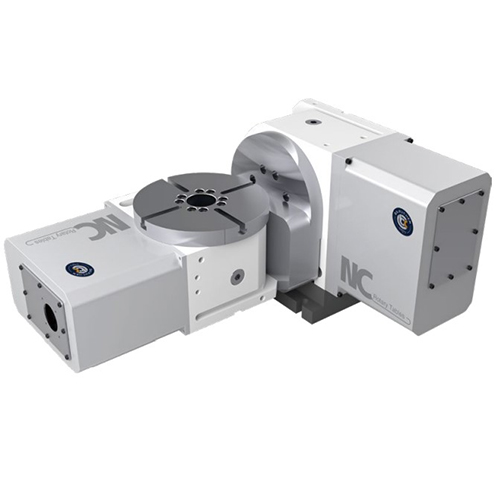

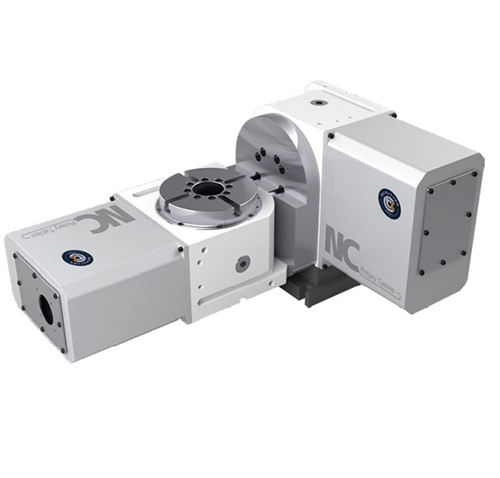

Product Model | RT-250 | Servo motor (optional) | Rotation axis β8iFANUC ;Tilt axis β8iFANUC |
Panel Size | 250mm | Reduction Ratio | Rotation axis 1:72 ;Tilt axis 1:120 |
Disk Aperture | 55mm | Maximum Rotation Speed Of Worktable | 55.5 r.p.m |
T-groove Of Disk Surface | 14H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±110°deg | Segmentation Accuracy | Rotation axis20″sec;Tilt axis 15″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
0 ° Time Disk Height | 270mm | Locking torque of rotating shaft | Rotation axis 310N.m;Tilt axis 500N.m |
90° Time Center Height | 230mm | Brake Pressure | Rotation axis pressure 10Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Net Weight (about) | 200Kg | Allowable Cutting Force | Rotation axis 18Kgf-m;Tilt axis 30Kgf-m |
Horizontal placement | 60KG | Ninety ° Time | 40 KG |
