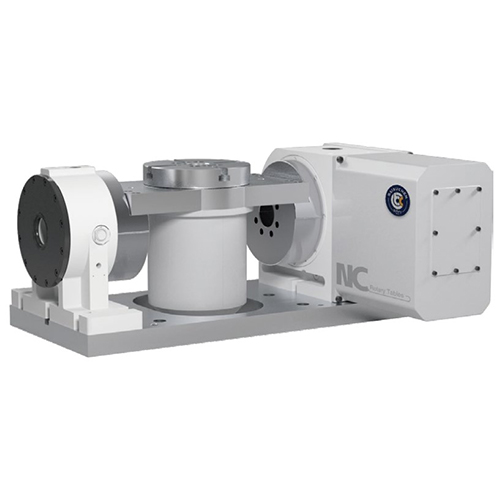

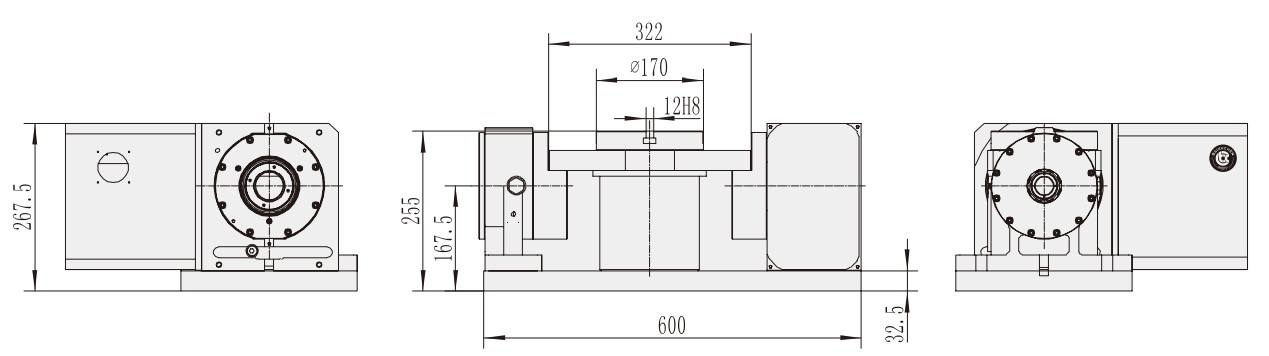

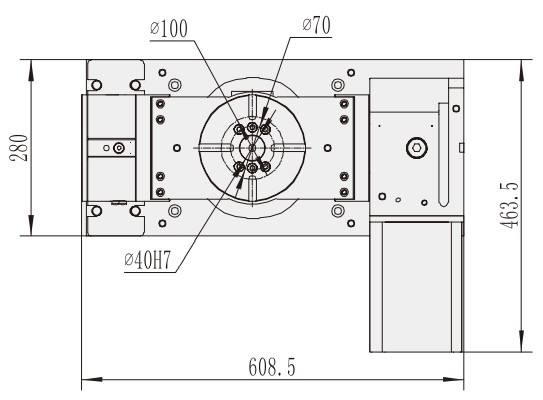

Product Model | RTS-170 | Servo motor (optional) | Rotation axis β2iFANUC;Tilt axis β8iFANUC |
Panel Size | 170mm | Reduction Ratio | Rotation axis 1:121 ;Tilt axis 1:90 |
Disk Aperture | 40mm | Maximum Rotation Speed Of Worktable | 33.3 r.p.m |
T-groove Of Disk Surface | 12H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±110°deg | Segmentation Accuracy | Rotation axis 20″sec;Tilt axis 15″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
0 ° Time Disk Height | 255mm | Locking torque of rotating shaft | Rotation axis 412N.m;Tilt axis 450N.m |
90° Time Center Height | 135mm | Brake Pressure | Rotation axis pressure machine;Tilt axis oil pressure 15Kg/cm² |
Net Weight (about) | 180Kg | Allowable Cutting Force | Rotation axis 18Kgf-m;Tilt axis 30Kgf-m |
Horizontal placement | 80KG | Ninety ° Time | 50KG |
