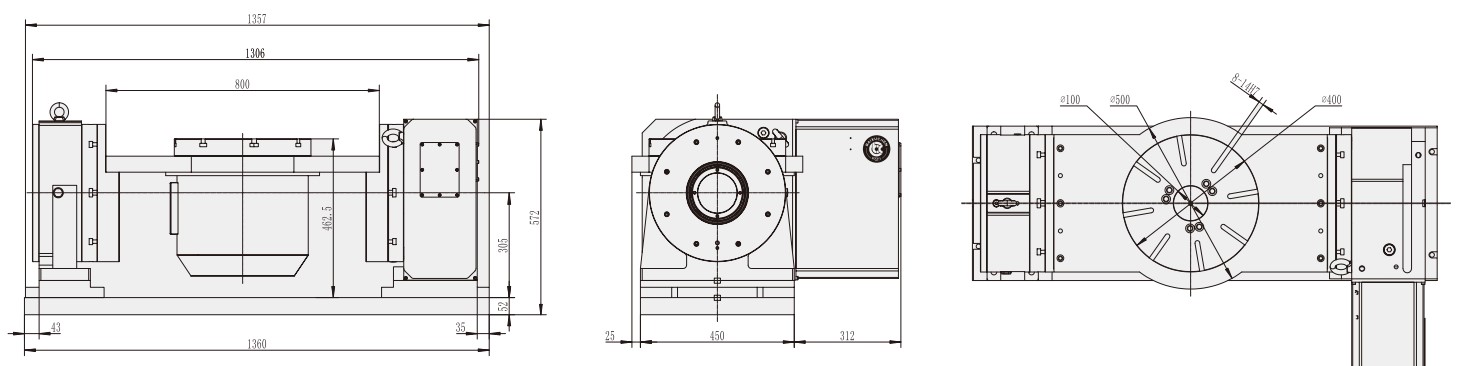

Product Model | RTS-400 | Servo motor (optional) | 旋转轴β 22iFANUC;倾斜β 22iFANUC |
Panel Size | 400mm | Reduction Ratio | 旋转轴1:145 ;倾斜轴1:120 |
Disk Aperture | 50mm | Maximum Rotation Speed Of Worktable | 20 r.p.m |
T-groove Of Disk Surface | 12H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±120°deg | Segmentation Accuracy | 旋转轴20″sec;倾斜轴20″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | 旋转轴4″sec;倾斜轴4''sec |
0 ° Time Disk Height | 462.5mm | Locking torque of rotating shaft | 旋转轴7840N.m;倾斜轴1800N.m |
90° Time Center Height | 305mm | Brake Pressure | 旋转轴气压 电机+机械;倾斜轴油压35Kg/cm² |
Net Weight (about) | 650Kg | Allowable Cutting Force | 旋转轴300Kgf-m;倾斜轴170Kgf-m |
Horizontal placement | 400KG | Ninety ° Time | 200KG |
