S Type S55HF2 S55HF1 Steel Agricultural Conveyor Roller Chain With Attachment

Raydofon Group's S Type S55HF2 S55HF1 Steel Agricultural Conveyor Roller Chain With Attachment delivers rugged durability and smooth performance for farming machinery, crafted from high-quality steel to ensure reliability in demanding agricultural applications.

Send Inquiry

Product Description

S Type S55HF2 S55HF1 Steel Agricultural Conveyor Roller Chain With Attachment

Product Description

S Type Steel Agricultural Chain With Attachment

Destination
Manufacture of conveyor chains for feeder house and elevators of harvest combines. This spare part is used for replacing a worn out or damaged unit during repairs.
Properties
The product is in the form of a chain consisting of alternating internal and external links. Some part of external links in a
certain sequence is equipped with special angular straps with holes for fixing guide plates or scrapets with lining. Characterized by the pitch of the chain, the type of fasteners and the order of their location.
Peculiarities:
Factory packing (mostly) - a chain segment 5 meters length.

We offer a full and compete line of high-quality roller chain attachments and roller chain attachment assemblies right off the shelf. Our inventory of attachments range in quality, material, and type. We have Economy Plus, General Duty Plus, and Premier Series attachments in stock. As well as stainless steel, nickel-plated, carbon, and dacromet coated attachments all available in ANSI and Metric (ISO & DIN) standard sizes. We also keep pre-assembled chains in-stock for most standard roller chain sizes and configurations, but if we don't have it on the shelf we can build or assemble the attachment chain in the matter of a few days.

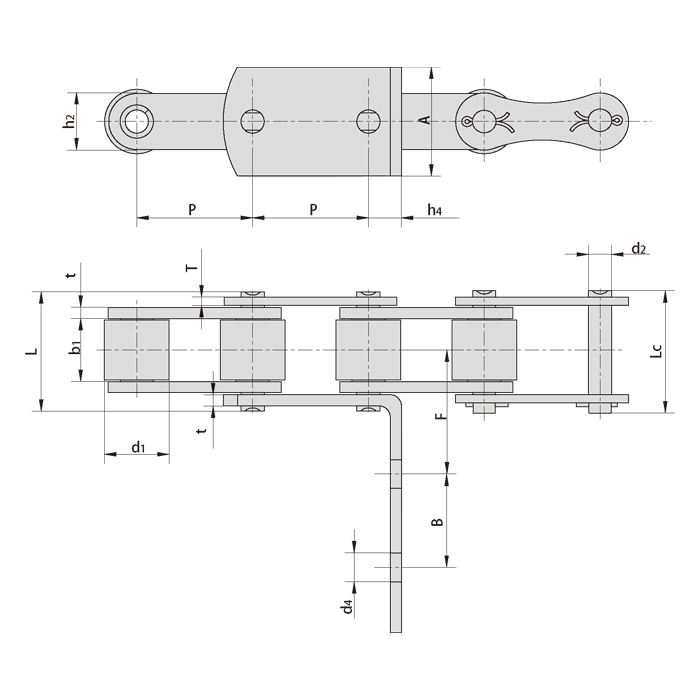

Chain No.	P	A	B	F	h4	d4
Chain No.		mm	mm	mm	mm	mm	mm
S55HF2	41.4	39.0	50	61.0	11.8	8.3
S55HF1	41.4	30.0	30	32.0	13.5	6.5

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!

ChainNo	Roller diameter	Width between inner plates	Pin diameter	Pin length		Plate dimension			Ultimate tensile strength	Weight per meter
		d1 max	b1 min	d2 max	L max	Lc max	h2 max	T	Q min	q
		mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
S55HF2	23.00	22.23	8.28	42.0	45.5	20.0	4.0/3.0	47.5/10685	4.27
S55HF1	17.78	22.23	8.28	39.5	42.8	20.4	3.0	45/10122	2.90
