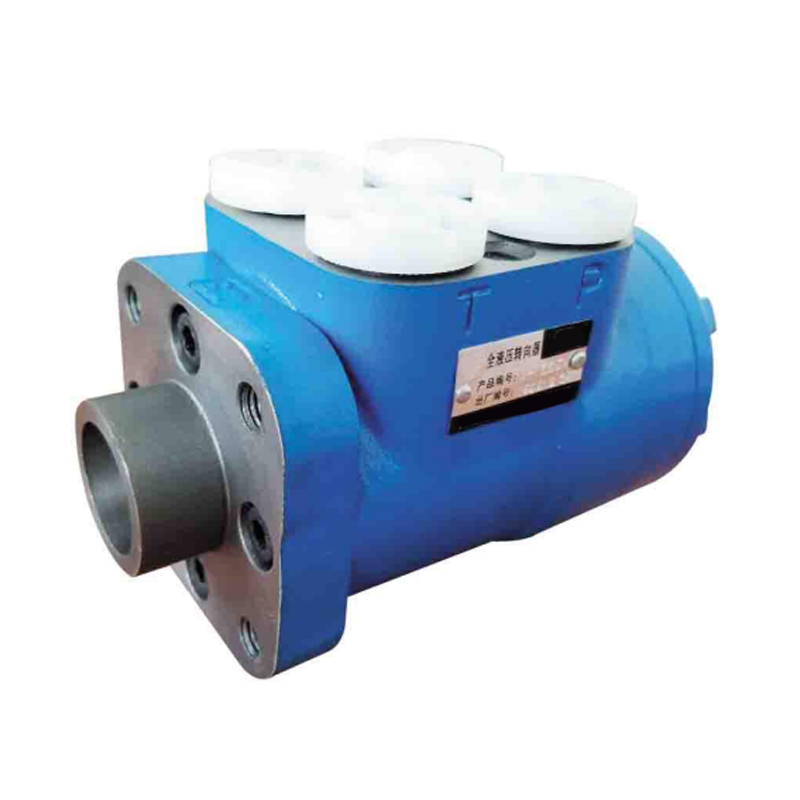

S10 Series Hydraulic Steering Control Unit for Tractor Combines Lift Truck Wheel Loader

Product Description

The S10 series is a standard design hydraulic steering control unit with a displacement from 80 to 500ml/r.
The S20 series is designed for low torque, with displacement from 80 to 500ml/r.
S50 series for small displacement design, including 50, 63ml/r two displacement.
According to the need can be directly connected to the FK/FKS combination valve block, to meet the needs of a variety of systems.
Mainly used in tractors, combine harvesters, loaders, forklifts and other wheeled heavy-duty vehicles.

S10 Series Hydraulic Steering Control Unit

---Optimized control rotary valve design, superior performance
---Low hydraulic noise
---Casting inner channel design, small pressure loss
---Three basic types: open core, closed core and load sensing

Main performance parameters

Maximum inlet pressure………………16MPa
Maximum continuous back pressure………………2.1MPa
Steering torque
Standard moment………………………1.8 ~ 3.0Nm
Low torque………………………………1.4 ~ 1.8Nm
Ultra-low torque……………………………1.1 ~ 1.4Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

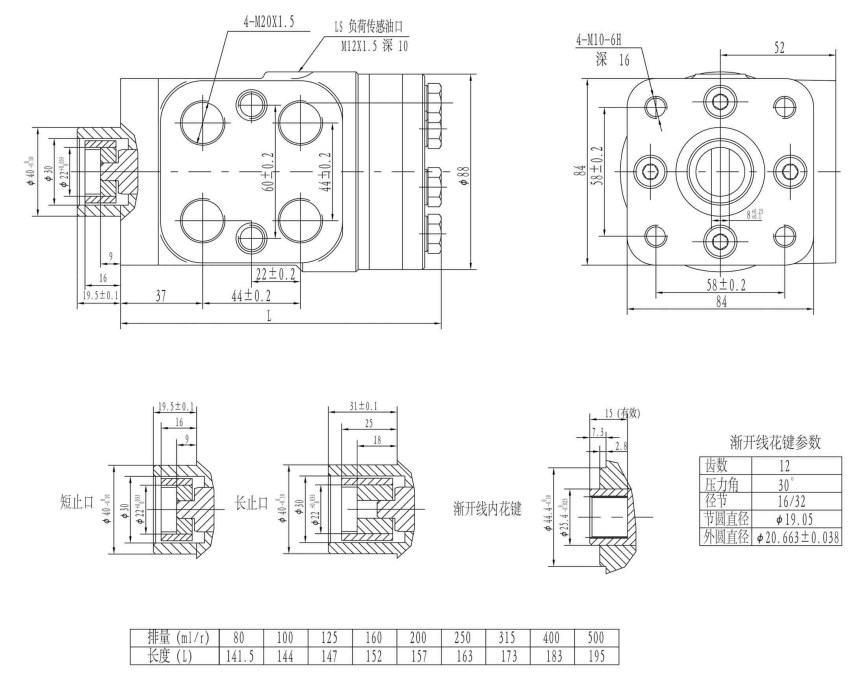

Specification

Product Features					Displacement/No.
Type	Connection	Oil port	80	100	125	160	200	250	280
Open core	Short stop	4-M20X1.5	S10-1101	-1102	-1103	-1104	-1105	-1106	-1100
No reaction	Long stop	4-M10	S10-1201	-1202	-1203	-1204	-1205	-1206	-1200
	Internal spline	2-M12	S10-1301	-1302	-1303	-1304	-1305	-1306	-1300
Closed core	Short stop	4-M20X1.5	S10-3101	-3102	-3103	-3104	-3105	-3106	-3100
No reaction	Long stop	4-M10	S10-3201	-3202	-3203	-3204	-3205	-3206	-3200
	Internal spline	2-M12	S10-3301	-3302	-3303	-3304	-3305	-3306	-3300
Static signal load sensing	Short stop	4-M20X1.5&M12X1.5	S10-5101	-5102	-5103	-5104	-5105	-5106	-5100
		Long stop	4-M10	S10-5201	-5202	-5203	-5204	-5205	-5206	-5200
		Internal spline	2-M12	S10-5301	-5302	-5303	-5304	-5305	-5306	-5300
Dynamic signal load sensing	Short stop	4-M20X1.5&M12X1.5	S10-7101	-7102	-7103	-7104	-7105	-7106	-7100
		Long stop	4-M10	S10-7201	-7202	-7203	-7204	-7205	-7206	-7200
		Internal spline	2-M12	S10-7301	-7302	-7303	-7304	-7305	-7306	-7300
Open core	Short stop	4-M20X1.5 'O'-ring(φ22.5)	S10-1121	-1122	-1123	-1124	-1125	-1126	-1120
No reaction	Long stop	4-M10	S10-1221	-1222	-1223	-1224	-1225	-1226	-1220
	Internal spline	2-M12	S10-1321	-1322	-1323	-1324	-1325	-1326	-1320
Closed core	Short stop	4-M20X1.5 'O'ring(φ21.8)	S10-3161	-3162	-3163	-3164	-3165	-3166	-3160
No reaction	Long stop	4-M10	S10-3261	-3262	-3263	-3264	-3265	-3266	-3260
	Internal spline	2-M12	S10-3361	-3362	-3363	-3364	-3365	-3366	-3360
Static signal load sensing	Short stop	4-M18X1.5&M12X1.5	S10-5171	-5172	-5173	-5174	-5175	-5176	-5170
		Long stop	4-M10	S10-5271	-5272	-5273	-5274	-5275	-5276	-5270
		Internal spline	2-M12	S10-5371	-5372	-5373	-5374	-5375	-5376	-5370
Open core	Short stop	4-G1/2	S10-1111	-1112	-1113	-1114	-1115	-1116	-1110
No reaction	Long stop	4-M10	S10-1211	-1212	-1213	-1214	-1215	-1216	-1210
	Internal spline	2-M12	S10-1311	-1312	-1313	-1314	-1315	-1316	-1310
Static signal load sensing	Short stop	4-3/4-16UNF‘O’-ring&	S10-5151	-5152	-5153	-5154	-5155	-5156	-5150
	Short stop		S10-5151	-5152	-5153	-5154	-5155	-5156	-5150		7/16-20UNF ‘O’-ring
		Long stop	4-3/8-16UNC	S10-5251	-5252	-5253	-5254	-5255	-5256	-5250
		Internal spline	2-3/8-24UNF	S10-5351	-5352	-5353	-5354	-5355	-5356	-5350

Applications

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
