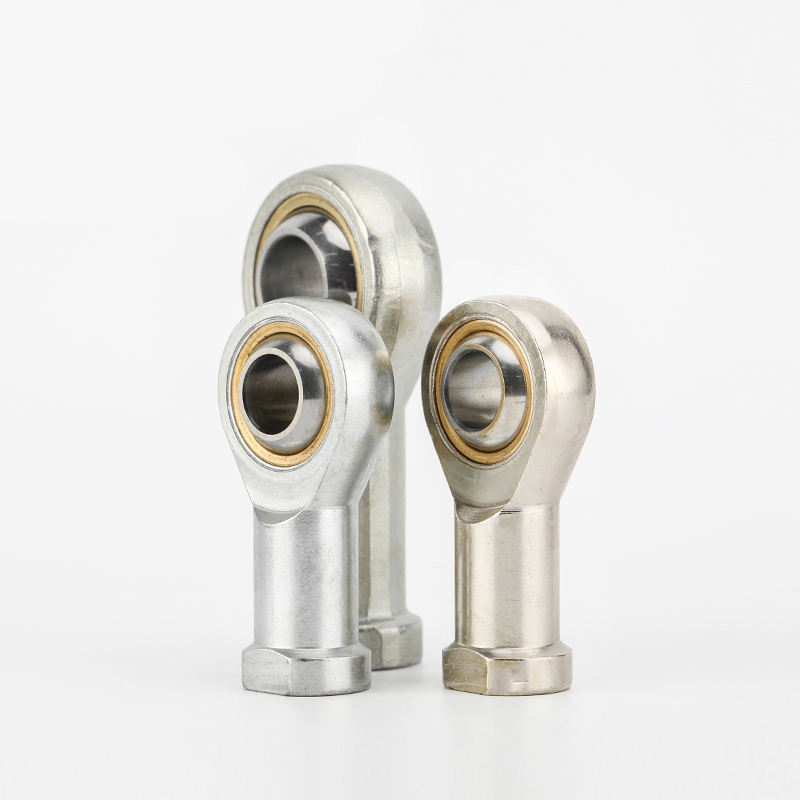

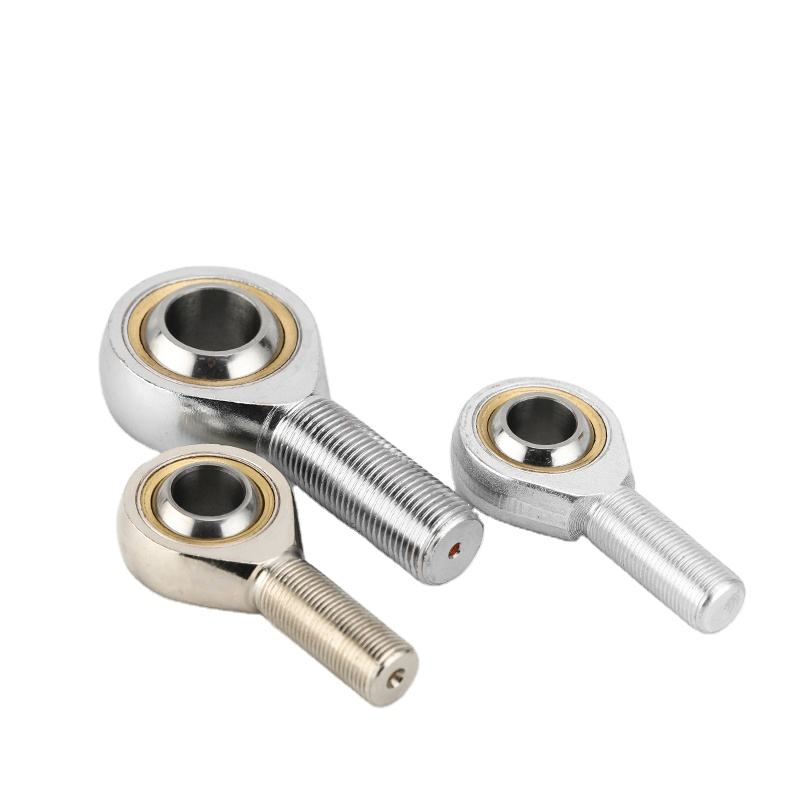

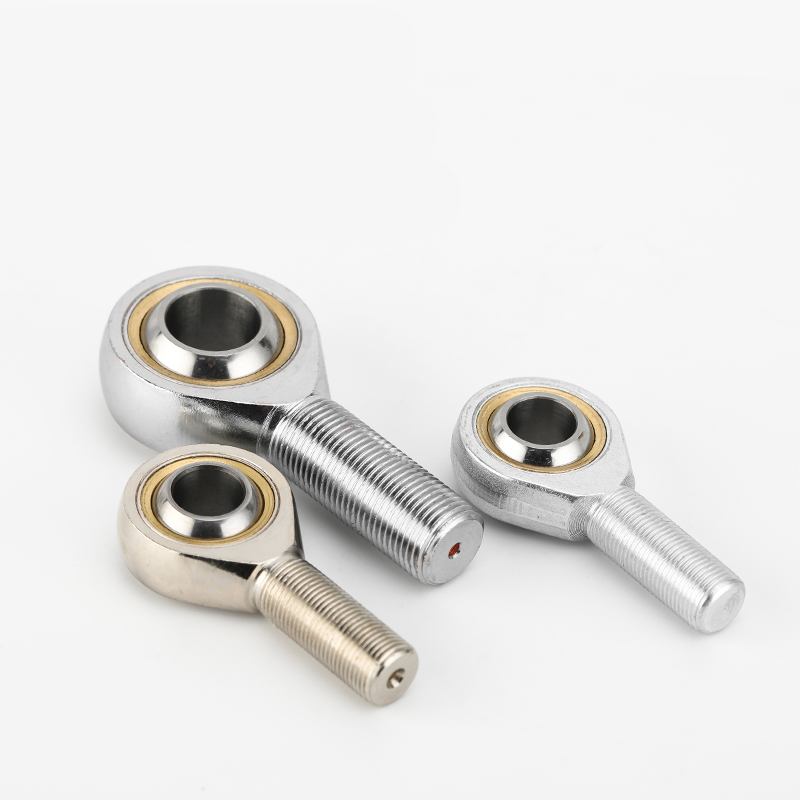

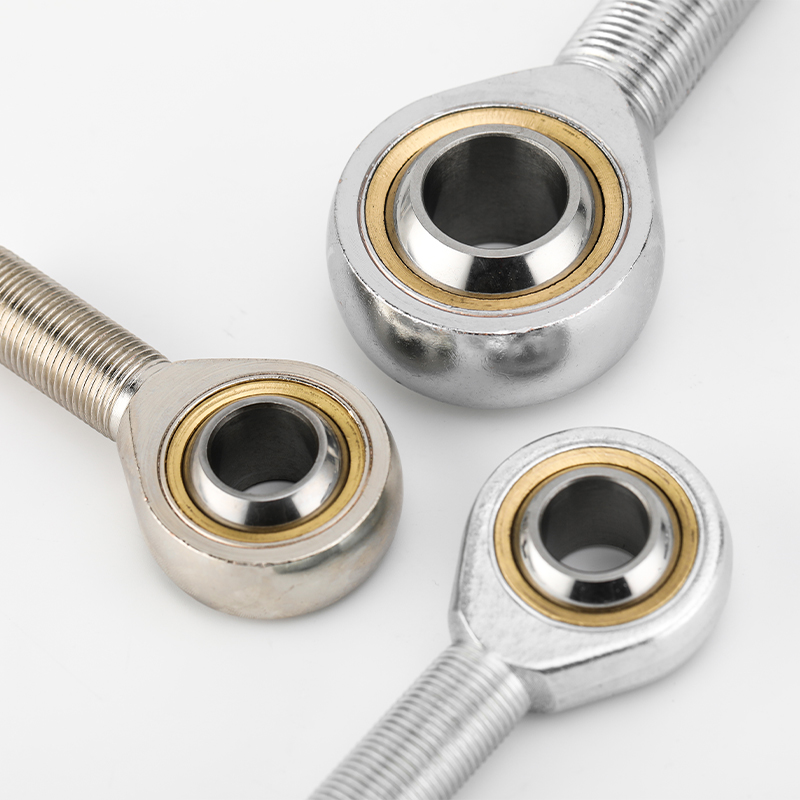

SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing

SA...T/K Series Right/Left Female Hand Thread Joint Rod End BearingProduct DescriptionSA...T/K Rod End Bearing--Rod body with left or right-hand male thread --Sliding contact sarfaces:steel/PTFE--Surface of rod body zinc plated * Easy to use: easy to install and disassemble, the bearing can produce......

SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing

Product Description
SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing
SA...T/K  Rod End Bearing
--Rod body with left or right-hand male thread
--Sliding contact sarfaces:steel/PTFE
--Surface of rod body zinc plated

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

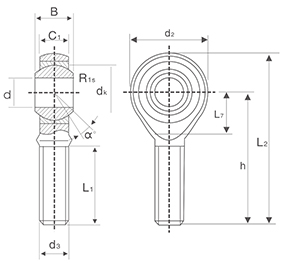

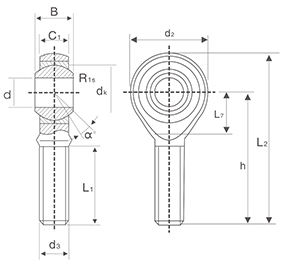

Specification
SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing
SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing
Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
SA5T/K
5
M5*0.8
8
5.7
6
14.5
SA6T/K
6
M6*1.0
9
7.2
7.65
19.5
SA8T/K
8
M8*1.25
12
11.6
12.9
36.5
SA10T/K
10
M10*1.5
14
14.5
18
60
SA12T/K
12
M12*1.75
16
17
24
95
SA14T/K
14
M14*2.0
19
24
31
146
SA16T/K
16
M16*2.0
21
28.5
39
188
SA18T/K
18
M18*1.5
23
42.5
47.5
277
SI20T/K
20
M20*1.5
25
42.5
57
356
SI22T/K
22
M22*1.5
28
57
68
457
SI25T/K
25
M24*2.0
31
68
85
607
SI28T/K
28
M27*2.0
35
86
107
830.5
SI30T/K
30
M30*2.0
37
88
114
1003
SI35T/K
35
M36*2.0
43
101
206
1640
SI40T/K
40
M42*2.0
49
124
280
2300
SI50T/K
50
M48*2.0
60
308
485
4800
For left-hand thread,please and surffix“L”,e.g.SAL 18 T/K
If need the stainless steel material please to add “S”in front of the model for example:SSA8 T/K
SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing

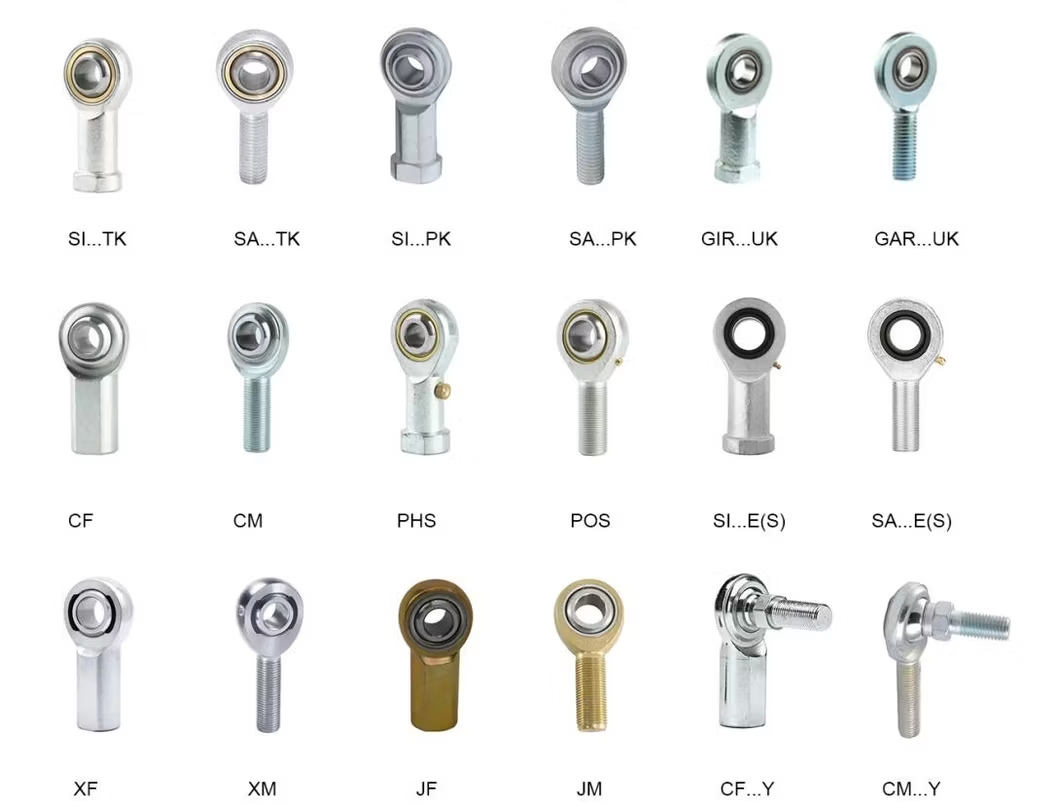

Related Products
SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing

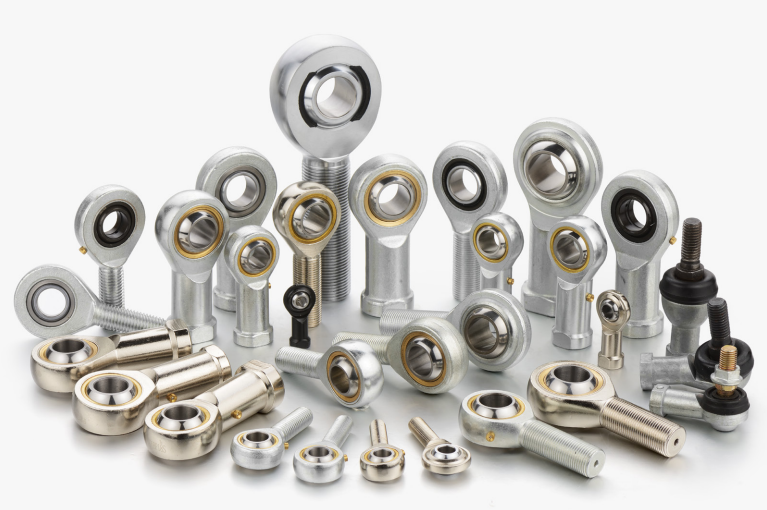

Company Profile
SA...T/K Series Right/Left Female Hand Thread Joint Rod End Bearing
Ever-power Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
