SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

SPB 2 Grooves Pulley Cast 2517 Taper Bore PulleySPB 2 grooves pulley cast 2517 taper bore pulleyProduct DescriptionApplicationPulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment,......

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

SPB 2 grooves pulley cast 2517 taper bore pulley

Product Description

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

SPB 2 Grooves Pulley Cast 2517 Taper Bore PulleyBelt SectionSPB
SpecificationSPB180-02
Product CodeCP038655
Groove Number 2
Pitch Diameter (P)180mm
Outside Diameter (O)187mm
Match Bushing2517
F44mm
L45mm
M1mm
N120mm
Weight(Kg)5.45

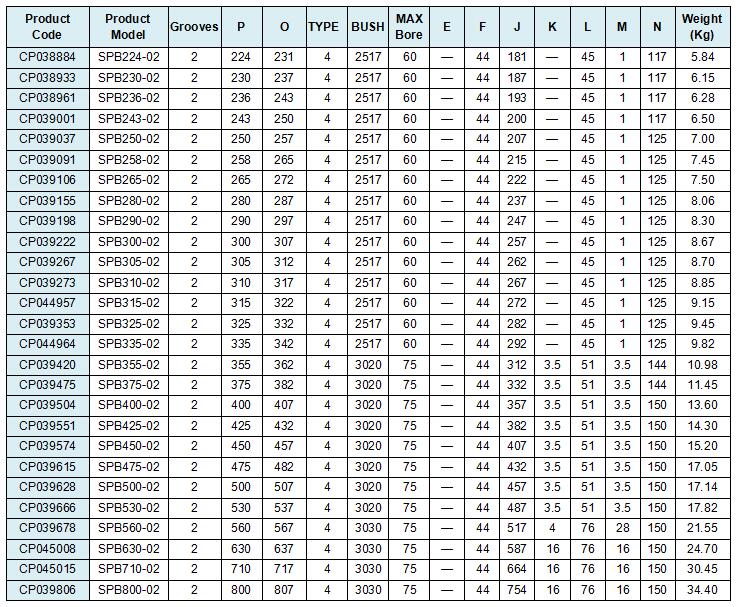

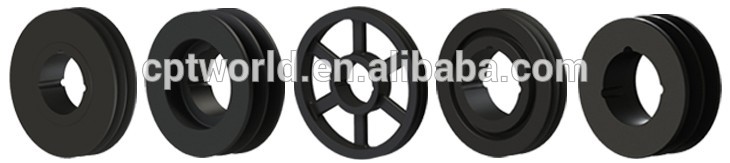

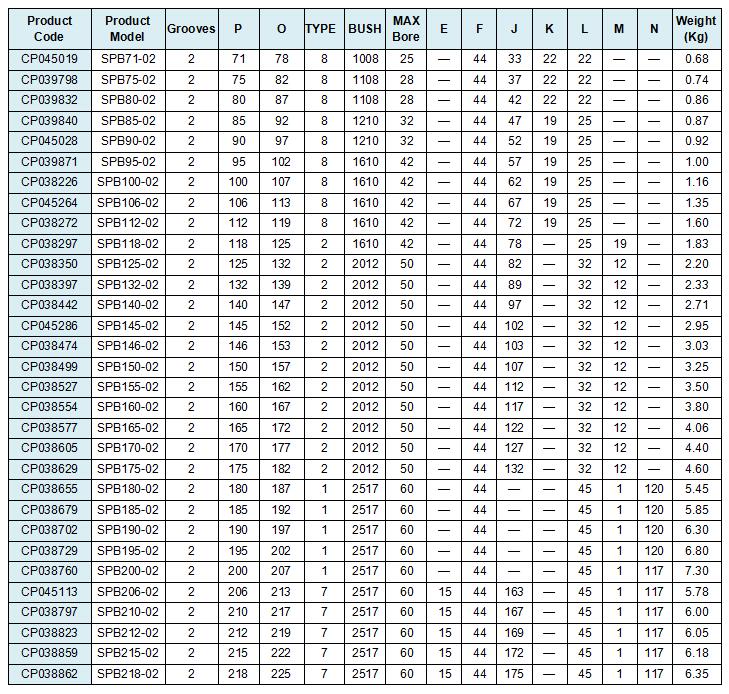

Double V belt pulleys Sizes

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

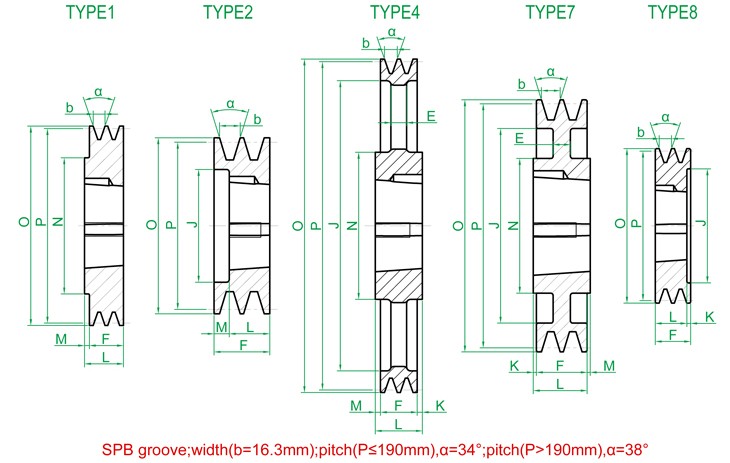

SPB-02 Taper Lock Pulley Specifications

Product Name:V Belt Pulley

Belt Section:SPB

Grooves:2

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

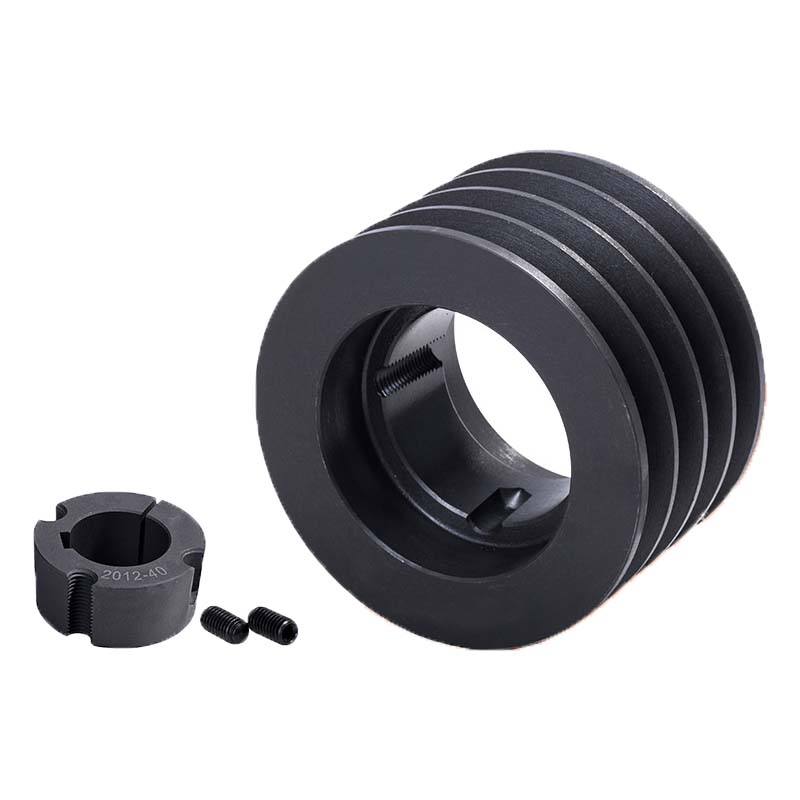

Equipped with Bush:

European standard bush
SPB 2 Grooves Pulley Cast 2517 Taper Bore PulleyBush No.Bore Range (mm)
100810,11,12,14,15,16,18,19,20,22,24,25
110810,11,12,14,15,16,18,19,20,22,24,25,28
121011,12,14,15,16,18,19,20,22,24,25,28,30,32
161014,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42
161514,15,M16,18,19,20,22,24,25,28,30,32,35,38,40,42
201218,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
251720,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
302025,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
303025,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley352535,38,40,42,45,48,50,55,60,65,70,75,80,85,90
353535,38,40,42,45,48,50,55,60,65,70,75,80,85,90
Packaging & Shipping

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley

Pulley & Belt Select

Which Pulley should I buy?

SPB 2 Grooves Pulley Cast 2517 Taper Bore Pulley
