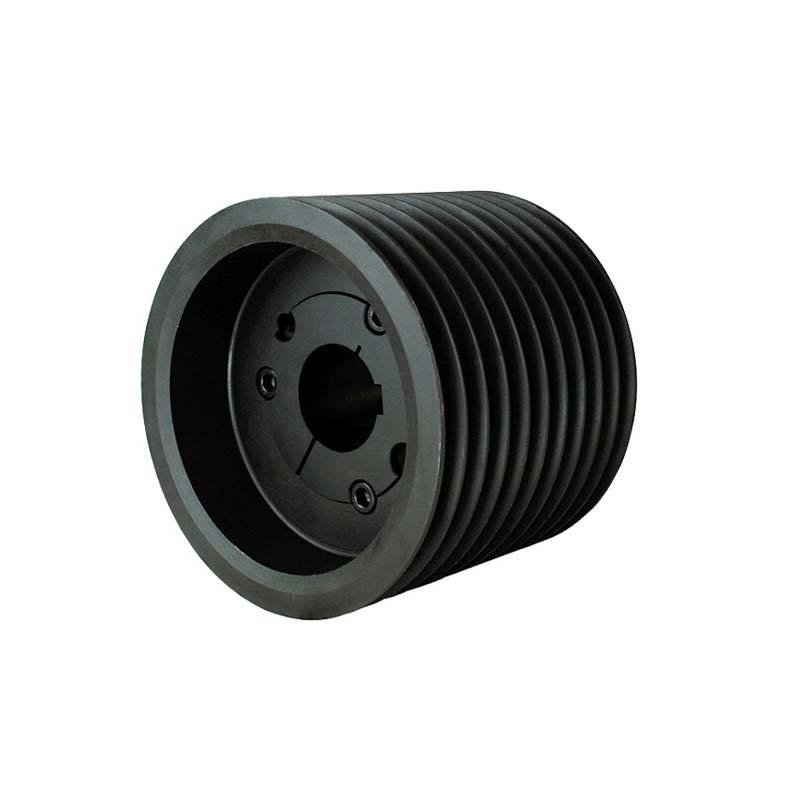

SPC vee belt cast iron pulley with complete dimensions

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

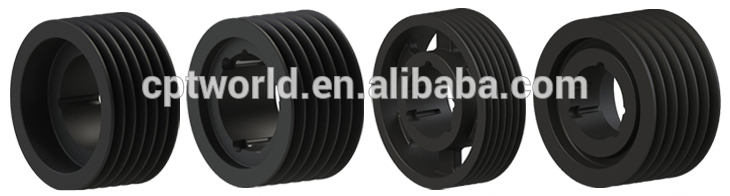

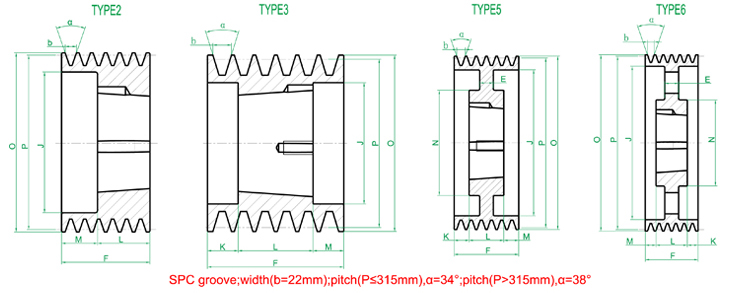

Vee belt pulley Type Drawing

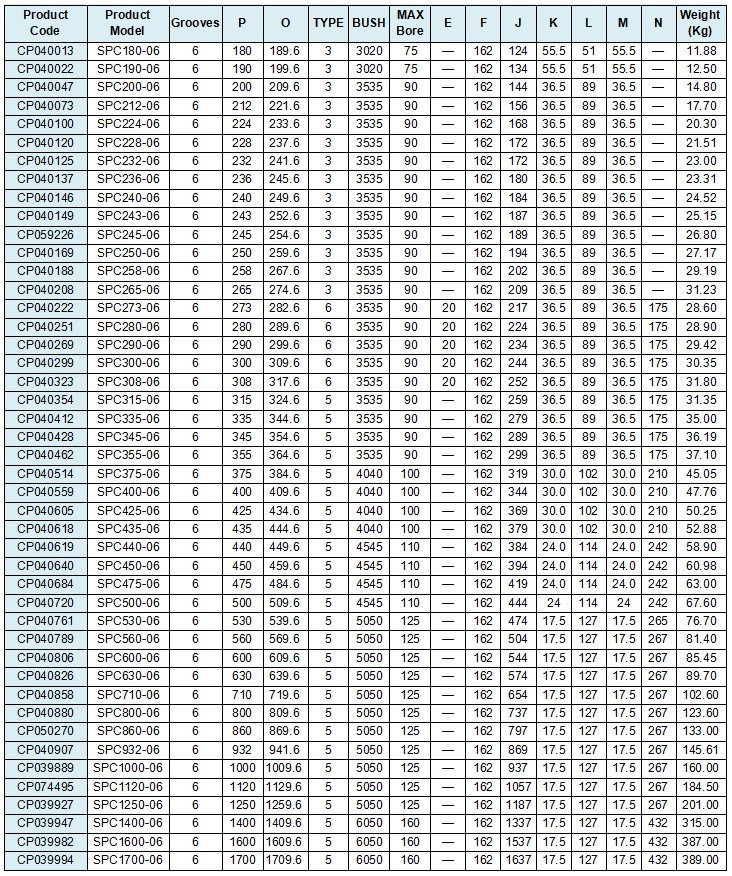

Vee belt pulley dimensions

Product Name:V Belt Pulley

Belt Section:SPC

Grooves:6

Equipped with Bush:

European standard bush
	Bush	Bore Range (mm)
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	4040	40,42,45,50,60,65,70,75,80,90,95,100
	4545	55,60,65,70,75,80,85,90,95,100,105,110
	5050	60,65,70,75,80,85,90,95,100,105,110,115,120,125
	6050	100,125,140,137.5,145,150

How to select v groove & pulley?
