SPZ Power Transmission V-groove Belt Pulleys

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

Product Features

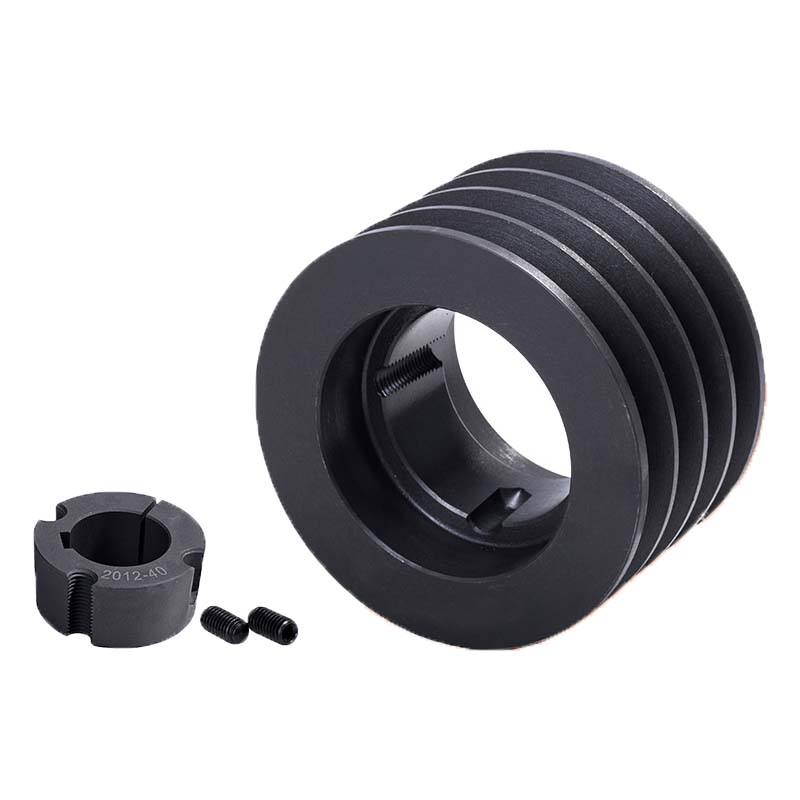

Easy Mount and Rmoval Taper Bush Pulley
High Grade cast iron material
Statically balanced
Anti-rust surface

Our Advantages
22 years Pulley manufacturer with rich exporting experience
Factory direct sale
ISO 9001 certified Top Quality
Effecient & Responsible Solution Service

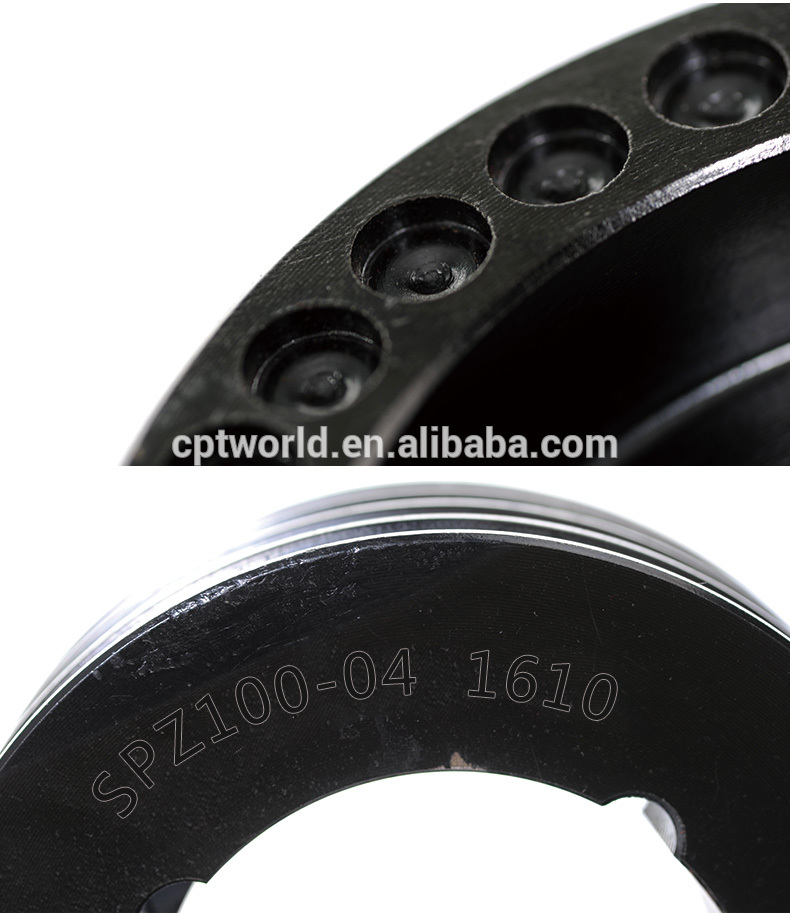

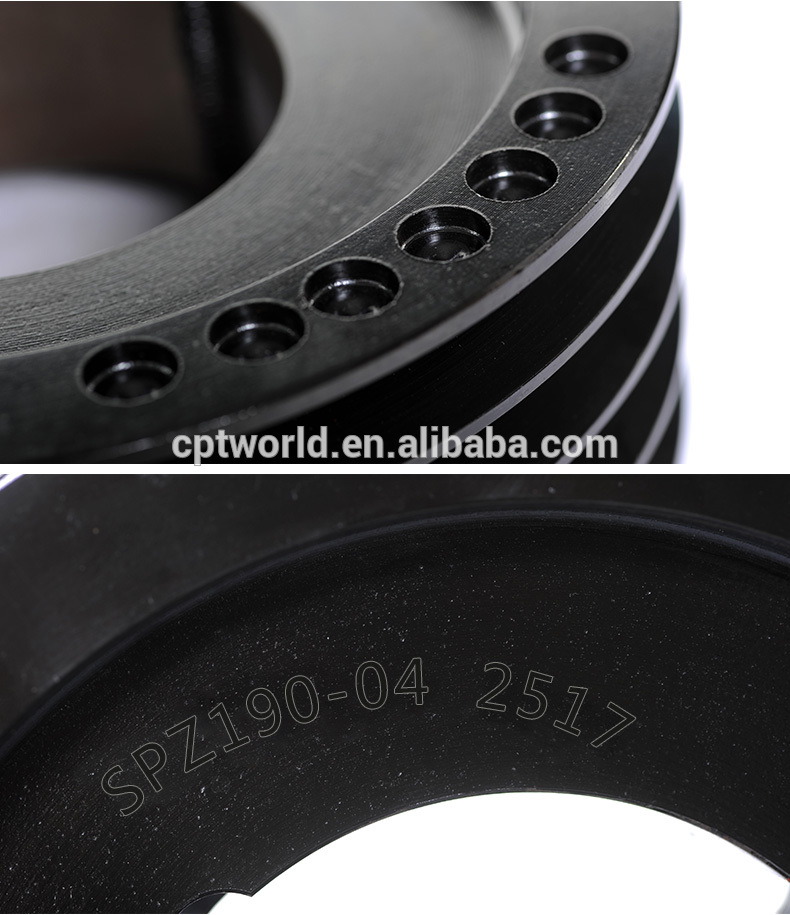

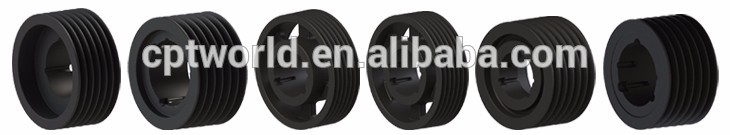

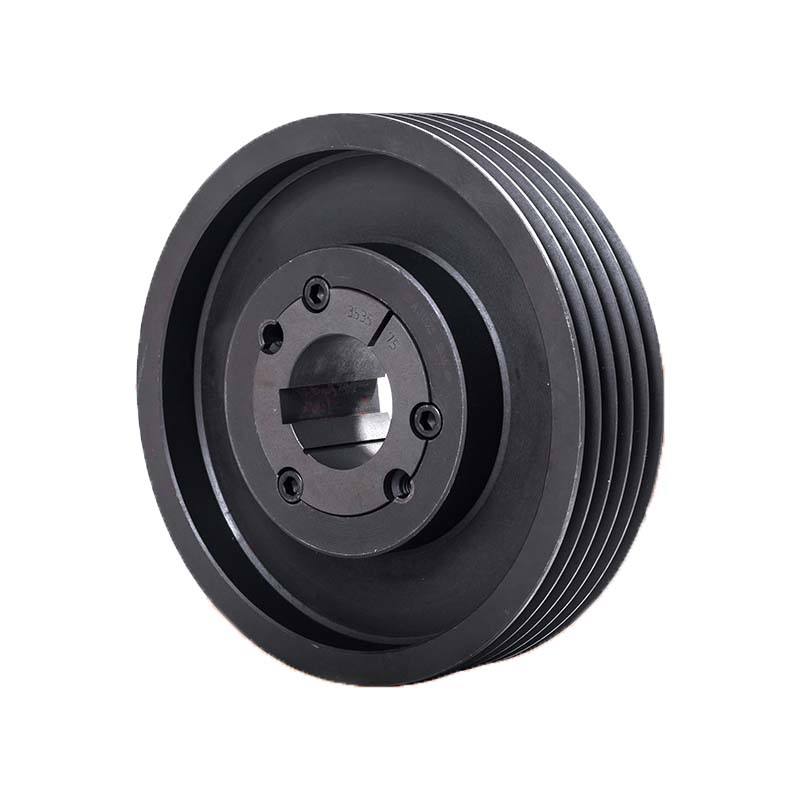

Pulley Detail Photo

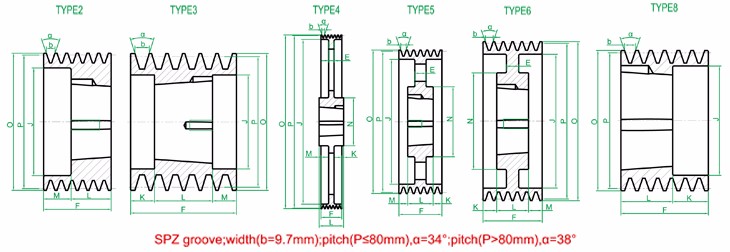

Grooved pulley belt pulley Drawing & Belt pulley 3D model

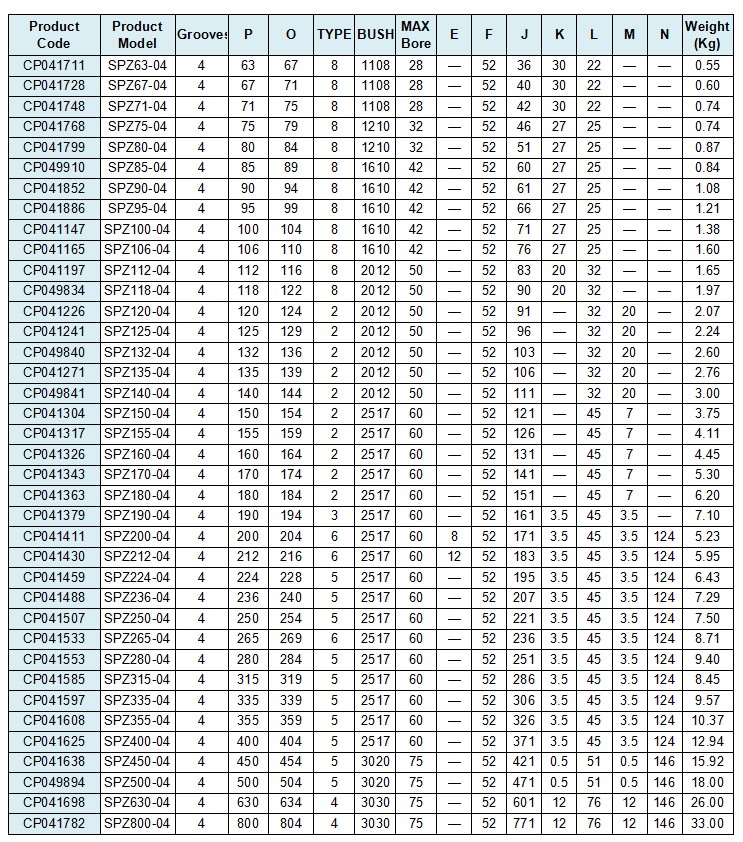

SPZ 4 grooves v pulley Dimensions / Catalog

Product Name:V Belt Pulley

Belt Section:SPZ

Grooves:4

Equipped with Bush:

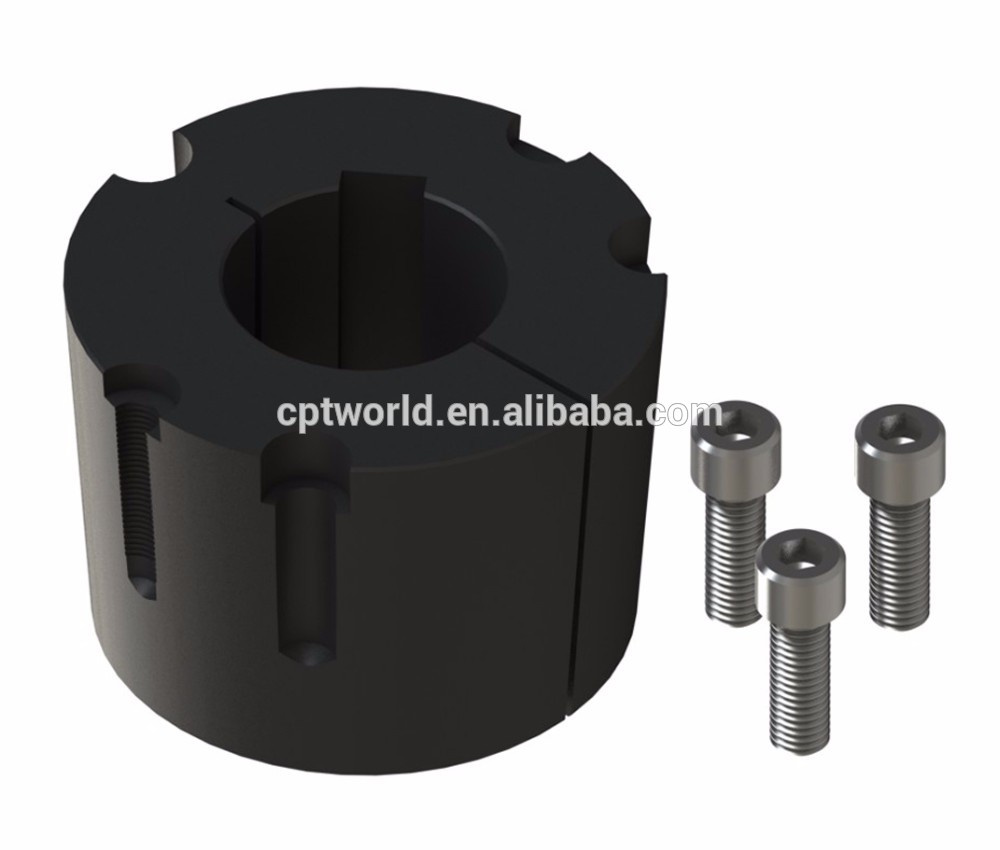

European standard taper bush
	Bush	Bore Range (mm)
	1610	14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42
	2012	18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3030	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
