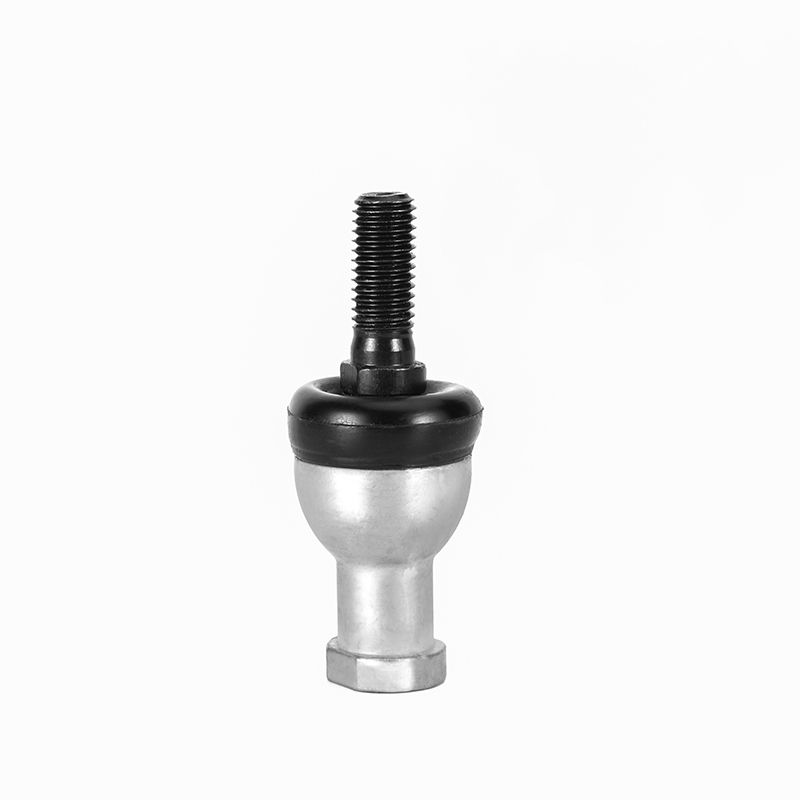

SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RS

SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RSProduct DescriptionSQZ...RS Rod End Bearing--Ball joint housing with right or left hand thread--Ball joint housing made of zinc base alloy--With rubber dust seal * Easy to use: easy to inst......

SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RS

Product Description
SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RS
SQZ...RS Rod End Bearing
--Ball joint housing with right or left hand thread
--Ball joint housing made of zinc base alloy
--With rubber dust seal

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Specification
SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RS
SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RS
Part Number
Dimensions(mm)
α
Load ratings(KN)
Weight(g)
d
d3
B
SQZ 5RS
5
M5×0.8
9
15
2.8
25
SQZ 6RS
6
M6×1.0
10
15
3.7
41
SQZ 8RS
8
M8×1.25
12
15
5.8
75
SQZ 10RS
10
M10×1.25
14
15
8.4
120
SQZ 10RS-1
10
M10×1.5
14
15
8.4
120
SQZ 12RS
12
M12×1.25
17
15
11
180
SQZ 12RS-1
12
M12×1.75
17
15
11
180
SQZ 14RS
14
M14×1.5
19
11
15
270
SQZ 14RS-1
14
M14×2.0
19
11
15
270
SQZ 16RS
16
M16×1.5
22
11
15
360
SQZ 16RS-1
16
M16×2.0
22
11
15
360
SQZ 18RS
18
M18×1.5
23
11
19
540
SQZ 20RS
20
M20×1.5
27
7.5
19
570
SQZ 22RS
22
M22×1.5
27
7.5
23
750
-For left-hand thread of the ball joint housing ,plerse add suffix "L"in added to bearing number ,e.g.SQL 6RS
-The type number of ball joints without seal is SQ...
SQZ...RS Series Steel Straight Ball Rod End with Left or Right Hand Thread With Rubber Dust Seal SQZ5RS SQZ22RS

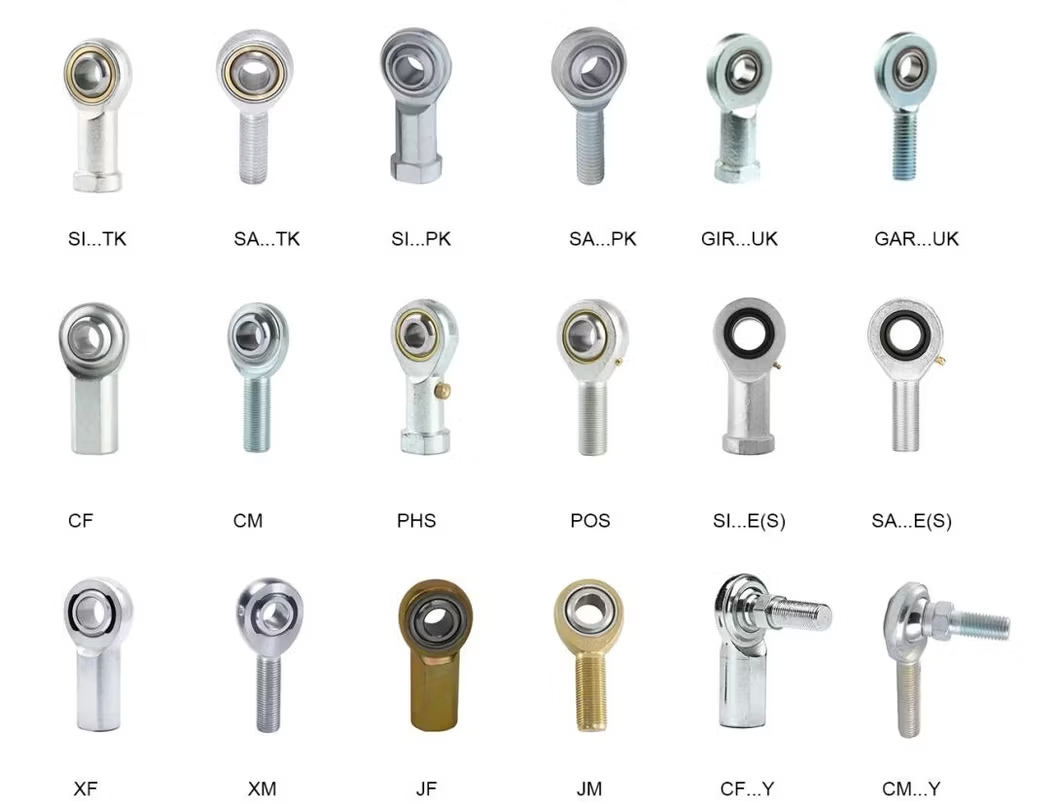

Related Products
