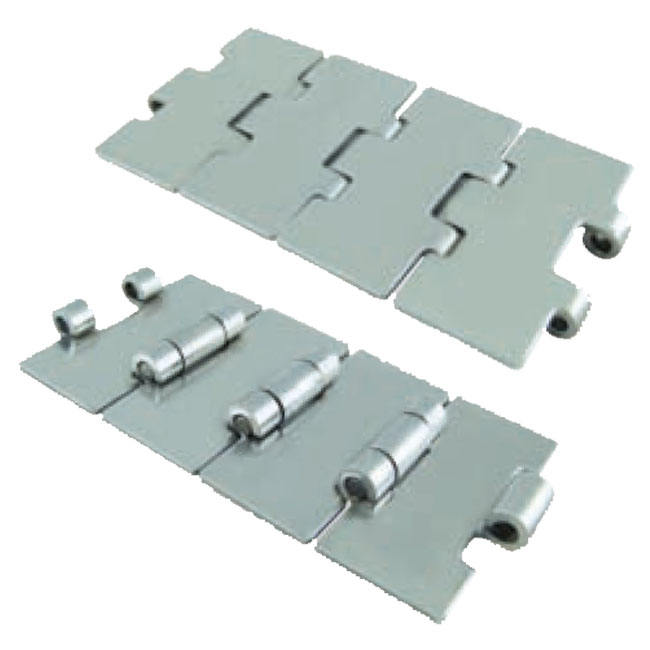

SS812/815 Single Hinge Straight Running Stainless Steel Flat Top Chains for Bottle Conveyor

Product Description

Steel and Stainless Steel Flat Top Chains are produced in straight running and side flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.

Widely used in all kinds of conveyor of bottle and heavy load such as metal.
Especially applied to the beer industry.
Suggestion: lubricant
The longest distance: 15M
Max. speed: lubricant 90M/min , dryness 60M/min
Working load: 2600N
Material: austenitic stainless steel (non-magnetic) ferritic stainless steel (magnetic)
Packing: 10 feet = 3.048 M/box 26pcs/M

Chain No.	Width (W)			Weight			Plate Gap (PG)
Chain No.		mm	inch	kg/m	lbs/ft	mm
SS812/815 - K205	53	2.05	2.1	1.42	1.8
SS812/815 - K250	63.5	2.50	2.3	1.55	1.8
SS812/815 - K263	66.8	2.63	2.4	1.62	1.8
SS812/815 - K300	76.2	3.00	2.5	1.68	1.8
SS812/815 - K325	82.6	3.25	2.6	1.75	1.8
SS812/815 - K350	88.9	3.5	2.7	1.81	1.8
SS812/815 - K400	101.5	4.00	3.2	2.15	1.8
SS812/815 - K450	114.3	4.50	3.5	2.35	1.8
SS812/815 - K500	127	5.00	3.6	2.42	1.8
SS812/815 - K600	152.4	6.00	4.4	2.96	1.8
SS812/815 - K750	190.5	7.50	5.3	3.56	1.8

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to the high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

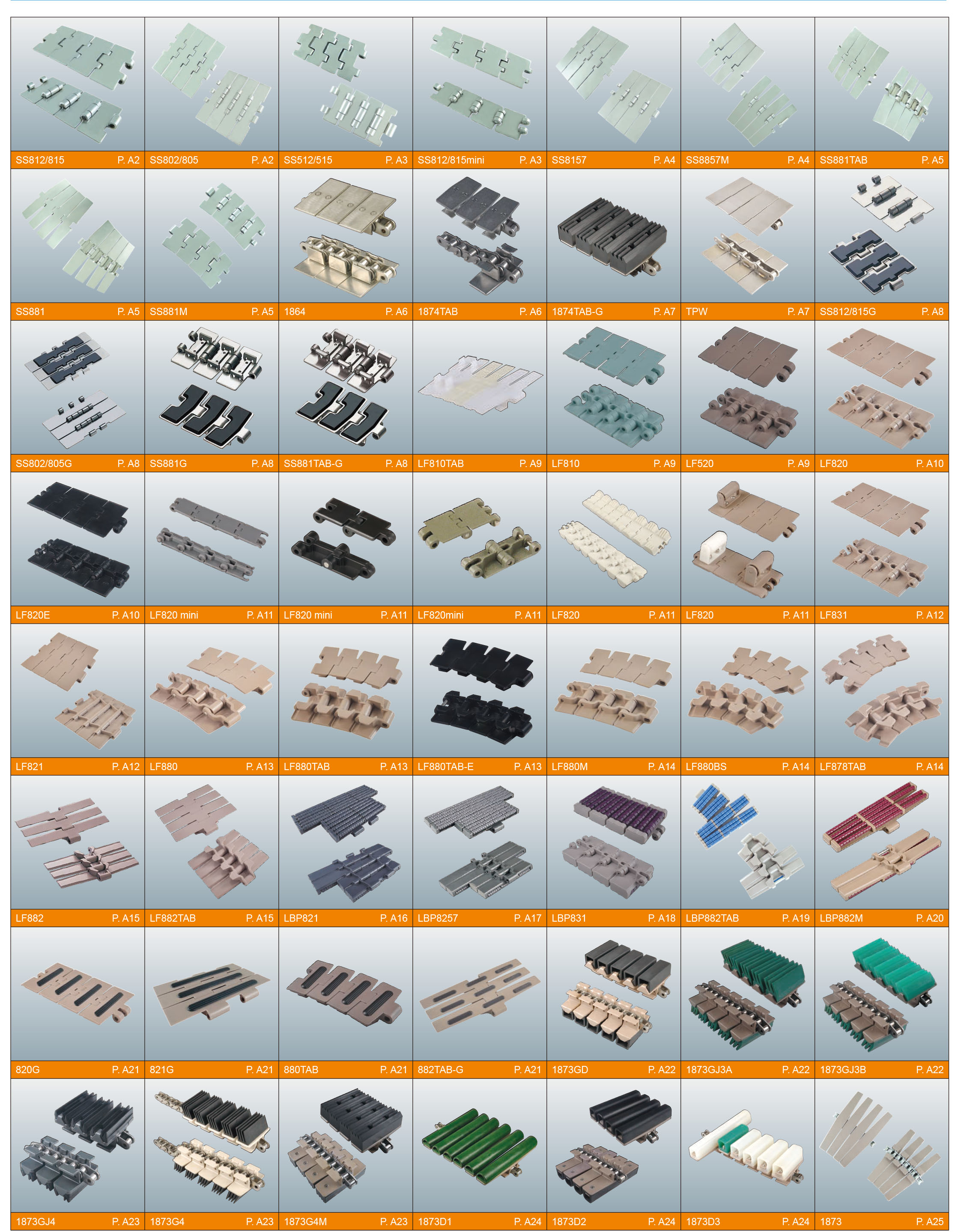

^{For more types，Please click here！}

Company Information

Ever-power transmission group is a professional manufacturer of special chain with large pitch. We have a complete chain production line, equipment selection and process design adhere to the concept of high efficiency, energy saving and automation, with perfect testing equipment, high-quality enterprise management and professional technical personnel. We focus on the production, processing, sales of drive chain, special chain, chain accessories, machinery parts and so on, forming a "aluminum, fine, special, creative" special chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement processing, wood processing, food processing, mining, metallurgy and other industries We pay attention to the reputation of product quality, through IS09001:2008 quality management system certification, and obtain self-supporting, agent related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, as well as Europe, America and Southeast Asia.

FAQ

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packing&Shipping

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

Payment Terms

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
