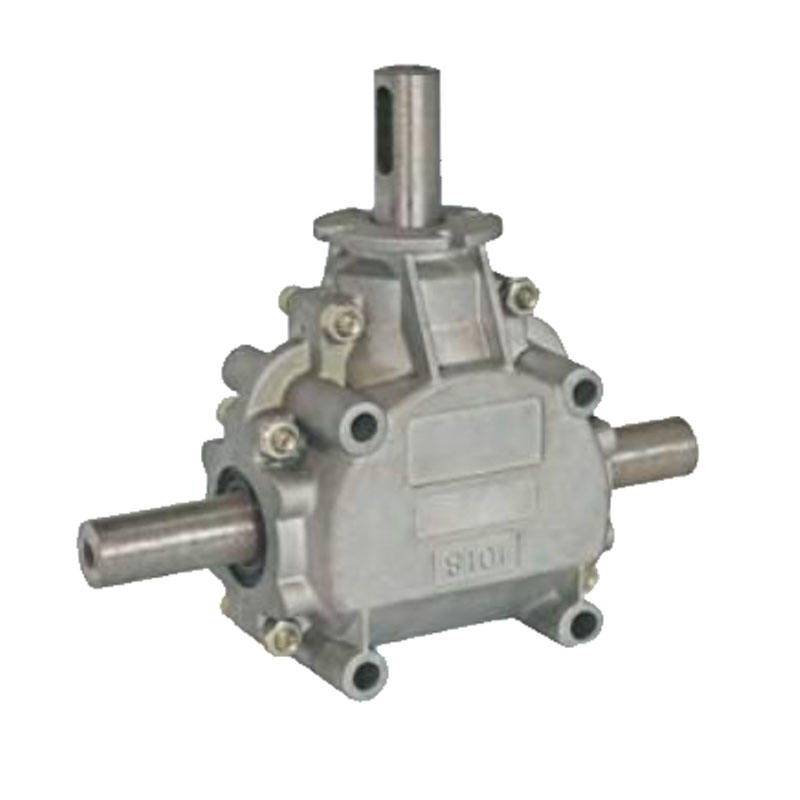

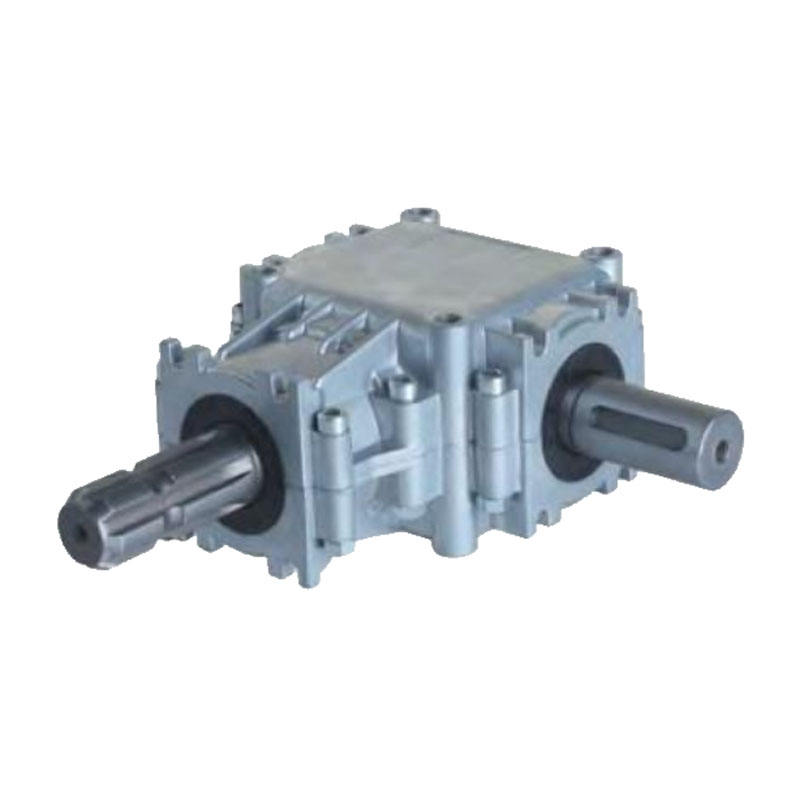

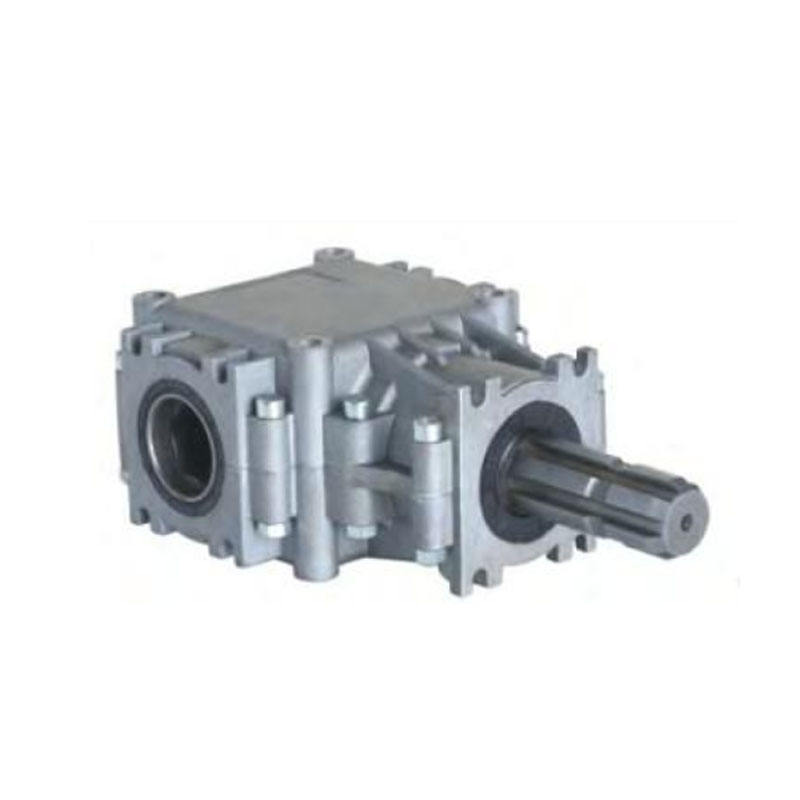

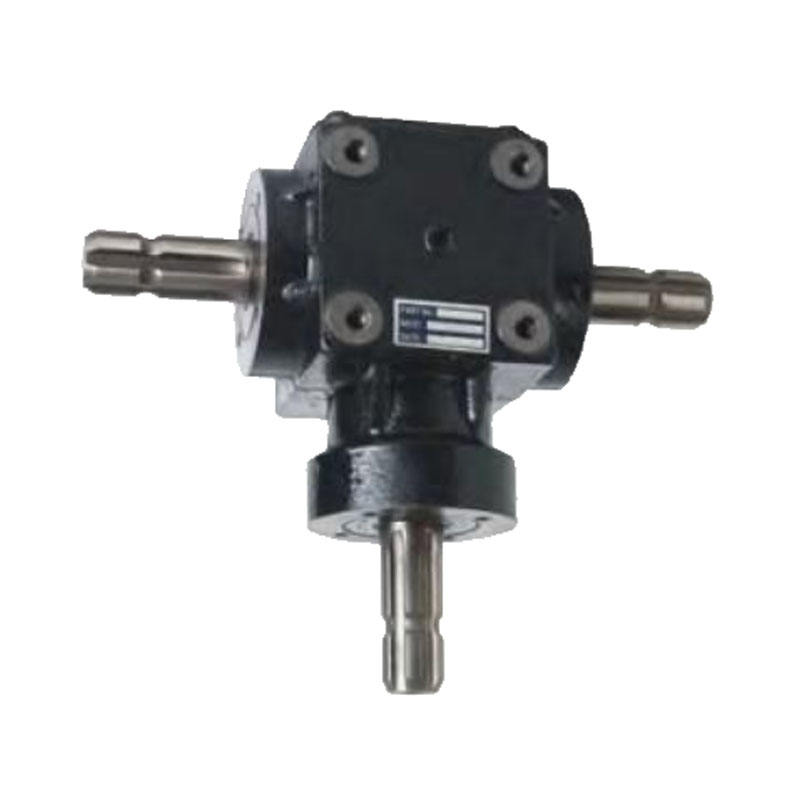

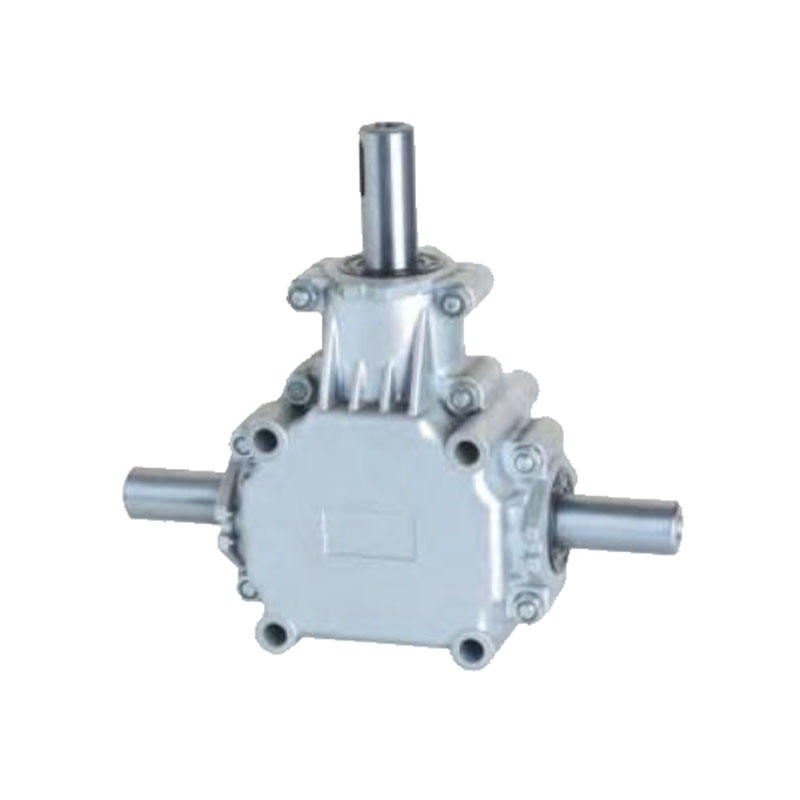

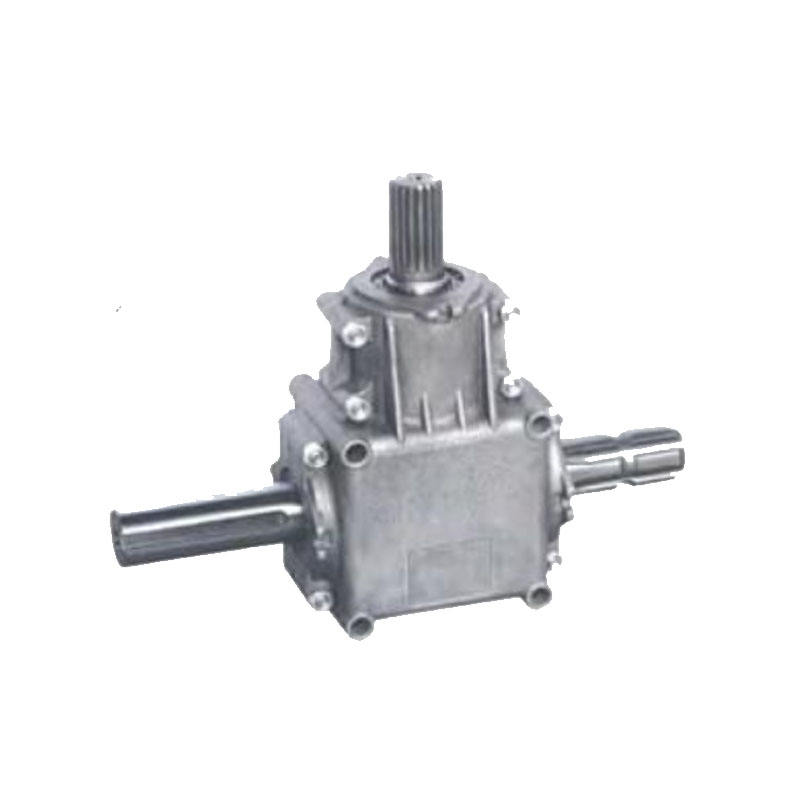

T right angle pto gearbox for agricultural machinery

T right angle pto gearbox for agricultural machineryFeatures.Standard and various, ratio 1:1,1.5:1,2:1,3:1, all are exact ratio.When the ratio is not 1:1 and pinion shaft is input, so cross shaft is reduced output. When cross shaft is input, the pinion shaft is increased output.Spiral bevel gear, st......

T right angle pto gearbox for agricultural machinery

T right angle pto gearbox for agricultural machinery

Features.
Standard and various, ratio 1:1,1.5:1,2:1,3:1, all are exact ratio.
When the ratio is not 1:1 and pinion shaft is input, so cross shaft is reduced output. When cross shaft is input, the pinion shaft is increased output.
Spiral bevel gear, stable transmission, low noise level, small vibration and strong loading capacity.
Double input shaft is available.
Multiple output shaft is available.
Any mounting position is available.

Main applied for
Agriculture and food
Building and construction
Forest and paper
Metal processing
Chemical industry and environmental protection

T right angle pto gearbox for agricultural machinery

Housing material
Cast iron/Ductile iron
Housing hardness
HBS190-240
Gear material
20CrMnTi alloy steel
Surface hardness of gears
HRC58~62
Gear core hardness
HRC33~40
Input / Output shaft material
42CrMo alloy steel
Input / Output shaft hardness
HRC25~30
Machining precision of gears
Accurate grinding, 6~5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Heat treatment
tempering, cementiting, quenching, etc.
Efficiency
98%
Noise (MAX)
60~68dB
Vibration
≤20µm
Backlash
≤20Arcmin
Brand of bearings
China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal
NAK --- Taiwan or other brands requested



T right angle pto gearbox for agricultural machinery

T right angle pto gearbox for agricultural machineryT right angle pto gearbox for agricultural machineryT right angle pto gearbox for agricultural machineryT right angle pto gearbox for agricultural machineryT right angle pto gearbox for agricultural machineryT right angle pto gearbox for agricultural machineryT right angle pto gearbox for agricultural machineryQ: Are you trading company or manufacturer ?

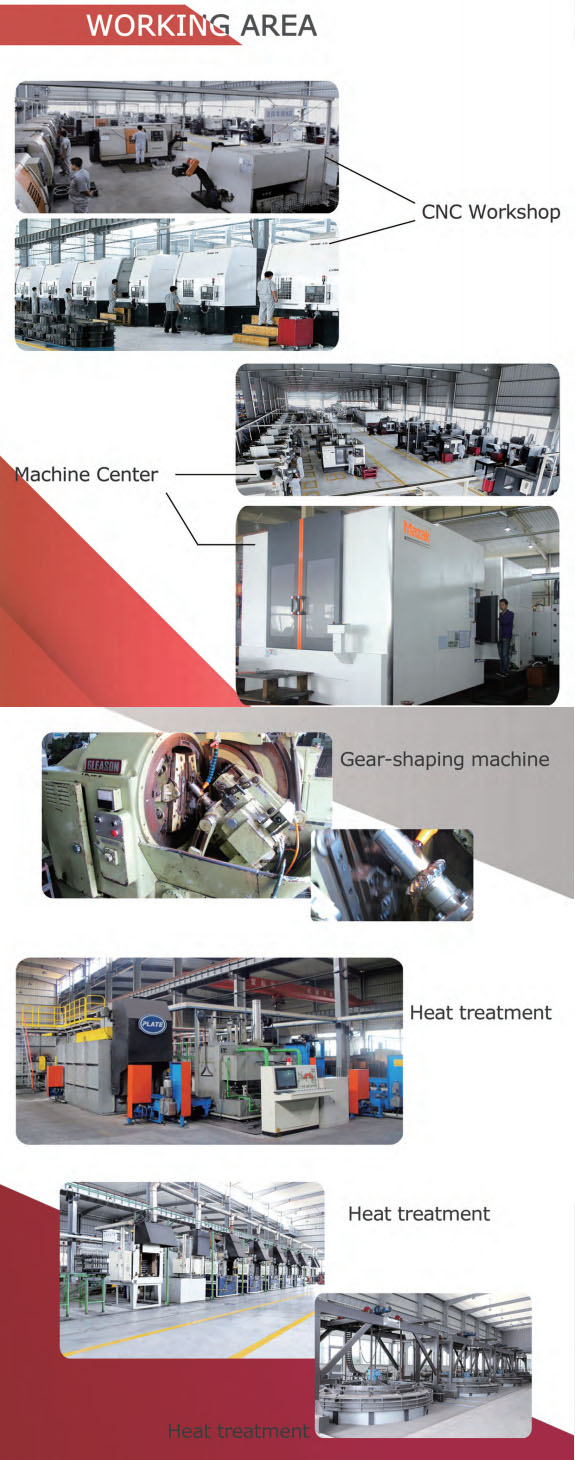

A: We Ever-Power Group one of the biggest transmission suppliers in the world are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have other question, freely to contact us,please.
