Raydafon Transmission supplies the Taper Bush HRC 90H-1108 Flexible HRC Couplings for industrial machinery, manufacturing plants, and maintenance workshops. The Flexible HRC Coupling uses a jaw and spider structure to absorb vibration, misalignment, and shock loads. The Taper Bush HRC 90H-1108 is a flexible coupling with cast iron construction and boiling black surface treatment. This HRC Coupling is designed for reliable power transmission in pumps, compressors, conveyors, and agricultural equipment.
The Taper Bush HRC 90H-1108 Flexible HRC Couplings belong to the HRC coupling series, which is known for easy installation and maintenance. The Flexible Coupling accepts taper bush bores from 32mm to 130mm and handles nominal torque up to 2000Nm with maximum torque 5000Nm. Raydafon Transmission manufactures this HRC Coupling in a China Factory and exports to global OEM markets. Buyers looking for a durable Flexible Coupling Supplier can contact Raydafon Transmission for quotation and samples.

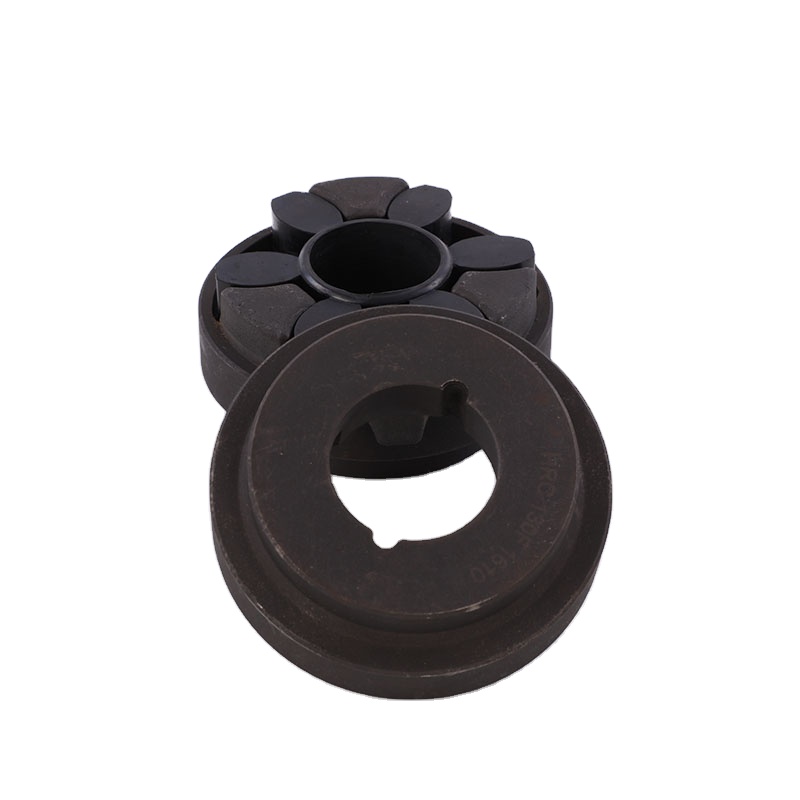

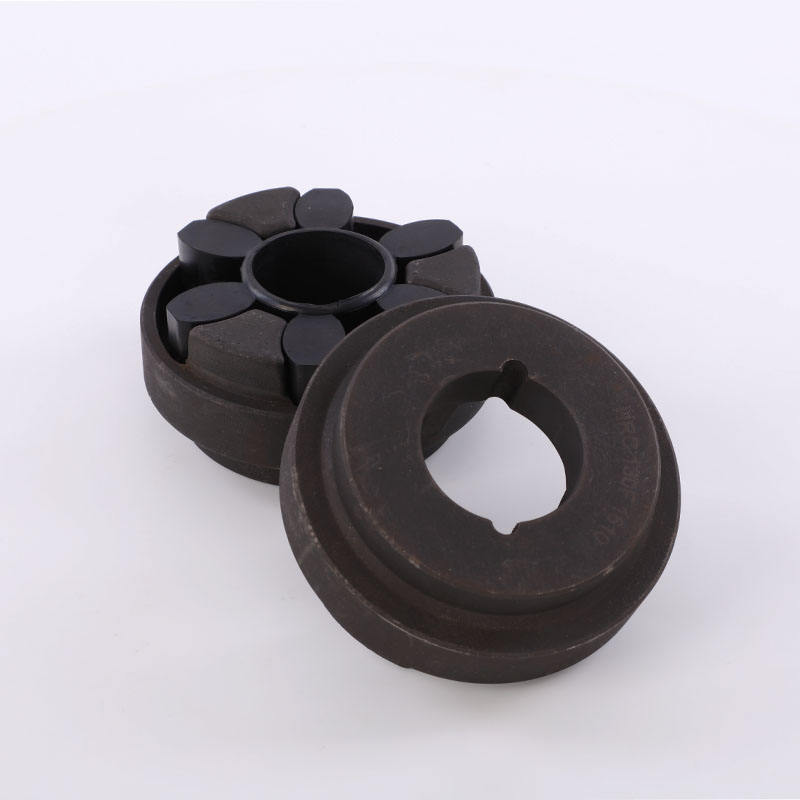

Figure 1: Taper Bush HRC 90H-1108 Flexible HRC Couplings with cast iron body and rubber spider.

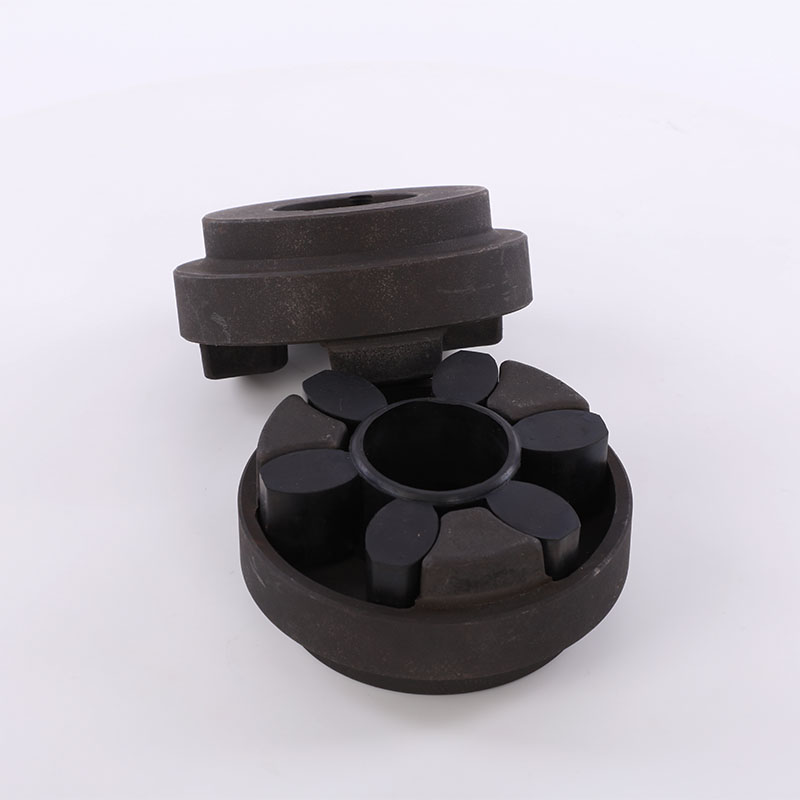

Figure 2: HRC coupling structure with jaw and spider for flexible power transmission.

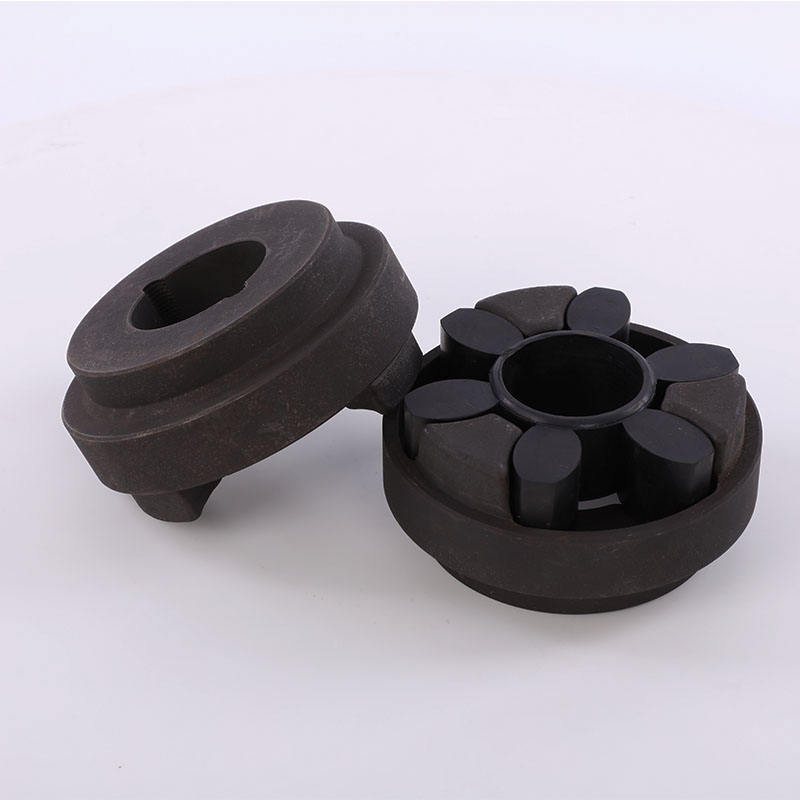

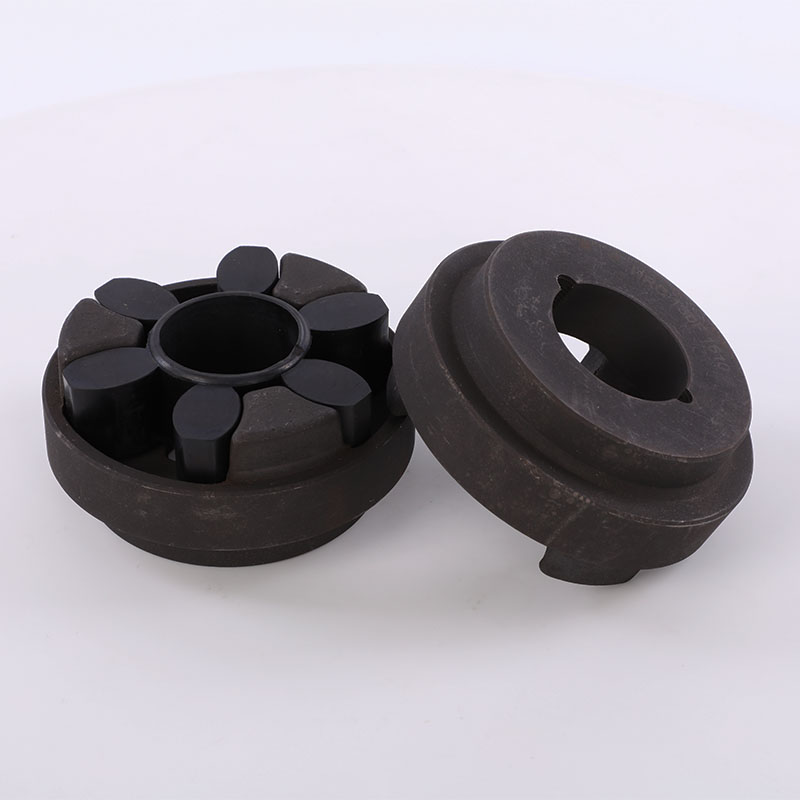

Figure 3: Taper Bush HRC 90H-1108 Flexible Coupling with taper bush bore.
| Product Name | Taper Bush HRC 90H-1108 Flexible HRC Couplings |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction Works, Energy & Mining |
| Structure | Jaw / Spider |
| Flexible or Rigid | Flexible |
| Standard or Nonstandard | Standard |
| Material | Cast Iron |
| Brand Name | Raydafon |
| Place of Origin | China |
| Model Number | HRC 90H-1108 |
| Type | B flange, H flange, F flange |
| Surface Treatment | Boiling Black |
| Nominal Torque | 2000Nm |
| Max Torque | 5000Nm |
| Weight | 1.2–72kgs |
| Length | 65–285.5mm |
| Rubber Element | HRC 70-RE to HRC 280-RE |
| Max Bore | 32–130mm |
| Quality Level | High Quality |
Note: Specifications are subject to change without notice. Customized bore and flange types are available.

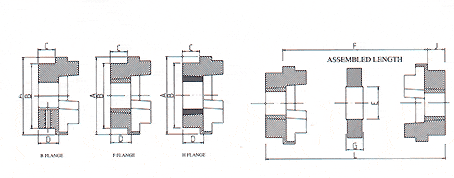

Figure 4: HRC 90H-1108 Flexible Coupling dimension and taper bush detail.
The Taper Bush HRC 90H-1108 Flexible HRC Couplings are widely used in manufacturing plants, machinery repair shops, food and beverage factories, farms, construction works, and energy mining operations. The Flexible HRC Coupling connects electric motors, gearboxes, pumps, and compressors. The HRC Coupling absorbs shock and misalignment in conveyor systems, mixers, and agricultural machinery. Raydafon Transmission supplies the Taper Bush HRC 90H-1108 for OEM and aftermarket replacement.
Figure 5: Flexible HRC Coupling installed on industrial drive system.
Figure 6: Taper Bush HRC 90H-1108 packing and delivery by Raydafon Transmission.
Raydafon Transmission is a leading manufacturer and supplier of industrial transmission components, including HRC Couplings, jaw couplings, gear couplings, sprockets, chains, and hydraulic cylinders. Raydafon Transmission has over 20 years of experience in global OEM markets and exports to more than 50 countries. The China Factory produces the Taper Bush HRC 90H-1108 Flexible HRC Couplings with strict quality control and competitive pricing. Raydafon Transmission also supplies the Hydraulic Cylinders Manufacturer product line for agricultural and construction machinery.
Raydafon Transmission supports wholesale distributors, machinery repair shops, and OEM buyers with fast delivery and technical support. The Flexible HRC Coupling and Taper Bush HRC 90H-1108 are available for immediate quotation. Contact Raydafon Transmission for more information.
Q1: What is the material of the Taper Bush HRC 90H-1108 Flexible HRC Couplings?
A: The HRC Coupling body is made of cast iron with boiling black surface treatment. The rubber element is available from HRC 70-RE to HRC 280-RE.
Q2: What is the torque capacity of this Flexible Coupling?
A: The Taper Bush HRC 90H-1108 has nominal torque 2000Nm and maximum torque 5000Nm, suitable for heavy-duty industrial drives.
Q3: What bore sizes are available for the HRC Coupling?
A: The Flexible HRC Coupling supports taper bush bores from 32mm to 130mm. Customized bore sizes are available upon request.
Q4: Which flange types can you supply?
A: Raydafon Transmission supplies B flange, H flange, and F flange types for the Taper Bush HRC 90H-1108 Flexible HRC Couplings.
Q5: Do you provide samples and OEM service?
A: Yes. Raydafon Transmission offers free samples (freight not included) and OEM/ODM service for the HRC Coupling and Flexible Coupling.
Q6: What is the delivery time and payment term?
A: Delivery time is usually 30–45 days after deposit. Payment term is 30% T/T in advance, balance before shipment.
Q7: How to choose the right HRC coupling model?
A: Please provide shaft diameter, torque, speed, and installation space. Raydafon Transmission engineers will recommend the correct Taper Bush HRC 90H-1108 or other HRC coupling model.
Send us your shaft diameter, torque requirement, and flange type. Raydafon Transmission will provide the best Flexible HRC Coupling solution for your machinery. Contact Raydafon Transmission for price, samples, and delivery details.
