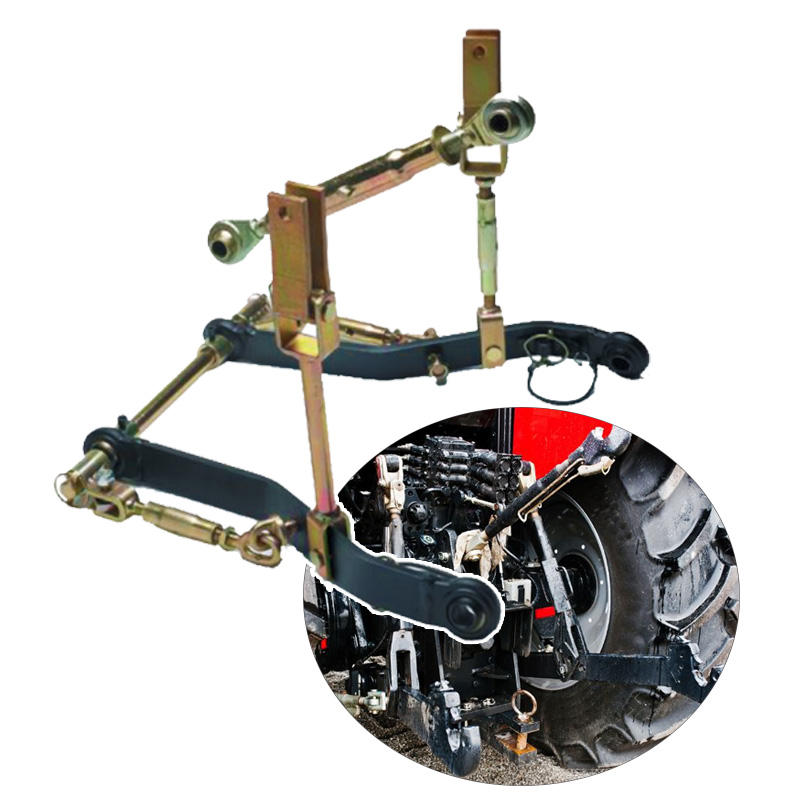

Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts

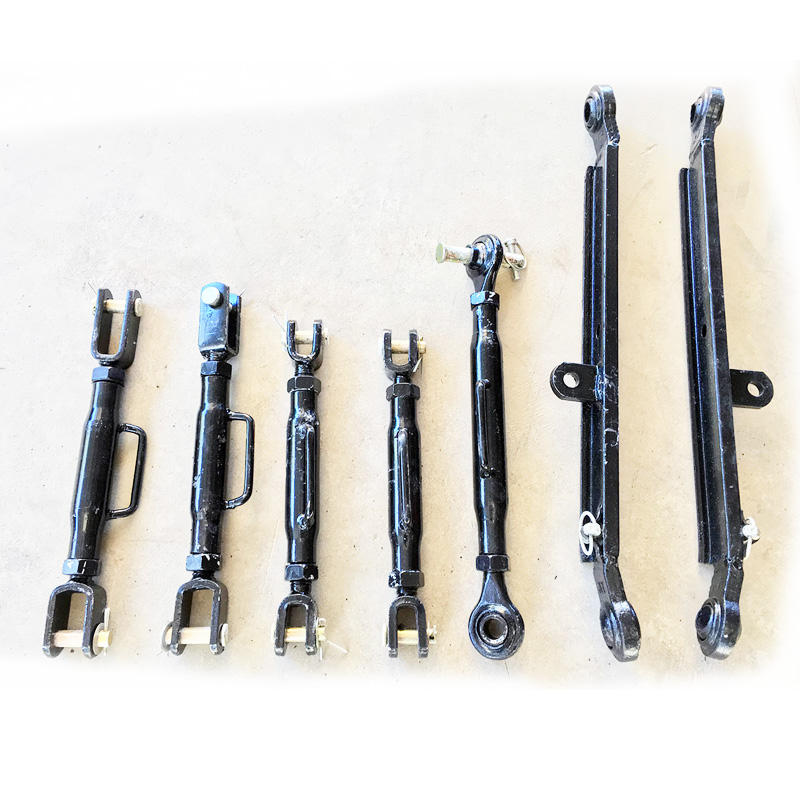

Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare PartsProduct Description3 Point Linkage Kit to Fit TractorDesigned as a rear tractor 3 point hitch, this linkage kit contains 10 separate pieces. When assembled, this tractor implement iscompatible with......

Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts

Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Product Description
3 Point Linkage Kit to Fit  Tractor
Designed as a rear tractor 3 point hitch, this linkage kit contains 10 separate pieces. When assembled, this tractor implement is
compatible with a horsepower range of 10 HP to 25 HP on most models of Kubota® or Iseki® tractors. This kit includes a pair of the
following: leveling arms, lynch - pins with chains and chain stabilizers. It also includes single items, 1 top link with pin, 1
fixed stabilizer, 1 adjustable stabilizer and 1 rod with spacer. The exterior is coated in a paint that can withstand corrosion in
outdoor conditions and all parts have been electroplated.
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Specifications
* 3 Pt. Linkage
* Fits most models of tractors that range in horsepower rating of 10 to 25 HP.
* Trivalent white
* Lift arm pins are Category 1Category 2 Category 3

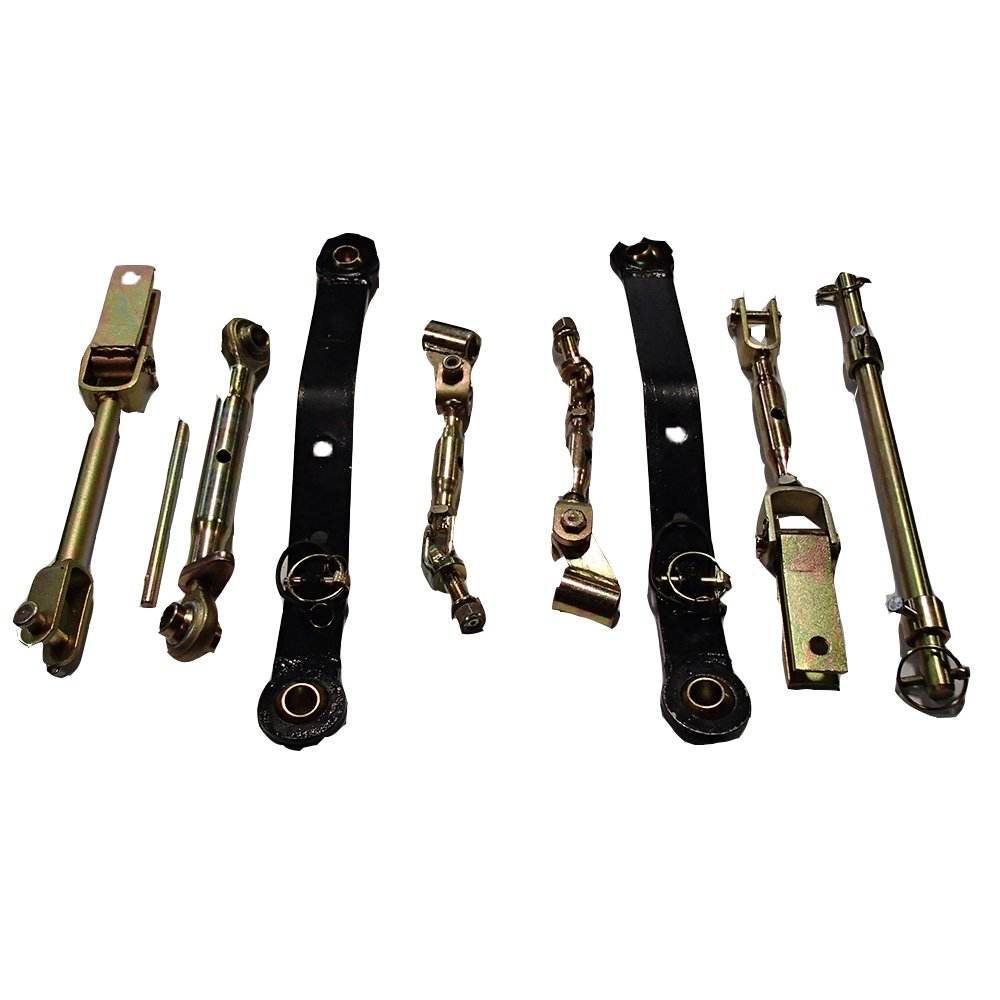

* Kit includes:
* (2) non-leveling arms(2) lynch pins with chains(2) chain stabilizers(1) top link with pin(1) fixed stabilizer(1) adjustable
stabilizer(1) rod with spacer

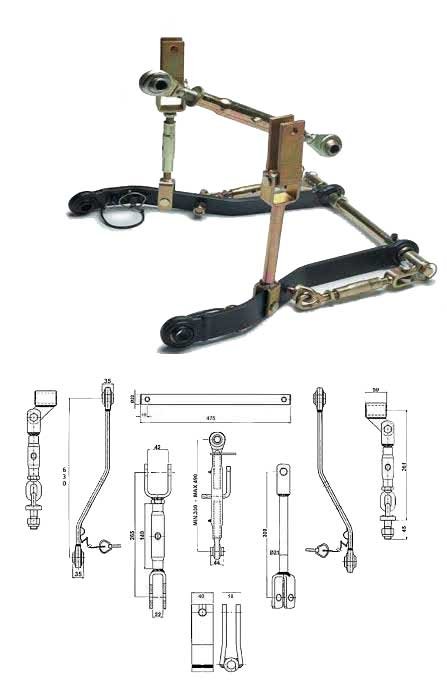

* Top link holes are 13" center to center closed
* Lift arm holes are 20" center to center
* Connecting Rod holes are 17-1/2" center to center
* Stabilizer bars 10" center to center
* Lifting arms holes are 17-12" center to center
* Parts are electroplated
* Resistance to corrosion
* Material: mild steel
* Weight: 36.2 lbs
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts

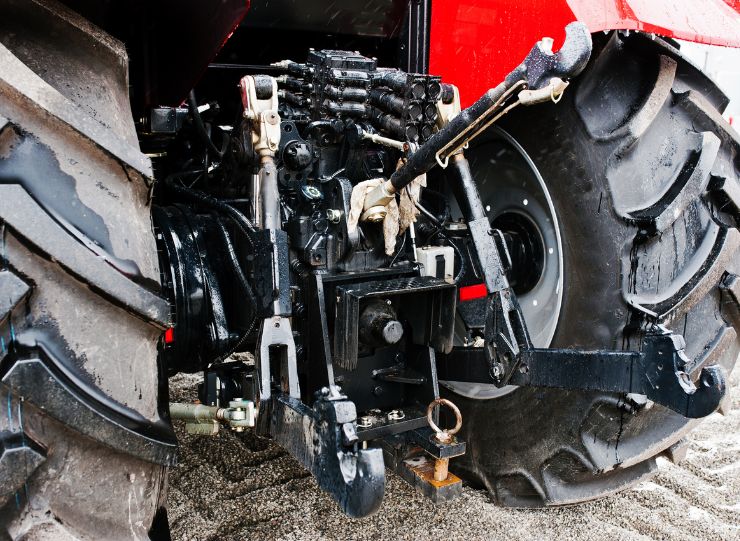

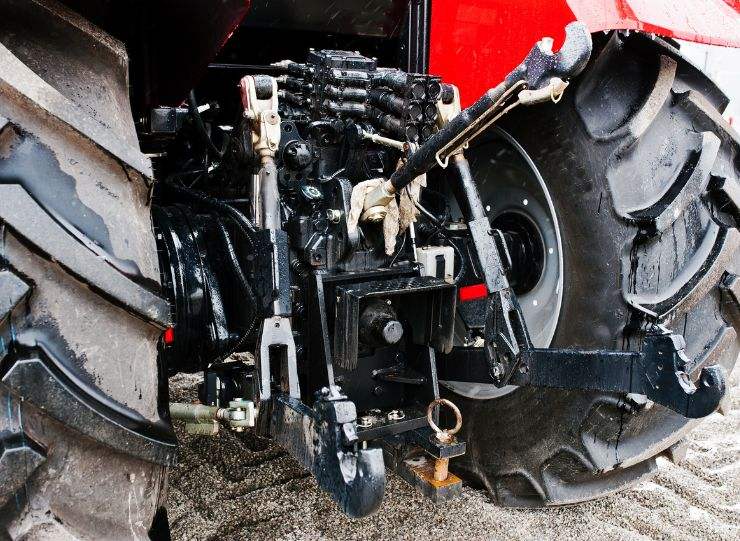

The suspension mechanism is classified based on the size of the tractor engine. Choosing the appropriate category will enable the implement to connect safely and reliably.
Category
Application
Hitch Pin Size - Upper Link
Hitch Pin Size - Lower Link
Lower Hitch Spacing
Tractor Drawbar Power
0
Suitable for lightweight implements on compact tractors and small ride on mowers.
17 mm (5/8")
17 mm (5/8")
500 mm (20")
<15kW (<20 hp)
1
Suitable for compact tractors under 50 hp.
19 mm (3/4")
22.4 mm (7/8")
718 mm (28")
15-35 kW (20-45 hp)
2
Suitable for utility tractors between 50-140 hp.
25.5 mm (1")
28.7 mm (1 1/8")
870 mm (34")
30-75 kW (40-100 hp)
3
Suitable for large tractors between 110-220 hp.
31.75 mm (1 1/4")
37.4 mm (1 1/2")
1,010 mm (40")
60-168 kW (80-225 hp)
4
Suitable for heavy duty tractors with engines over 180 hp.
45 mm (1 3/4")
51 mm (2")
1,220 mm (48")
135-300 kW (180-400 hp)

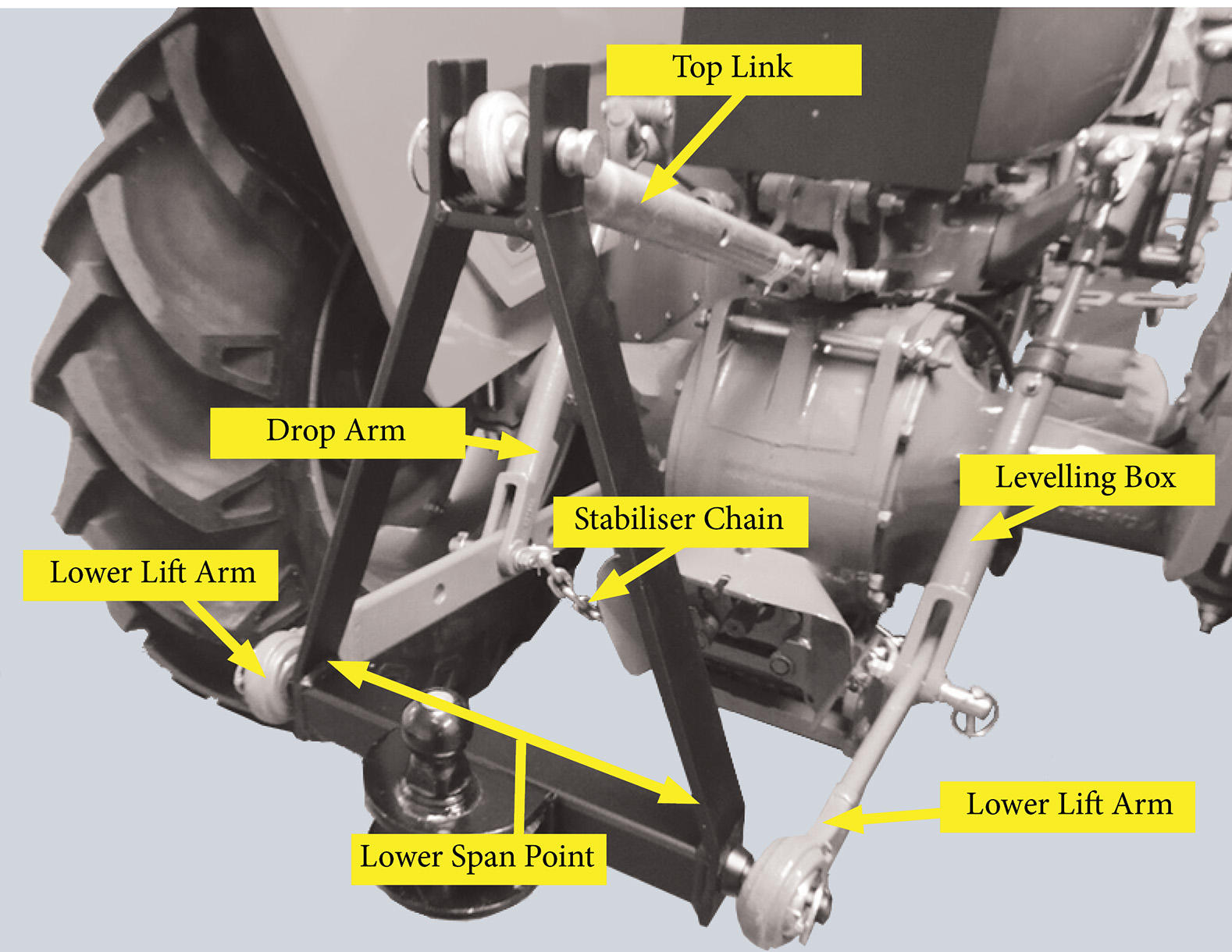

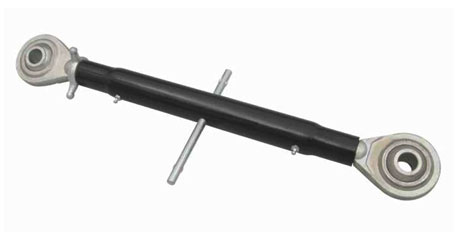

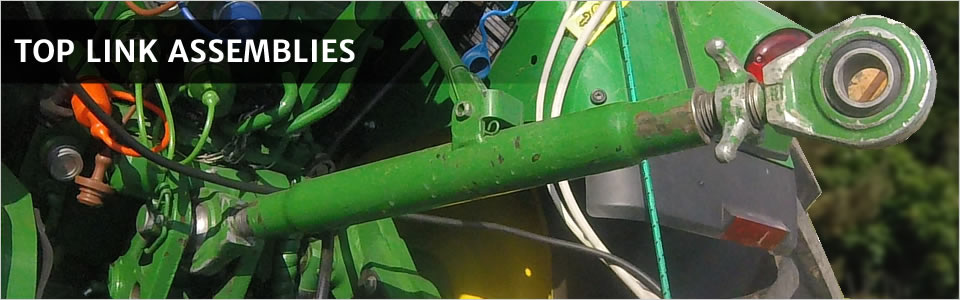

Top Link

The top link is rigid and designed to align the operating angle of the implement. The manual top link has an adjustable shaft with a "ball" end - one end connected to the tractor and the other end connected to the implement. Hydraulic top linkage is very common on large machines, and can be easily adjusted by pressing a button!
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Tractor Front Hitch System Top link 3 Point Linkage kit For CAT1 CAT2 Trailer Agricultural Spare Parts
Click here for more details!
