Product Description

Vertical Horizontal CNC Machine Tool Lathe Metal Cutting Forming Gear Turning Hob Relieving Grinding Milling Machining Center

Products Description

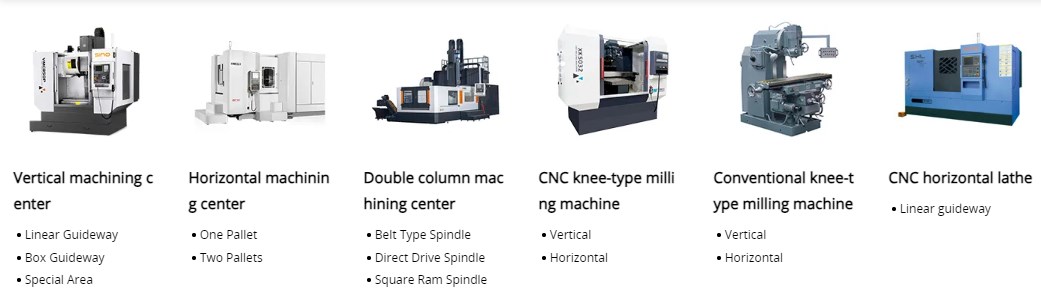

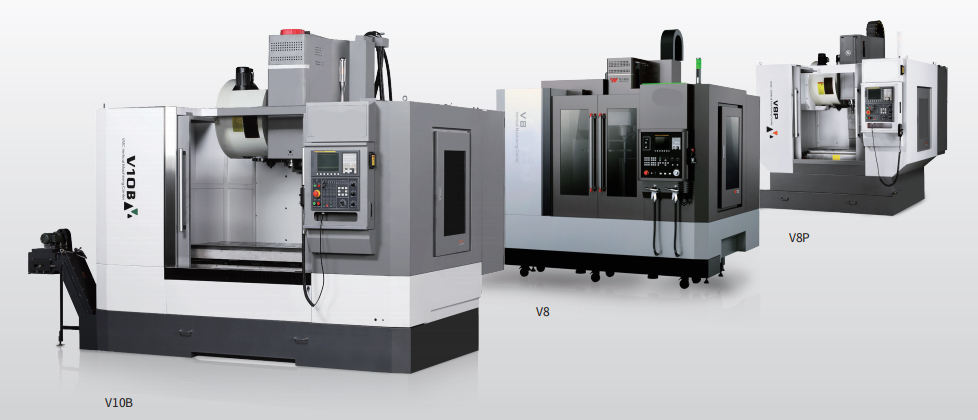

Our CNC machining center adopts a vertical frame layout, with columns fixed on the bed. The spindle box moves up and down along the columns (Z direction), the slide seat moves longitudinally along the bed (Y direction), and the workbench moves laterally along the slide seat (X direction). All three axes use linear guides, replacing sliding friction with rolling friction, which makes the movement speed faster and meets the requirements of high speed and precision. The spindle can achieve stepless speed change within its speed range, and is controlled by a built-in encoder in the motor, which can achieve spindle orientation and rigid tapping functions.

Our Product Range：

Center Height	175-250mm
Center Distance	750mm
Worm Diameter	Φ200mm Φ220mm Φ300mm Φ400mm
Maximum Effective Length	350-550mm
Maximum modulus	M8 (unilateral grinding can reach M12)
Worm Type	ZA，ZN，Zl，ZK，ZC1
Heads	Any
Lead Angle	±0~±45°
Max.Grind Depth	20mm
Accuracy	DIN3974 Teeth&Helix Level 4
Table Transverse Strokt	Z=800mm
WheelLongitudinal Stroke	X = 370mm
Grinding Spindle	25kw, Max.4500rpm
Max.Wheel	Φ500xΦ203x40mm
CNC System	LYNUC U5E
Power	3AC 380V 40KVA
Main Machine Size	3150x2100x1900mm
Main Machine Weight	3500-7000kg

Product Features

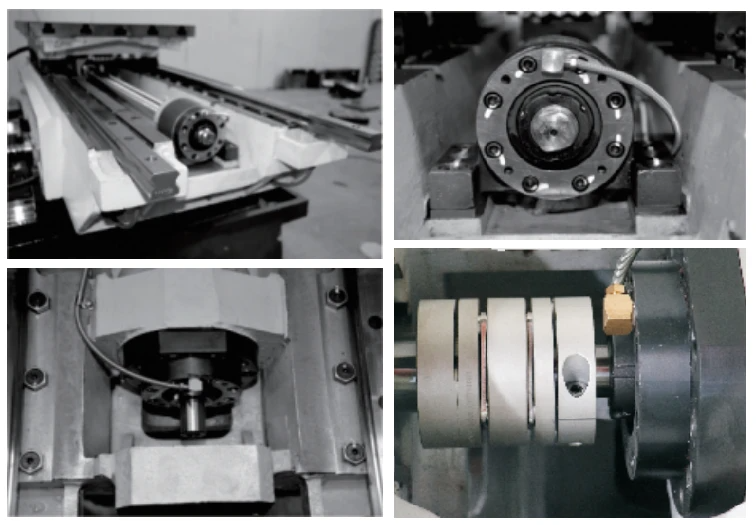

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

Application

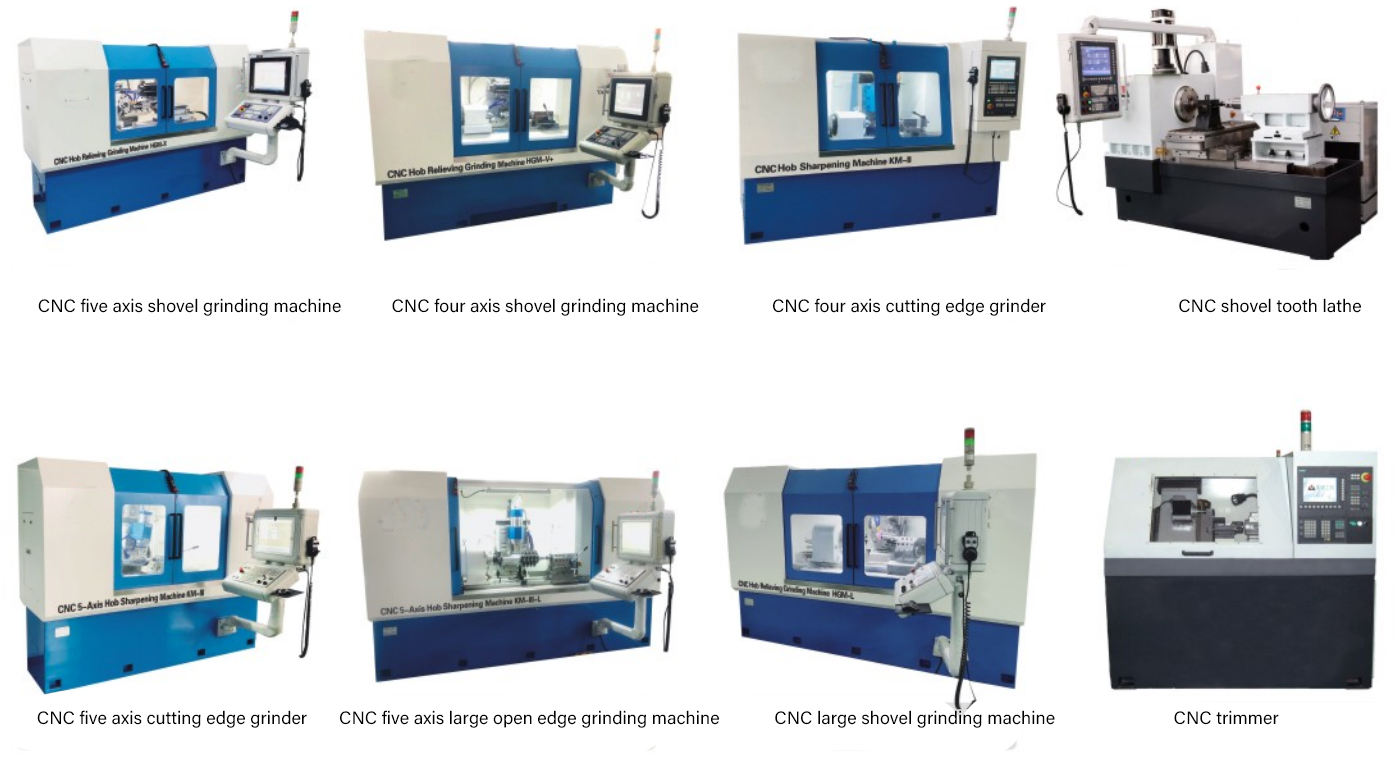

CNC machines

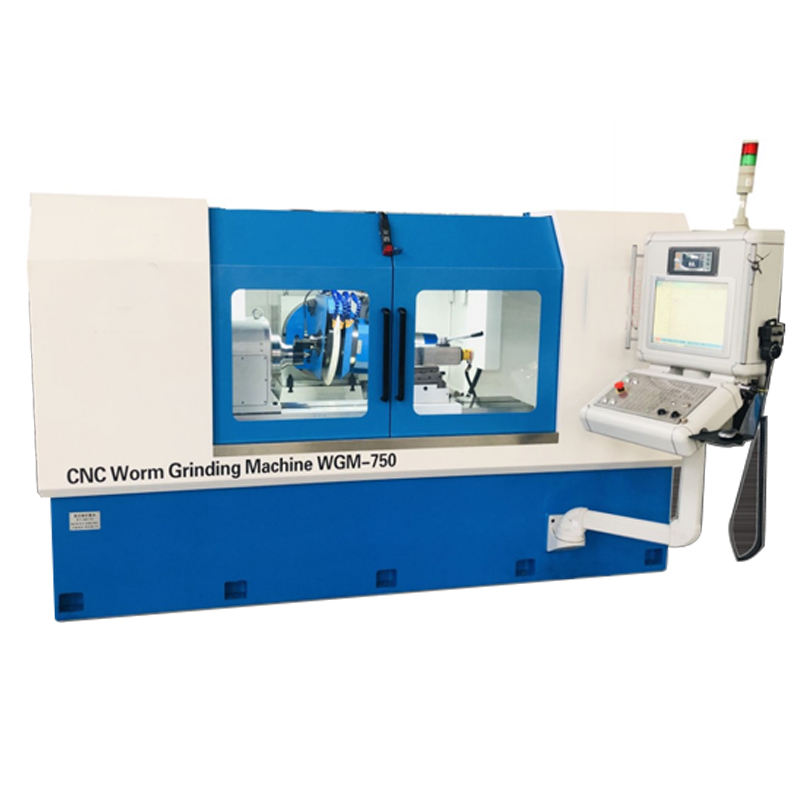

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
